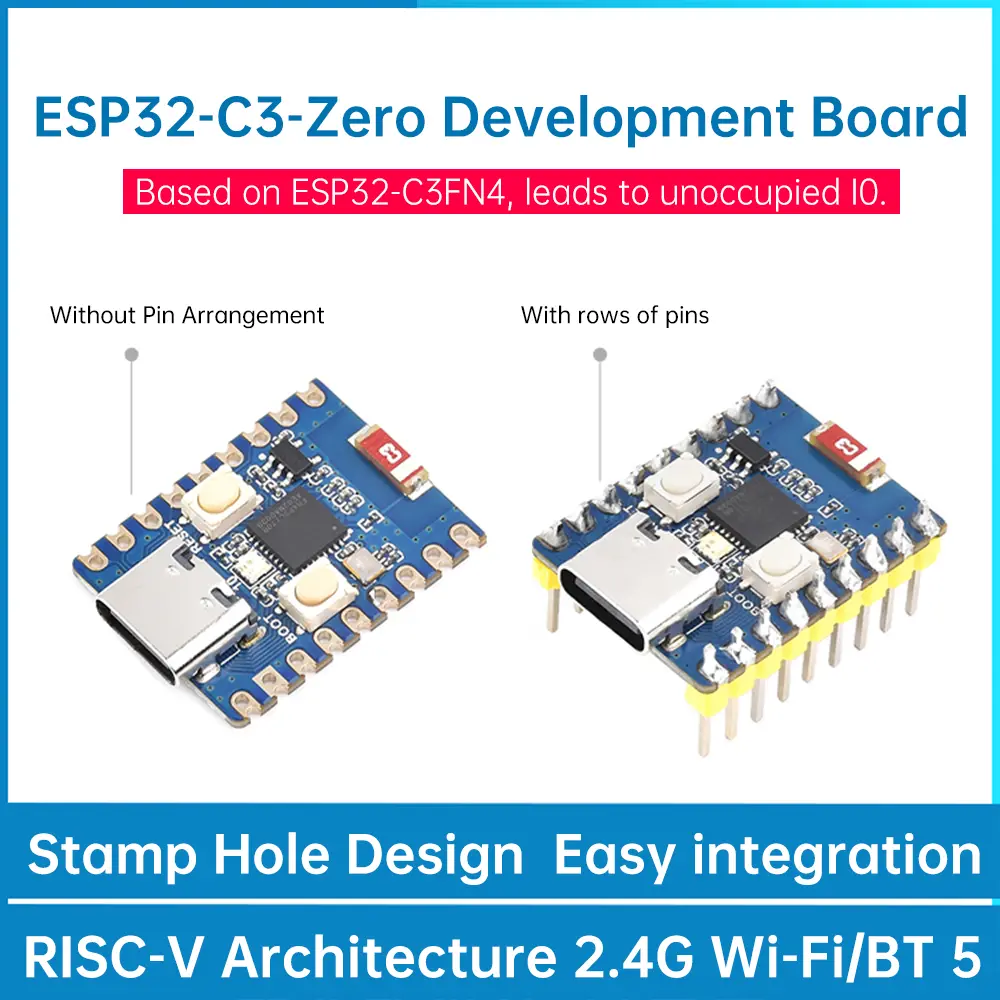

ESP32-C3-Zero Mini WiFi BT 5 Development Board WiFi Bluetooth Ultra-small Size ESP32 C3 S3 ESP 32 Single Core Processor

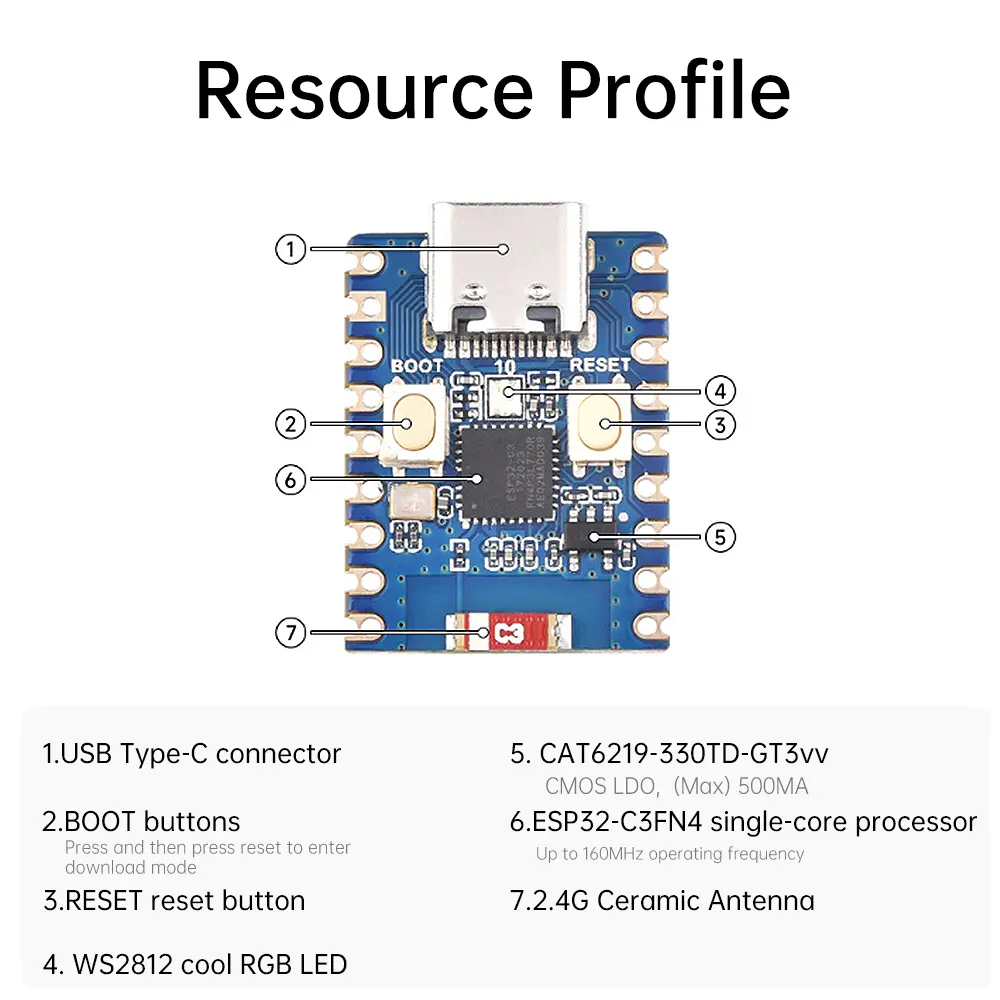

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. ESP32-C3-Zero mini development board, based on ESP32-C3FN4, leads out most of the pins under the small board type <br/>2. Adopting a half hole process, it can be welded to custom boards <br/>3. Low power SoC equipped with RISC-V 32-bit single core processor, with a main frequency of up to 160MHz <br/>4. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt@5 (LE) <br/>5. Built in 400KB SRAM and 384KB ROM, stacked 4MB Flash <br/>6. Adopting a stamp hole design and onboard ceramic antenna, it is easy to integrate into the user's self-designed bottom plate <br/>7. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios <br/>8. Integrated USB serial port full speed controller, with 15 GPIOs for flexible configuration of peripheral functions <br/>9. Equipped with external devices such as 3xSPI, 1xI2C, 2xUART, 1xI2S, 2xADC, etc</p><p>Parameter: <br/>Interface: Type-C interface <br/>Current (Max): 500MA <br/>BOOT button: Press and then reset to enter download mode <br/>RESET button: Reset button <br/>Operating frequency: up to 160MHz <br/>Antenna: 2.4G ceramic antenna <br/>Processor: ESP32-C3FN4 single core processor <br/>Size: 23.5 * 18mm</p><p>Package include: <br/>1X development board<br/><br/></p></div></div><p><br/></p>
$14.195
$9.08
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. ESP32-C3-Zero mini development board, based on ESP32-C3FN4, leads out most of the pins under the small board type <br/>2. Adopting a half hole process, it can be welded to custom boards <br/>3. Low power SoC equipped with RISC-V 32-bit single core processor, with a main frequency of up to 160MHz <br/>4. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt@5 (LE) <br/>5. Built in 400KB SRAM and 384KB ROM, stacked 4MB Flash <br/>6. Adopting a stamp hole design and onboard ceramic antenna, it is easy to integrate into the user's self-designed bottom plate <br/>7. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios <br/>8. Integrated USB serial port full speed controller, with 15 GPIOs for flexible configuration of peripheral functions <br/>9. Equipped with external devices such as 3xSPI, 1xI2C, 2xUART, 1xI2S, 2xADC, etc</p><p>Parameter: <br/>Interface: Type-C interface <br/>Current (Max): 500MA <br/>BOOT button: Press and then reset to enter download mode <br/>RESET button: Reset button <br/>Operating frequency: up to 160MHz <br/>Antenna: 2.4G ceramic antenna <br/>Processor: ESP32-C3FN4 single core processor <br/>Size: 23.5 * 18mm</p><p>Package include: <br/>1X development board<br/><br/></p></div></div><p><br/></p>
