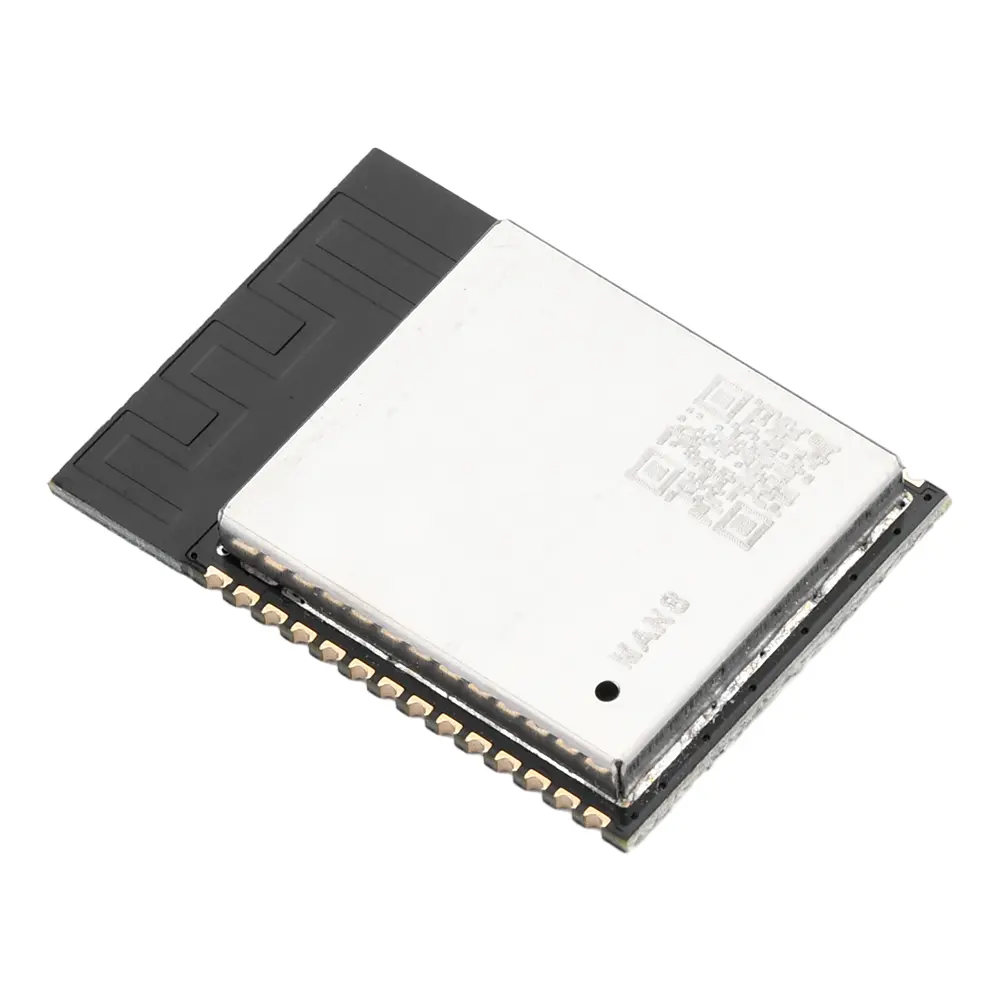

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004114844" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br /><strong><span style="font-size: 20px;">Product features:</span></strong><br /><br />1. ESP32-C6-WROOM-1 is a general-purpose Wi Fi, IEEE 802.15.4, and low-power Bluetooth LE module with powerful functions;<br /><br />2. Built in ESP32-C6 chip, RISC-V32 bit single core processor, supporting clock frequencies up to 16O MH;<br /><br />3. This module uses the ESP32-C6 chip, which is equipped with a RISC-V32 bit single core processor;<br /><br />4. ESP32-C6 integrates a variety of peripherals, including SPI, parallel IO, UART, I2C, I2S, RMT (TX/RX), LED PWM, and up to 23 GPIOs;<br /><br />5. It has rich peripheral interfaces and can be used in fields such as smart homes, industrial automation, healthcare, and consumer electronics.<br /><br /><strong><span style="font-size: 20px;">Product features:</span></strong><br /><br />Model:<br /><br />ESP32-C6-WROOM-1-N4<br /><br />ESP32-C6-WROOM-1-N8<br /><br />ESP32-C6-WROOM-1-N16<br /><br />CPU and on-chip memory:<br /><br />Built in ESP32-C6 chip, RISC-v 32-bit single core processor, supporting clock frequencies up to 16O MH<br /><br />ROM: 320 KB<br /><br />&bull; HP SRAM: 512 KB<br /><br />LP SRAM: 16 KB<br /><br /><strong>Wi Fi:</strong><br /><br />Working in the 2.4 GHz frequency band, 1T1R<br /><br />Working channel center frequency range: 2412~2484 MHz<br /><br />&bull; Supports IEEE 802.11a protocol:<br /><br />Fully compatible with IEEE 802.1 1b/g/n protocol:<br /><br /><strong>Peripherals:</strong><br /><br />GPIO, SPI, parallel IO, UART, I2C, I2S, RMT<br /><br />(TX/RX), pulse counter, LED PWM, USB serial port/<br /><br />JTAG controller, MCPWM, SDIO2.0 slave controller<br /><br />GDMA, TWAI &reg; Controller, on-chip JTAG debugging function<br /><br />Event task matrix, ADC, temperature sensor, system timer<br /><br />Universal timer, watchdog timer<br /><br /><strong>Antenna selection:</strong><br /><br />Board mounted PCB antenna (ESP32-C6-WROOM-1)<br /><br />Working conditions:<br /><br />Working voltage/supply voltage: 3.0~3.6 V<br /><br />Working environment temperature: -40~85 &deg; C<br /><br />ESP32-C6-WROOM-1 is configured with external SPI flash.<br /><br /><strong>Flash:</strong><br /><br />ESP32-C6-WROOM-1-N4:4MB (Quad SPI)<br /><br />ESP32-C6-WROOM-1-N8:8MB (Quad SPI)<br /><br />ESP32-C6-WROOM-1-N16:16MB (Quad SPI)<br /><br />Size: 18 * 25.5 * 3.1mm<br /><br /><strong><span style="font-size: 20px;">Product List:</span></strong><br /><br />1X module<br /></div></div>
