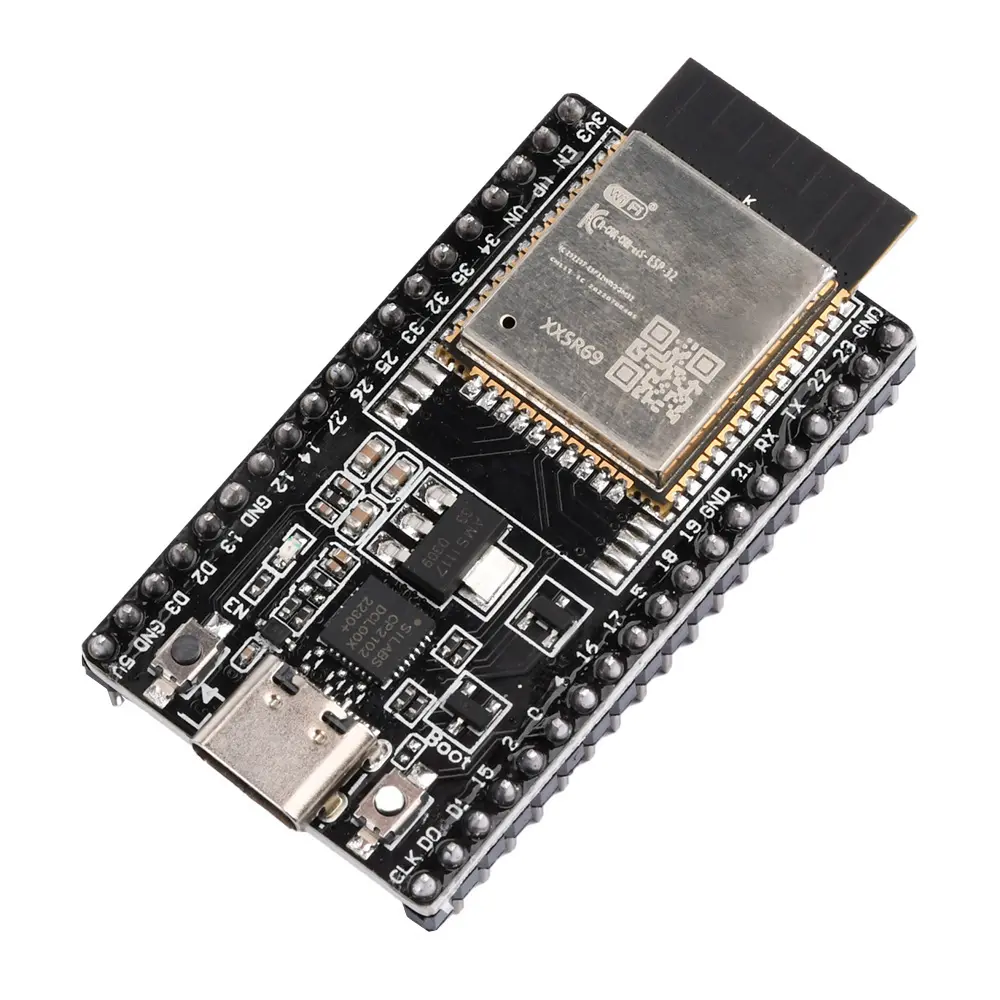

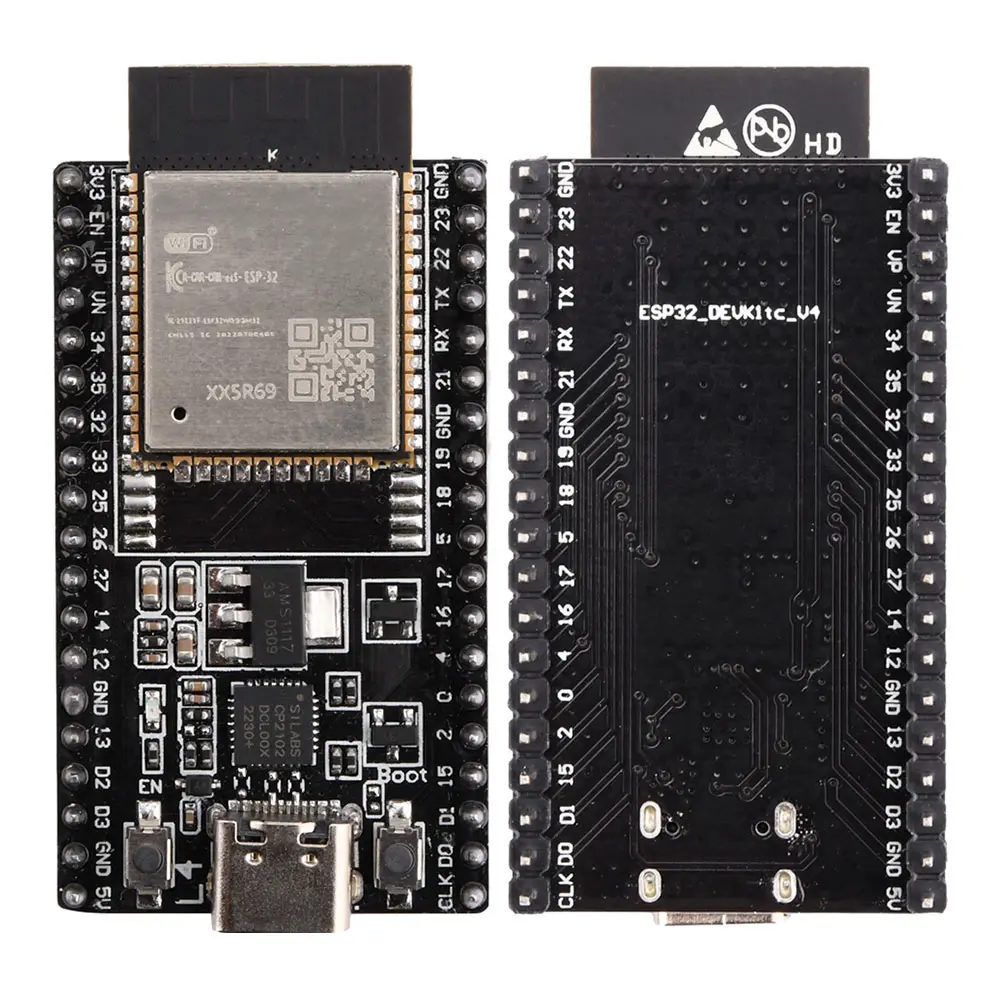

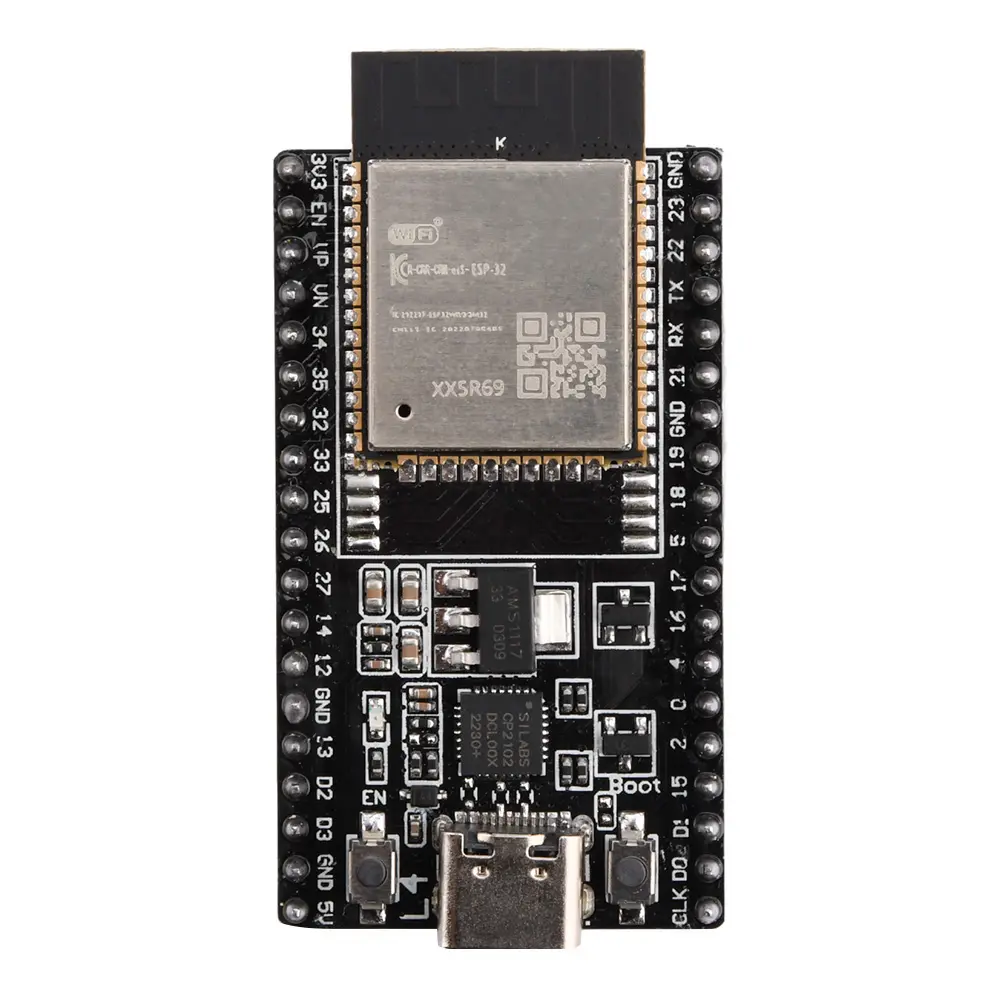

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><strong><span style="font-size:28px">The following links can be used as needed:</span></strong><br/><br/>Getting Started Guide:<br/><br/>Chinese version: https://docs.espressif.com/projects/esp-idf/zh_CN/latest/get-started/get-started-devkitc.html<br/><br/>English version: http://esp-idf.readthedocs.io/en/latest/get-started/get-started-devkitc.html<br/><br/><strong><span style="font-size:28px">Product features:</span></strong><br/><br/>1. ESP32 DevKitC development board, the new version adopts the mainstream TYPE-C interface, and the motherboard can be equipped with ESP32 modules: ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32 WROVER.<br/><br/>2. ESP32 DevKitC is an entry-level ESP32 development board, with all integrated ESP32 pins brought out for easy connection and use. It can be used to evaluate the entire ESP32 series of modules and chips, and can be easily plugged into bread boards.<br/><br/>3. ESP32 DevKitC is a small development board based on the ESP32 module that supports Wi Fi and Bluetooth functions. The development board has a rich range of peripherals, allowing users to easily develop products.<br/><br/>4. The onboard LDO is led out and can supply power to external components. ESP32 DevKitC groups different peripheral interfaces to help users easily get started with product development.<br/><br/>5. ESP32 DevKitC has excellent RF performance, and users do not need to consider RF and antenna design when designing and developing applications. The development board already includes basic system requirements, and users only need to connect a USB cable to proceed with development.<br/><br/><strong><span style="font-size:28px">Product parameters:</span></strong><br/><br/>ESP32 DevKitC Development Board:<br/><br/>Module based on ESP32<br/><br/>EN: Reset button.<br/><br/>Boot: Download button. Press and hold the Boot key, while pressing the EN key once (do not release the Boot key at this time) to enter the &quot;Firmware Download&quot; mode and download the firmware through the serial port.<br/><br/>USB-to-UART bridge: A single chip USB-UART bridge that can provide a transmission rate of up to 3 Mbps.<br/><br/>Interface: TYPE-C interface, which can be used as a power supply for circuit boards or as a communication interface between PC and ESP32-WROOM-32 modules.<br/><br/>Communication: 2.4 GHz Wi Fi+Bluetooth<br/><br/>Processor: High performance Xtensa@32 Bit LX6 dual core processor, ultra low power co processor<br/><br/>Multiple peripherals: with the best power consumption performance, RF performance, stability, versatility, and reliability, suitable for various application scenarios and different power consumption requirements.<br/><br/>The development board can choose from any of the following three power supply methods:<br/><br/>TYPE-C interface power supply (default)<br/><br/>5V/GND pin power supply<br/><br/>3V3/GND pin power supply<br/><br/>Size: 54.4 * 27.9mm<br/><br/><strong><span style="font-size:28px">Module performance:</span></strong><br/><br/>ESP-WROOM-32D:<br/><br/>Chip: ESP32-D0WD<br/><br/>SPI: Flash 32 Mbit, 3.3 V<br/><br/>Crystal oscillator: 40 MHz<br/><br/>Antenna: onboard PCB antenna<br/><br/>Wi Fi protocol: 802.11 b/g/n (802.11n, speed up to 150 Mbps)<br/><br/>Aggregation of A-MPDU and A-MSDU, supporting 0.4 µ s protection interval<br/><br/>Working channel center frequency range: 2412~2484 MHz<br/><br/>Bluetooth protocol: compliant with BT v4.2 BR/EDR and BT LE standards<br/><br/>RF: NZIF receiver with sensitivity of -97 dBm; Class-1, Class-2, and Class-3 emitters; AFH<br/><br/>Integrated crystal oscillator: 40 MHz crystal oscillator<br/><br/>Integrated SPI flash 1: 4 MB<br/><br/>Working voltage/supply voltage: 3.0 V~3.6 V<br/><br/>Average working current: 80 mA<br/><br/>Minimum power supply current: 500 mA<br/><br/>Suggested working environment temperature range: -40 ° C~+85 ° C<br/><br/>ESP-WROOM-32U:<br/><br/>Chip: ESP32-D0WD<br/><br/>SPI: Flash 32 Mbit, 3.3 V<br/><br/>Crystal oscillator: 40 MHz<br/><br/>Antenna: External antenna connector, which needs to be used together with an external antenna<br/><br/>Wi Fi protocol: 802.11 b/g/n (802.11n, speed up to 150 Mbps)<br/><br/>Aggregation of A-MPDU and A-MSDU, supporting 0.4 µ s protection interval<br/><br/>Working channel center frequency range: 2412~2484 MHz<br/><br/>Bluetooth protocol: compliant with BT v4.2 BR/EDR and BT LE standards<br/><br/>RF: NZIF receiver with sensitivity of -97 dBm; Class-1, Class-2, and Class-3 emitters; AFH<br/><br/>Integrated crystal oscillator: 40 MHz crystal oscillator<br/><br/>Integrated SPI flash 1: 4 MB<br/><br/>Working voltage/supply voltage: 3.0 V~3.6 V<br/><br/>Average working current: 80 mA<br/><br/>Minimum power supply current: 500 mA<br/><br/>Suggested working environment temperature range: -40 ° C~+85 ° C<br/><br/>ESP32 WROVER:<br/><br/>Power supply voltage: 2.3V~3.6V<br/><br/>Frequency: 2.4GHz~2.5GHz<br/><br/>Installation type: SMT<br/><br/>Data rate: 150Mbps<br/><br/>Protocol: 802.11b/g/n<br/><br/>Storage capacity: 4MB<br/><br/>Wi Fi protocol: 802.11 b/g/n (802.11n, speed up to 150 Mbps)<br/><br/>Aggregation of A-MPDU and A-MSDU, supporting 0.4 µ s protection interval<br/><br/>Working channel center frequency range: 2412~2484 MHz<br/><br/>Bluetooth protocol: Complies with Bluetooth V4.2 BR/EDR and low-power Bluetooth standards<br/><br/>RF: NZIF receiver with sensitivity of -97 dBm<br/><br/>Class-1, Class-2, and Class-3 emitters; AFH<br/><br/>Module interface: SD card, UART, SPI, SDIO, I2C, LED PWM, motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI ® (Compatible with ISO 11898-1 protocol, i.e. CAN specification 2.0)<br/><br/>On chip sensor: Hall sensor<br/><br/>Integrated crystal oscillator: 40 MHz crystal oscillator<br/><br/>Integrated SPI flash: 4 MB<br/><br/>Integrated PSRAM: 8 MB<br/><br/>Working voltage/supply voltage: 2.3 V~3.6 V<br/><br/>Working current: average: 80 mA<br/><br/>Minimum supply current: 500 mA<br/><br/>Suggested working environment temperature -40 ° C to 85 ° C<br/><br/><strong><span style="font-size:28px">Product List:</span></strong><br/><br/>1X development board<br/></p></div></div><br/>
