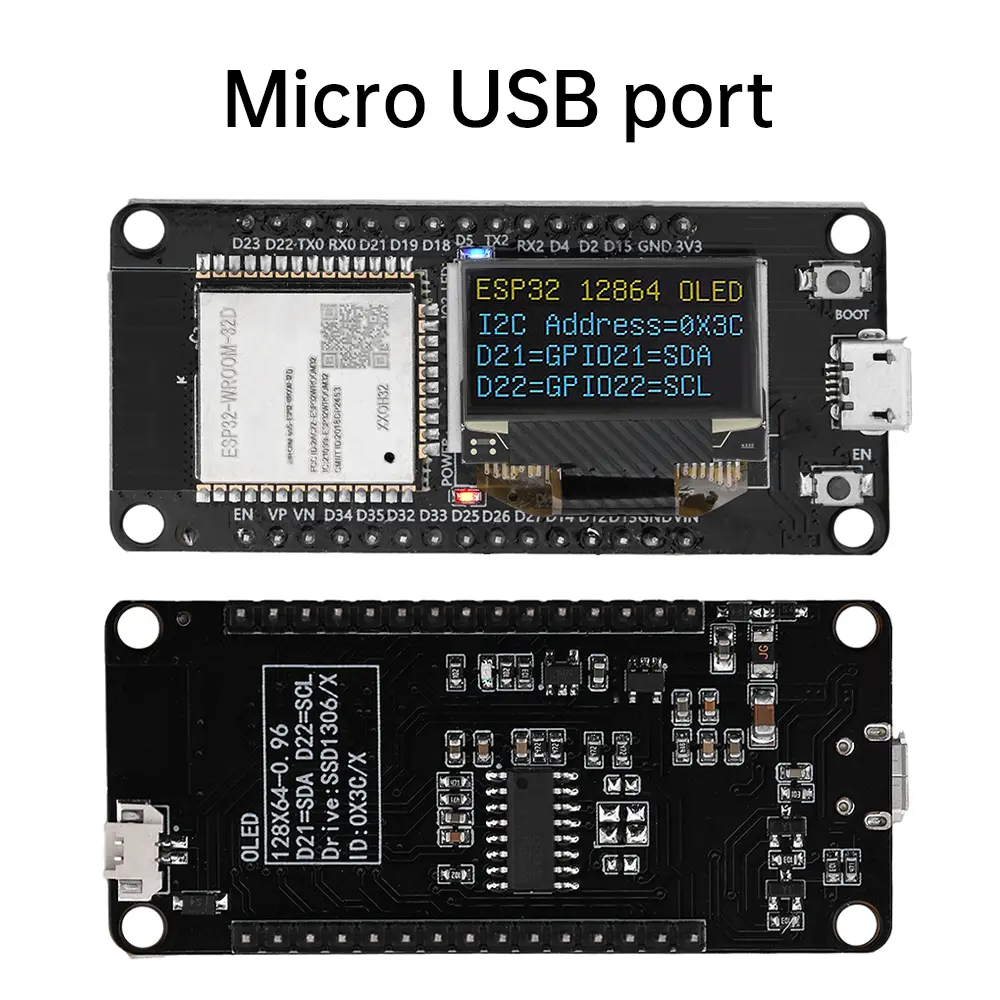

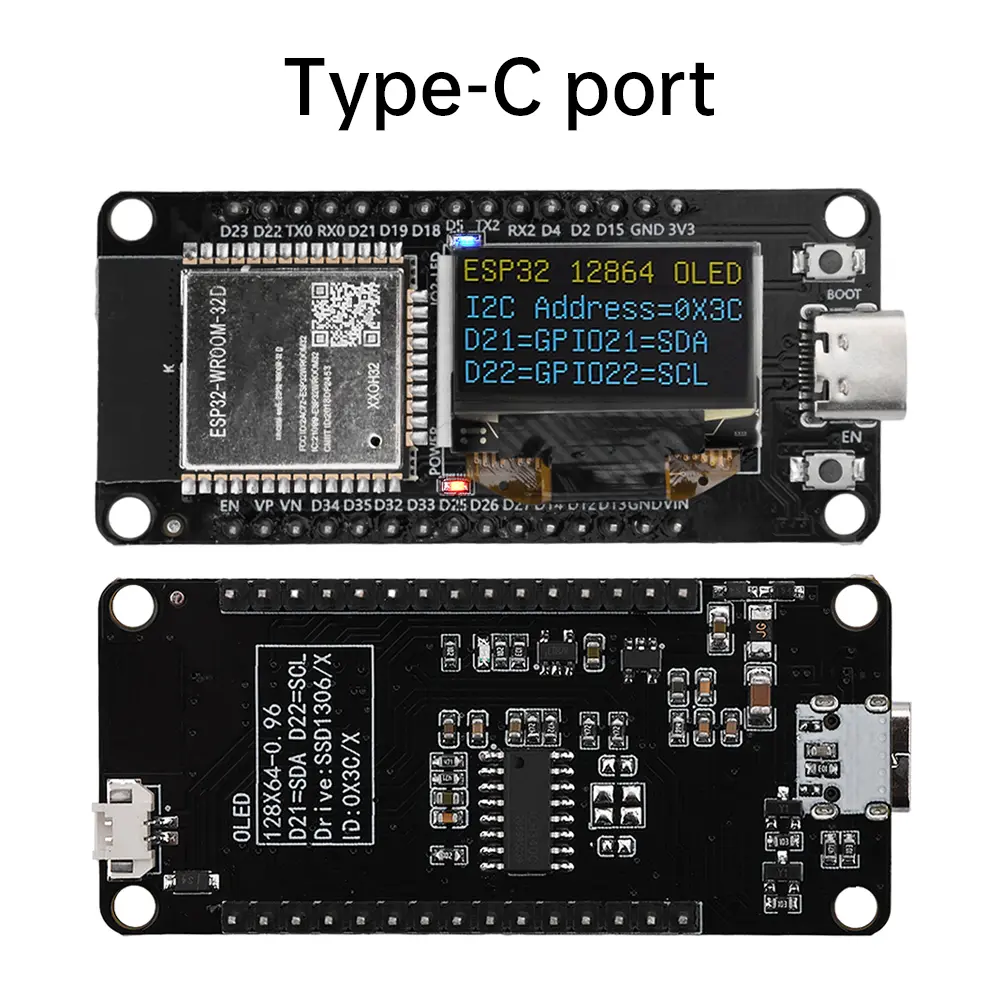

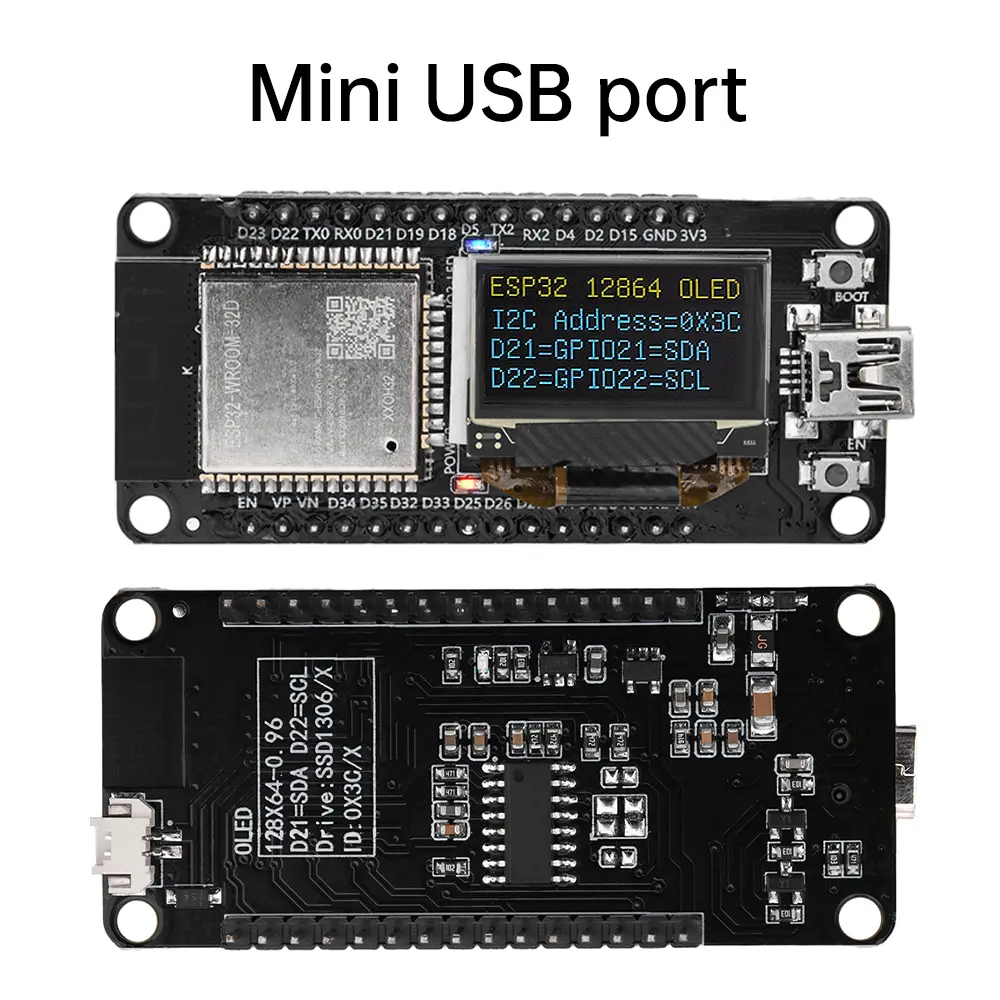

ESP32 ESP-WROOM-32D WiFi Bluetooth Development Board 0.96 Inch OLED 30 Pin ESP WROOM 32D CH340 Wireless Mini/Micro USB Type-C
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004114844" title="" type="relation"></kse:widget></div>
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. The module is the ESP-WROOM-32 development board, and the parameter characteristics of ESP-WROOM-32 refer to the parameter characteristics of the module. <br />2. Adopting 802.11b/g/WiFi+BT module; <br />3. Low power dual core 32-bit CPU, can be used as an application processor; <br />4. The main frequency can reach up to 240MHz, and the computing power can reach up to 600DMIPS; <br />5. Built in 520KBSRAM; <br />6. Support UART/SPI/I2C/PWM/DAC/ADC and other interfaces; <br />7. Support openOCD debugging interface; <br />8. Supports multiple sleep modes, with a current as low as 6.5uA during deep sleep; <br />9. Embedded LWip and FreeRTOS; <br />10. Support STA/AP/STA+AP mode; <br />11. Support SmartConfiguration/AirKiss one click network configuration; <br />12. Universal AT commands, easy to learn; <br />13. Support local serial port upgrade and remote upgrade (FOTA).</p>

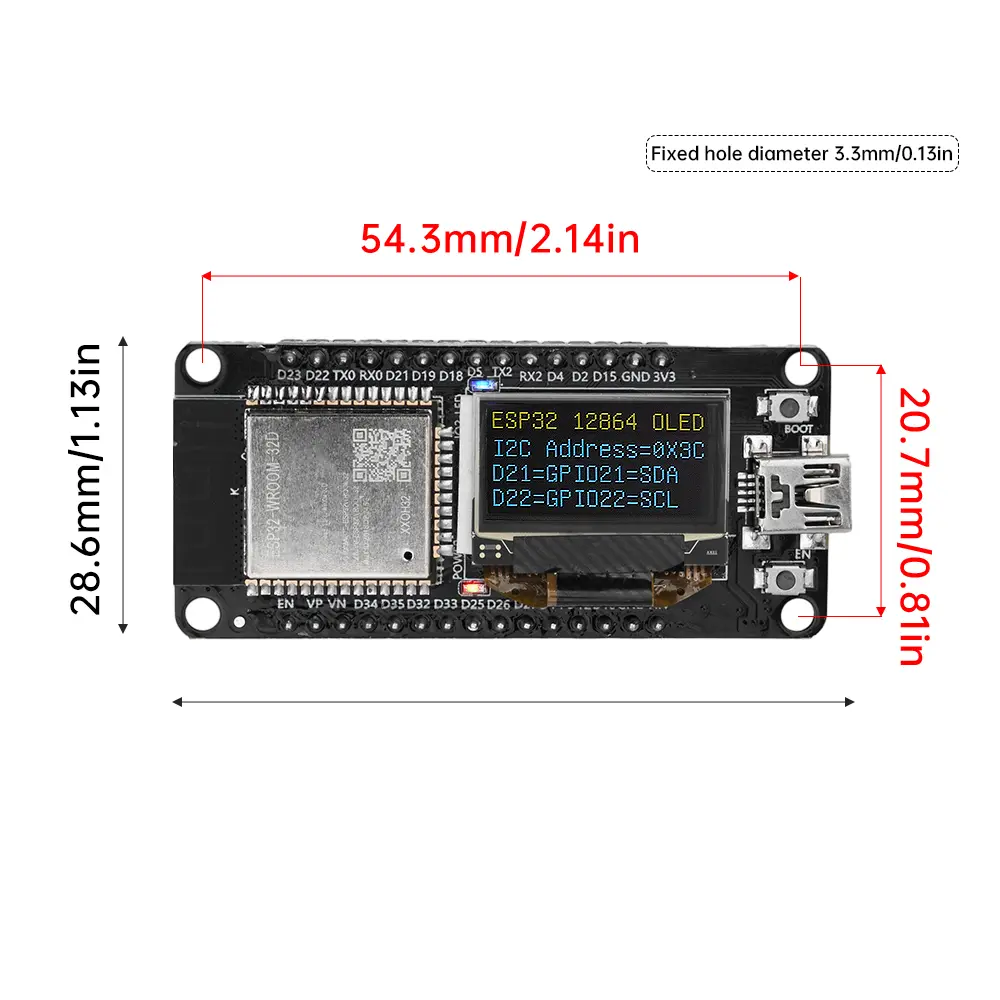

<p>Parameter:<br />Product name: ESP32 WiFi+BT dual-mode development board <br />SPI Flash: default 32Mbit <br />Bluetooth: Bluetooth 4.2BR/EDR and BLE standards <br />Wi-Fi:802.11b/g/n/ <br />Supported interfaces: UART SPI、SDIO、I2C、PWM、I2S、IR、ADC、DAC <br />On chip sensors: Hall sensors, temperature sensors, capacitive touch sensors <br />IO ports: 22 <br />Serial port speed: default 115200bps <br />Spectrum range: 2412~2484MHz <br />Antenna form: onboard PCB antenna with a gain of 2dBi <br />Transmission power: <br />802.11b: 17 ± 2dBm (@ 11Mbps) <br />802.11g: 14 ± 2dBm (@ 54Mbps) <br />802.11n: 13 ± 2dBm (@ MCS7) <br />Receiving sensitivity: <br />CCK,1Mbps:-90dBm <br />CCK,11Mbps:-85dBm <br />6Mbps (1/2BPSK): -88dBm <br />54Mbps (3/464-QAM): -70dBm <br />MCS7 (65Mbps, 72.2Mbps): -67dBm <br />Power consumption: 300mA@3.3V <br />Security: WPA/WPA2/WPA2 Enterprise/WPS <br />Power supply range: <br />USB power supply: 5V <br />Vin pin power supply: 6.0V~12V <br />Working temperature: -20 °~80 ° <br />Size: 53.2mm * 28.7mm</p>
<p>Package include: <br />1X development board<br /></p></div></div>
