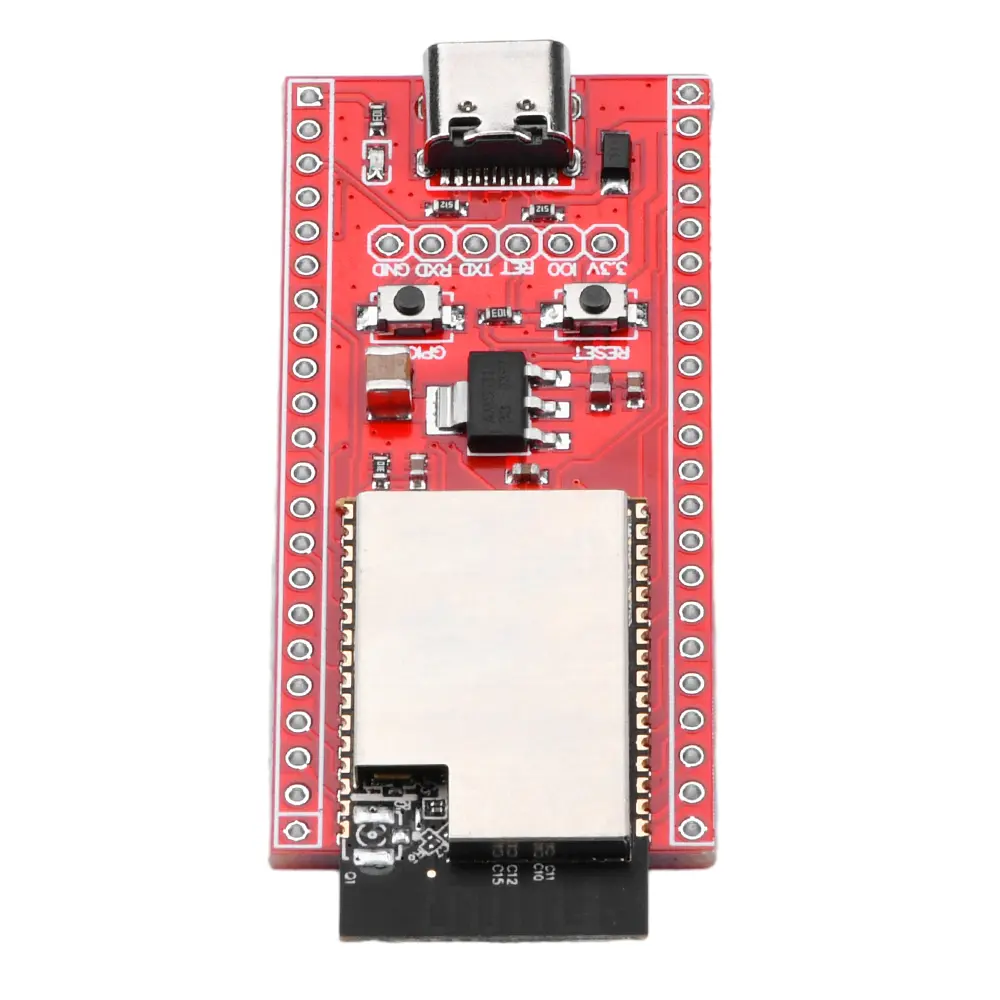

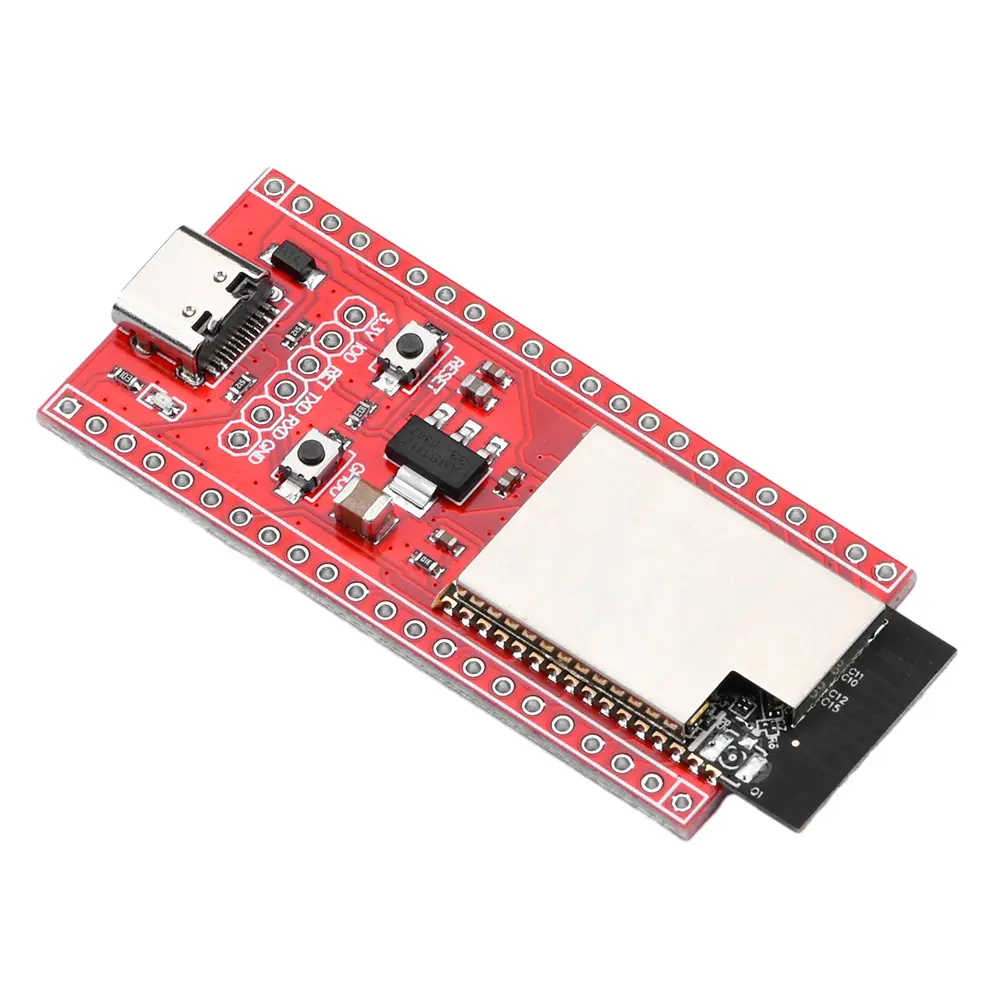

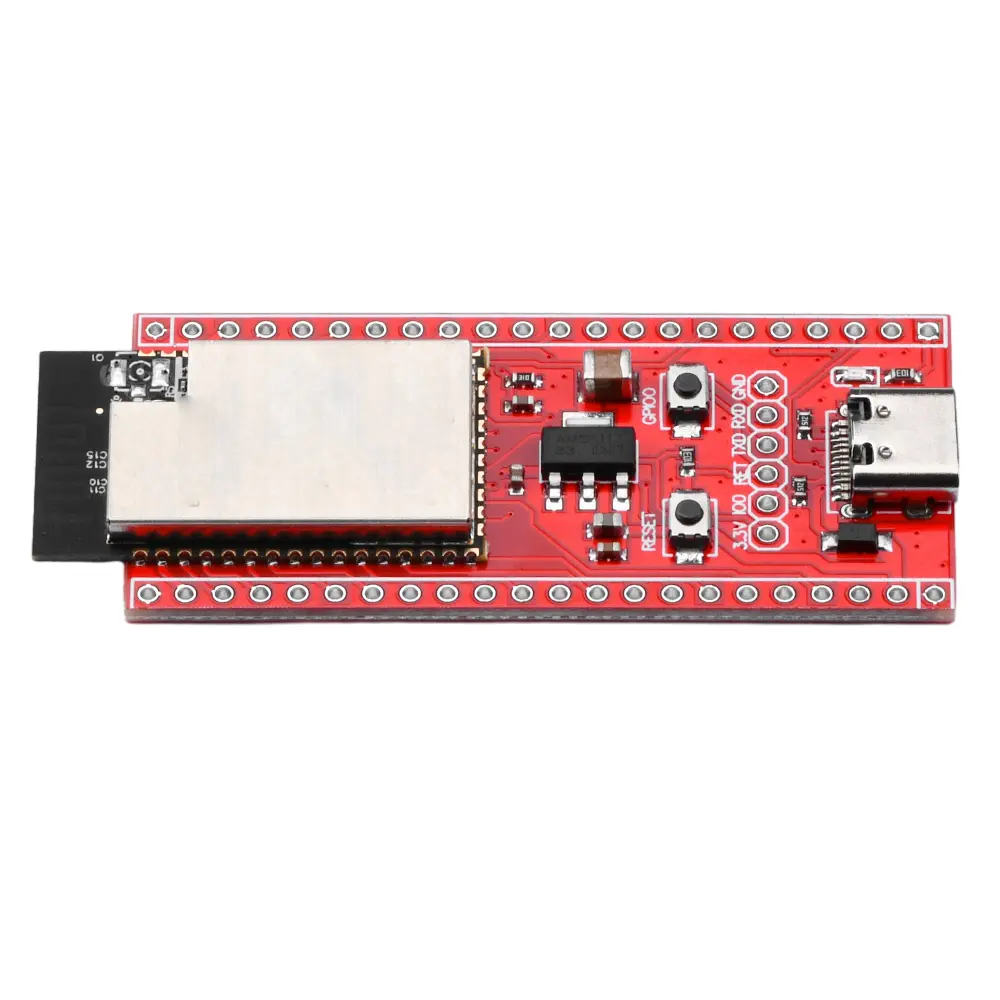

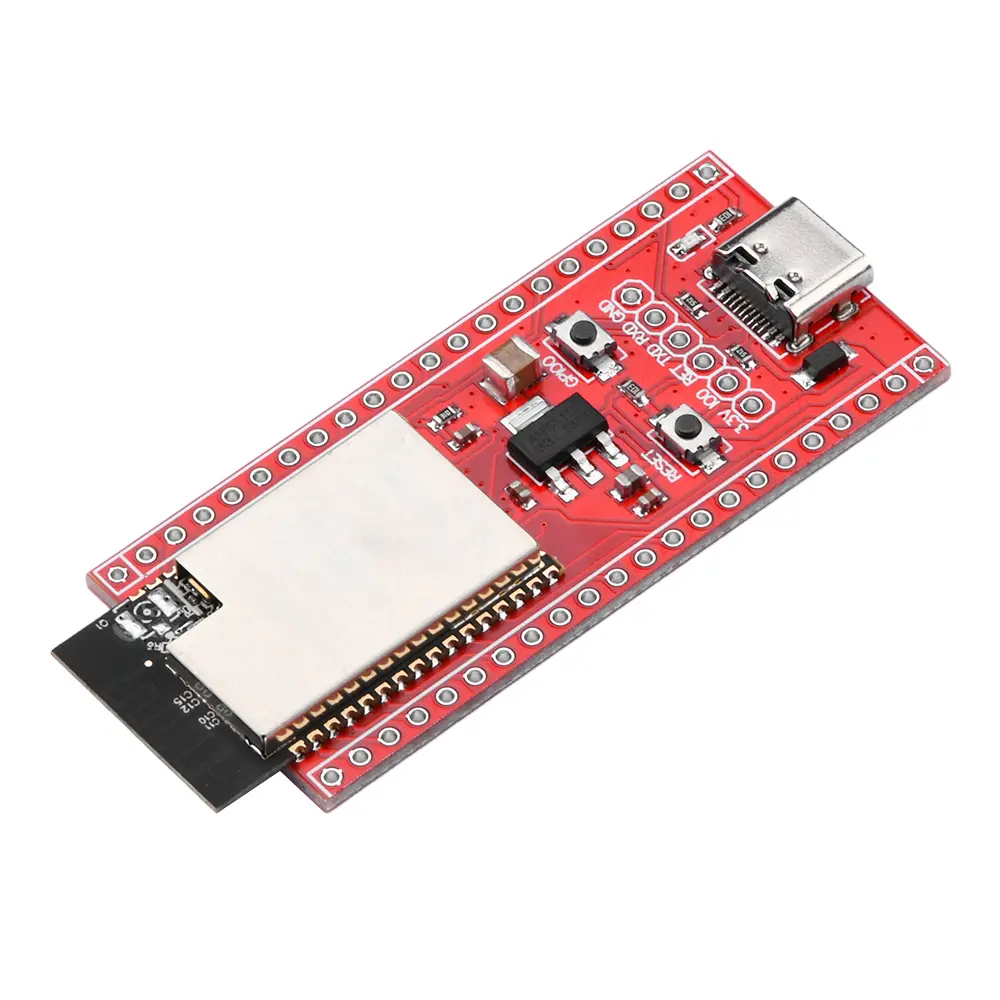

ESP32-S2-DevKit ESP32-S2-WROOM Development Board Wi-Fi MCU Module ESP32-S2 Core Board Single Core 32-bit
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004114844" title="" type="relation"></kse:widget></div>
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br /><strong><span style="font-size: 20px;">Features:</span></strong><br />1. Made of high-quality materials, finely crafted, easy to install, and easy to operate.<br />2. The module has a rich library of functions, a free and open-source environment, and also supports other compiler environments. The ESP32 module has a built-in Hall sensor, making WIFl suitable for project or development use.<br />The ESP32-S2 chip is equipped with a Tensa 32-bit LX7 single core processor, with a working frequency of up to 240MHz.<br />4. Low power consumption, which can turn off the power of the CPU and use a low-power coprocessor to monitor the status changes of peripherals or whether certain analog quantities exceed the threshold.<br />5.ESP32-S2 integrates a variety of peripherals, including SPI, I2S, UART, I2C, LEDPWM, TWAI @ controller, ADC, DAC, touch sensors, temperature sensors, and up to 43 GPIOs.<br />6. ESP32-S2 also has a full speed USBON The Go (OTG) interface for USB communication, with a wide range of applications, suitable for college students/engineers/technicians/factory indivi.<br/><p><strong><span style="font-size: 20px;">Parameter:</span></strong><br />CPU and on-chip memory<br />.Built in ESP32-S2 chip, Xtensa ® Single core 32-bit LX7 microprocessor, supporting clock frequencies up to 240MHz<br />.128KB ROM<br />. 320 KB SRAM<br />. 16KB RTC SRAM</p><br/><p>WiFi<br />. 802.11 b/g/n<br />. Up to 150 Mbps data rate in. 802.11n mode<br />. Frame Aggregation (TX/RX A-MPDU, RX A-MSDU)<br />. 0.4 us protection interval<br />. Working channel center frequency range: 2412~2484 MHz</p><br/><p>peripheral<br />.GPIO, SPI, UART, I2C, I2S, LCD interface, Camera interface, IR, pulse counter, LED PWM, TWAI ® (Compatible with ISO 11898-1, i.e. CAN specification 2.0), full speed USB OTG, ADC, DAC, touch sensor, temperature sensor module integrated components<br />. 40 MHz integrated crystal oscillator<br />.4MB SPL flash</p><br/><p>Antenna selection<br />·Board mounted PCB antenna (ESP32-S2 WROOM)<br />Working conditions<br />·Working voltage/power supply voltage: 3.0-3.6V<br />·Working environment temperature: -40~85 ℃</p><br/><p>Application: ESP32-S2-WROOM is a general-purpose Wi Fi MCU module with powerful functions and rich peripheral interfaces, which can be used in wearable electronic devices, smart homes and other scenarios.<br />Module size: 31mm * 18mm * 3.3mm<br />Development board size: 56mm * 26mm</p><br/><p><strong><span style="font-size: 20px;">Package include:</span></strong><br />1X module<br /></p></div></div>
$21.71
$11.06
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
