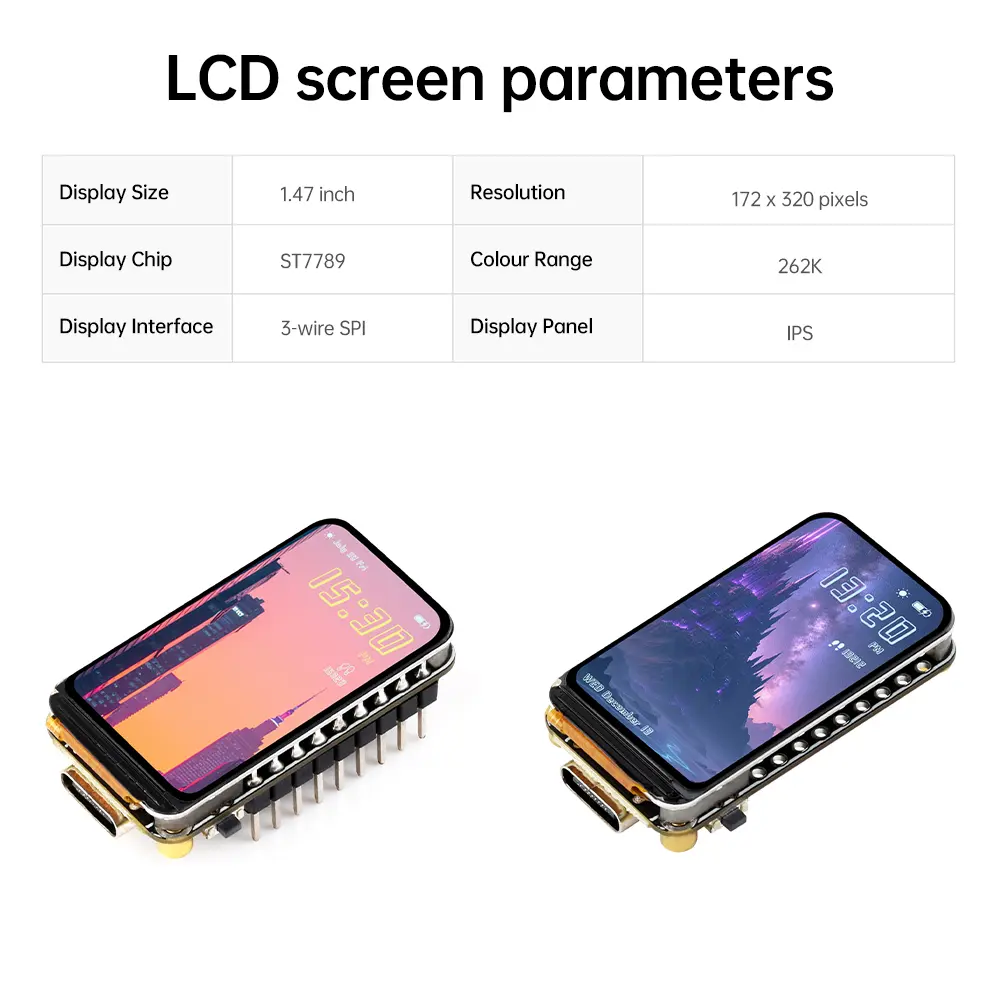

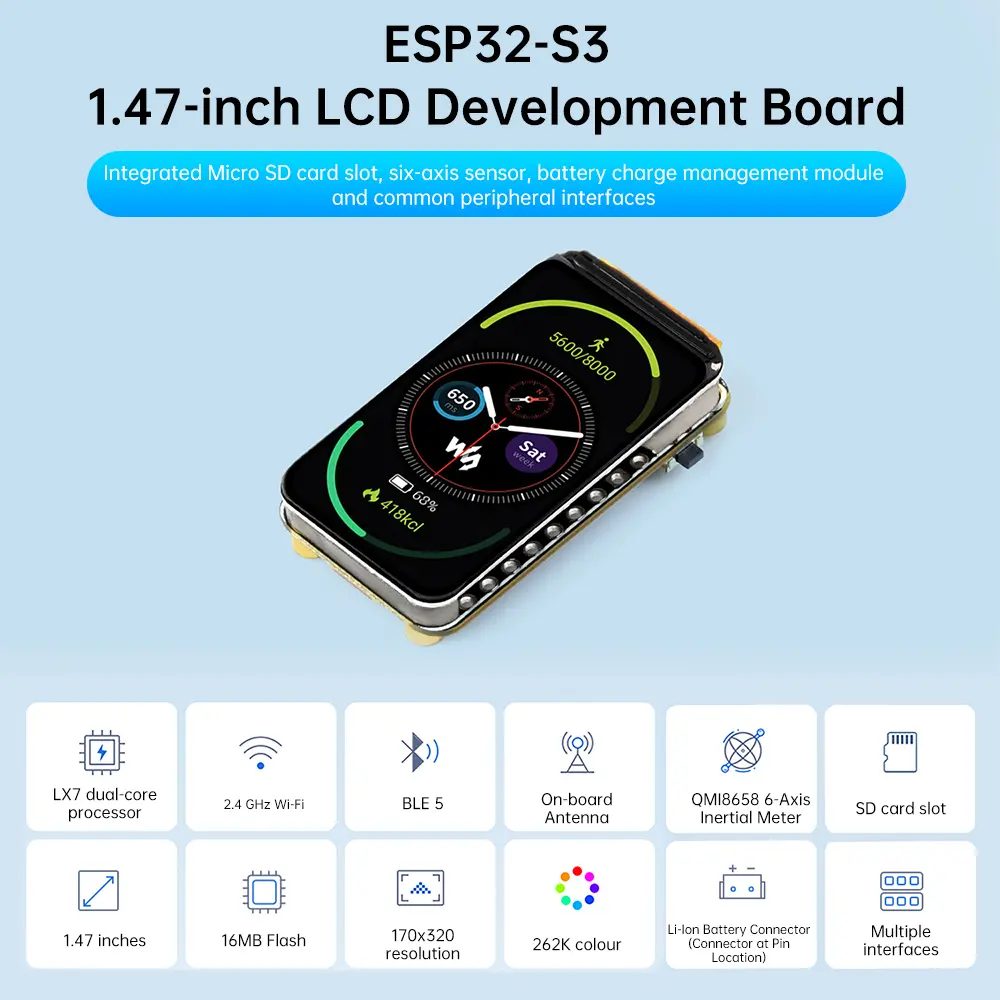

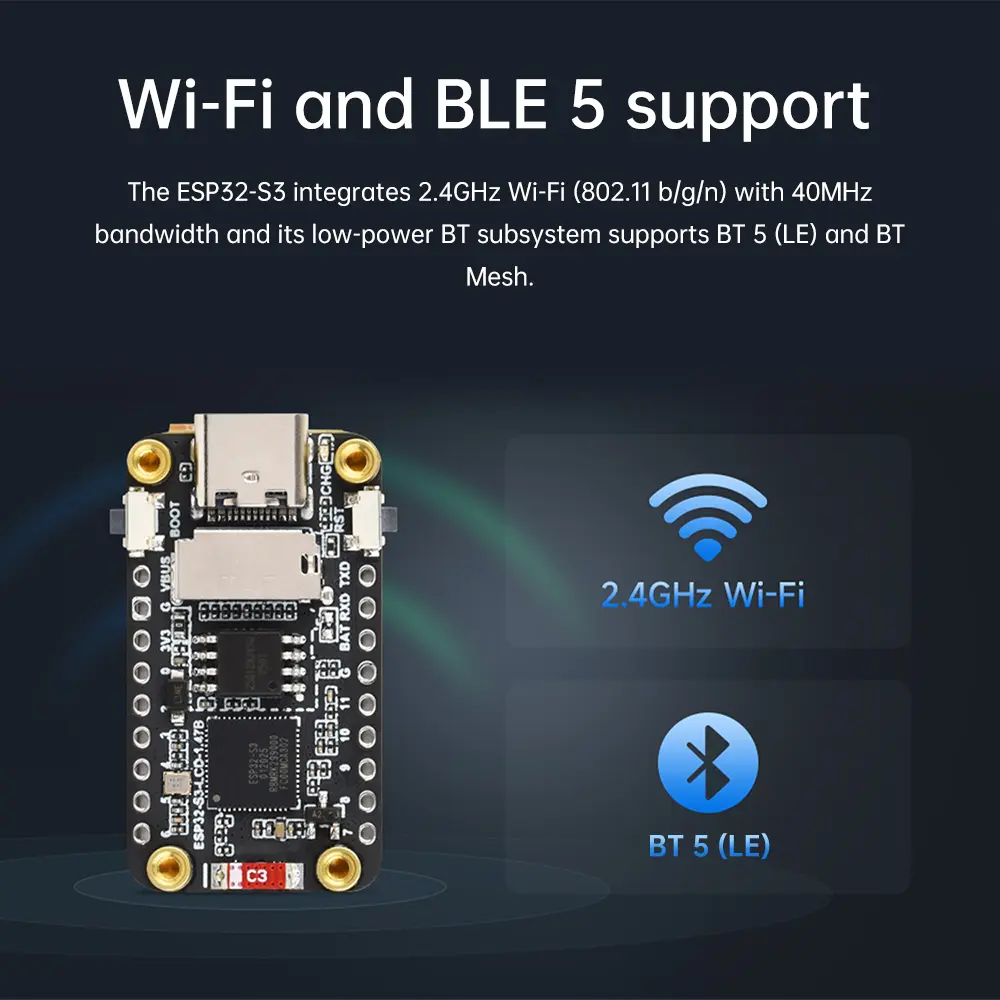

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. High performance dual core processor with a clock speed of 240MHz, supporting AI computing and secure encryption. <br/>2. Integrated Wi Fi and Bluetooth 5 (LE), supporting 40MHz bandwidth and Bluetooth Mesh. <br/>3. Equipped with a 1.47-inch IPS full-color LCD screen, with a resolution of 172 × 320 and vibrant colors. <br/>4. Onboard QMI8658 six axis IMU sensor, supporting device status detection and step counting functions. <br/>5. Large capacity storage combination, including 8MB PSRAM and 16MB Flash, to meet diverse development needs.</p><p>Product Introduction: <br/>This product is a microcontroller development board that supports 2.4GHz Wi Fi and Bluetooth BLE 5. Integrated with large capacity Flash and PSRAM, with an onboard 1.47-inch LCD screen, it can smoothly run GUI interface programs such as LVGL. Combined with multiple peripheral interfaces, it can quickly develop HMI applications for ESP32-S3.</p><p>Parameter: <br/>Equipped with high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of up to 240MHz <br/>Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna <br/>On board 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB Flash <br/>Onboard 1.47-inch LCD screen, 172 × 320 resolution, 262K color <br/>Extract most GPIO and integrate full speed USB serial port <br/>Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting equipment deflection status, step counting and other functions <br/>Onboard RGB colored light beads, paired with transparent acrylic interlayer for cool lighting effects <br/>Onboard Micro SD card slot, capable of external SD card storage for images or files <br/>Onboard battery charging management module, allowing access to batteries to power devices <br/>Supports accurate control of flexible clocks, multiple power modes, etc., achieving low-power modes in multiple scenarios <br/>LCD screen parameters: <br/>Display size: 1.47 inches <br/>Resolution: 172 × 320 pixels <br/>Display chip: ST7789 <br/>Color range: 262K <br/>Display interface: 3-wire SPI <br/>Display panel: IPS</p><p>Package Include： <br/>1X development board <br/>2X pin headers (unwelded needle arrangement/welded needle arrangement optional)<br/><br/></p></div></div><br/>
