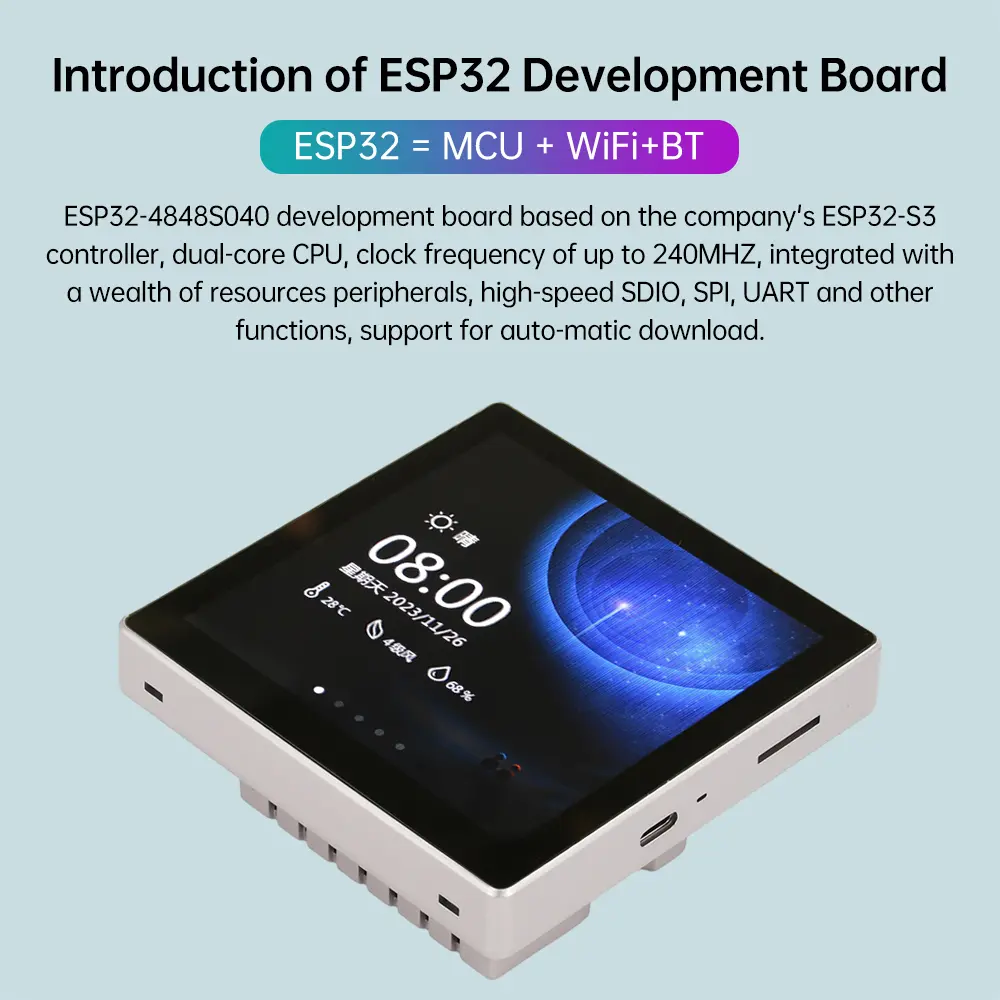

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Dual-core ESP32-S3 main control, integrated Wi-Fi and Bluetooth, 240MHz main frequency, strong performance<br/>2. 4.0-inch color screen, 16BIT RGB display, colorful and delicate<br/>3. 480x480 high resolution, capacitive touch screen, smooth and accurate operation<br/>4. Built-in 16MB Flash and 8M PSRAM, support TF card expansion storage space<br/>5. Provide library functions and sample programs, rapid secondary development is convenient</p><p>Parameter：<br/>Product Name: ESP32 S3 Development Board<br/>Main control chip: ESP32-S3<br/>Memory configuration:<br/>SRAM: 512KB<br/>ROM: 384KB<br/>PSRAM: 8MB<br/>Flash: 16MB<br/>Driver chip: ST7701<br/>Display size: 4 inch<br/>Resolution: 480*480 pixels<br/>Supply Voltage: 5V<br/>Supply Current: 260mA<br/>Interface: Type-C interface<br/>Operating Temperature: -20℃~70<br/>Storage temperature: -30℃~80<br/>Touch function: capacitive touch screen<br/>Expansion interface: TF card slot, IO port</p><p>Description:<br/>The LCD module adopts ESP32-S3 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency up to 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, the display resolution is 480*480, capacitive touch. The module includes LCD display, backlight control circuit, touch screen control circuit. The module has reserved TF card interface and IO port, and supports development in ESP IDE, Micropython and Mixly.</p><p>Package include:<br/>Development board x 1<br/>Accessories x 1</p><p></p></div></div><p><br/></p>
