ESP32-S3-CAM Development Board 2.4G WiFi Bluetooth Module With MIC OV2640 Camera Module Dual Type-C ESP32-S3 BT Module
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004114844" title="" type="relation"></kse:widget></div>

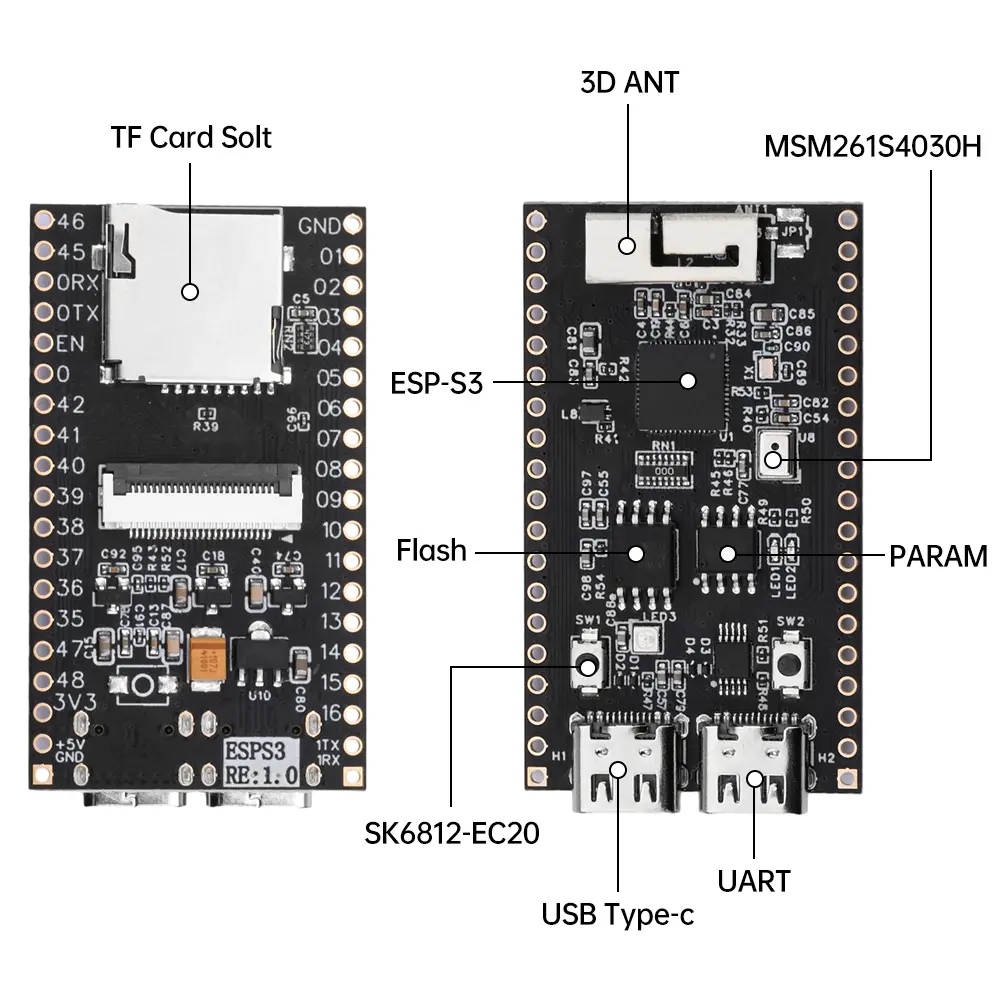

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br /><strong><span style="font-size: 20px;">Features:</span></strong><br />1. ESP32-S3 is a low-power MCU System on Chip (SoC) that supports 2.4GHz Wi Fi and Bluetooth technology.<br />2. System on Chip (SoC), supporting 2.4 GHz Wi Fi and Bluetooth LE low-power wireless communication.<br />3. The chip integrates high-performance XtensaR 32-bit LX7 dual core processor, ultra-low power co processor, Wi Fi baseband, Bluetooth baseband, RF module and peripherals, and peripherals.<br />4. Equipped with a TF card slot, the module has a TF card slot that is compatible with most standard TF cards on the market.<br />5. Dual Type-C interface, USB2 can automatically download and connect with CH340; Connect the USB1 and ESP32-S3 chips.</p>
<p><strong><span style="font-size: 20px;">Parameter:</span></strong><br />Wi Fi<br />• Supports IEEE 802.11b/g/n protocol<br />• Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz frequency band<br />• Supports 1T1R mode with a data rate of up to 150 Mbps<br />Wireless Multimedia (WMM)<br />Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)<br />• Immediate Block ACK<br />Fragmentation and recombination<br />Beacon automatic monitoring (hardware TSF)<br />• 4x virtual Wi Fi interface<br />• Simultaneously supports Infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP mode. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change simultaneously<br />Antenna diversity<br />• 802.11 mc FTM<br />Bluetooth<br />Low power Bluetooth (BT LE): Bluetooth 5, Bluetooth mesh<br />High power mode (20 dBm)<br />• Supports speeds of 125Kbps, 500Kbps, 1Mbps, 2Mbps<br />Advertising extensions<br />• Multiple Advertisement Sets<br />• Channel Selection Algorithm # 2<br />Wi Fi and Bluetooth coexist, sharing the same antenna<br />CPU and storage<br />• Xtensa ® 32-bit LX7 dual core processor with a main frequency of up to 240 MHz<br />• CoreMark ® Score:<br />- Single core, main frequency 240MHz: 613.86CoreMark; 2.56 CoreMark/MHz<br />- Dual core, main frequency 240 MHz: 1181.60 CoreMark; 4.92 CoreMark/MHz<br />128 bit data bus bit width, supporting SIMD instructions<br />384 KB ROM<br />512 KB SRAM<br />16 KB RTC SRAM<br />SPI, Dual SPI, Quad SPI, Octal SPI, QPI, OPI interfaces with multiple external flash and on-chip RAM<br />Flash controller with cache mechanism introduced<br />• Supports flash online programming<br />Size: 28mmX48.5mm<br />Module application scenarios:<br />DIY secondary development<br />Low cost camera solution<br />IoT node devices</p>

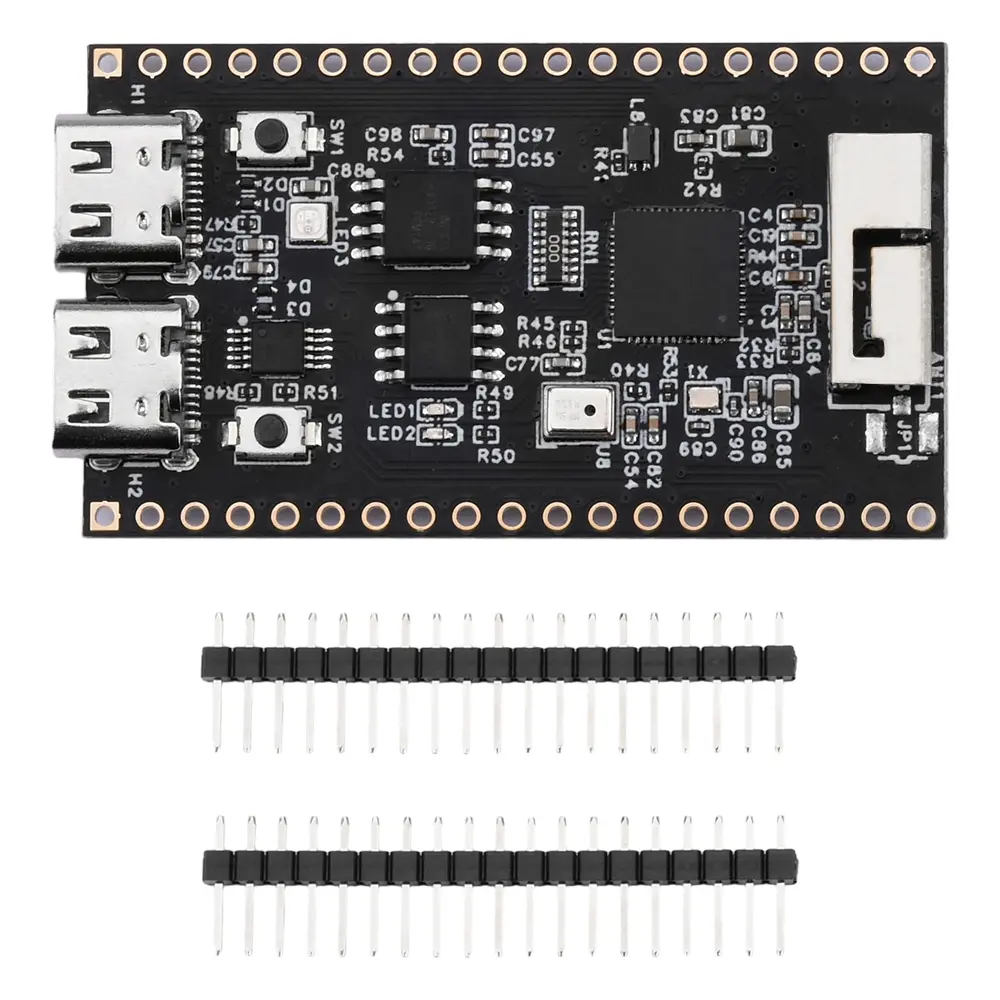

<p><strong><span style="font-size: 20px;">Package include:</span></strong><br />Set 1:<br />1X development board<br />2X needle arrangement</p>

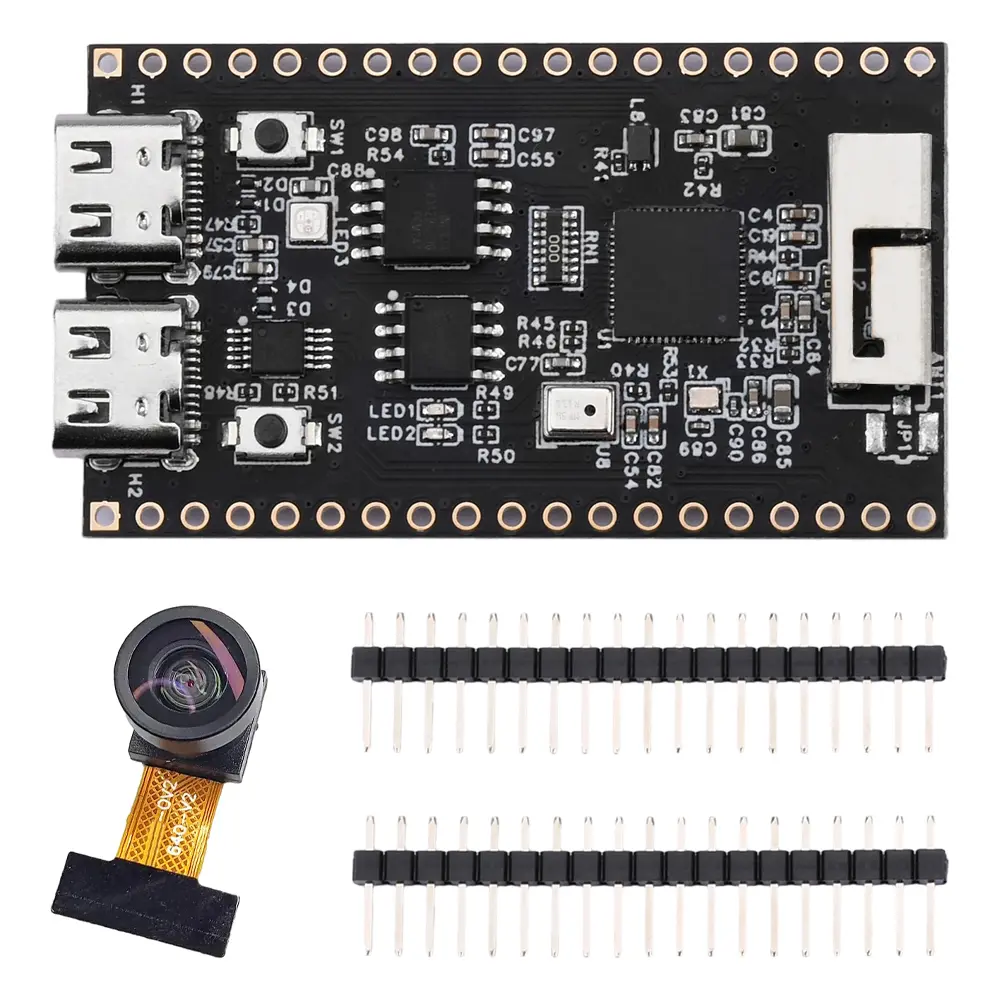

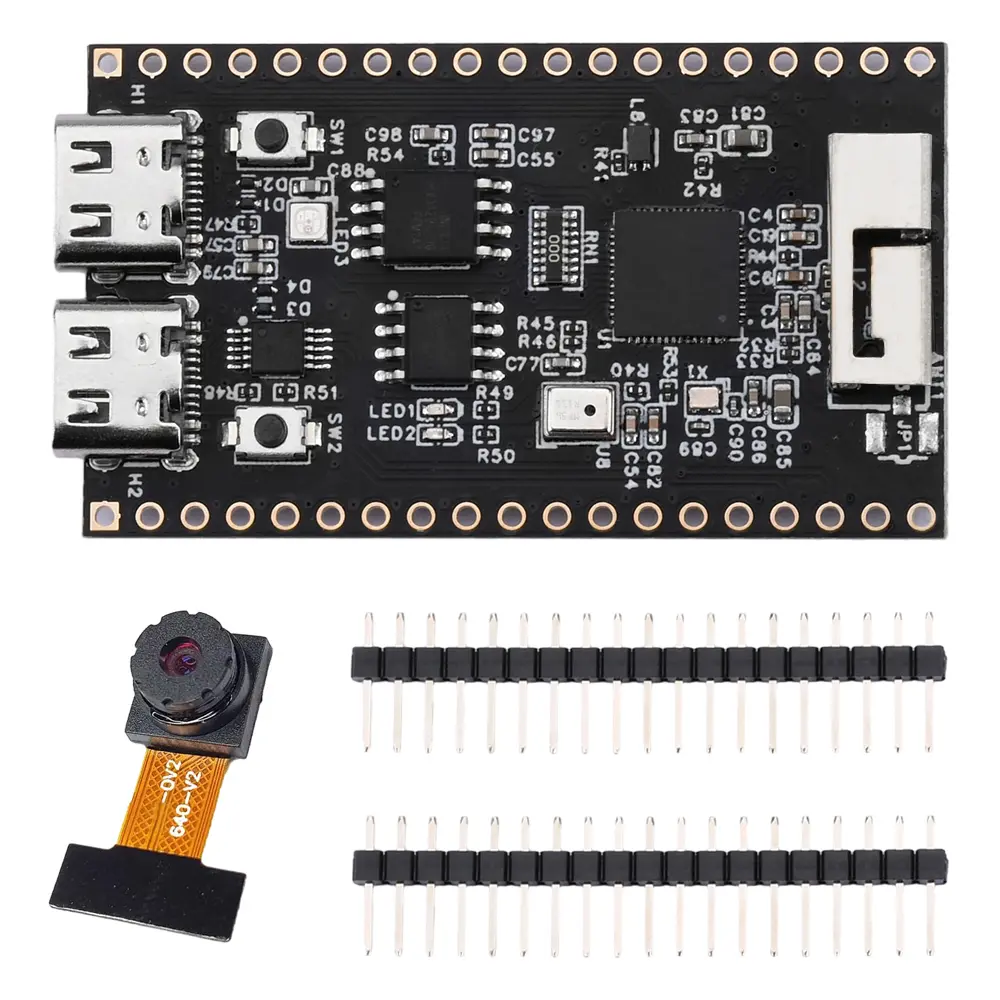

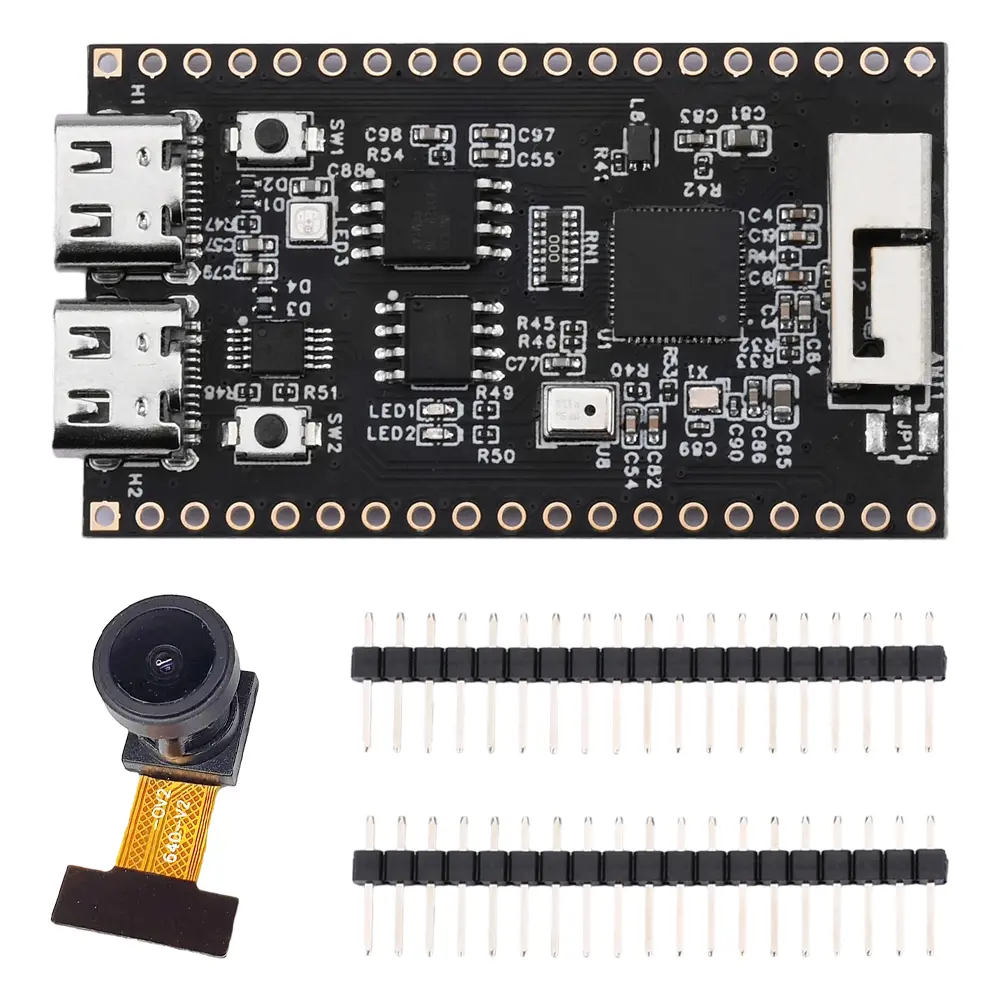

<p>Set 2:<br />1X development board<br />2X needle arrangement<br />1XOV2640 camera [optional specifications]<br /></p></div></div>
$49.04
$23.645
