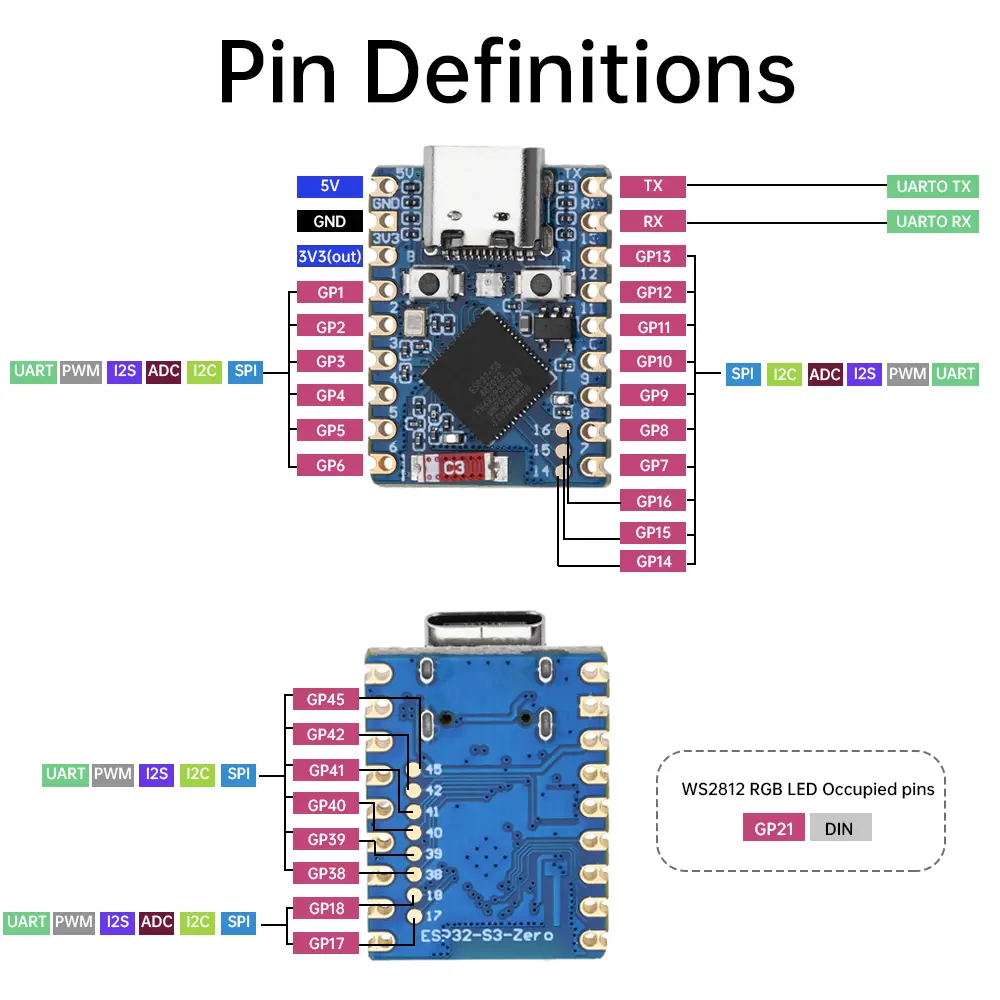

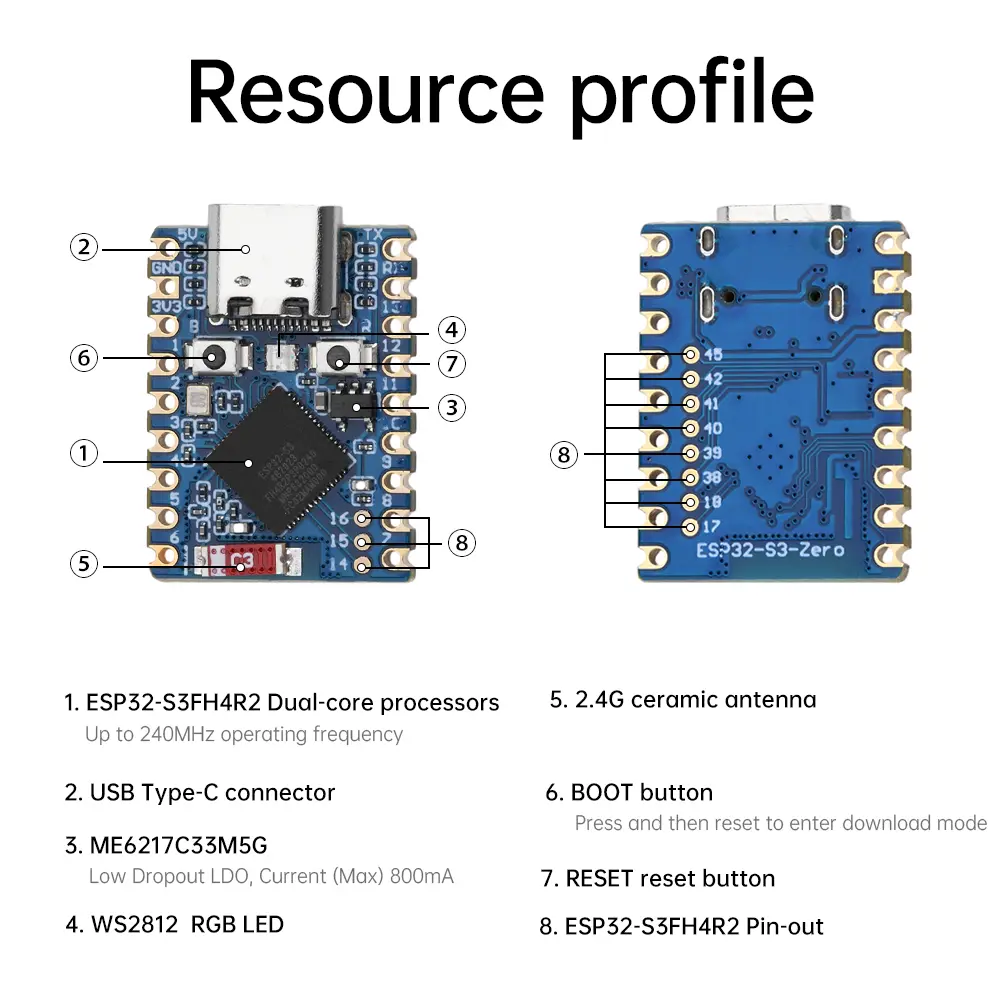

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004114844" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. Equipped with high-performance Xtensa &reg; A 32-bit LX7 dual core processor with a main frequency of up to 240MHz. <br />2. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt &reg; 5 (LE). <br />3. Built in 512KB SRAM and 384KB ROM, stacked 4MB Flash and 2MB PSRAM. <br />4. Adopting a stamp hole design and onboard ceramic antenna, it is convenient to integrate into the user's self-designed bottom plate. <br />5. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios. <br />6. Integrated USB serial port full speed controller, with 34 GPIOs for flexible configuration of peripheral functions. <br />7. Equipped with peripherals such as 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC, etc. <br />8.Based on ESP32-S3 FH4R2, most of the pins are led out in a small board shape using a half hole process, which can be soldered onto custom boards.</p> <p>Parameter: <br />Processor: ESP32-S3FH4R2 dual core processor with a running frequency of up to 240MHz <br />Interface: USB Type-C interface <br />Current: (Max) 800mA <br />Antenna: 2.4G ceramic antenna <br />Key: <br />BOOT button, press and then reset to enter download mode <br />RESET reset button <br />LED: WS2812 Cool RGB LED <br />Size: 23.5 * 18mm</p> <p>Package include: <br />1X development board <br />2X 9 Pin Headers<br /></p></div></div>
