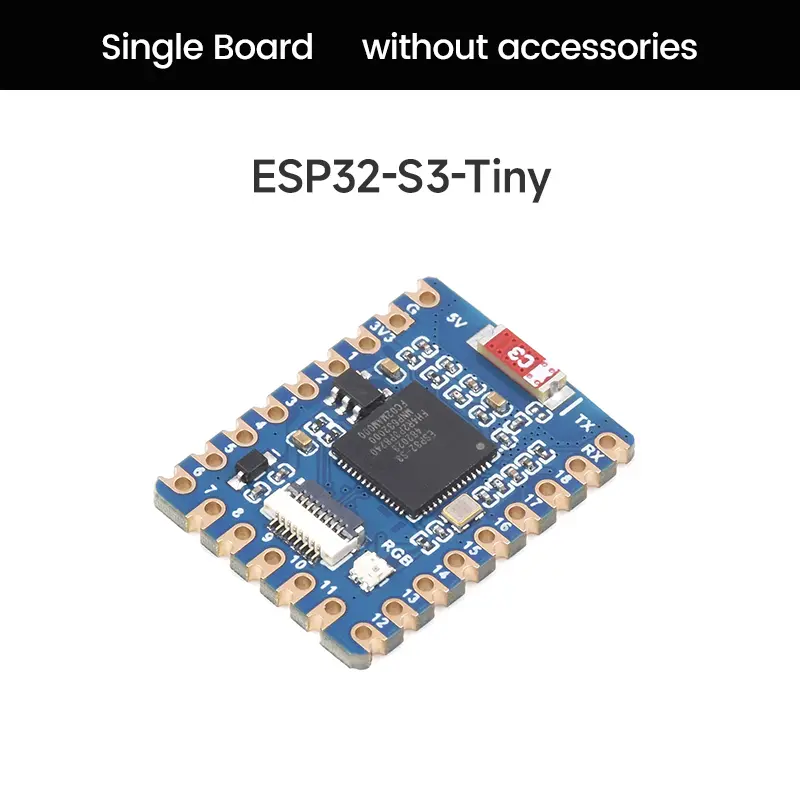

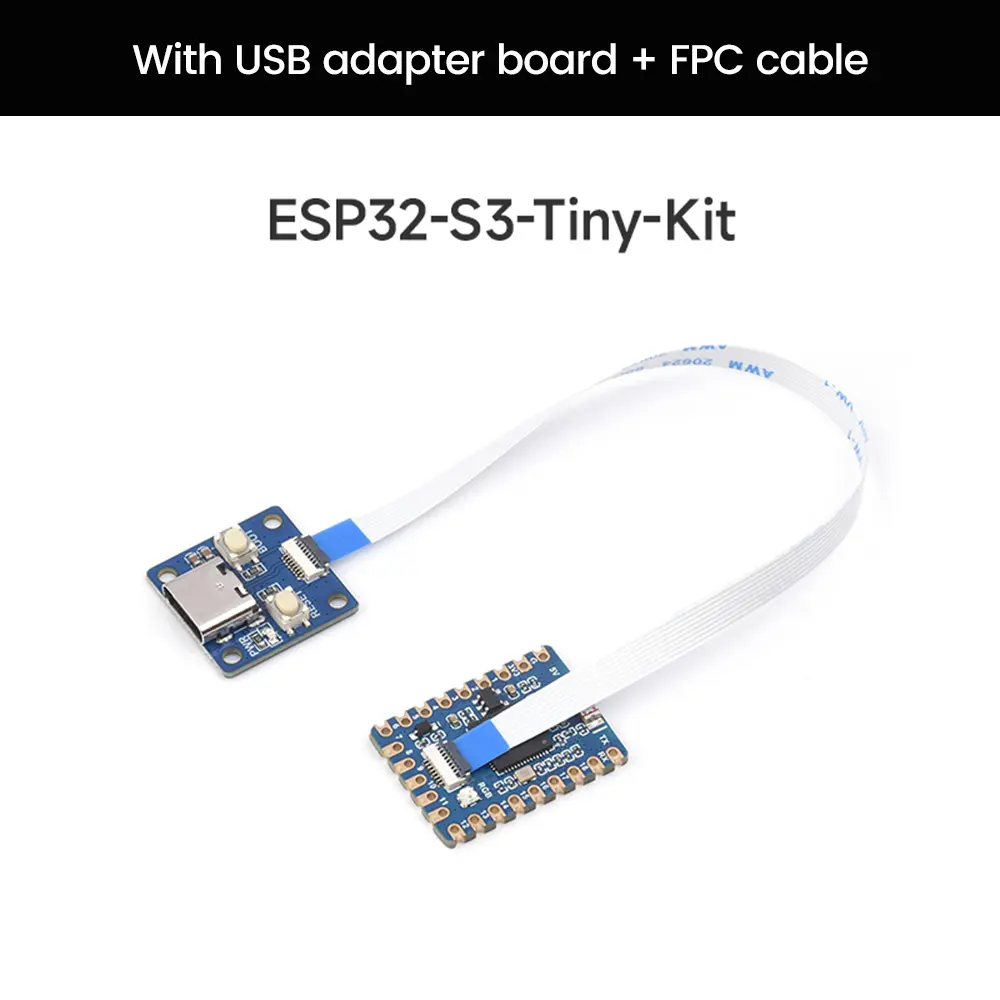

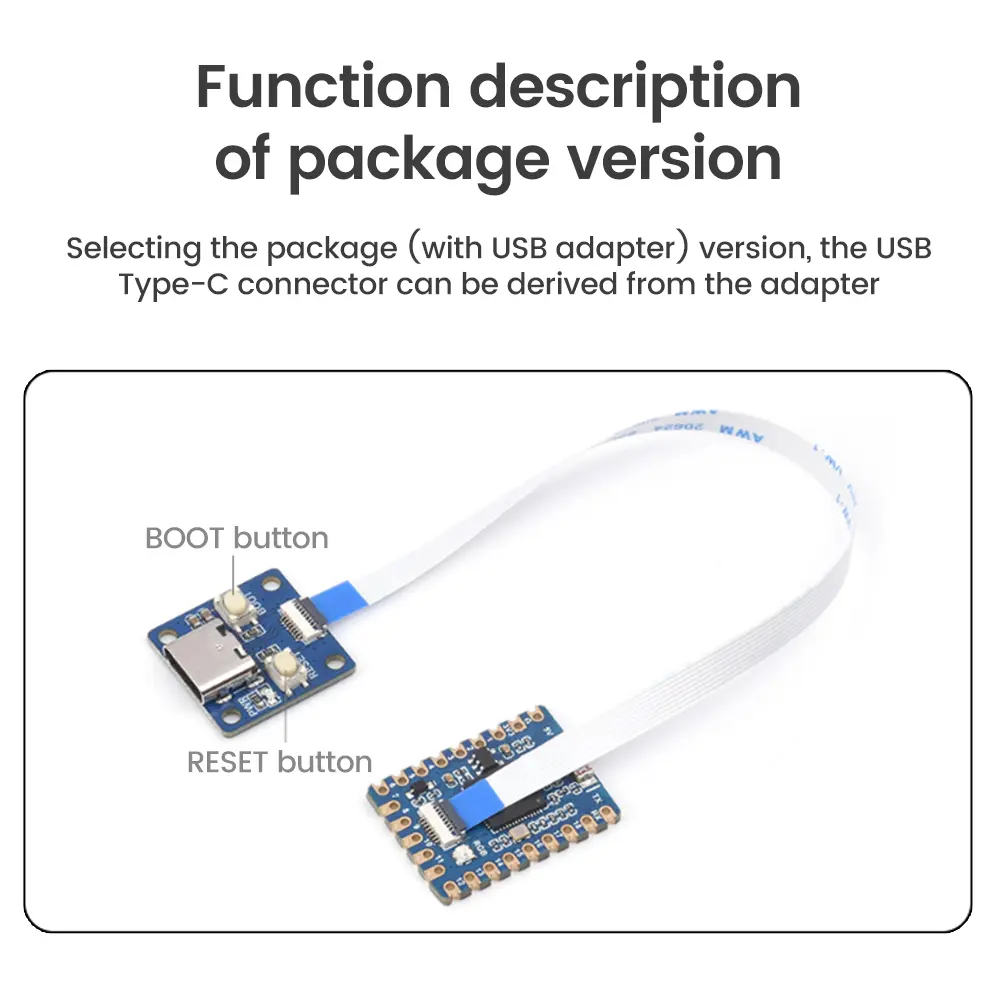

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004114844" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features: </span></strong><br/>1. ESP32-S3 mini development board, based on ESP32-S3, designed with a split Type-C interface. <br/>2. The development board is equipped with an Xtensa 32-bit LX7 dual core processor, with powerful AI computing power and secure encryption mechanism up to 240MHz main frequency. <br/>3. Supports WiFi and BLE 5, ESP32-S3 integrates 2.4GHz Wi Fi (802.11 b/g/n), supports 40MHz bandwidth, and its low-power BT subsystem supports BT 5 (LE) and BT Mesh. <br/>There are 4.2 sets to choose from, and the package version (with USB adapter) can be selected. The USB Type-C interface can be led out through the adapter. <br/>5. Compact in size, with a split design and stamp hole gold sinking technology, highly integrated packaging, making it easier to embed and combine into various product applications.</div><br/><p><strong><span style="font-size:20px">Product features: </span></strong><br/>1. Using ESP32-S3 FH4R2 as the main chip, equipped with Xtensa 32-bit LX7 dual core processor, with a main frequency of up to 240MHz <br/>2. Integrate 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory <br/>3. Integrated 2.4GHz Wi Fi and low-power BT LE dual-mode wireless communication, with superior RF performance <br/>4. On board FPC 8PIN interface, USB Type-C interface can be led out through adapter board <br/>5. Introduce 34 multifunctional GPIO pins from ESP32-S3 <br/>6. With rich peripheral interfaces, including SPI, I2C, UART, ADC, PWM interfaces, etc., it can more flexibly achieve various functions <br/>7. Support multiple low-power working states, adjust the balance between communication distance, data rate, and power consumption, and meet the power consumption requirements of various application scenarios</p><p><strong><span style="font-size:20px">Parameter:</span></strong><br/>ESP32-S3 dual core processor with a running frequency of up to 240MHz <br/>ME6217C33M5G, low voltage drop LDO, current (Max) 800mA <br/>FPC connector with a spacing of 0.5mm and 8PIN <br/>WS2812 RGB LED indicator light <br/>GPIO pin <br/>USB Type-C interface <br/>Power indicator light <br/>RESET reset button <br/>BOOT button <br/>Development board size: 23.5 * 18mm <br/>Adapter board size: 18 * 18mm</p><p><strong><span style="font-size:20px">Package include: </span></strong><br/>Package 1: <br/>1X development board</p><p>Package 2: <br/>1X development board <br/>1X adapter board <br/>1X connecting line<br/></p></div></div><br/>
