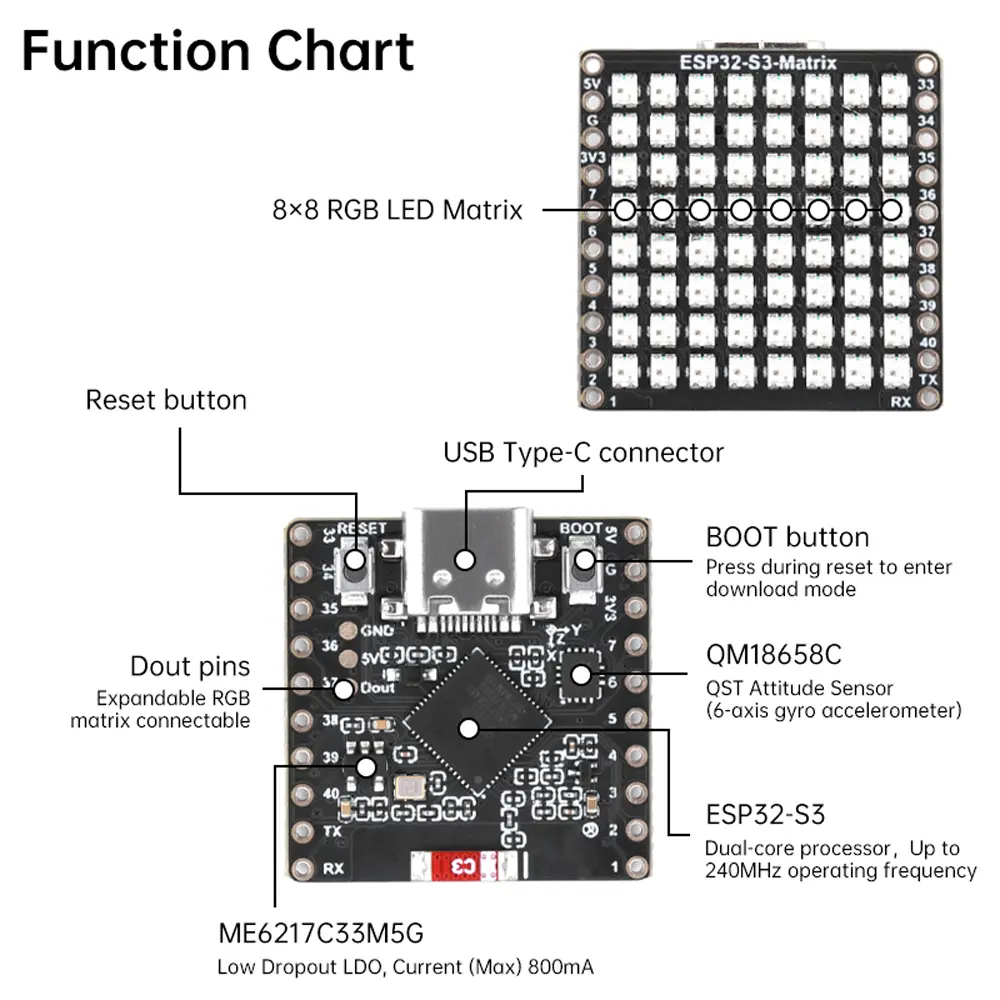

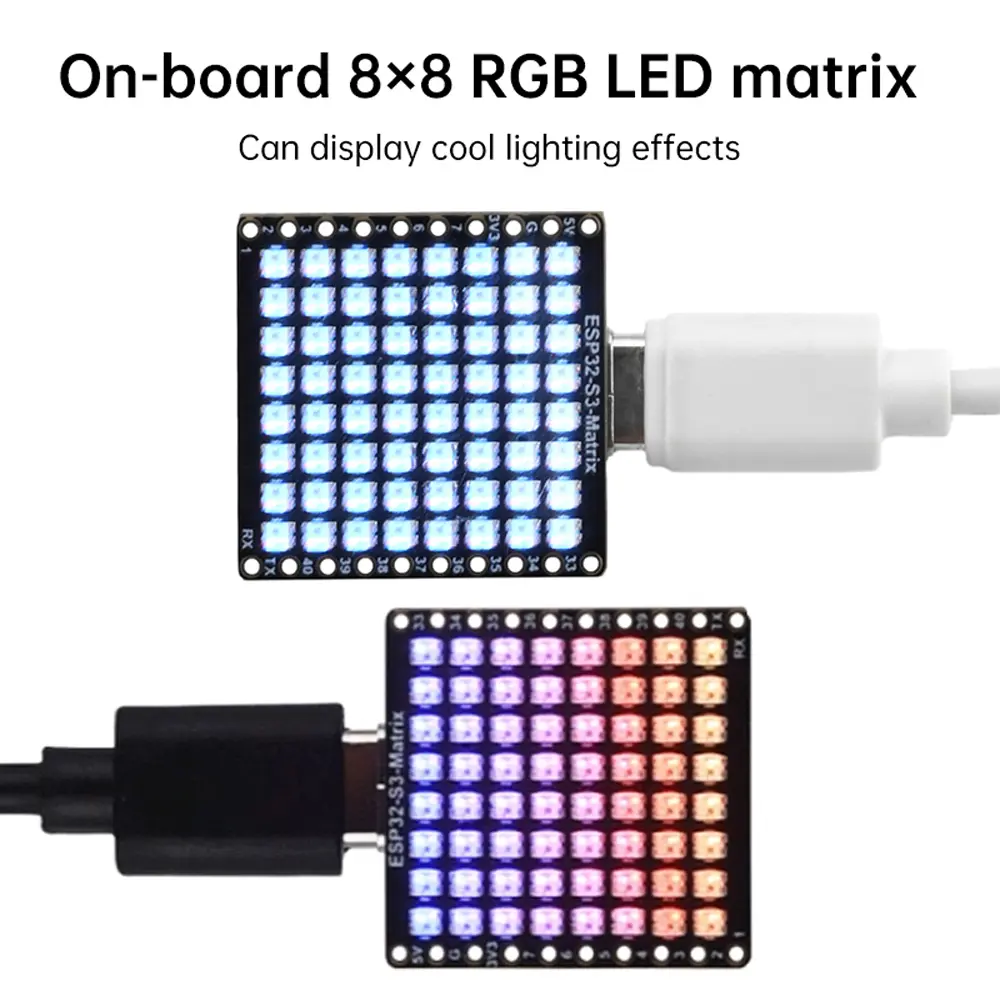

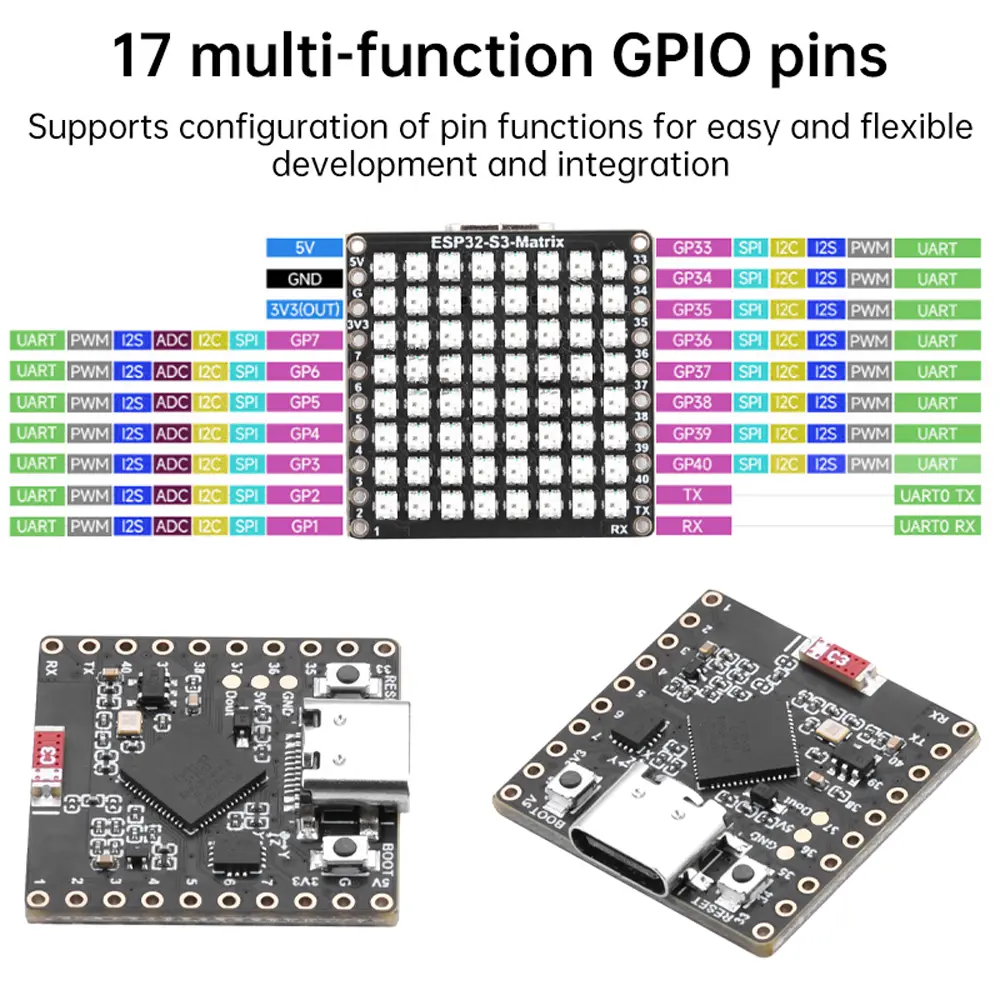

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004114844" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features:</span></strong></div><p>1. Using ESP32-S3FH4R2 as the main chip, equipped with Xtensa 32-bit LX7 dual core processor, with a main frequency of up to 240MHz <br/>2. Integrate 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory <br/>3. Integrated 2.4GHz Wi Fi and low-power Bluetooth LE dual-mode wireless communication, with superior RF performance <br/>4. Adopting USB Type-C interface, no need to worry about front and back insertion <br/>5. The onboard QST attitude sensor QMI8658C achieves accurate attitude tracking and motion control <br/>6. On board 8x8 RGB LED matrix, capable of displaying cool lighting effects <br/>7. Lead out the Dout pin, which can be connected to an extended RGB matrix <br/>8. ESP32-S3 Matrix Mini Development Board, based on ESP32-S3, introduces 17 multifunctional GPIO pins from ESP32-S3 in a compact version <br/>9. With rich peripheral interfaces, it can more flexibly implement various functions <br/>10. Support multiple low-power working states, adjust the balance between communication distance, data rate, and power consumption, and meet the power consumption requirements of various application scenarios</p><p><strong><span style="font-size:20px">Parameter: </span></strong><br/>Interface: TYPE-C <br/>Processor: Xtensa 32-bit LX7 dual core processor, with a main frequency of up to 240MHz <br/>Storage: Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash <br/>LED: 8x8 RGB <br/>GPIO pins: 17 <br/>Supports WIFI and BLE 5, ESP32-S3 integrates 2.4GHz Wi Fi (802.11 b/g/n), supports 40MHz bandwidth, and has low <br/>Power consumption Bt subsystem supports Bt 5 (LE) and Blt Mesh <br/>Size: 25mm * 25mm</p><p><strong><span style="font-size:20px">Package include: </span></strong><br/>1X development board<br/></p></div></div><br/>
