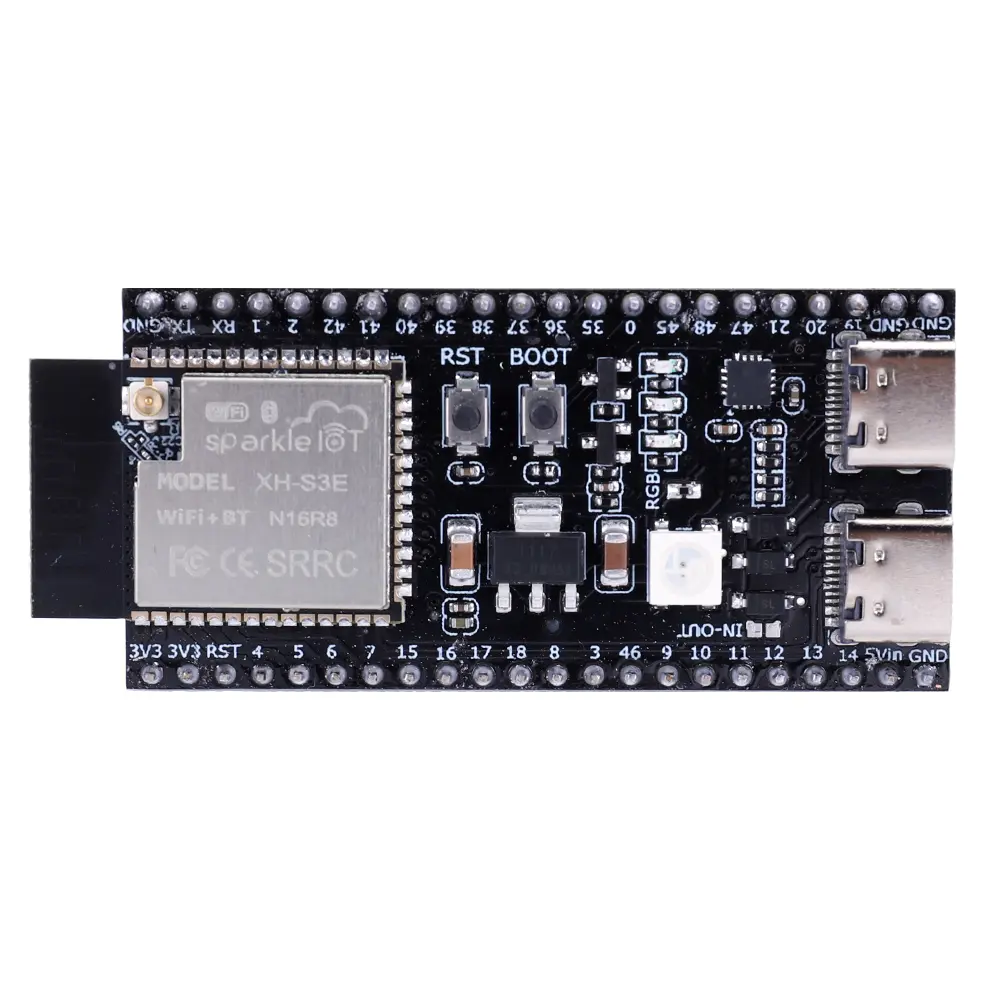

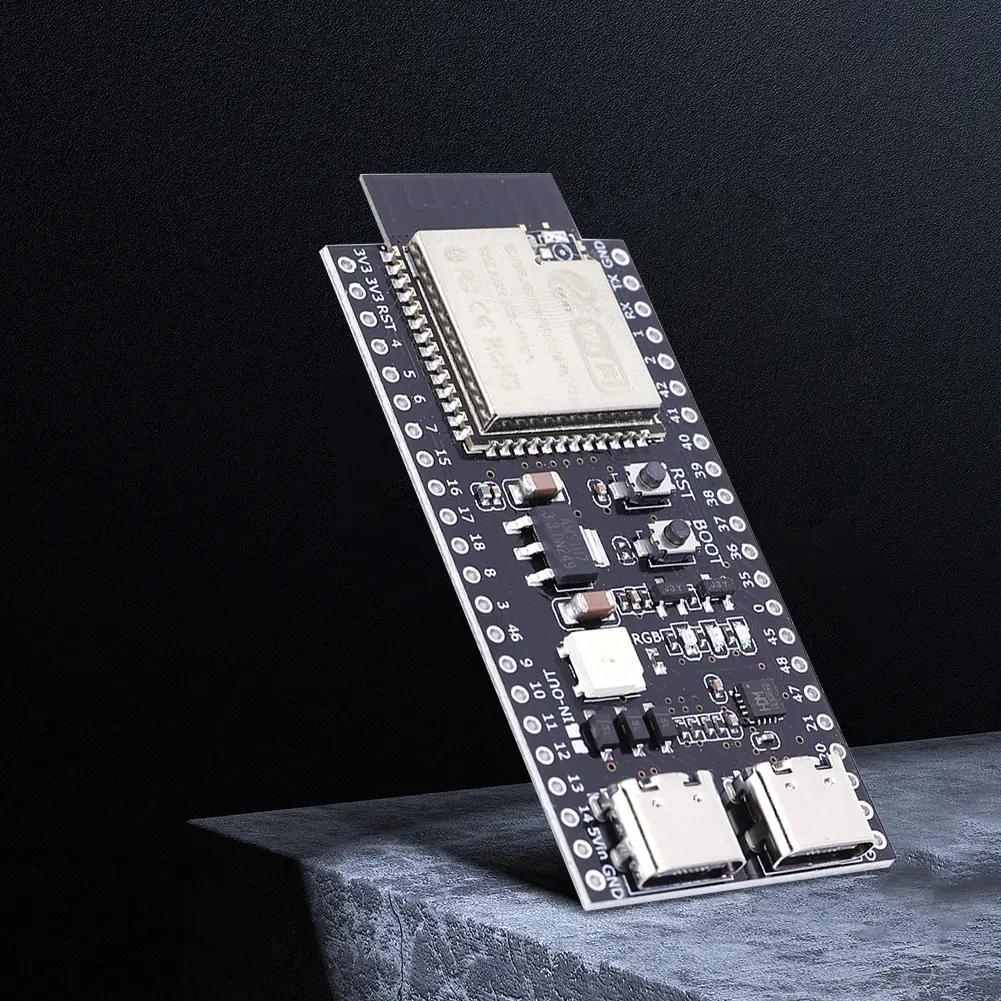

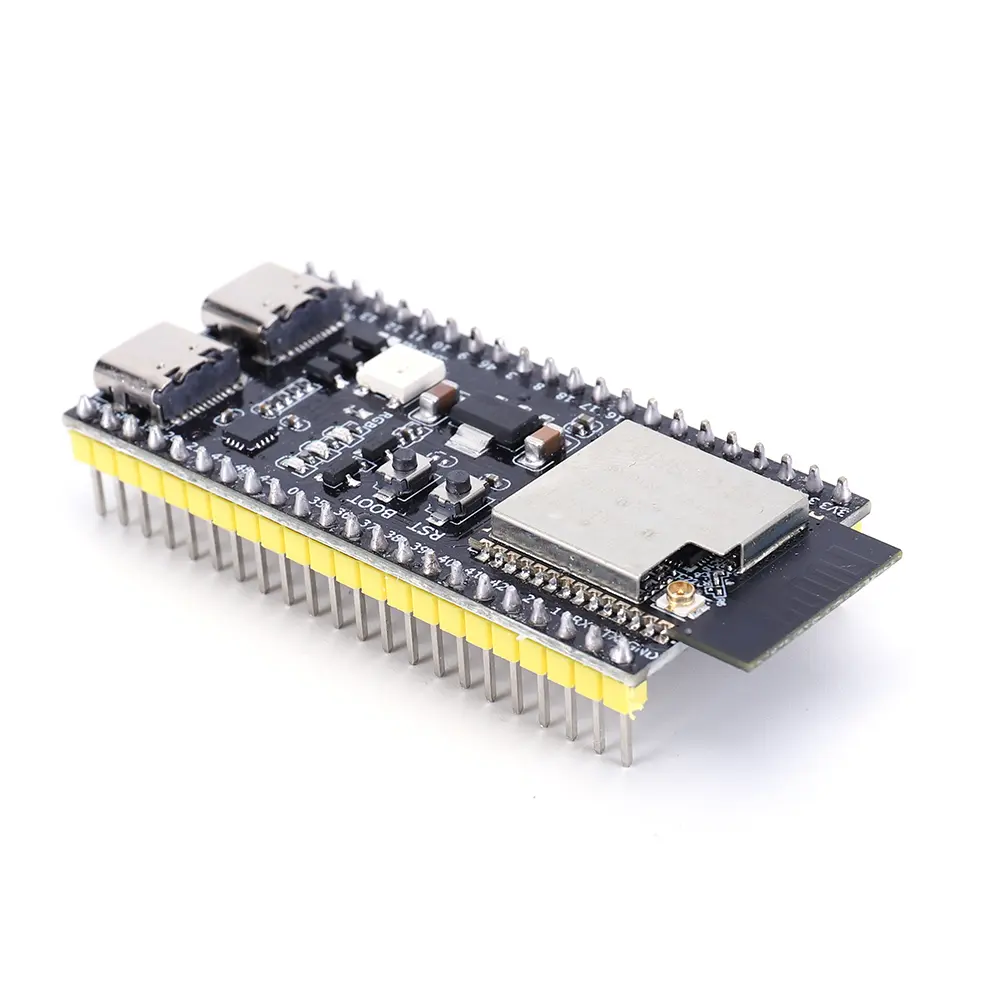

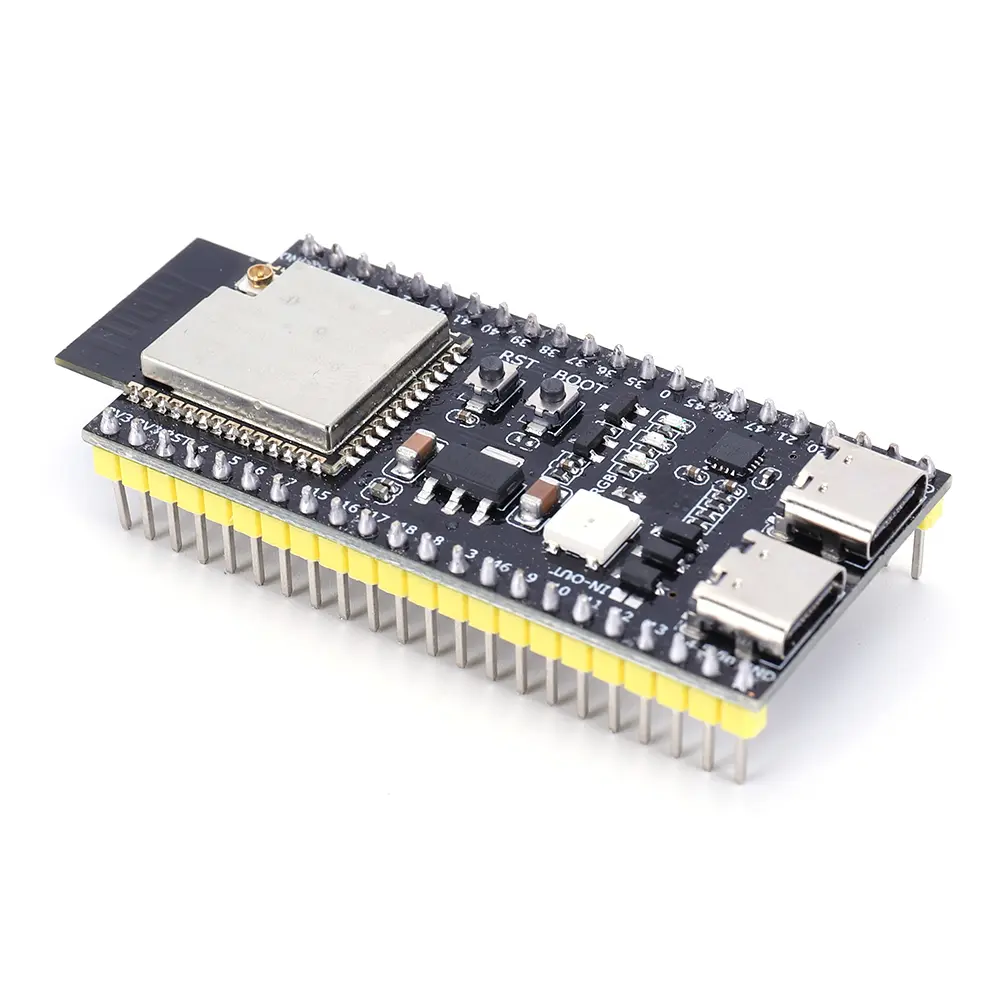

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p> <br /> </p> <p> </p> <p> <br /> </p> <p> ESP32-S3 N16R8 N8R2 Dual Type-C Development Board WiFi Expansion Board 2.4G Wifi Module for Arduino<br /> <b>Features:</b><br /> <b>1.High Performance:</b> Built around the ESP32-S3-WROOM-1 core board, this development board offers numerous IO ports and an on-board WS2818RGB corresponding to IO48. It provides a reliable for development board solution for complex projects.<br /> <b>2.Dual Type-C Interfaces:</b> Equipped with two Type-C interfaces, one marked COM is readily usable, while the other USB can function via OTG or by pressing BOOT upon power-up to display ports for program downloading. It acts as a convenient for expansion board connection.<br /> <b>3.WiFi-Based RGB Control:</b> Integrated with RGB that automatically lights up when connected to WiFi and turns off when disconnected, enhancing visual feedback and functionality for core board users.<br /> <b>4.Versatile Programming Options:</b> This development board supports flexible programming choices, allowing users to easily implement various applications by utilizing its <span>sturdy&nbsp;</span>features.<br /> <b>5.Comprehensive Application Support:</b> Designed to cater to a broad range of applications, this development board ensures seamless integration with different systems for maximum adaptability.<br /><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Model: S3-N8R2 without soldering, S3-N16R8 without soldering, S3-N16R8 with soldering (optional)<br /> Working voltage: 3.3-5V<br /> IO port: 36 IOs<br /> N16R8<br /> Flash: 16M<br /> PSRAM: 8M<br /> N8R2<br /> Flash: 8M<br /> PSRAM: 2M<br /> 2 I2C, 4 SPI interfaces<br /> Onboard size: 57x28x4mm (excluding protruding parts)<br /> Product size: 57.00x28.00x4.00mm/2.24x1.1x0.16inch<br /> Material: mixed material<br /> Note: Do not short-circuit the pins, which may burn the module.<br /> <br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /> <br /> </p> <p> </p> <p> 1 x N8R2 Development Board<br /> 2 x Pin Headers<br /> /<br /> 1 x N16R8 Development Board<br /> 2 x Pin Headers<br /> /<br /> 1 x N16R8 Soldered Development Board<br /> <br /> </p> <p> </p> <p> </p> <p> </p> <p> <span style="color:#171A1D;font-family:&quot;font-size:14px;font-style:normal;font-weight:400;background-color:#FFFFFF;"></span> </p> <p> </p> <p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> </table> </div> </div> </td> </tr> </tbody> </table></div></div>
