ESP32-S3 WiFi BT Mini Development Board Module Dual Core Processor Based on ESP32-S3 FH4R2

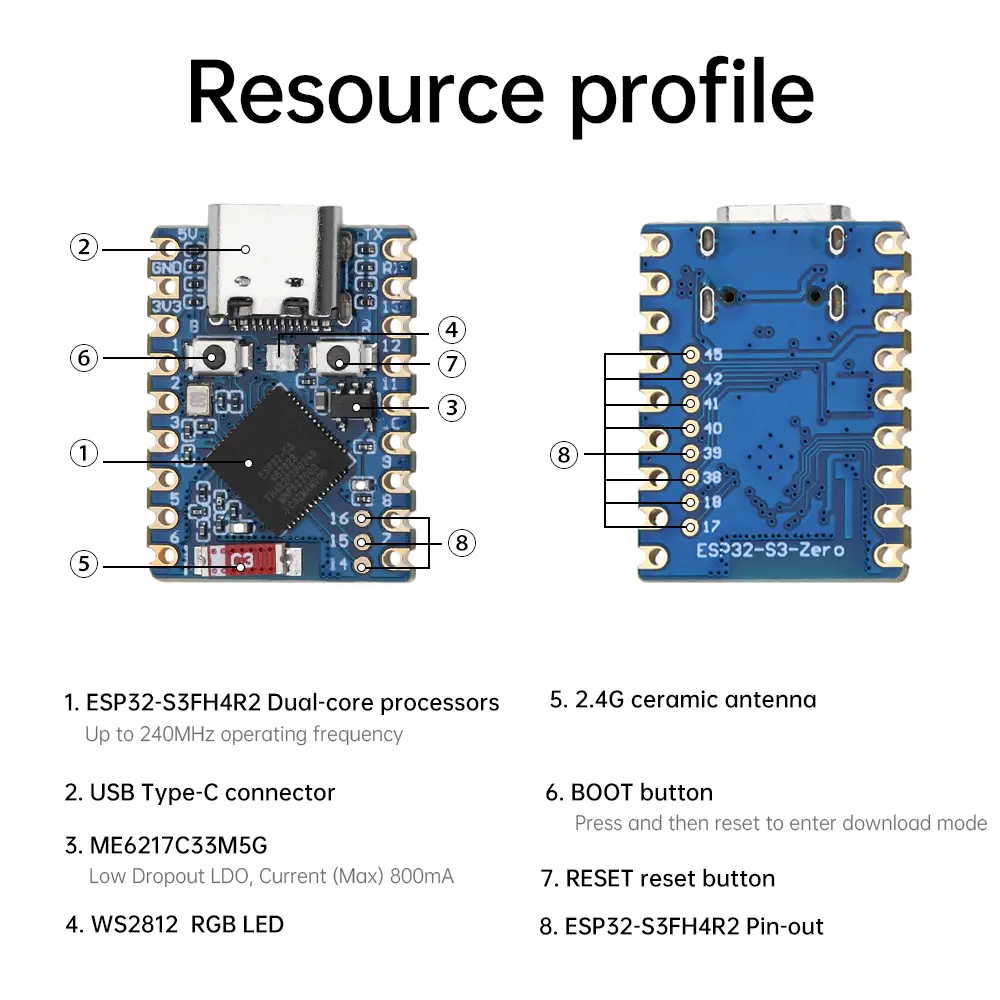

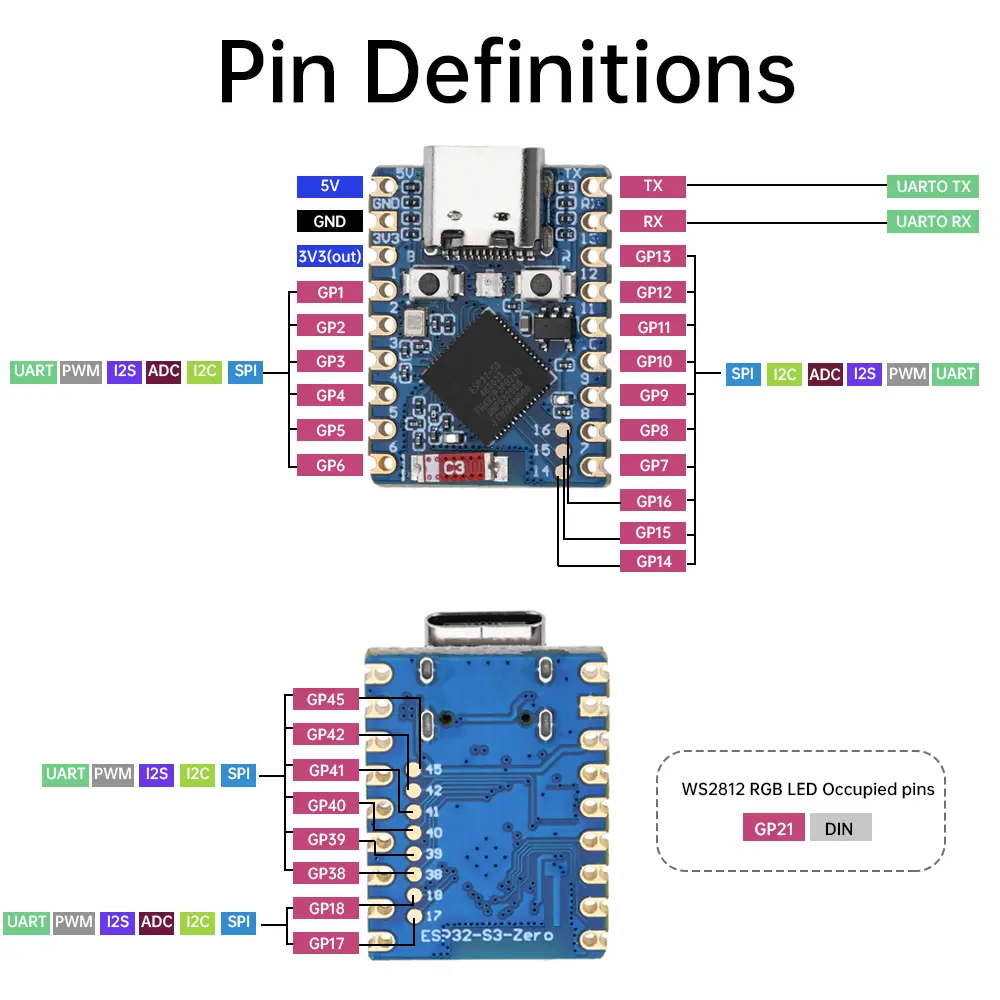

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Equipped with high-performance Xtensa ® A 32-bit LX7 dual core processor with a main frequency of up to 240MHz. <br/>2. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt ® 5 (LE). <br/>3. Built in 512KB SRAM and 384KB ROM, stacked 4MB Flash and 2MB PSRAM. <br/>4. Adopting a stamp hole design and onboard ceramic antenna, it is convenient to integrate into the user's self-designed bottom plate. <br/>5. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios. <br/>6. Integrated USB serial port full speed controller, with 34 GPIOs for flexible configuration of peripheral functions. <br/>7. Equipped with peripherals such as 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC, etc. <br/>8.Based on ESP32-S3 FH4R2, most of the pins are led out in a small board shape using a half hole process, which can be soldered onto custom boards.</p><p>Parameter: <br/>Processor: ESP32-S3FH4R2 dual core processor with a running frequency of up to 240MHz <br/>Interface: USB Type-C interface <br/>Current: (Max) 800mA <br/>Antenna: 2.4G ceramic antenna <br/>Key: <br/>BOOT button, press and then reset to enter download mode <br/>RESET reset button <br/>LED: WS2812 Cool RGB LED <br/>Size: 23.5 * 18mm</p><p>Package include: <br/>1X development board <br/>2X 9 Pin Headers<br/><br/></p></div></div><p><br/></p>
$17.3
$10.715
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Equipped with high-performance Xtensa ® A 32-bit LX7 dual core processor with a main frequency of up to 240MHz. <br/>2. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt ® 5 (LE). <br/>3. Built in 512KB SRAM and 384KB ROM, stacked 4MB Flash and 2MB PSRAM. <br/>4. Adopting a stamp hole design and onboard ceramic antenna, it is convenient to integrate into the user's self-designed bottom plate. <br/>5. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios. <br/>6. Integrated USB serial port full speed controller, with 34 GPIOs for flexible configuration of peripheral functions. <br/>7. Equipped with peripherals such as 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC, etc. <br/>8.Based on ESP32-S3 FH4R2, most of the pins are led out in a small board shape using a half hole process, which can be soldered onto custom boards.</p><p>Parameter: <br/>Processor: ESP32-S3FH4R2 dual core processor with a running frequency of up to 240MHz <br/>Interface: USB Type-C interface <br/>Current: (Max) 800mA <br/>Antenna: 2.4G ceramic antenna <br/>Key: <br/>BOOT button, press and then reset to enter download mode <br/>RESET reset button <br/>LED: WS2812 Cool RGB LED <br/>Size: 23.5 * 18mm</p><p>Package include: <br/>1X development board <br/>2X 9 Pin Headers<br/><br/></p></div></div><p><br/></p>
