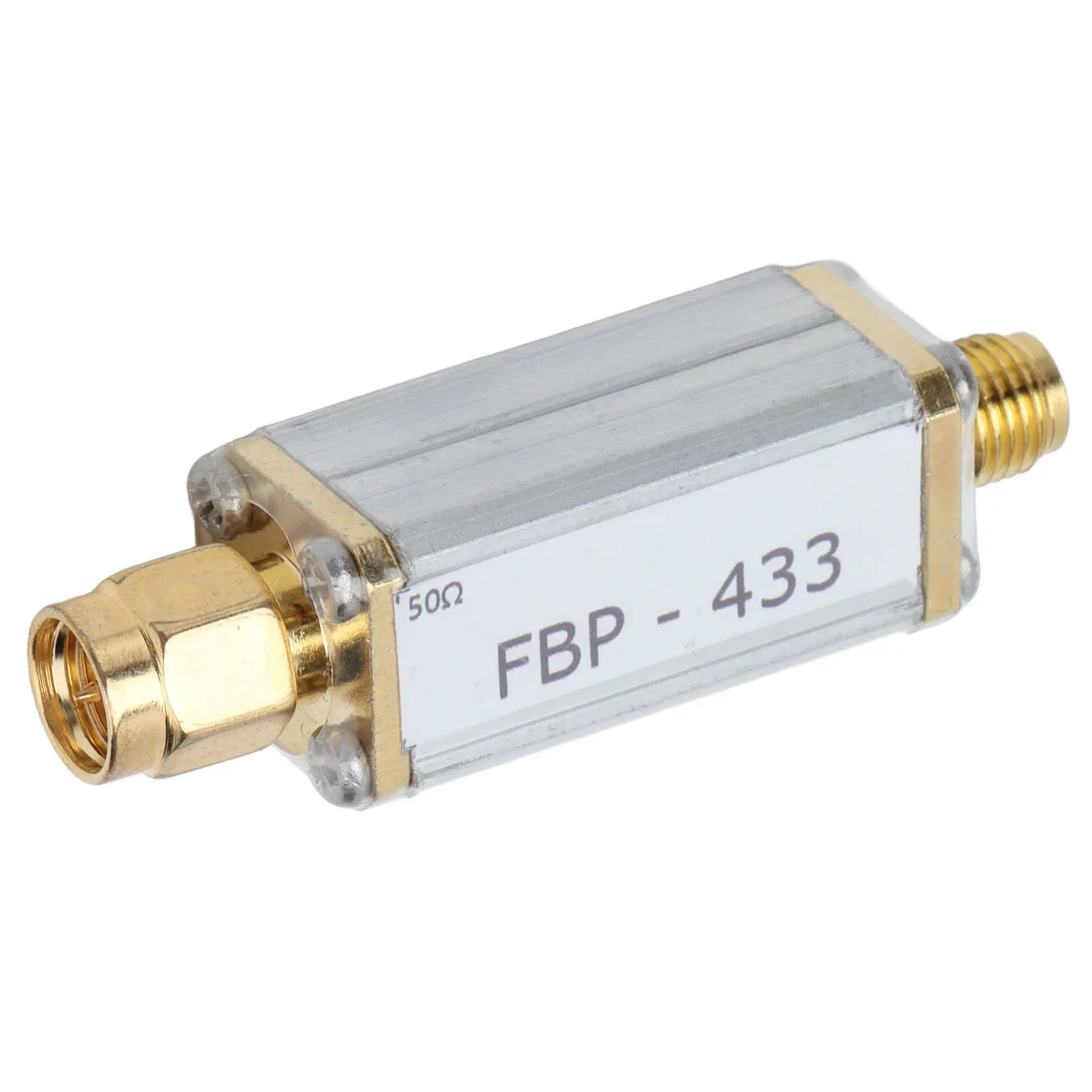

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>Bandpass Filter Module SMA Interface Ultra Small 50 Ohms 433(400～475)MHz FBP‑433</b><br/></p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. INCREASE DYNAMIC RANGE: Effectively filter out of band signals, reduce noise and increase dynamic range<br/>2. EXCELLENT SUPPRESSION: Filter also has excellent suppression of out of band remote signals, and performance is far superior to products made with bare PCB boards<br/>3. NON INTERFERENCE: Adopt aluminum alloy shielded shell, non interference, no out of band spurious response, compact and sturdy, easy to use<br/>4. SMA‑M SMA‑F INTERFACE: Possess 50 Ohms impedance, center frequency is 433 MHz, using interface for SMA‑M and SMA‑F<br/>5. 10W(40 DBM) MAXIMUM CARRYING POWER: Maximum carrying power is 10W(40 dBm), possess stable structure, excellent performance and long service life<p><br/></p><p><b>Specification:</b></p>Item Type: Bandpass Filter Module<br/>Material: Aluminum alloy<br/>Model: FBP-433<br/>Impedance: 50 Ohms<br/>Center Frequency: 433 MHz<br/>Center Frequency Insertion Loss: ≤ 3.5 dB at 433 MHz<br/>3 dB Bandwidth: 390 ~ 470 MHz<br/>30 dB Bandwidth: 350 ~ 560 MHz<br/>More Than 50 dB Stop Band: DC ~ 250 MHz and 1100 ~ 2500 MHz<br/>Maximum Carrying Power: 10 W (40 dBm)<br/>Interface: SMA-M, SMA-F<br/><p><br/></p><p><b>Package List:</b></p>1 x Bandpass Filter Module<p><br/></p><p><b>Note:</b></p>Don't overload.</div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
