    • Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount
    Female SMA RF Coaxial Connector for PCB Mount

    Female SMA RF Coaxial Connector for PCB Mount

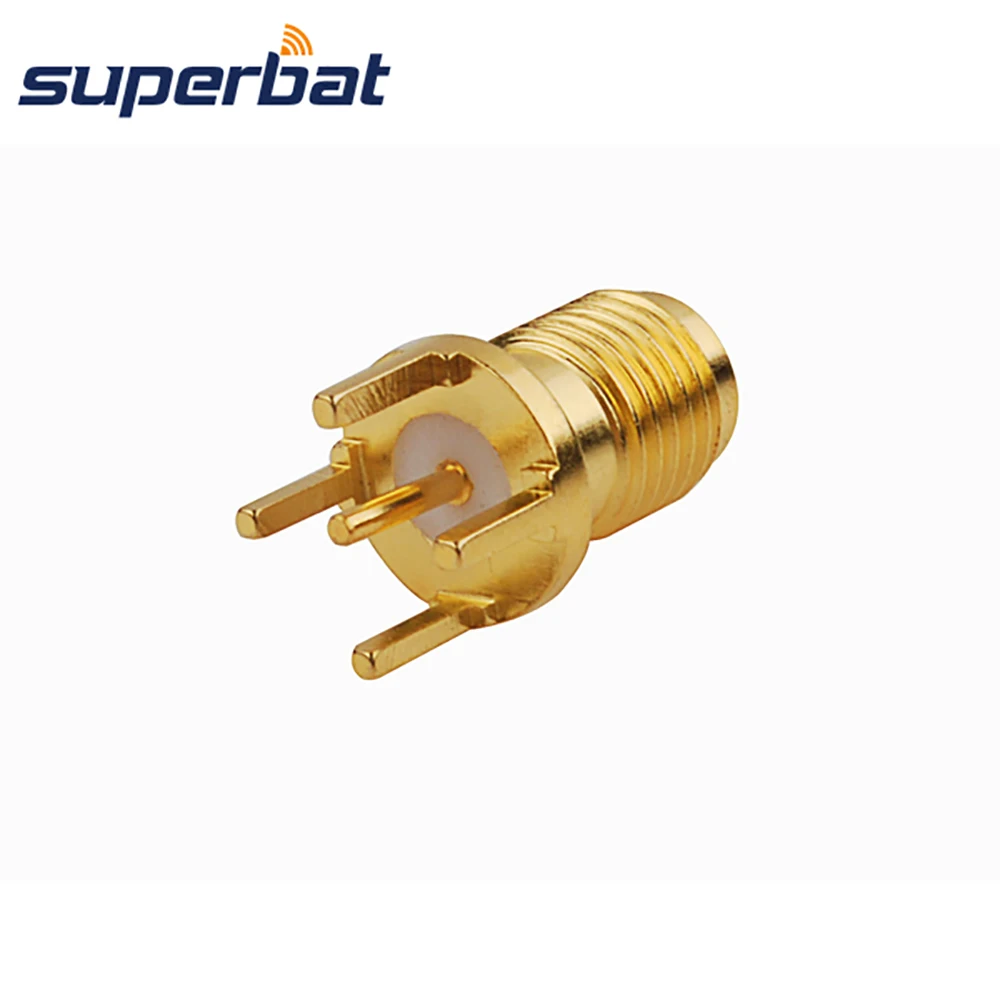

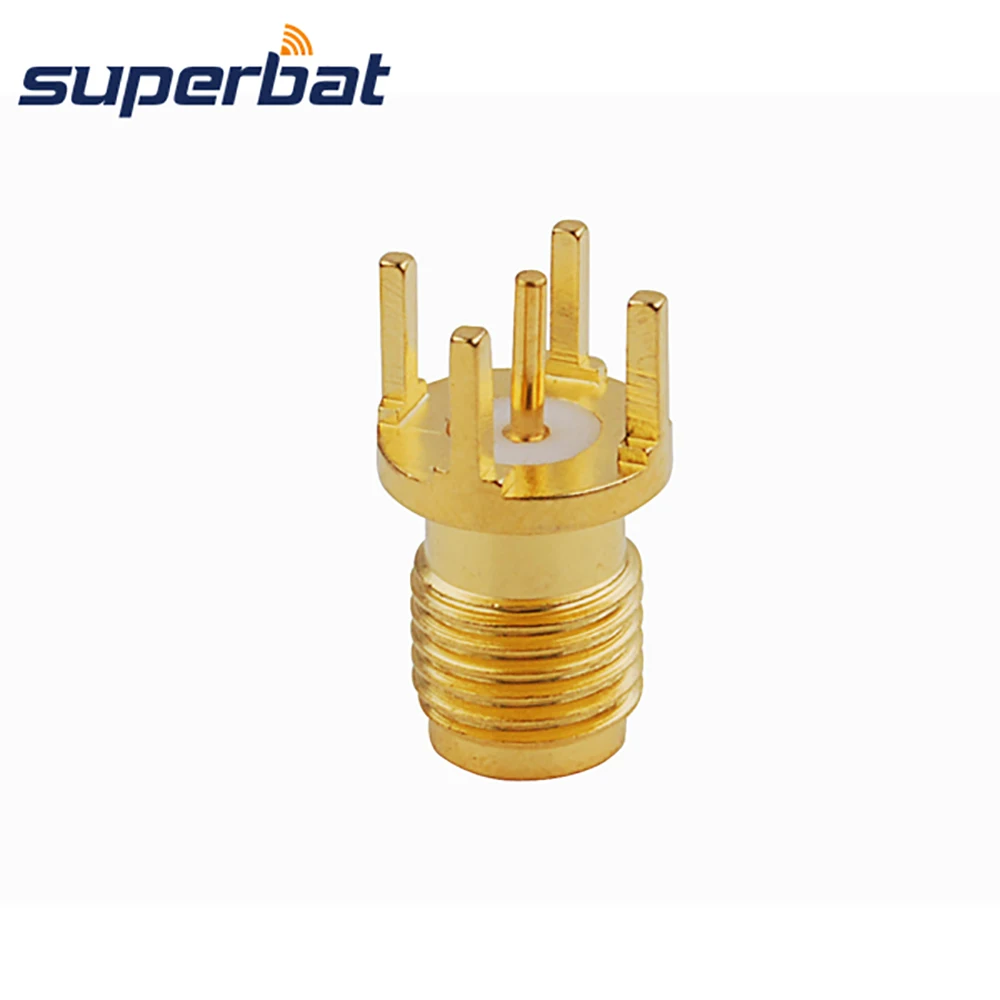

    <p>Superbat SMA Female thru hole Circle PCB Mount Straight RF Coaxial Connector Adapter</p><p>Product Series: SMA</p><p>Product Type: PCB Mount</p><p>Body Plating: Goldplated</p><p>Gender: Female Jack</p><p>Connector Body Style: Straight</p><p>Applications: Base stations, Antennas, Telecommunications, Instrumentation, PC/LAN</p><p>Key performance: Temperature Range -65°C to +165°C, Characteristic Impedance 50 Ohm, Insulation Resistance ≥5000 MΩ, Voltage Rating 335V</p><p>Frequency Range: 0-12.4GHz with flexible cable, 0-18GHz with Semi-rigid/flexible cable</p><p>Material and Plating: Body - Brass, gold plated; Male Center Contacts - Brass, gold plated; Female Center Contacts - Beryllium Copper, Gold plated; Insulators - PTFE</p>
    $4.28
    $4.28

    Colors

    -
    +
    <p>Superbat SMA Female thru hole Circle PCB Mount Straight RF Coaxial Connector Adapter</p><p>Product Series: SMA</p><p>Product Type: PCB Mount</p><p>Body Plating: Goldplated</p><p>Gender: Female Jack</p><p>Connector Body Style: Straight</p><p>Applications: Base stations, Antennas, Telecommunications, Instrumentation, PC/LAN</p><p>Key performance: Temperature Range -65°C to +165°C, Characteristic Impedance 50 Ohm, Insulation Resistance ≥5000 MΩ, Voltage Rating 335V</p><p>Frequency Range: 0-12.4GHz with flexible cable, 0-18GHz with Semi-rigid/flexible cable</p><p>Material and Plating: Body - Brass, gold plated; Male Center Contacts - Brass, gold plated; Female Center Contacts - Beryllium Copper, Gold plated; Insulators - PTFE</p>
