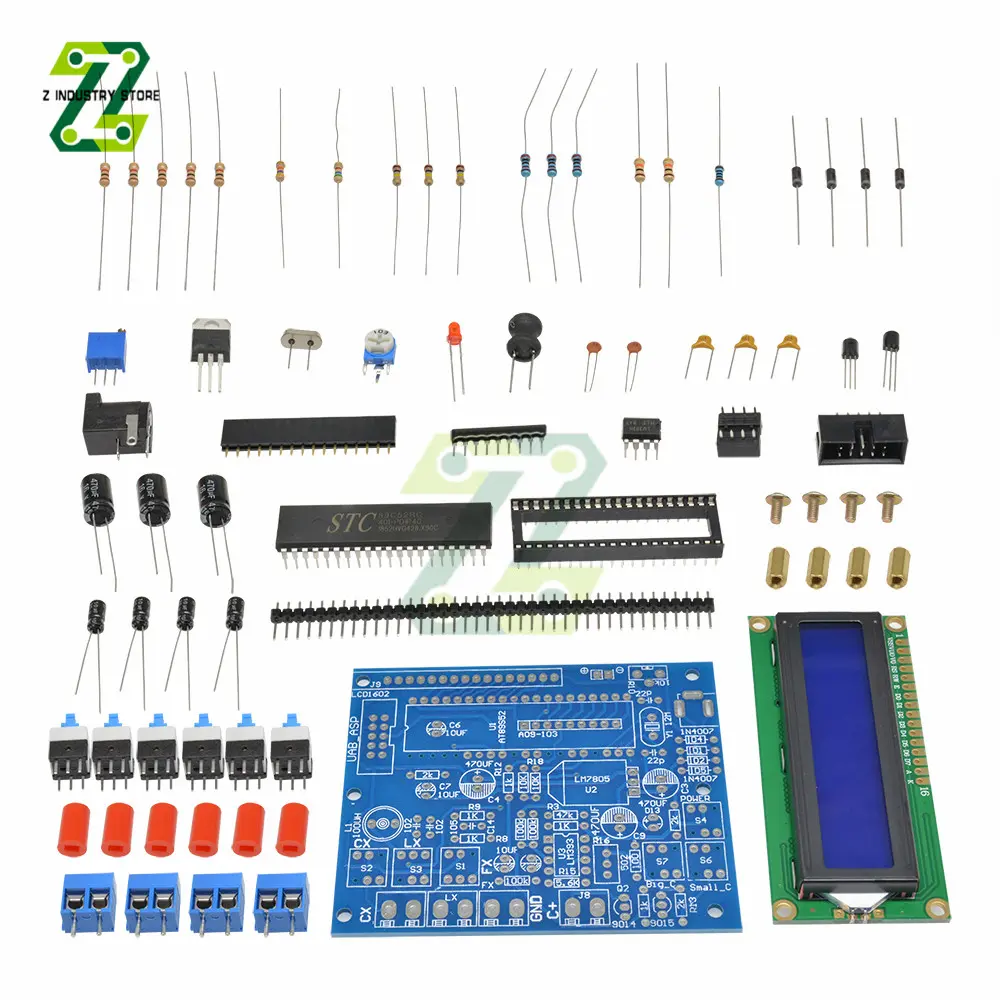

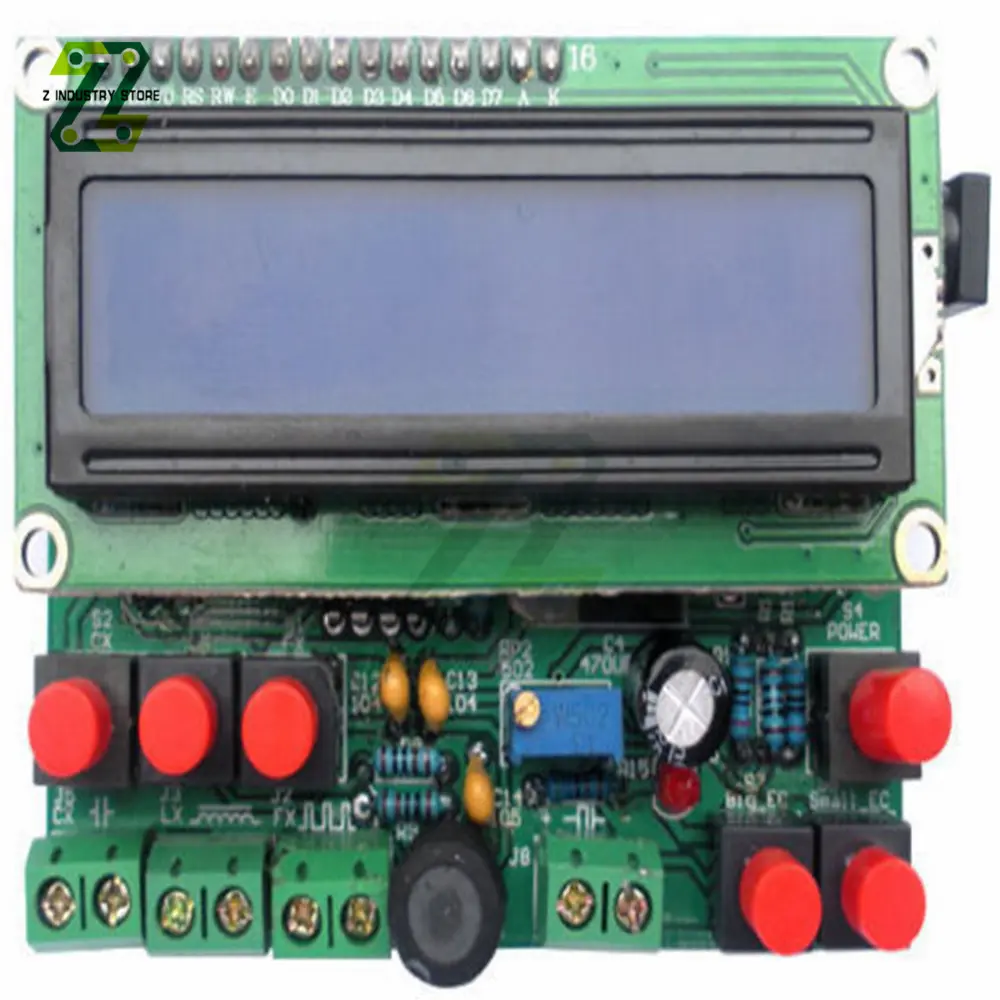

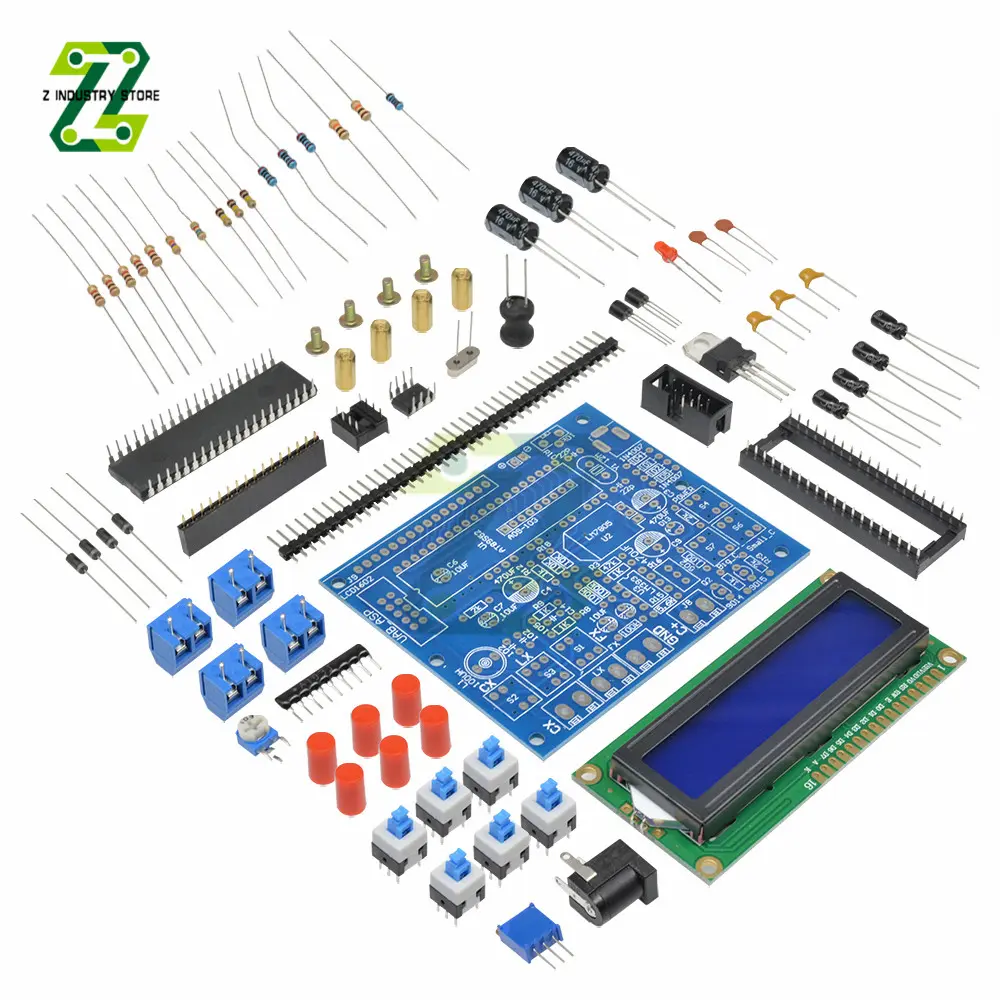

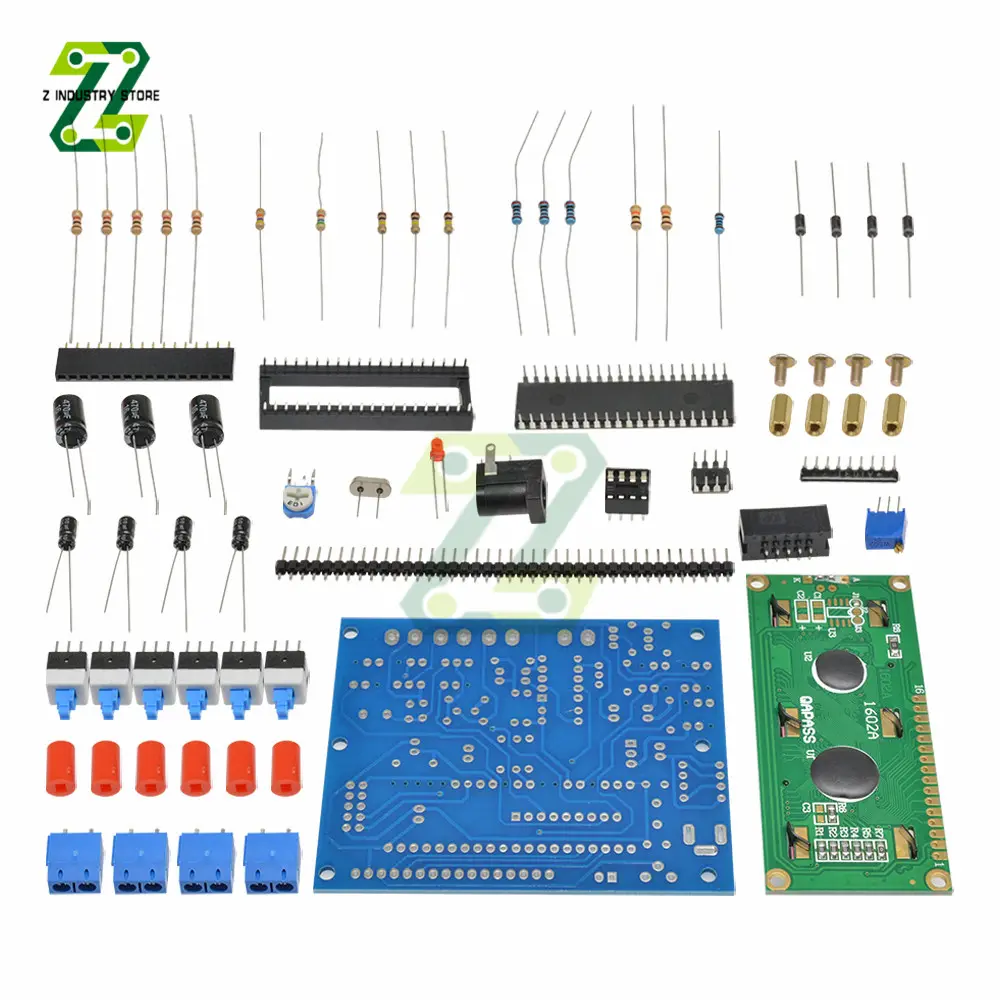

<p><kse:widget data-widget-type="customText" id="1005000000650092" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>Frequency Capacitance Inductance Meter LCD Digital Secohmmeter CF Inductor Capacitor Tester Frequency Meter DIY Kit</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Notice:</strong></span></p><p><span style="font-size:18px"><strong> This is a DIY part, it needs to be installed by yourself</strong></span></p><p><br/></p><p><span style="font-size:18px">Board size: 6.8 * 8.5CM;</span></p><p><span style="font-size:18px">Voltage:DC5V or DC8-14V or AC7 to 10V available (wide power range)</span></p><p><br/></p><p><span style="font-size:18px"><strong>Description of the scope of each booth:</strong></span></p><p><span style="font-size:18px">Inductance measurement range: 0.1μH-------- 1H</span></p><p><span style="font-size:18px">Small capacitance measurement range: 1pF-------2.2μF (non-polar capacitance)</span></p><p><span style="font-size:18px">Frequency range: 20Hz ------ 400KHz (small signal can be measured)</span></p><p><span style="font-size:18px">Electrolytic capacitor measurement range: 0.5μF-12000μF (electrolytic capacitor)</span></p><p><br/></p><p><span style="font-size:18px"><strong>List:</strong></span></p><p><span style="font-size:18px">PCB board * 1</span></p><p><span style="font-size:18px">1CM bolt screw + 4*</span></p><p><span style="font-size:18px">16P female* 1</span></p><p><span style="font-size:18px">40P needle straight * 1</span></p><p><span style="font-size:18px">Curved needle 2 needles * 1</span></p><p><span style="font-size:18px">LCD1602 * 1</span></p><p><span style="font-size:18px">103 blue potentiometer * 1</span></p><p><span style="font-size:18px">DC3-10 horn seat * 1</span></p><p><span style="font-size:18px">40P IC seat * 1</span></p><p><span style="font-size:18px">AT89S52 * 1</span></p><p><span style="font-size:18px">8P IC seat * 1</span></p><p><span style="font-size:18px">LM393 * 1</span></p><p><span style="font-size:18px">8×8 self-locking switch * 6</span></p><p><span style="font-size:18px">KF301-2P terminal block * 4</span></p><p><span style="font-size:18px">DC005 seat * 1</span></p><p><span style="font-size:18px">LM7805 * 1</span></p><p><span style="font-size:18px">A09-103 excluded * 1</span></p><p><span style="font-size:18px">3296-502 potentiometer * 1</span></p><p><span style="font-size:18px">22P ceramic capacitor * 2</span></p><p><span style="font-size:18px">1N4007 * 4</span></p><p><span style="font-size:18px">12M crystal oscillator * 1</span></p><p><span style="font-size:18px">470UF/16V capacitor * 3</span></p><p><span style="font-size:18px">10UF/25V capacitor * 4</span></p><p><span style="font-size:18px">3MM LED * 1</span></p><p><span style="font-size:18px">100UH inductor * 1</span></p><p><span style="font-size:18px">102 Monolithic capacitor * 2</span></p><p><span style="font-size:18px">105 monolithic capacitor * 1</span></p><p><span style="font-size:18px">9014 triode * 1</span></p><p><span style="font-size:18px">9015 triode * 1</span></p><p><span style="font-size:18px">10K resistor * 2</span></p><p><span style="font-size:18px">1K resistance * 5</span></p><p><span style="font-size:18px">100K resistor * 3</span></p><p><span style="font-size:18px">1%* 3 2K resistance error</span></p><p><span style="font-size:18px">47K resistor * 1</span></p><p><span style="font-size:18px">5.6K resistor * 1</span></p><p><span style="font-size:18px">100 ohm 1% error * 1</span></p><p><br/></p><p><span style="font-size:18px"><strong>Package Included:</strong></span></p><p><span style="font-size:18px">1×DIY kit Secohmmeter capacitance measuring instrument frequency meter inductance/capacitance</span></p><p><br/></p>
