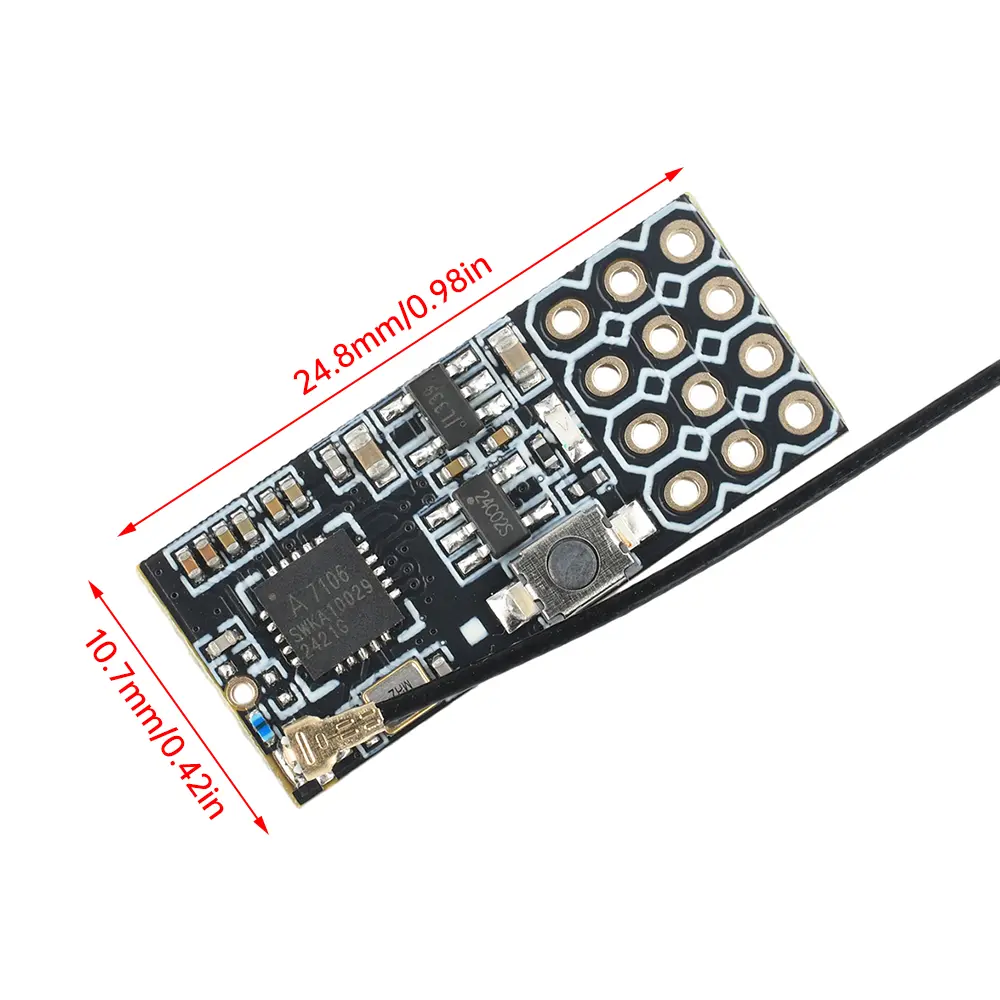

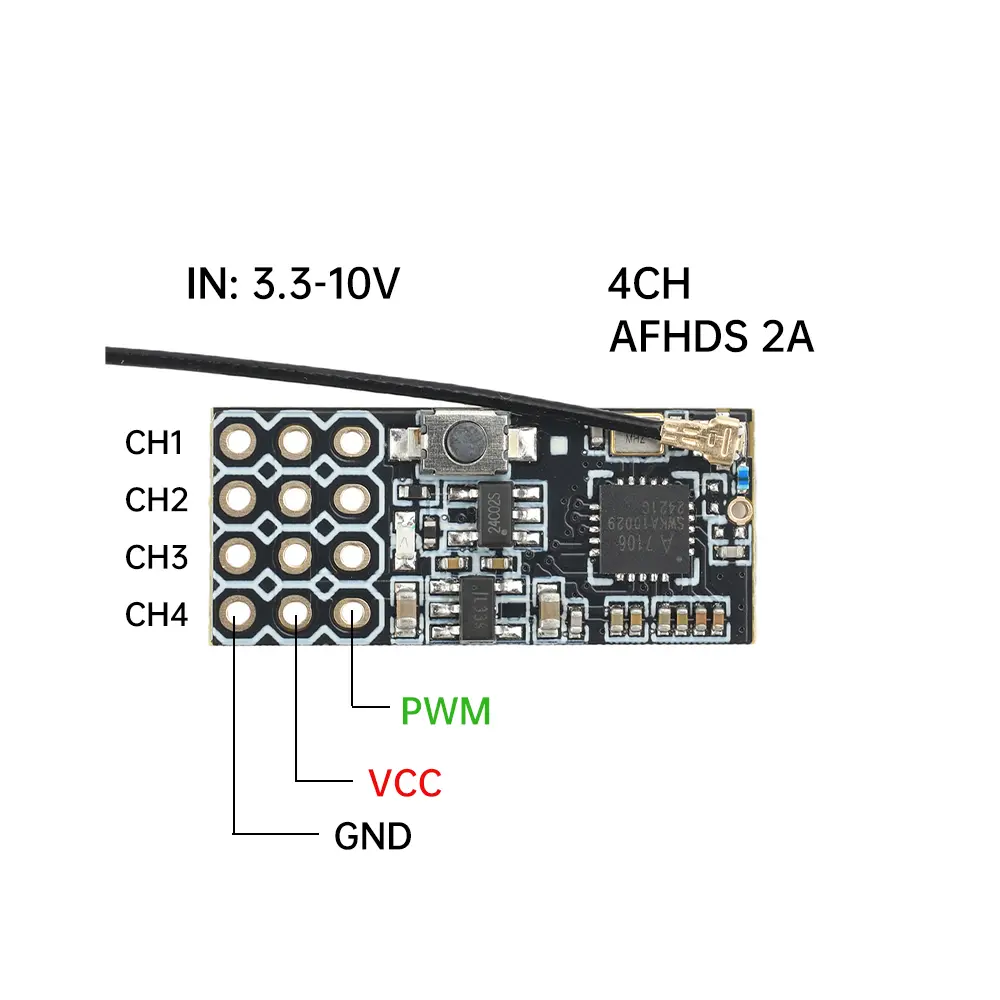

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. High sensitivity reception:- 92dBm receiving sensitivity ensures stable signal transmission, with a maximum distance of 400 meters. <br/>2. Wide voltage support: The power supply voltage is 3.3-10V, compatible with various power environments, and has strong adaptability. <br/>3. Supports multiple remote controls: Supports second-generation AFHDS 2A protocol remote controls such as FS-I6, with wide compatibility. <br/>4. Loss of control protection function: equipped with loss of control protection settings to ensure flight safety and easy operation. <br/>5. Supports PWM output: Supports PWM signal output, suitable for fixed wing models, precise control.</p><p>Parameter: <br/>Number of channels: 4 <br/>Output signal: PWM <br/>Frequency range: 2.408-2.475GHz <br/>Band width: 135 <br/>Receiving sensitivity:- 92DBM <br/>2.4G mode: AFHDS 2A <br/>Out of control protection: available <br/>Supply voltage: 3.3-10V <br/>Distance: 400+meters <br/>Working current: 20MA <br/>Dimensions: 11 * 25MM <br/>Supports the following remote controllers: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other second-generation AFHDS 2A protocol remote controllers</p><p>Code method: <br/>1. Press and hold the pairing button on the receiver, and connect the power to the receiver. The blue indicator light on the receiver flashes rapidly to indicate entering the code pairing state. <br/>2. Put the remote control into code pairing mode; (Confirmed to be AFHDS 2A protocol) <br/>After encoding, the receiver status indicator light changes from fast flashing to slow flashing. <br/>3. Manually exit the code interface of the remote control, and the blue indicator light of the receiver will become constantly on. Indicates successful signal receiver. <br/>Out of control protection settings: <br/>When the receiver is able to receive signals from the remote control normally, turn the joystick that needs to be set for loss of control protection to the position where the loss of control protection value is set. Long press the receiver&#x27;s pairing button, and the blue light will flash rapidly several times before remaining on. The loss of control protection setting is successful.</p><p>Package Include: <br/>1X module <br/>1X needle arrangement<br/><br/></p><div><br/></div></div></div><p><br/></p>
