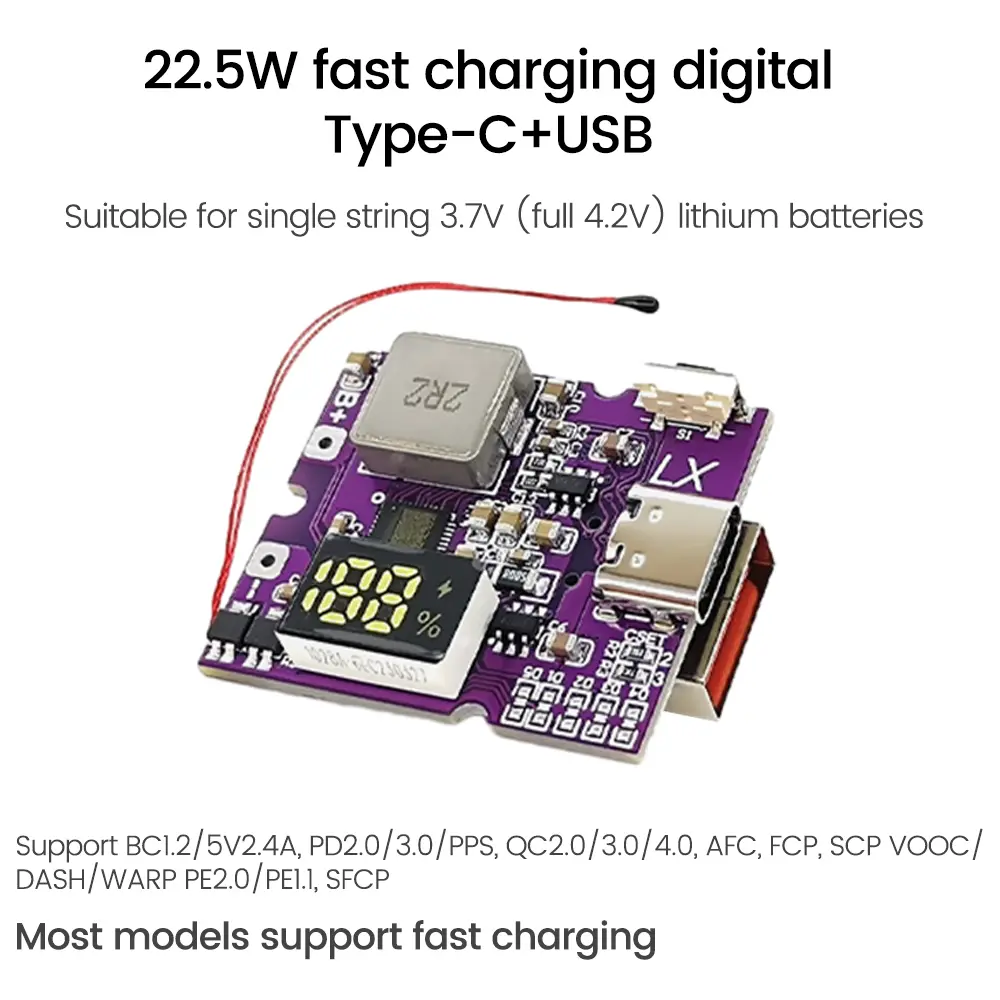

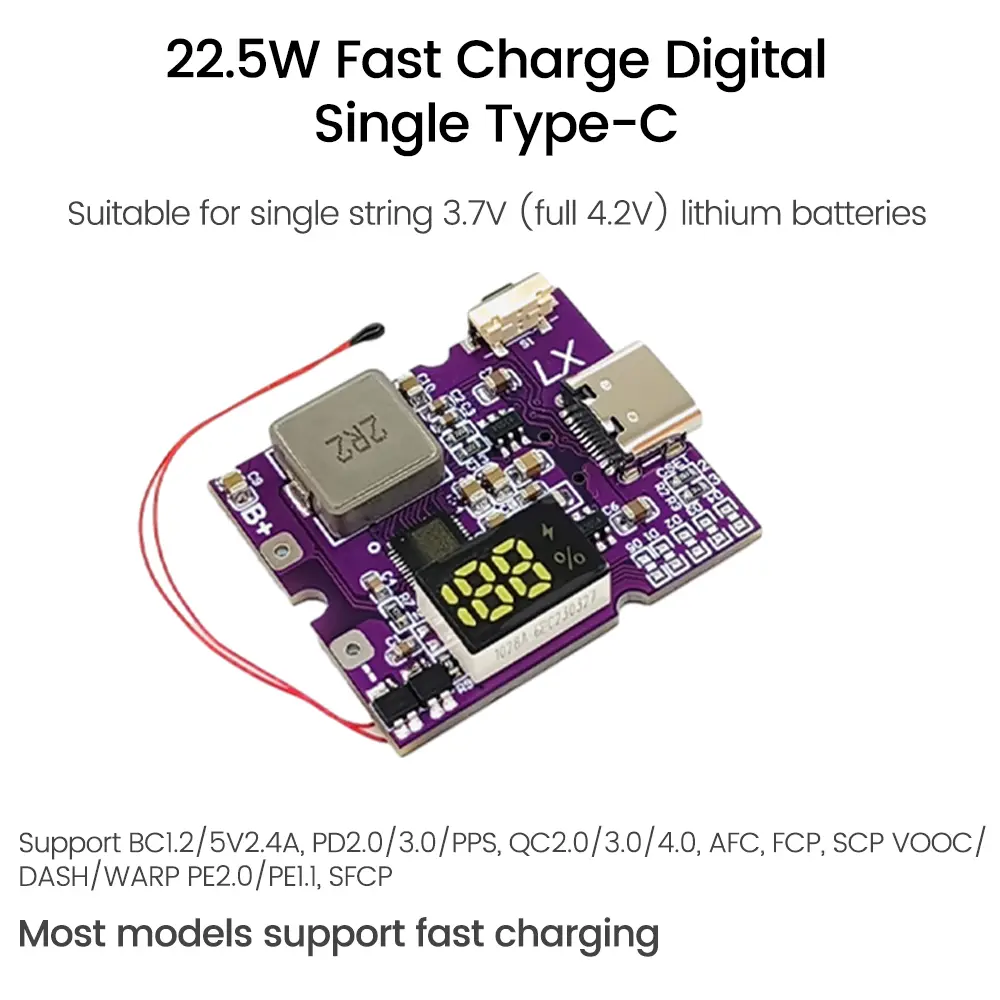

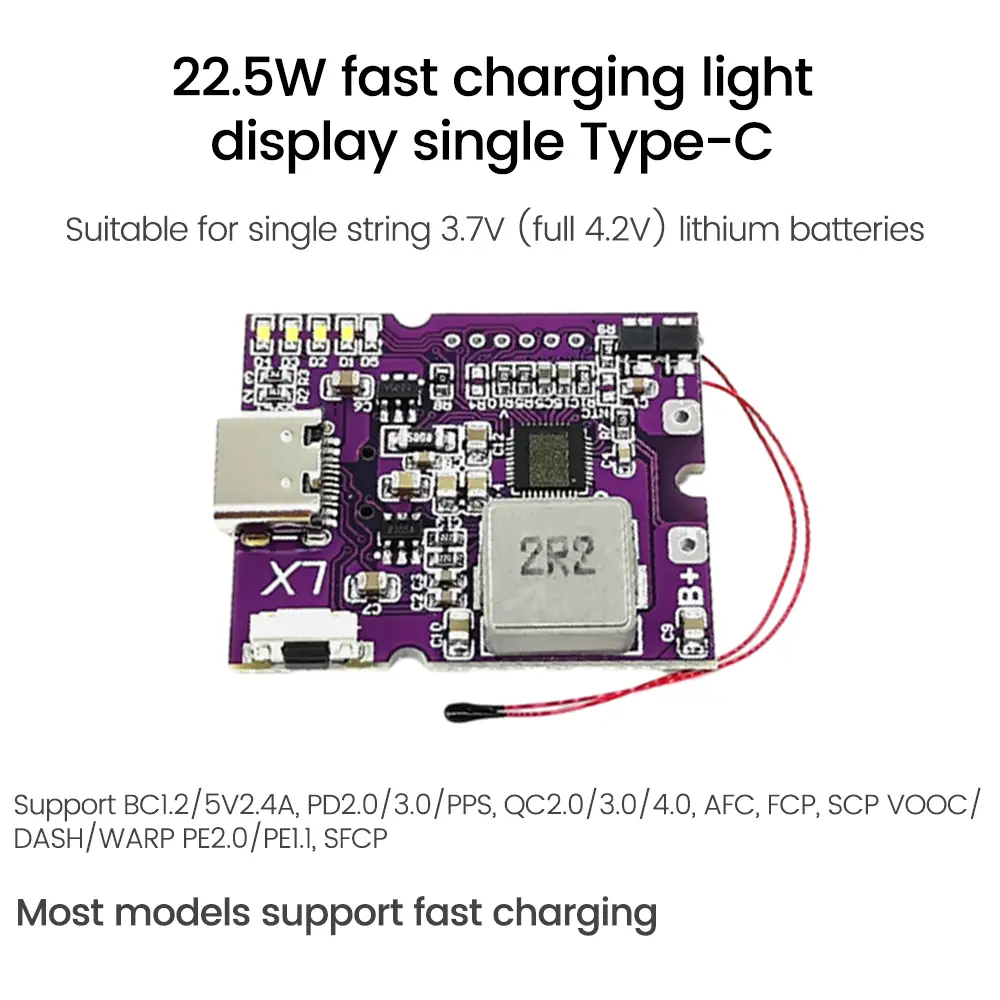

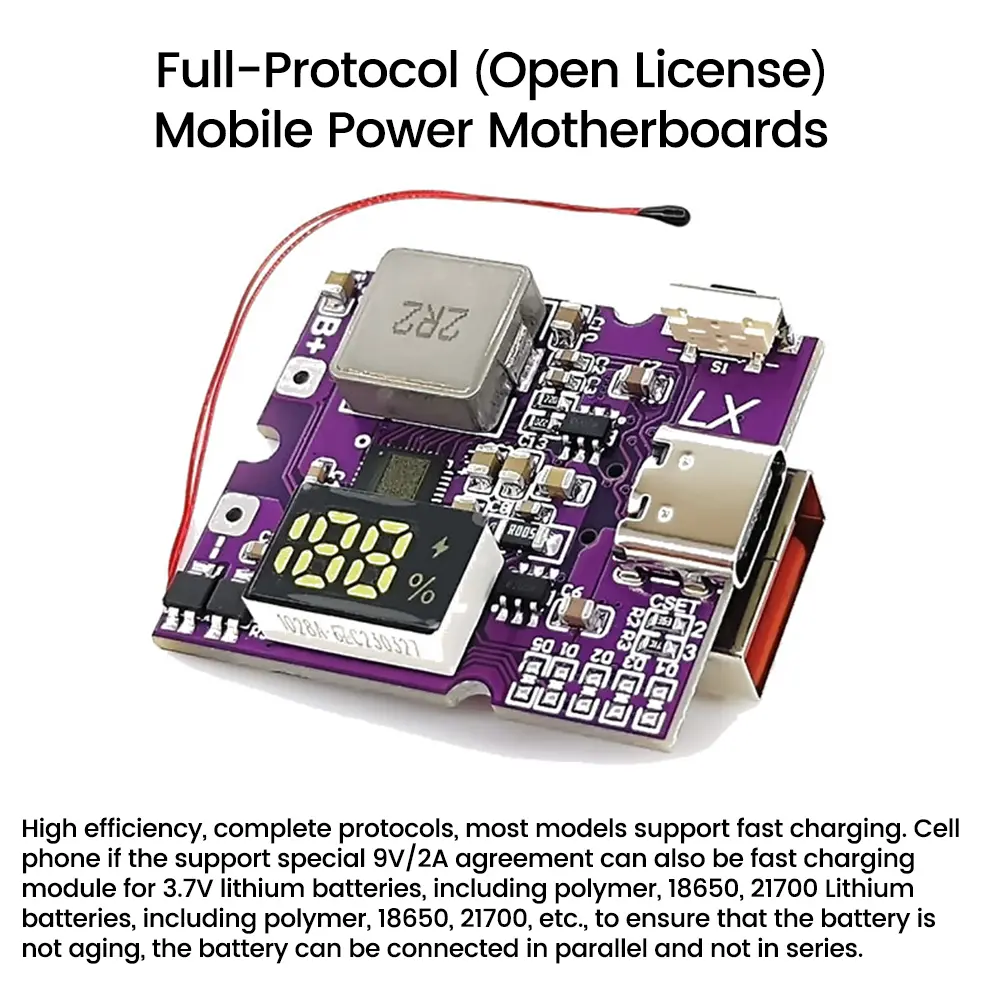

<p><strong><span style="font-size:20px">Product selling points:</span></strong></p><p><br/></p><p>1. Use high-quality materials with guaranteed product quality</p><p><br/></p><p>2. Small size, high power, high efficiency, complete protocols, and mainstream open protocols are basically supported</p><p><br/></p><p>3. The module is suitable for 3.7V lithium batteries, including polymer, 18650, 21700 and other lithium batteries; Ensure that the battery is not aging, and the battery can be connected in parallel but not in series</p><p><br/></p><p>4. The module has a relatively small volume, limited heat dissipation area, and high power output heat generation is a normal phenomenon</p><p><br/></p><p>5. The product has a wide range of applications and is suitable for various industrial DIY situations</p><p><br/><br/></p><p><strong><span style="font-size:20px">Parameters:</span></strong></p><p><br/></p><p>Full protocol, mainstream open protocols basically support charging current up to 5A, efficiency up to 96%, output power up to 22.5W, efficiency up to 95%</p><p><br/></p><p>Automatic load detection/light load detection</p><p><br/></p><p>High current USB output interface</p><p><br/></p><p>Supports low current mode</p><p><br/></p><p>Supports digital display and LED power indicator</p><p><br/></p><p>Output overcurrent/short circuit protection</p><p><br/></p><p>Charging timeout/overvoltage protection</p><p><br/></p><p>Supports PPS/PD3.0/PD2.0</p><p><br/></p><p>Supports QC4+/QC4/QC3.0/QC2.0</p><p><br/></p><p>Supports FCP and SCP (5V4.5A or 4.5V/5A)</p><p><br/></p><p>Supports FCP, SCP, HSCP</p><p><br/></p><p>Supports SFCP</p><p><br/></p><p>Charging the battery supports PD3.0/PD2.0, AFCFCP, SCP, PE1.1</p><p><br/><br/></p><p><strong><span style="font-size:20px">Precautions for use:</span></strong></p><p><br/></p><p>1. The battery and motherboard cables should not be too thin and should be as thick as possible. The fast charging board requires a current of 10A, and non fast charging boards also need a current of 7A. It cannot be too long, the interface needs to be welded.</p><p><br/></p><p>2. Batteries can only be connected in parallel (there is no limit to the number of parallel connections), and cannot be connected in series. If connected in series, the motherboard will be burned.</p><p><br/></p><p>3. For normal use, the battery must be soldered (twisting the wires will result in insufficient power supply), and if the battery is reversed, the motherboard will burn. Be careful. Try to make the lines thicker and shorter.</p><p><br/></p><p>4. When connecting the battery, it is necessary to ensure that it is a 3.7V battery and not other batteries. Ensure that the batteries are not connected in series, otherwise if the voltage connected to the battery terminal exceeds 4.5V, it may burn out the board.</p><p><br/><br/></p><p><strong><span style="font-size:20px">Package List:</span></strong></p><p><br/></p><p>Mini fast charging module * 1</p><p></p>
