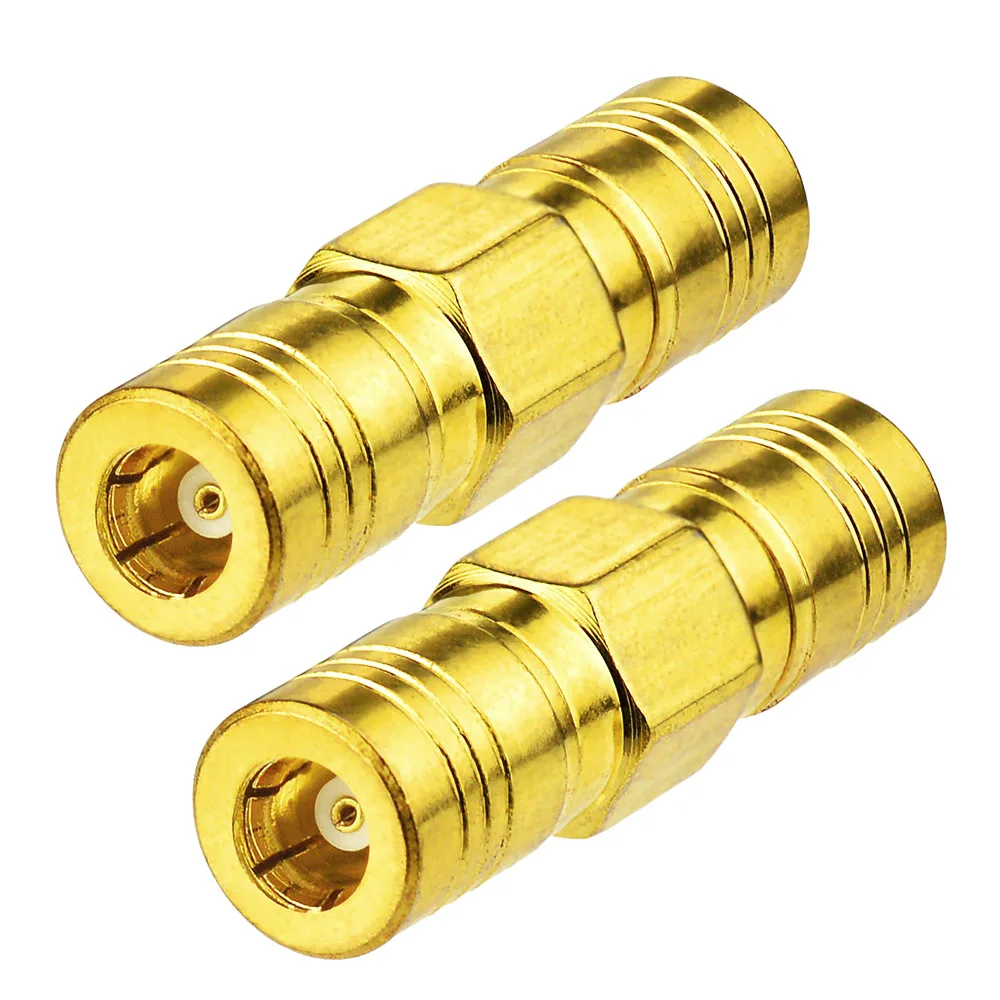

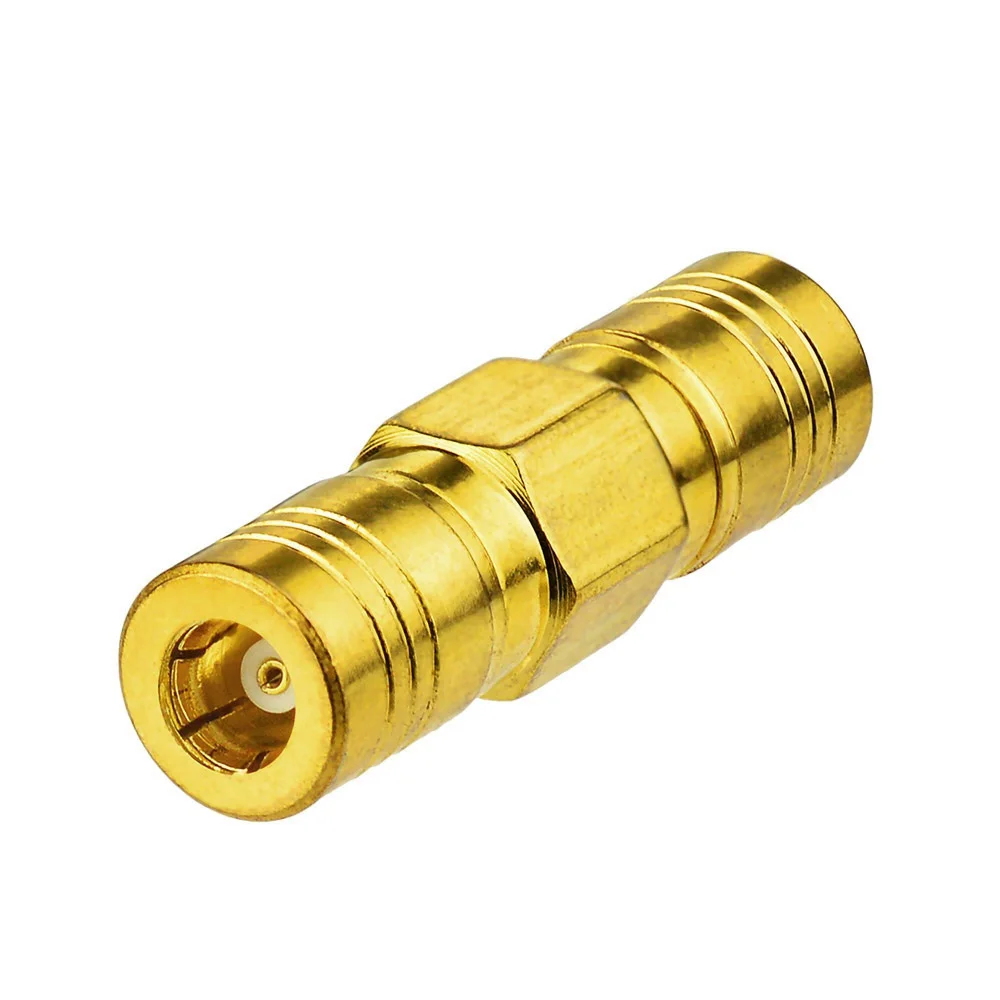

<p style="text-align:center" align="center"><span style="color:rgb(0, 0, 0);font-size:20px"><strong>Superbat SMB Plug to SMB Plug RF Coaxial Adapter Gold-plated Connector </strong></span></p><p><br/></p><p><span style="color:rgb(0, 0, 0);font-size:16px"><strong>Description</strong></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">SMB RF connectors are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 4 GHz. The SMB family of connectors provides a means of quick connect and disconnect through a snap-on type coupling. This makes them useful in areas that are inaccessible to normal mating action. They are best suited for use with cables in the range of .070" to .120" diameters, such as RG 178, RG 174, RG 316. The series is similar in size to SMC connectors but is <br/>generally used at a lower frequency. SMB type connectors are designed to conform to MIL-C-39012 specifications.<br/></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px"><br/></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Its smaller physical size and snap-on coupling make the SMB an ideal general purpose connector where packaging density, ease of mating/unmating and economy are prerequisites. Typical applications for SMB connectors are telecommunications, test equipment, instrumentation, and GPS.</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px"><br/></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px"><strong>Technical Characteristics</strong></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Temp. Range...................... -65～ +165℃</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Impedance........................50 ohm / 75 ohm</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Frequency Range..................DC 0-4GHz (50ohm) / 0-2GHz (75ohm)</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Working Voltage..................335V max</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Withstand Voltage................1000V rms</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px"><strong>Contact resistance</strong></span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Center Contact...................≤6mΩ</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Outer Contact....................≤1mΩ</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Insulation Resistance............≥1000mΩ</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">VSWR ..............................≤1.25(straight) / ≤1.45 (right angle)</span></p><p><span style="color:rgb(0, 0, 0);font-size:16px">Durability(mating)...............500 (cycles)</span></p><p></p>
