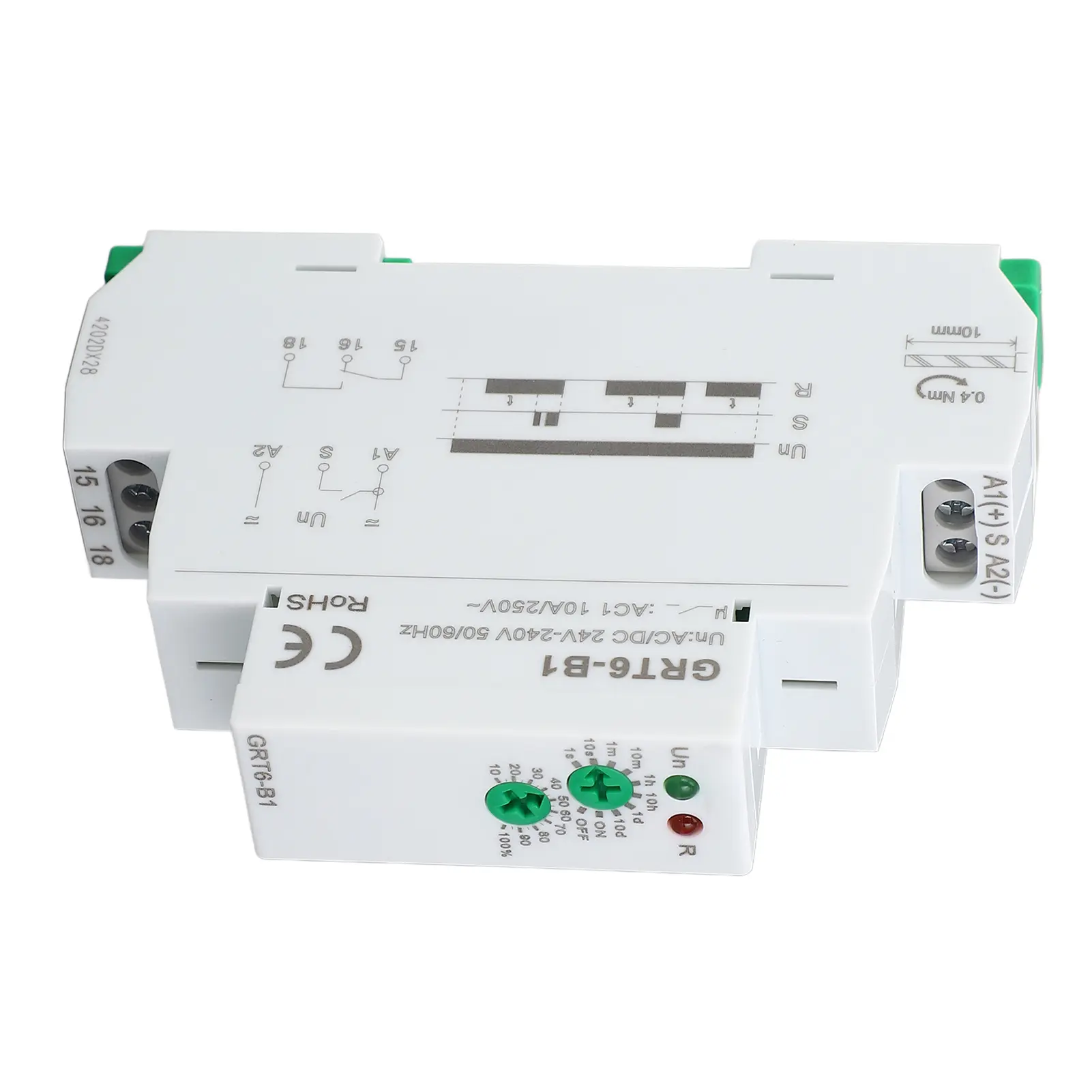

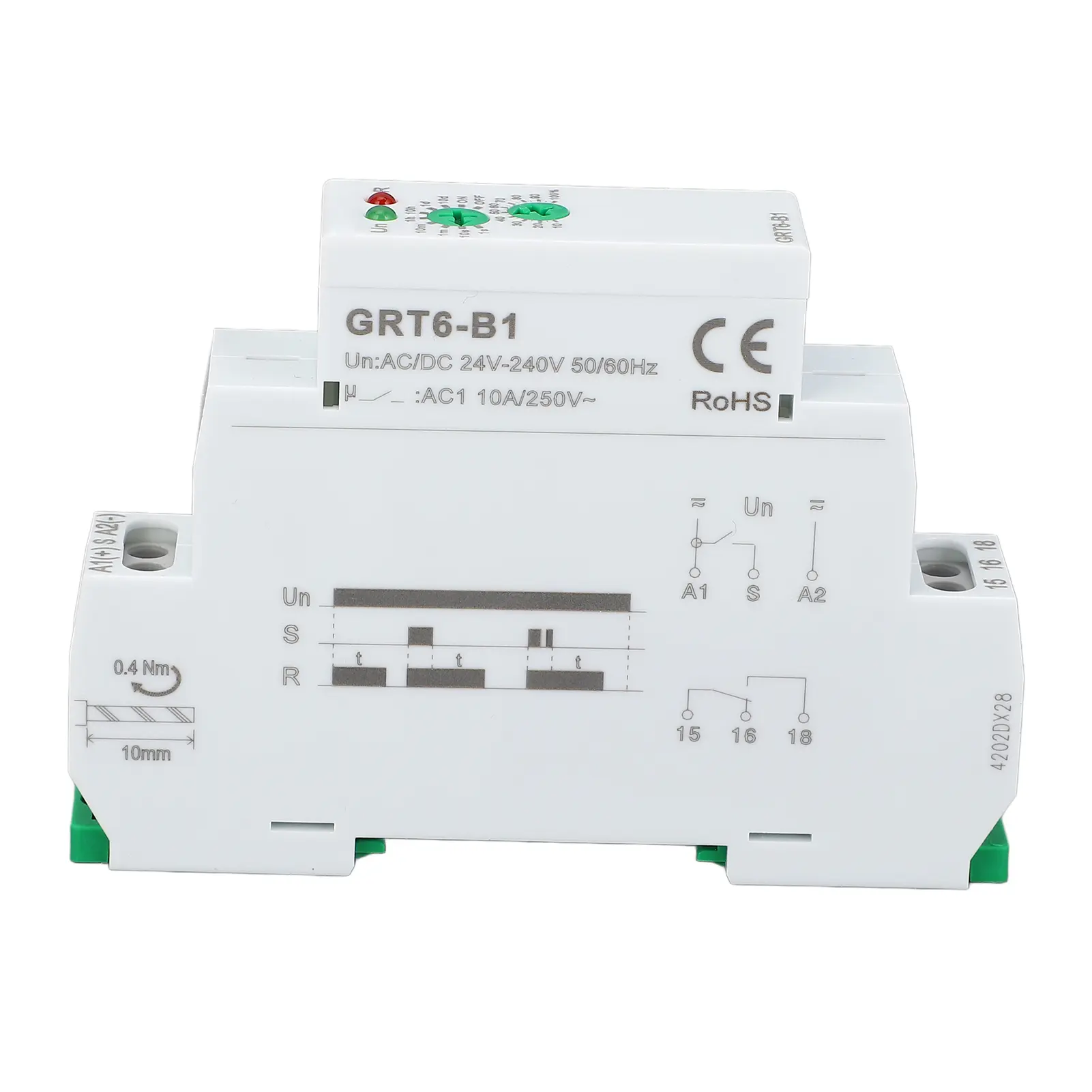

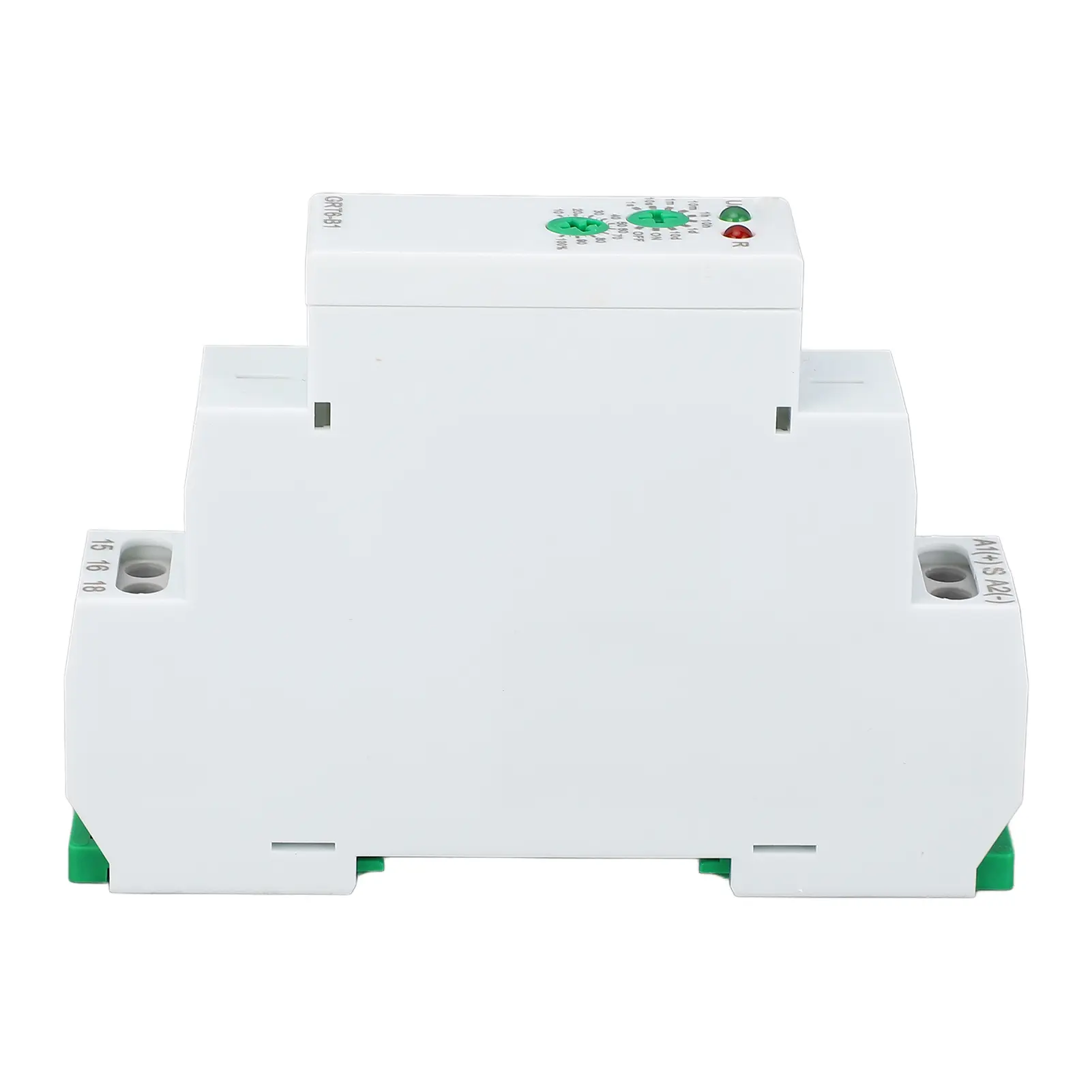

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p><span style="color: var(--w-e-textarea-color);"></span></p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. Time Relay: Suitable for controlling pump rundown times after shutting off heating units, managing fan on and off, and a multitude of other timing related tasks in industrial and home settings<br/>2. Setting Range: This time relay features a time setting range from 0.1 seconds to 10 days, segmented into 10 ranges, allowing for accurate control and timing according to your specific needs<br/>3. Application: Single function time relay, which can set time through potentiometer, suitable for scenes that require function and time, including electrical control, automatic control, electric heater, etc<br/>4. LED and DIN Rail Mount: The time relay uses green LED to indicate power supply and red LED to indicate output, which is clear and intuitive; Supporting DIN rail installation to adapt to more scenarios<br/>5. Compact and Practical: The compact size and simple structure make it a practical choice for use in electrical panel and control system, ensuring it does not hinder the running of the equipment<p><br/></p><p><b>Specification:</b></p>Item Type: Time Relay<br/>Function: B: Delay OFF<br/>Power Terminal: A1-A2<br/>Voltage Range: AC DC24-240V(50-60Hz)<br/>Load: AC0.09-3VA, DC0.05-1.7W<br/>Power Supply Voltage Tolerance: -15%; +10%<br/>Power Indicator: Green LED<br/>Time Range: 0.1-10 Days, ON, OFF<br/>Time Setting: Potentiometer<br/>Time Deviation: 10%-mechanical setting<br/>Repeat Accuracy: 0.2%-set point stability<br/>Temperature Coefficient: 0.05%/℃, at=20℃ (0.05%/℉, at=68℉)<br/>Output: 1xSPDT<br/>Current Strength: 10A/AC1<br/>Switching Voltage: 250VAC/24VDC<br/>Minimum DC Breaking Capacity: 500mW<br/>Output Indicator: Red LED<br/>Mechanical Life: 10000000<br/>Electrical Life (AC1): 100000<br/>Reset Time: Maximum 200ms<br/>Operating Temperature: -20℃ to +55℃ (-4℉ to 131℉)<br/>Storage Temperature: -35C to +75℃ (-22℉ to 158℉)<br/>Mounting: DIN Rail, Standard EN/IEC60715<br/>Protecting Level: Front Panel IP40/ Terminal IP20<br/>Working Location: Any<br/>Overvoltage Category: III<br/>Maximum Cable Size: 1x2.5mm² or 2x1.5mm² for solid wire, maximum 1x2.5mm² with casing (AWG12)<br/>Tightening Torsion: 0.4Nm<br/><p><br/></p><p><b>Package List:</b></p><p>1 x Time Relay<br/>1 x User Manual</p><p><br/></p><p><b>Note:</b></p><div>1. The product must be installed by qualified electrician.</div><div>2. All electrical connections of the product must meet the corresponding security standards.</div></div>:<br/><p><br/>:<br/></p><p><br/></p></div></div></div>
