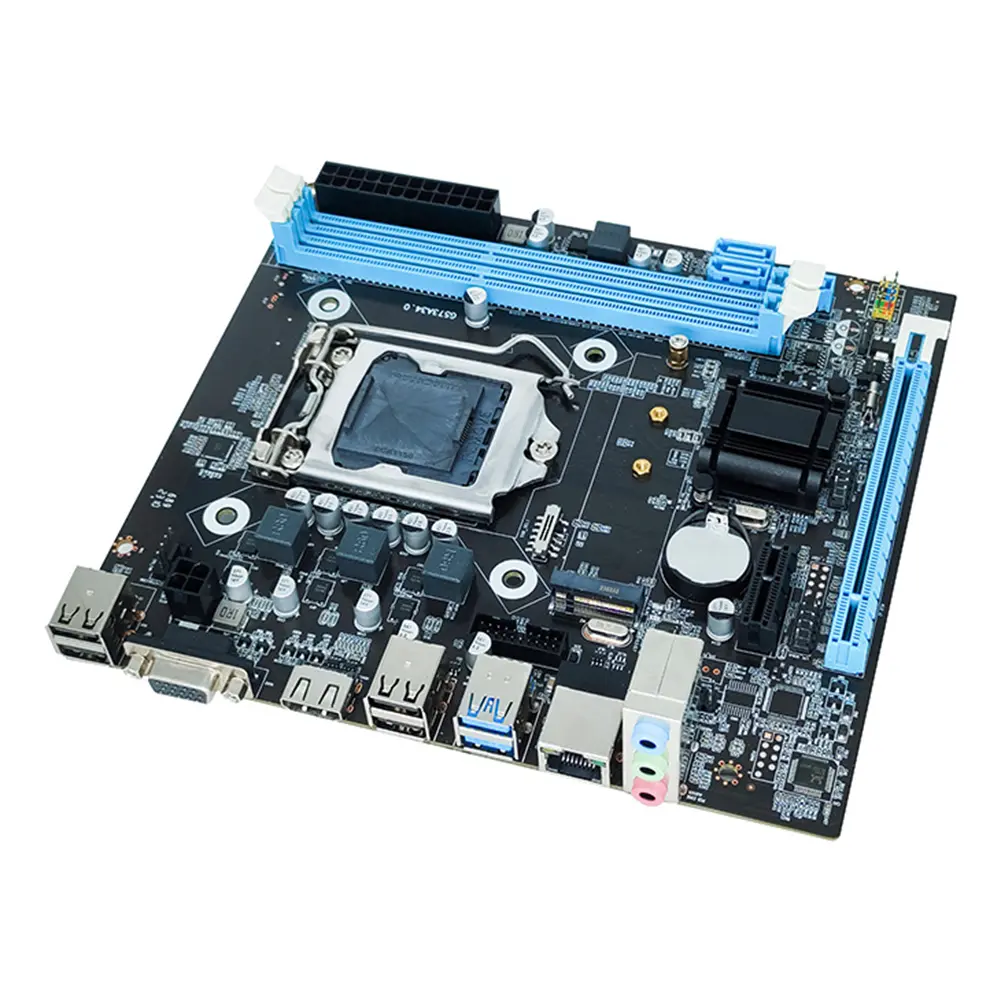

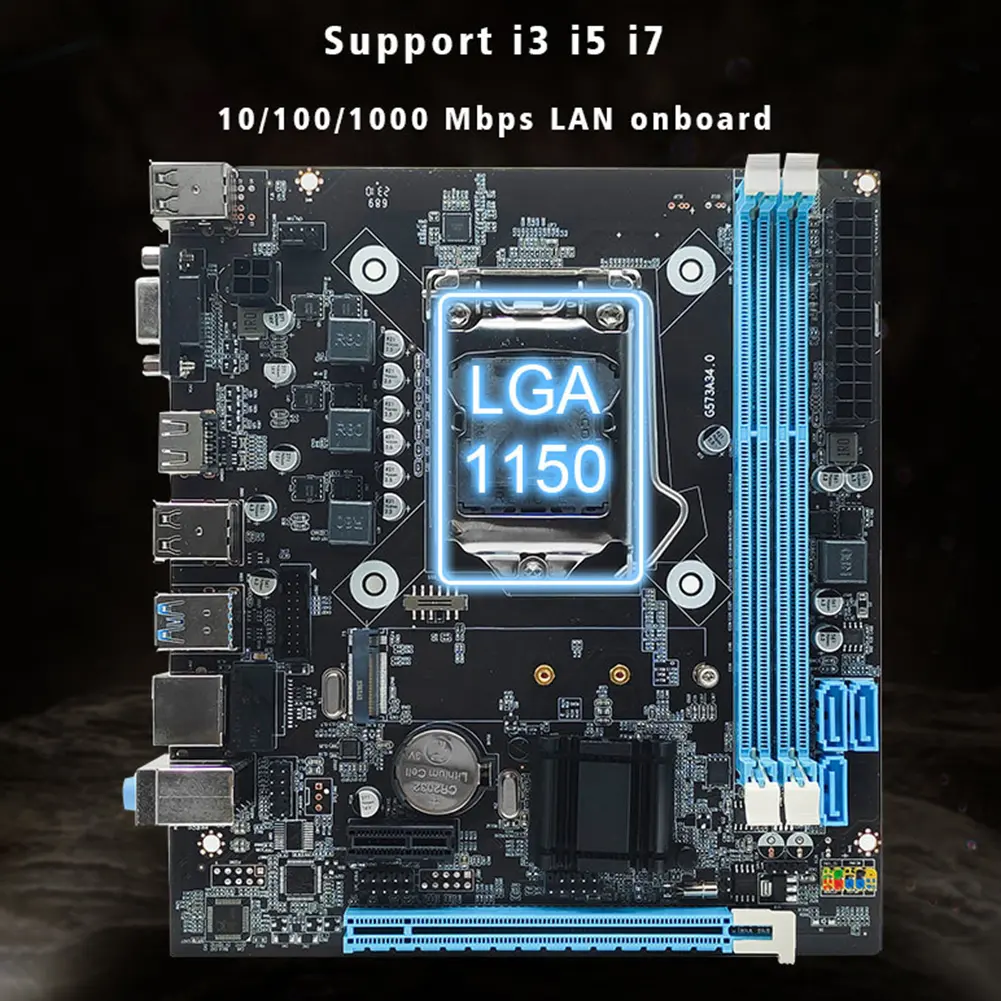

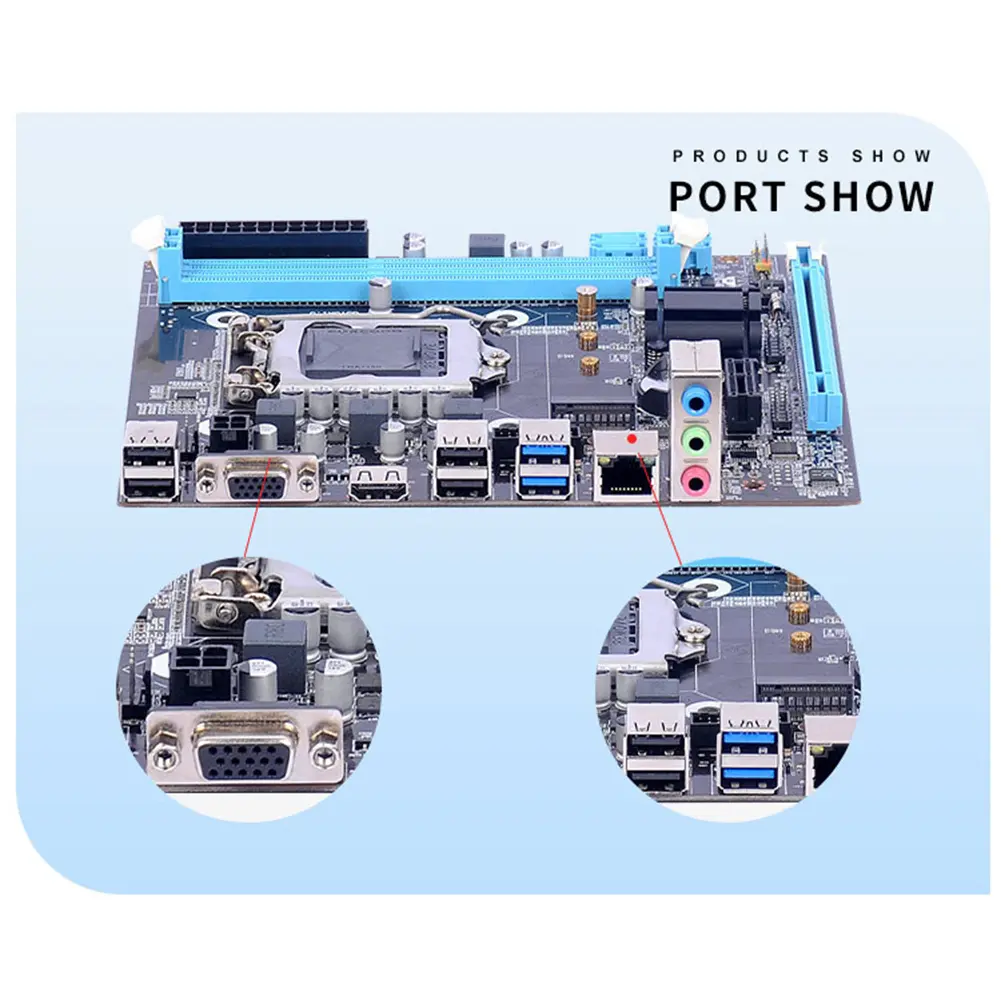

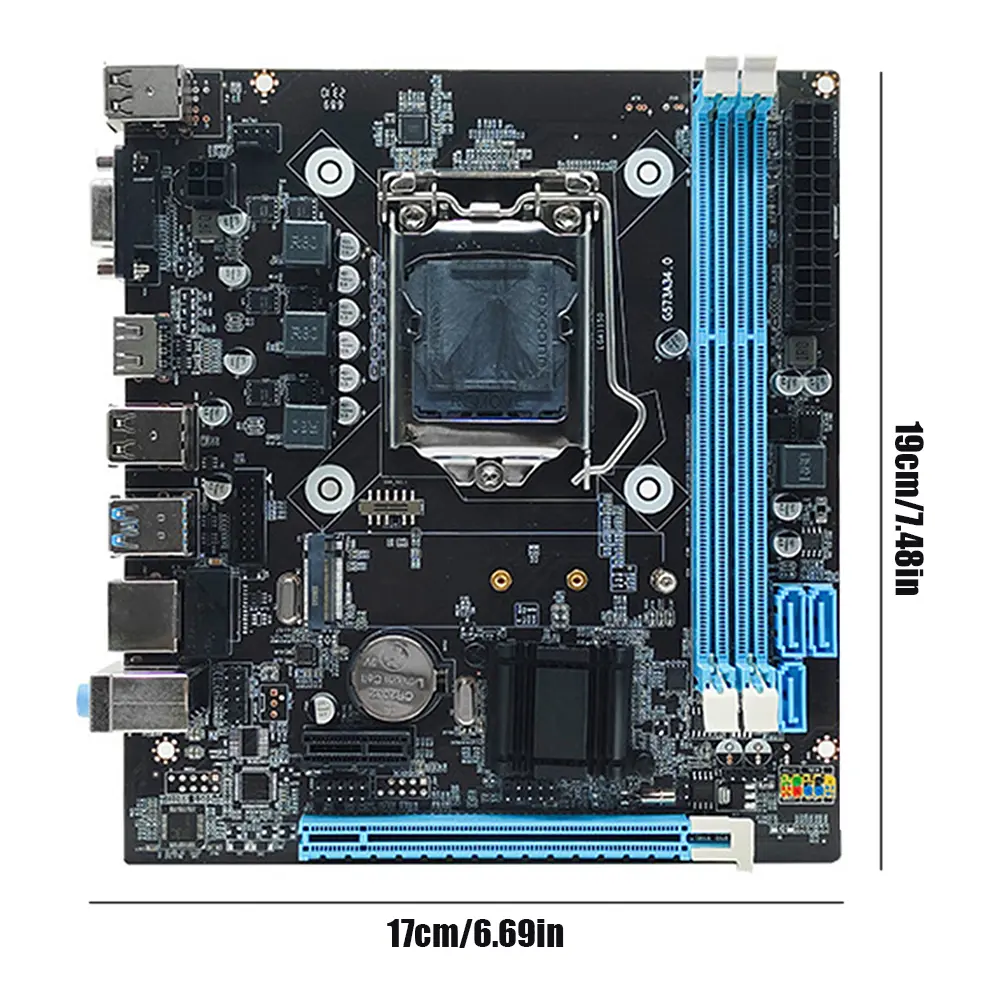

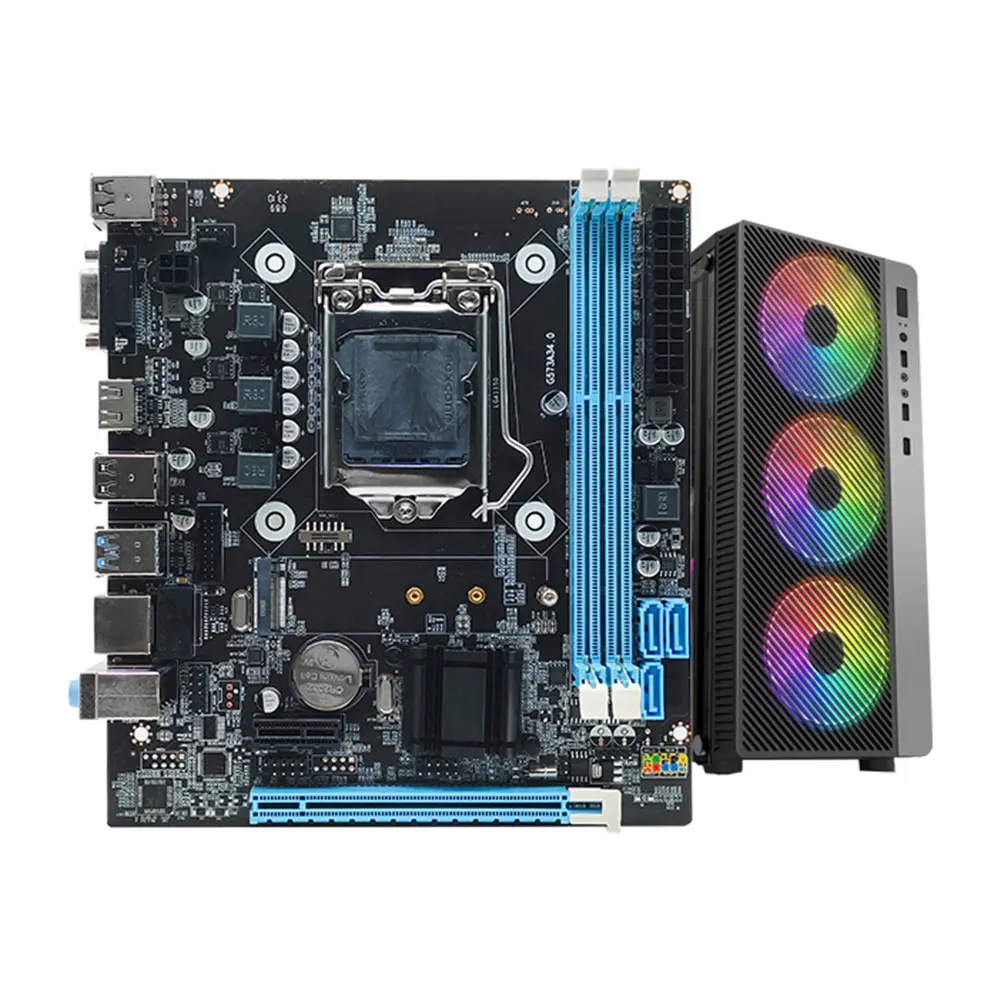

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0" style="border-collapse:collapse;"> <tbody> <tr> <td style="border:1px dotted #AAAAAA;"> <br /> <div style="padding:15px;border:1px solid #AEAEAE;"> <span style="color:black;font-family:inherit;font-size:12px;">H81 Computer Motherboard Support SATA 3.0 2.0 Micro-ATX LGA1150 Desktop Computer Mainboard PCI Express X16 X1 M.2 Nvme/NGFF Slot<br /> <strong>Feature:</strong><br /> </span><strong>1. CPU Compatibility:</strong> This desktop motherboard supports Intel's fourth-generation (Haswell architecture) 22nm CPUs, including Intel Core i3, i5, and i7 processors. It supports LGA1150 socket.<br /> <strong>2. Chipset: </strong>The computer motherboard uses the Intel H81 Express chipset, providing stable performance and reliability.<br /> <strong>3. Memory Support:</strong> The motherboard has two 240-pin DDR3 SDRAM slots with a maximum capacity of 16GB. It supports dual-channel DDR3 memory with speeds up to 1066/1333/1600 MHz.<br /> <strong>4. I/O Interfaces: </strong>The desktop computer mainboard provides multiple I/O interfaces, including 4 USB 2.0 interfaces, 2 USB 3.0 interfaces, 1 VGA port, 1 HDMI-Compatible port, 1 RJ45 port, and 1 3-in-1 audio interface (line in/line out/microphone).<br /> <strong>5. Storage and Expansion Slots: </strong>The PC main board has 2 SATA 2.0 (3GB/s) ports and 2 SATA 3.0 (6GB/s) ports, allowing you to connect multiple storage devices. The expansion slots include 1 PCI Express x16 slot, 1 PCI Express x1 slot, and 1 M.2 slot that supports NVMe and NGFF interfaces.<br /> <br /> <br /><br/><br/><span style="color:black;font-family:inherit;font-size:12px;"><strong>Specification:</strong></span><br /> <span style="color:black;font-family:inherit;font-size:12px;">Application: Desktop</span><br /> <span style="color:black;font-family:inherit;font-size:12px;">Form Factor: Micro-ATX</span><br /> CPU: Supports/54th Gen (HASWELL) Intel 22nm CPU (LGA1150)<br /> Chipset: Intel H81 Express Chipset<br /> Memory: 2*240-pin DDR3 SDRAM slot; memory up to 16GB; support dual-channel DDR3 1066/1333/1600 MHZ<br /> I/O ports: 4xUSB2.0; 2xUSB3.0; 1 VGA port; 1 HDMI-Compatible port; 1x RJ45 port; 1x 3-in-1 Audio port(line in/line out/MIC in)<br /> Onboard interface: 1x 24-pin ATX power connector; 1x 4-pin ATX 12V power connector; 2x USB port, can support 4*USB 2.0; 1x F-AUDIO port; 1x F-PANEL connector; 1x F-SPEAKER connection connector; 1 fan connector; 1x LPC-DEBUG connector<br /> Integrated audio: Onboard Realtek ALC 6-channel HD Audio Codec; Provide front audio interface; Provide front stereo microphone interface<br /> Storage: 2 x SATA 2.0 (3GB/s) ports, 2 x SATA 3.0 (6GB/s) ports;<br /> Integrated lan: Realtek 10/100 Mbps LAN onboard<br /> Expansion slots: 1x PCI Express x16 slot; 1x PCI Express x1 slot; 1 x M.2 Nvme/NGFF slot<br /> Size: About 17x19cm/6.69x7.48in<br /> <br /> <p style="color:black;font-family:inherit;font-size:12px;"> <strong>Note:</strong><br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement. </p> <span style="color:black;font-family:inherit;font-size:12px;"></span><br />&nbsp;<br /> </div> <br /> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> 1 x Motherboard<br /> 1 x Baffle<br /> 1 x SATA Data Cable<br />&nbsp;<br /> </div> <p> </p> <p> <br /> </p> <div style="text-align:center;"> <br /> </div> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> [relateproductdetail/] </div> </td> </tr> </tbody> </table></div></div>
