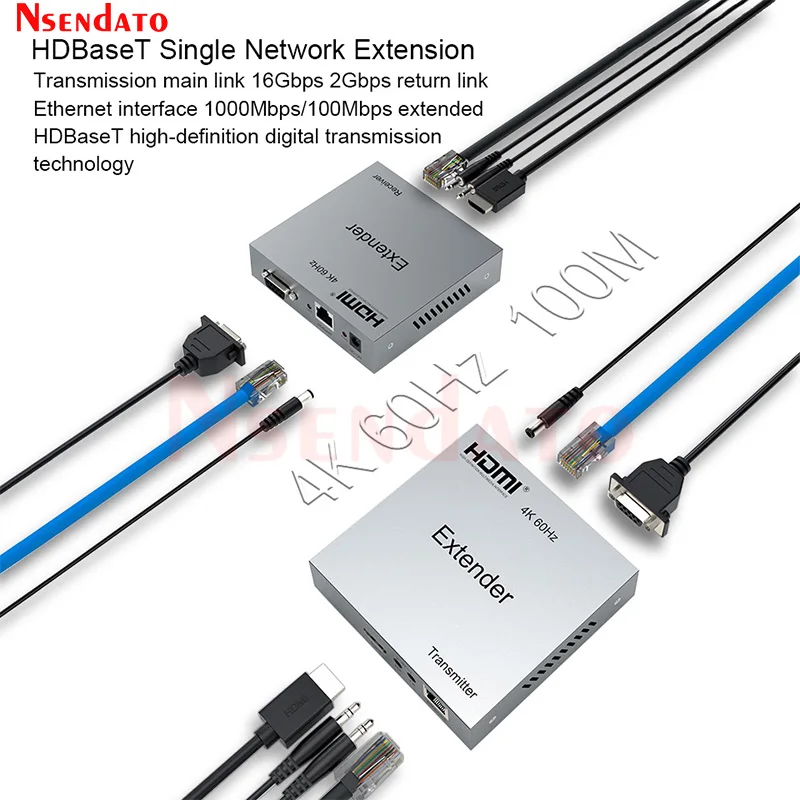

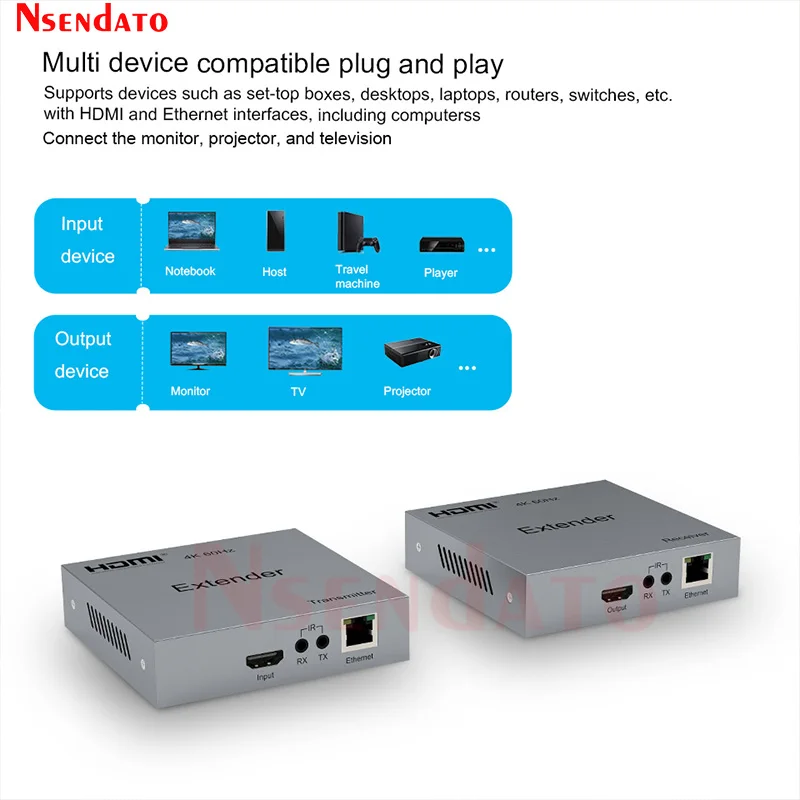

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><br></p><div class="detail-video" id="5000241586397" data-previewurl="https://ae01.alicdn.com/kf/Sc31753ccd8a04a41926c0662ab0dca15O.jpg" style="position:relative;text-align:center;"><div style="width:560px;height:315px;opacity:0.4;user-select:none;background-size:cover;" contenteditable="false"></div></div><span class="slate-node-text">&nbsp;</span><kse:widget data-widget-type="customText" id="22569421" title="undefined" type="custom"></kse:widget><br><p><br></p><p style="font-family:arial;color:#000000;margin:0px;padding:0px 0px 0px 0em;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Introduction: </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The Nsendato of HDBaseT 4K 60Hz 100M HDMI extender has a maximum extension distance of 100 meters.It adopts HDBaseT HD digital transmission technology.It can extend the 4K 60Hz signal with only one single CAT6a (U/FTP) network cable without compression,and support HDR. The device can extend the HDMI signal, but also supports the extension of bidirectional infrared remote control signal,rs232 signal extension, and Ethernet transmission extension.It is very suitable for large-screen splicing,conference systems, and home entertainment.It has a strong anti-interference ability to ensure the stability of the signal. In the actual engineering,the use of different specifications of the cable,will have an impact on the transmission distance, in order to ensure the stable signal,please choose high-quality cables and standard wiring </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span></p><br><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Feature</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support HDMI 2.0 Version,HDCP2.2/HDCP1.4; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Adopt HDBaseT HD digital transmission technology; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Supports uncompressed HDMI 2.0 4K/60/4:4:4/8-bit video transmission,with a main link of 16Gbps and a return link of 2Gbps;; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support Ethernet interface 1000Mbps/100Mbps extension; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support bidirectional infrared remote control signal transmit extension; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support RS232 signal extension using through-transmission mode; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Use the CAT6a (U/FTP) network cable, 4K/60Hz transmission distance can reach 100 meters; </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support HDR. </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Specifications: </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The CAT6A (U/FTP) cable between the transmitter and the receiver:up to 100M </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The CAT6 (UTP) cable between the transmitter and the receiver:up to 40M </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">HDMI input:4K@60Hz/4K@30Hz/1080p/720p/576p/576i/480p/480i </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">HDMI output:4K@60Hz/4K@30Hz/1080p/720p/576p/576i/480p/480i </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/PCM/ATMOS </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Max transmission bandwidth:600MHz </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Max baud rate:3x6Gbps </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Input video signal:0.5~1.5Volts p-p </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Output DDP signal:5Volts p-p (TTL) </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Max operating current of TX:400mA </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Max operating current of RX:450mA </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power adapter specification:Input AC (50Hz,60Hz)100V-240V;output:DC12V/1A </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Note: </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">In the CAT6A (U/FTP) cable,U/FTP represents the overall outer layer of the network cable without the shielding layer,But each pair of twisted pair is individually wrapped in aluminum foil shielding;in CAT6(UTP) cable,UTP represents an non-shielded twisted-pair. </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">In order to ensure the integrity of the signal transmission,the network cable please don’t to wrap, please straighten it then use. </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Package: </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">HDMI transmitter </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">HDMI receiver </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IR cable(without battery) </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power adapter 12V/1A </span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif;">User manual</span></p><p></p><p style="font-family:arial;color:#000000;margin:0px;padding:0px 0px 0px 0em;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"></p><div style="font-family:arial;color:#000000;margin:0px;padding:0px 0px 0px 0em;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"><p style="font-family:arial;line-height:inherit;color:#000000;margin:0px;padding:0px 0px 0px 0em;box-sizing:border-box;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"></p><p style="font-size:14px;font-weight:400;line-height:inherit;margin:0px;padding:0px;box-sizing:border-box;padding:0px;margin:0px;"><br></p><div style="font-family:Open Sans, Arial, Helvetica, sans-serif, Heiti;font-size:13.3333px;font-weight:400;letter-spacing:normal;text-align:start;white-space:normal;color:#000000;background-color:#FFFFFF;margin:0px;padding:0px 0px 0px 0em;box-sizing:content-box;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;" align="start"><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> </div><div style="margin:0px;padding:0px;box-sizing:content-box;padding:0px;margin:0px;"> <br> <kse:widget data-widget-type="customText" id="1005000001165679" title="undefined" type="custom"></kse:widget> </div></div></div><br></div></div>
