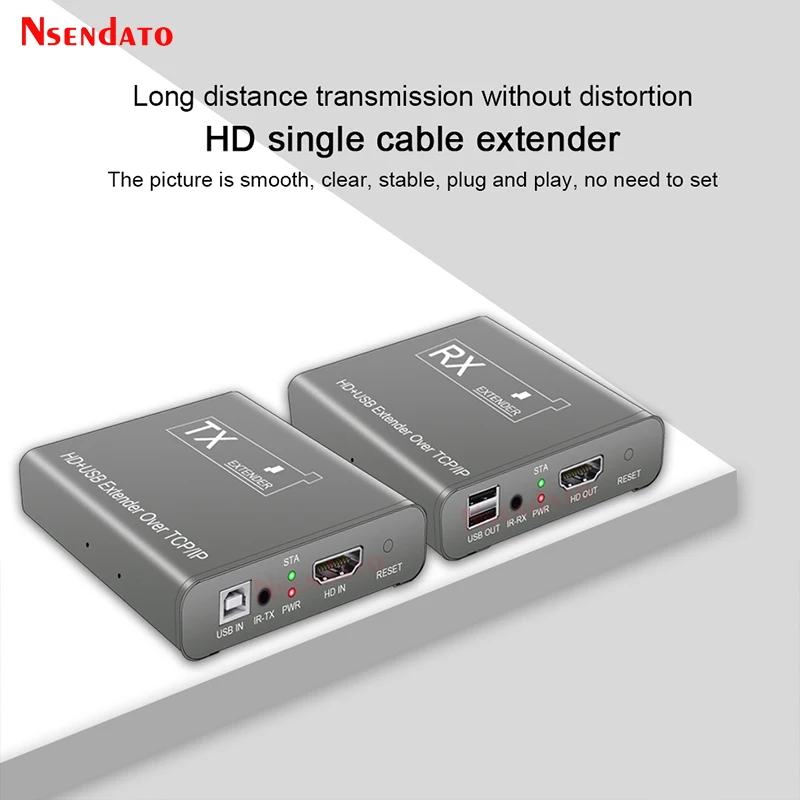

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="detailmodule_dynamic"></div><div class="detailmodule_dynamic"> <span style="font-family:'arial, helvetica, sans-serif';"><span style="font-size:16px;">HDMI KVM USB Extender Over RJ45 250m Ethernet cat5e 6 1080P HDMI USB KVM Video Transmitter Receiver Extender For Mouse keyboard</span></span>&nbsp; <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">1.Description </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">2.Features </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmiter HD video and audio signals up to 250m over a single CAT5e/6 cable; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support video resolution up to 1920*1080P@60Hz; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support IR signal transmission; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support keyboard and mouse . </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support over TCP/IP </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Compliance with HD 1.3 and For HDCP 1.2 standard; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">High compatibility, can auto-match source and display device; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Built-in automatic adjustment system, make the image smooth, clear and stable; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Built-in ESD protection system; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Simple to install, plug and play </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">3.Specifications </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Standards:HD V1.3; For HDCP 1.2 </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Maximum pixel clock:165MHz </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Maximum data rate:6.75Gbps </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Resolution:1920X1080P@60Hz </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Connector:HD-A </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PC: Type B USB interface; connect to pc; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">K/M: connect USB keyboard and mouse; </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">USB signal:HID Signal </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Interface:3.5mm seat </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Signal direction:Unidirectional </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Signal type:Digital </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IR frequency:38kHz;Optional (20 KHZ - 60 KHZ) </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Interface:RJ45 </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmission distance:CAT5e/6 up to 250m </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The power adapter: DC 5V/1A </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power dissipation:MAX 3W </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IN/OUT:HD signal input/output </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">UTP:RJ45 port connect cat5e/6. </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PC IN:USB cable connect to PC </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">K/M:connect to keyboard and mouse </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IR IN/OUT:IR signal input/output </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">DC IN:Power adapter socket </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PWR:System power indicator </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">STATUS:Video signal indicator. </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Installation </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">2.Connect an HD cable between the HD input port of transmitter and the HD output port of the video source </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">3.Connect the HD output port of receiver to the display device with HD cable,Connect the transmitter UTP port to the receiver UTP port using a single CAT5e/6 cable </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">4.Connect transmitter PC IN port to PC using mini USB cable </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">5.Connect USB keyboard and mouse to Receiver K/M port </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">6.Power on Transmitter and Receiver </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;"> </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Package list </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmitter </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Receiver </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">USB Cable </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power adapter </span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">User manual </span> </div><div style="font-size:13.3333px;margin:0px;padding:0px 0px 0px 0em;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> </div><p><br /></p></div></div>
