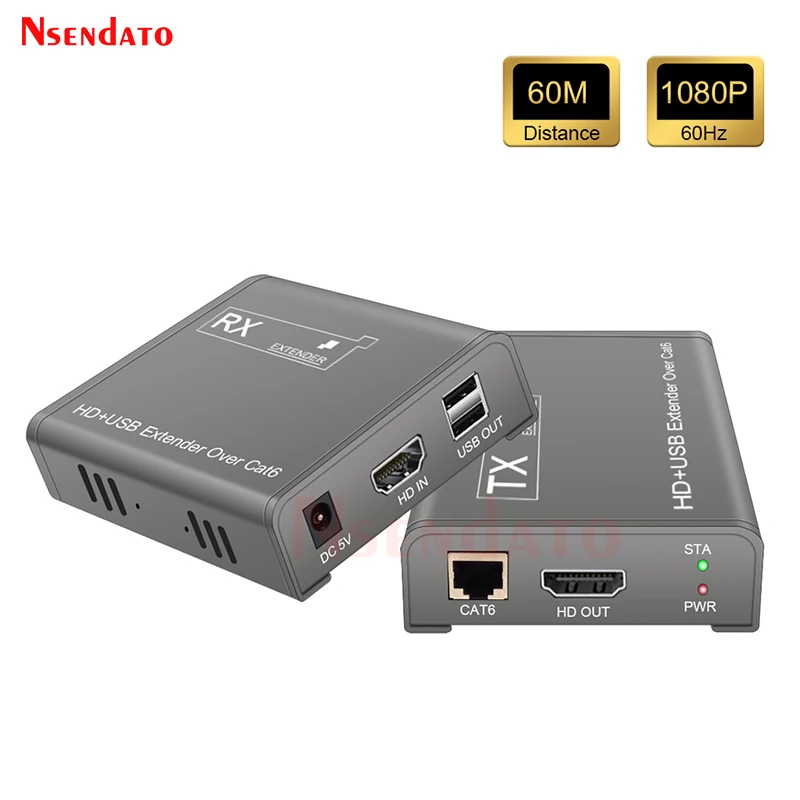

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="detailmodule_dynamic"> <span class="slate-node-text">&nbsp;</span> <div class="detail-video" id="1100004015551" data-previewurl="https://ae01.alicdn.com/kf/Sb5b91b148ead46f89cd4cad51a8d7360P.jpg" style="position:relative;text-align:center;"> <div style="width:560px;height:315px;opacity:0.4;user-select:none;background-size:cover;" contenteditable="false"> </div> </div> <kse:widget data-widget-type="customText" id="1005000000259326" title="undefined" type="custom"></kse:widget> </div><div class="detailmodule_dynamic"> <span style="font-family:'arial, helvetica, sans-serif';"><span style="font-size:16px;">HDMI USB KVM Extender over 60M RJ45 Cat6 UTP STP Extender HDMI Over IP Ethernet Network KVM HDMI Extender For Keyboard Mouse TV</span></span>&nbsp; <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">1.Description</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.</span> </div><div> &nbsp; </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">2.Features</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmiter HD video and audio signals up to 60m over a single CAT5e/6 cable;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support video resolution up to 1920*1080P@60Hz;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support IR signal transmission;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support keyboard and mouse .</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Support over TCP/IP</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Compliance with HD 1.3 and For HDCP 1.2 standard;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">High compatibility, can auto-match source and display device;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Built-in automatic adjustment system, make the image smooth, clear and stable;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Built-in ESD protection system;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Simple to install, plug and play</span> </div><div> &nbsp; </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">3.Specifications</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Standards:HD V1.3; For HDCP 1.2</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Maximum pixel clock:165MHz</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Maximum data rate:6.75Gbps</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Resolution:1920X1080P@60Hz</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Connector:HD-A</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PC: Type B USB interface; connect to pc;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">K/M: connect USB keyboard and mouse;</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">USB signal:HID Signal</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Interface:3.5mm seat</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Signal direction:Unidirectional</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Signal type:Digital</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IR frequency:38kHz;Optional (20 KHZ - 60 KHZ)</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Interface:RJ45</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmission distance:CAT5e/6 up to 60m</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">The power adapter: DC 5V/1A</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power dissipation:MAX 3W</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IN/OUT:HD signal input/output</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">UTP:RJ45 port connect cat5e/6.</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PC IN:USB cable connect to PC</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">K/M:connect to keyboard and mouse</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">IR IN/OUT:IR signal input/output</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">DC IN:Power adapter socket</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">PWR:System power indicator</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">STATUS:Video signal indicator.</span> </div><div> &nbsp; </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Installation</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">2.Connect an HD cable between the HD input port of transmitter and the HD output port of the video source</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">3.Connect the HD output port of receiver to the display device with HD cable,Connect the transmitter UTP port to the receiver UTP port using a single CAT5e/6 cable</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">4.Connect transmitter PC IN port to PC using mini USB cable</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">5.Connect USB keyboard and mouse to Receiver K/M port</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">6.Power on Transmitter and Receiver</span> </div><div> &nbsp; </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Package list</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Transmitter</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Receiver</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">USB Cable</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">Power adapter</span> </div><div> <span style="font-size:16px;font-family:arial, helvetica, sans-serif;">User manual </span> </div><div style="font-size:13.3333px;margin:0px;padding:0px 0px 0px 0em;margin:0px;padding-top:0px;padding-right:0px;padding-bottom:0px;"> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> <div> </div> </div><br /></div></div>
