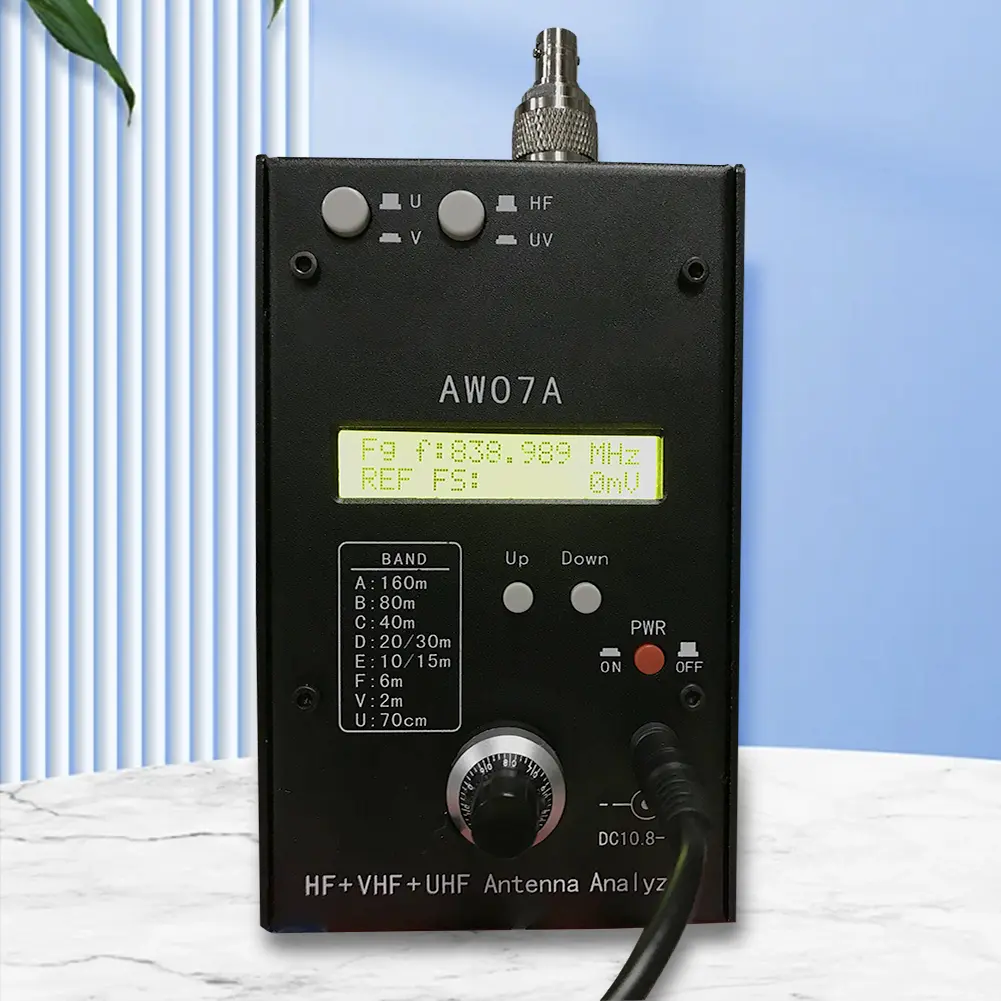

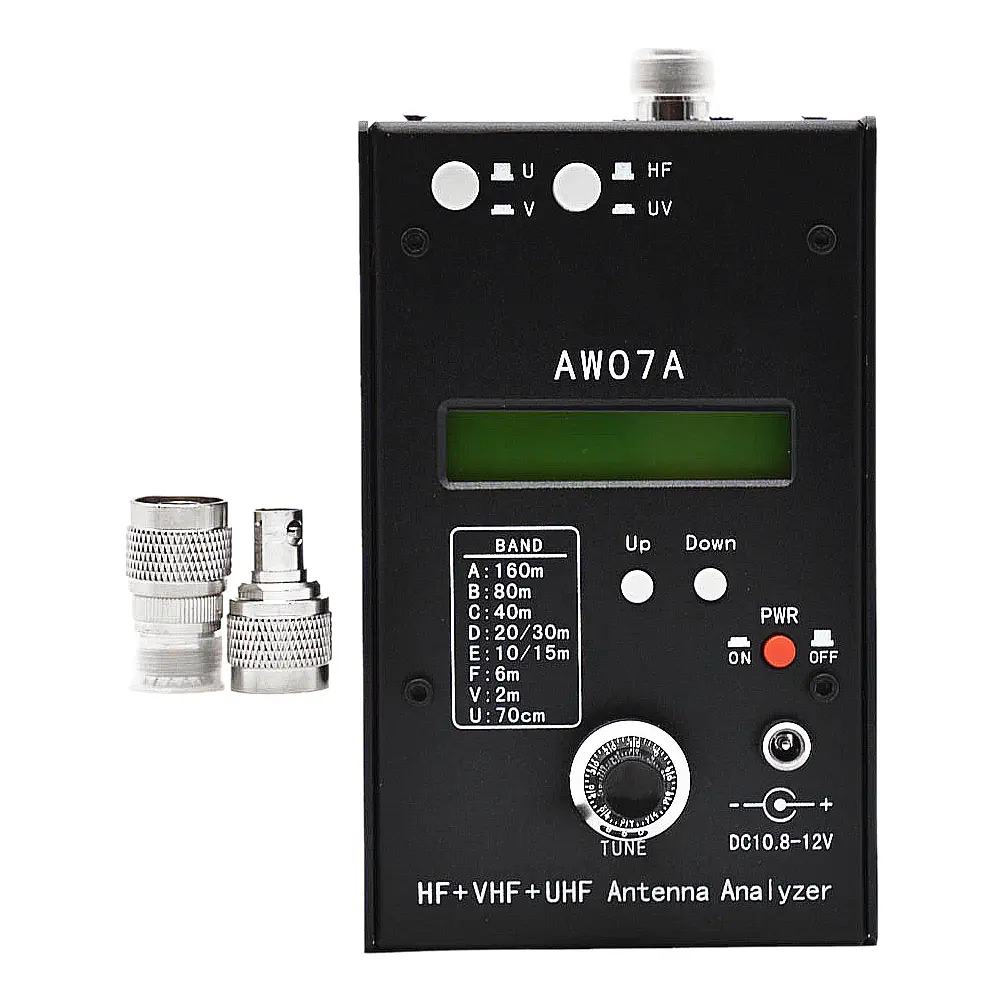

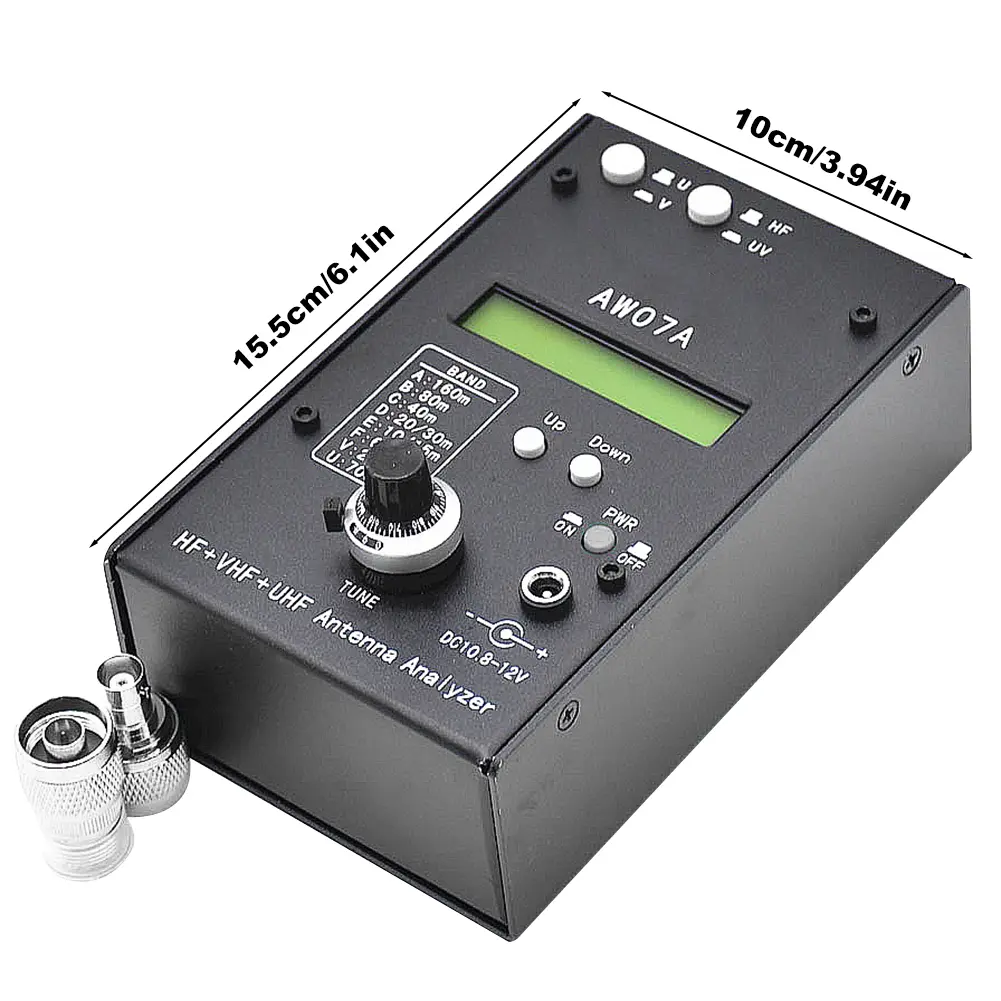

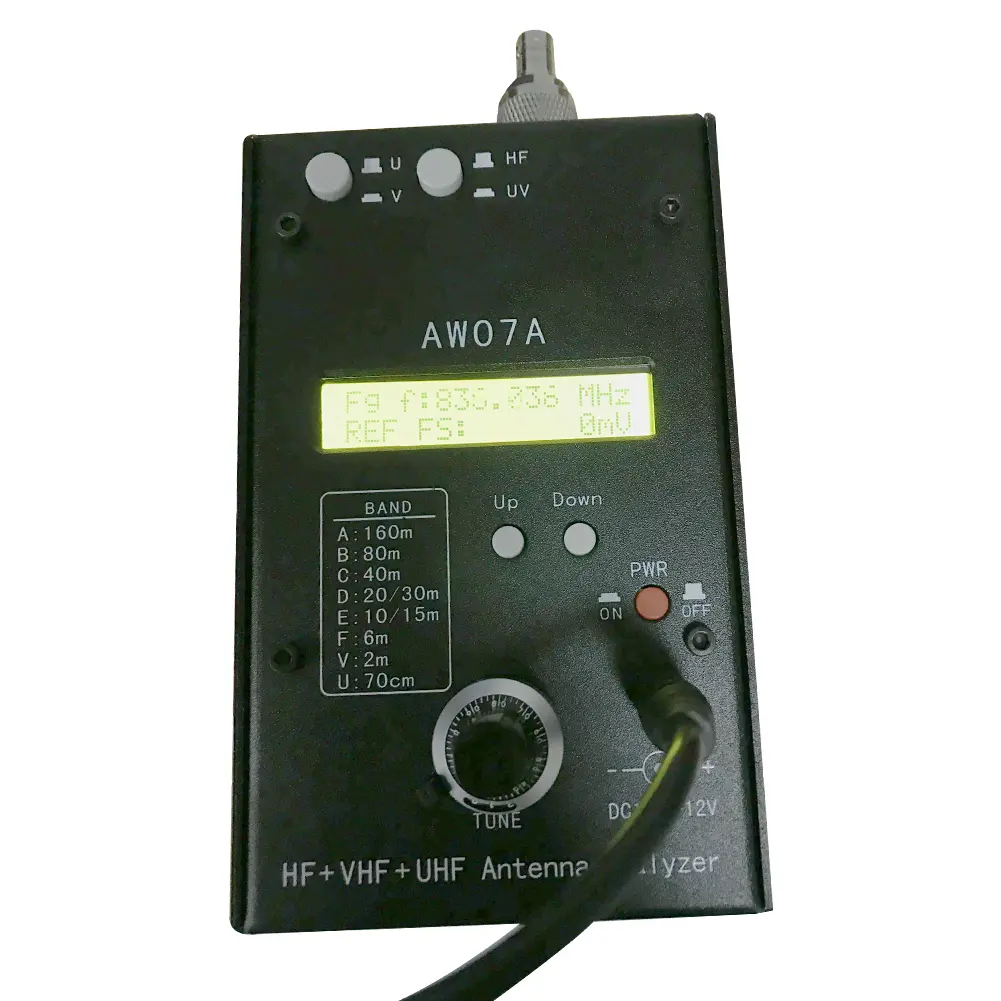

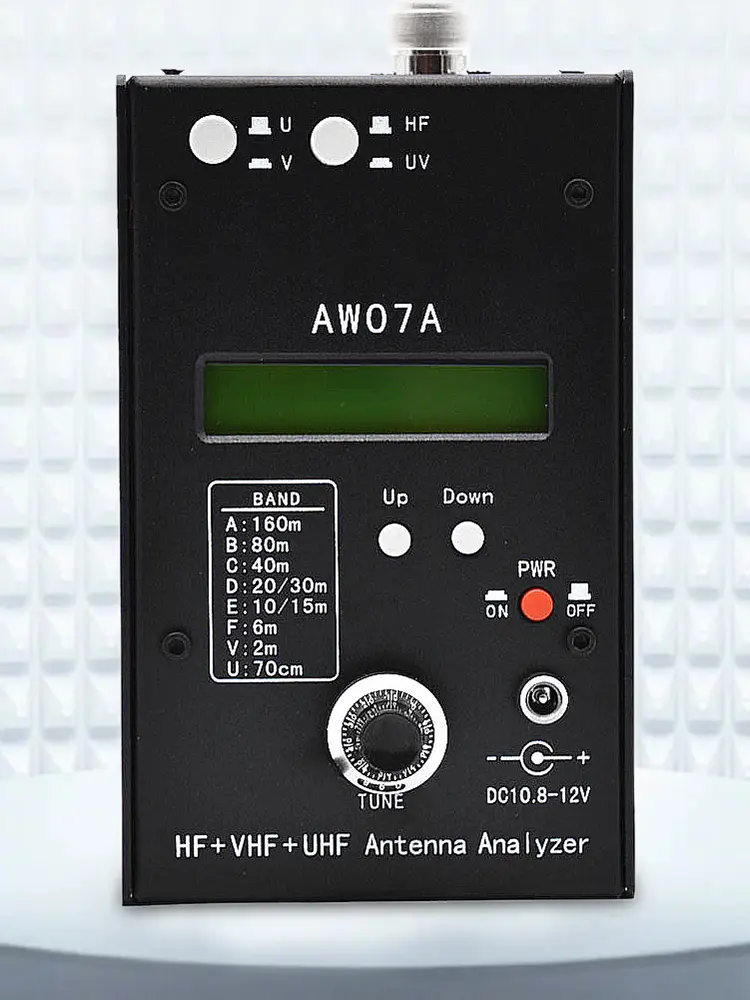

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> <span><br /> </span> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p class="MsoNormal"> </p> </div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <span style="color:black;font-family:inherit;font-size:12px;">HF/VHF/UHF AW07A 1.5-470MHZ 160 M Impedance SWR Antenna Analyzer HF +UV Spectrum Analyzers with 1.0 To 9.99 SWR Usable Measurement Range with 1.0 To 9.99 SWR RF Impedance Antenna Analyzer for Ham Radio<br /> </span><strong>Feature:</strong><br /> <strong>1. Comprehensive Analysis:</strong> The&nbsp;<span>HF +UV spectrum analyzers</span> is capable of testing standing wave ratio (SWR) status, measuring impedance and reactance components, and diagnosing antenna issues. An integrated tool for comprehensive antenna analysis, it incorporates a variable oscillator, frequency counter, independent oscillator, 50 Ohm RF bridge detector, A/D converter, and microcontroller for accurate and reliable measurements.<br /> <strong>2. Portability: </strong>The AW07A&nbsp;<span>multiband antenna analyzer</span> is a compact, battery-powered RF impedance analyzer designed to meet the needs of on-site testing. Its small size and portability allow for easy use anywhere without the need for an external power source.<br /> <strong>3. Wide Frequency Range:</strong> The&nbsp;<span>SWR antenna analyzer</span> offers a wide working frequency range from HF to 470MHz. It covers six overlapping frequency bands from 1.5MHz to 71MHz, including SWR measurements from <span>75-139MHz&nbsp;</span>and <span>230-470</span>MHz. This provides excellent frequency coverage suitable for a wide range of applications.<br /> <strong>4. Precise Measurement: </strong>Using the <span>impedance SWR antenna analyzer</span>, you can measure impedance and reactance components with high precision. This feature paves the way for precise tuning of the antenna system.<br /> <strong>5. Versatility:</strong> In addition to antenna analysis functions, this <span>SWR antenna meter tester&nbsp;</span>also provides a range of additional features including signal generation, capacitance measurement, inductance measurement, impedance value display, resistance value display, SWR value display (1.1 to 9.99), RF strength meter, and frequency counter.<br /> <div> <br /> </div> <br /><br/><br/><strong>Specification:</strong><br /> The Aw07a Antenna Analyser Is A Small Battery Powered Rf Impedance Analyser. It Tests The Vswr State Of An Antenna, Measures Impedance And Reactance Components, And Helps You Solve Antenna Problems. The Unit Consists Of Six Basic Components: A Variable Oscillator, A Frequency Counter, A Stand-Alone Oscillator, A 50-Ohm Rf Bridge Detector, An A/D Converter, And A Microcontroller. This Compact Product Is Designed To Meet The Needs Of Rugged Construction And Field Testing. The Device'S Operating Frequency Range Starts At Hf And Goes Up To 470 Mhz. The Device'S Operating Frequency Range Extends From 1.5 Mhz To 71 Mhz In Six Overlapping Bands, Including <span style="color:#172B4D;font-family:-apple-system, BlinkMacSystemFont, &quot;font-size:14px;background-color:#FFFFFF;">75-139</span> Mhz And <span style="color:#172B4D;font-family:-apple-system, BlinkMacSystemFont, &quot;font-size:14px;background-color:#FFFFFF;">230-470&nbsp;</span> Mhz For Swr Measurements.<br /> Diy Consumables: Electrical<br /> Model: Spectrum Analyser Band<br /> Coverage: 160 M/6299.21 In, 80 M/3149.60 In, 40 M/1574.80 In, 20/30 M (787.40/1181.10 In), 10/15 M (393.70/590.55 In), 6 M/236.22 In, 2 M<br /> 78.74 In, 70 Cm/27.55 In<br /> Rf Output Level: 2vpp<br /> Swr Range: 1-9.9<br /> Impedance Range: 10-500 Ohms<br /> External Power Supply: Dc 10.8-12 V<br /> Batteries: 8 Aa Alkaline Batteries (Not Included)<br /> Power Consumption: &lt;150ma (Hf Band, B/F Off) &lt;165ma (Vu Band, B/L Off)<br /> Product Dimensions: 155 X 100 X 55 MM/6.10 X 3.93 X 2.16 Inch<br /> Function:<br /> Signal Source Capacitance<br /> Measuring Instrument Inductance<br /> Measuring Instrument Display<br /> Impedance Value<br /> Impedance Value Displayed<br /> Swr Value Range From 1.1 To 9.99<br /> Rf Intensity Meter<br /> Frequency Counter<br /> Diy Use Scenario: Electrical<br /> <br /> <strong>Note:</strong><br /> Due To The Different Monitor And Light Effect, The Actual Color Of The Item Might Be Slightly Different From The Color Showed On The Pictures. Thank You!<br /> Please Allow 1-2 CM Measuring Deviation Due To Manual Measurement.<br /> <br /> <br /> <br /> </div> <br /> <div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> 1 X&nbsp;SWR Antenna Analyzer<br /> 2 Pcs X Antenna Connector Adaptor<br /> 1 Pcs X Connection Cable<br /> <br /> <br /> <br /> </div> <br /> <div style="text-align:center;"> </div> <br /> <br /> <div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <p class="MsoNormal"> </p> </div> <p> </p> <p> </p> <p> </p> <p> <br /> </p> </td> </tr> </tbody> </table> </p></div></div>
