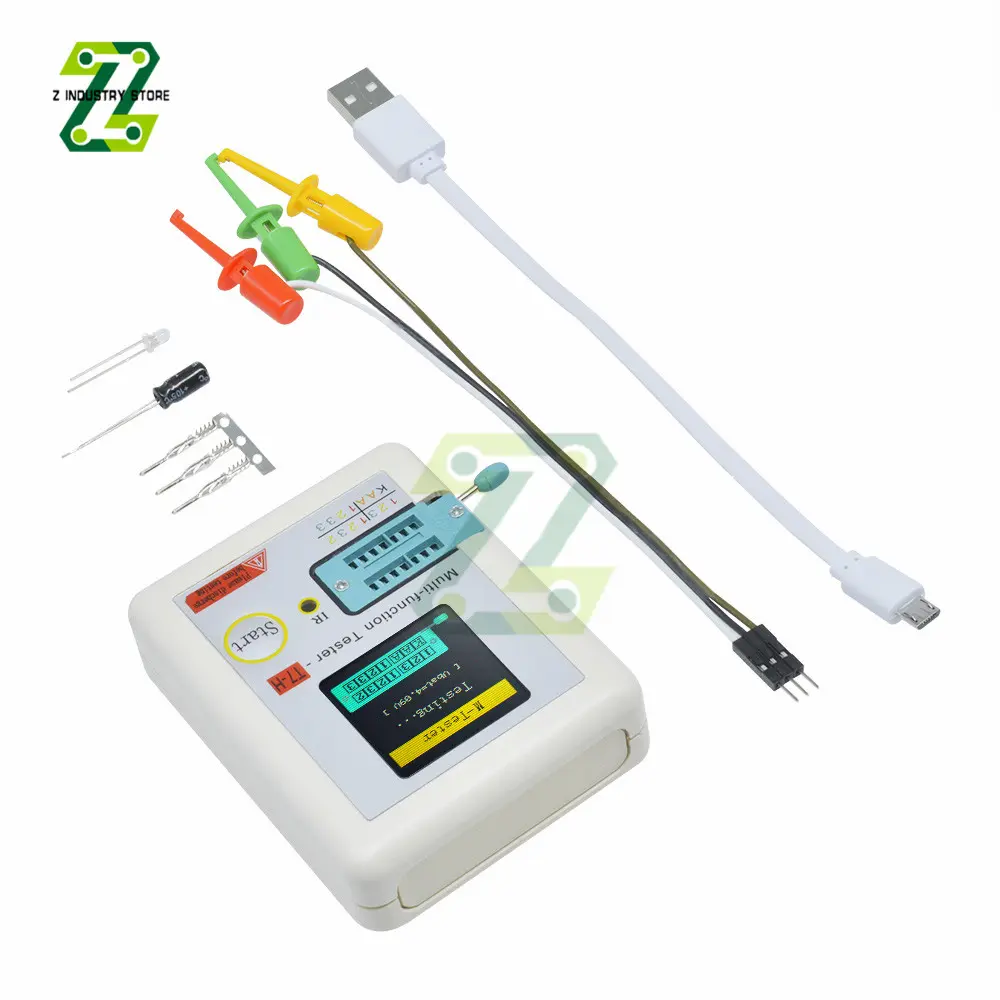

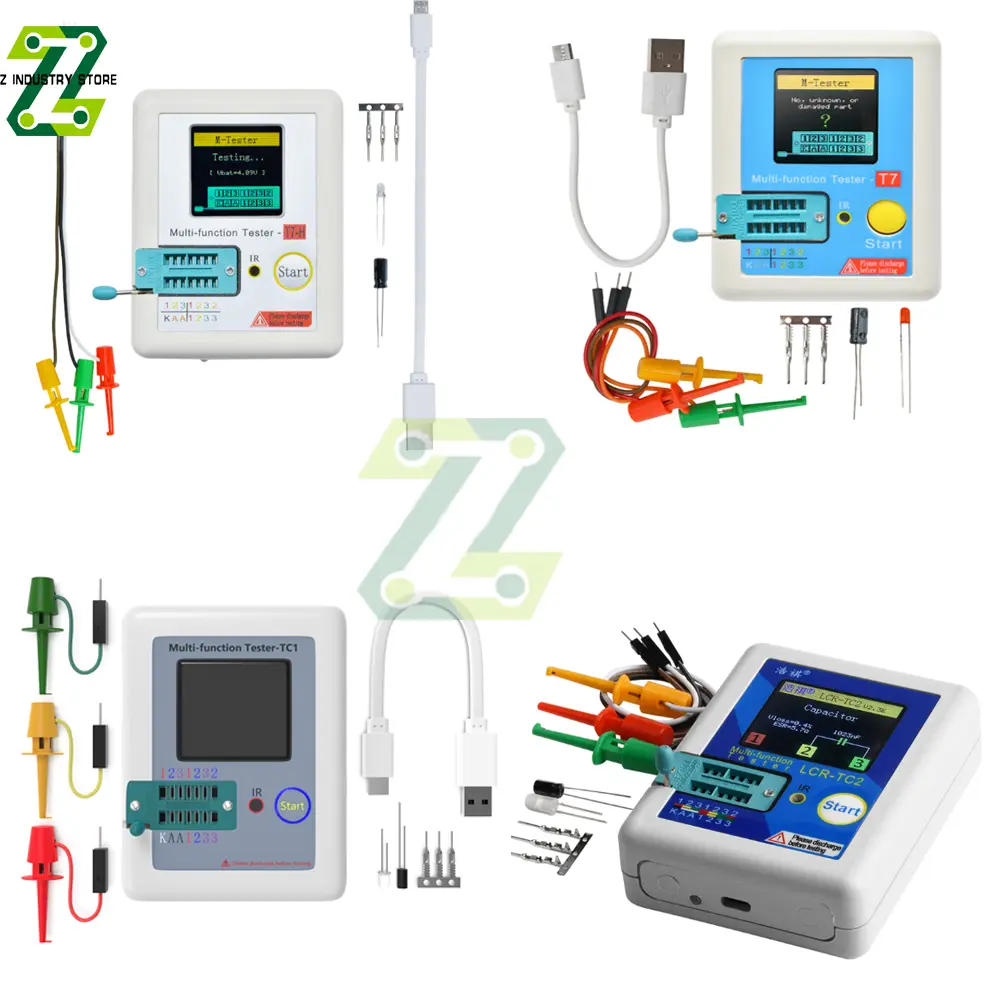

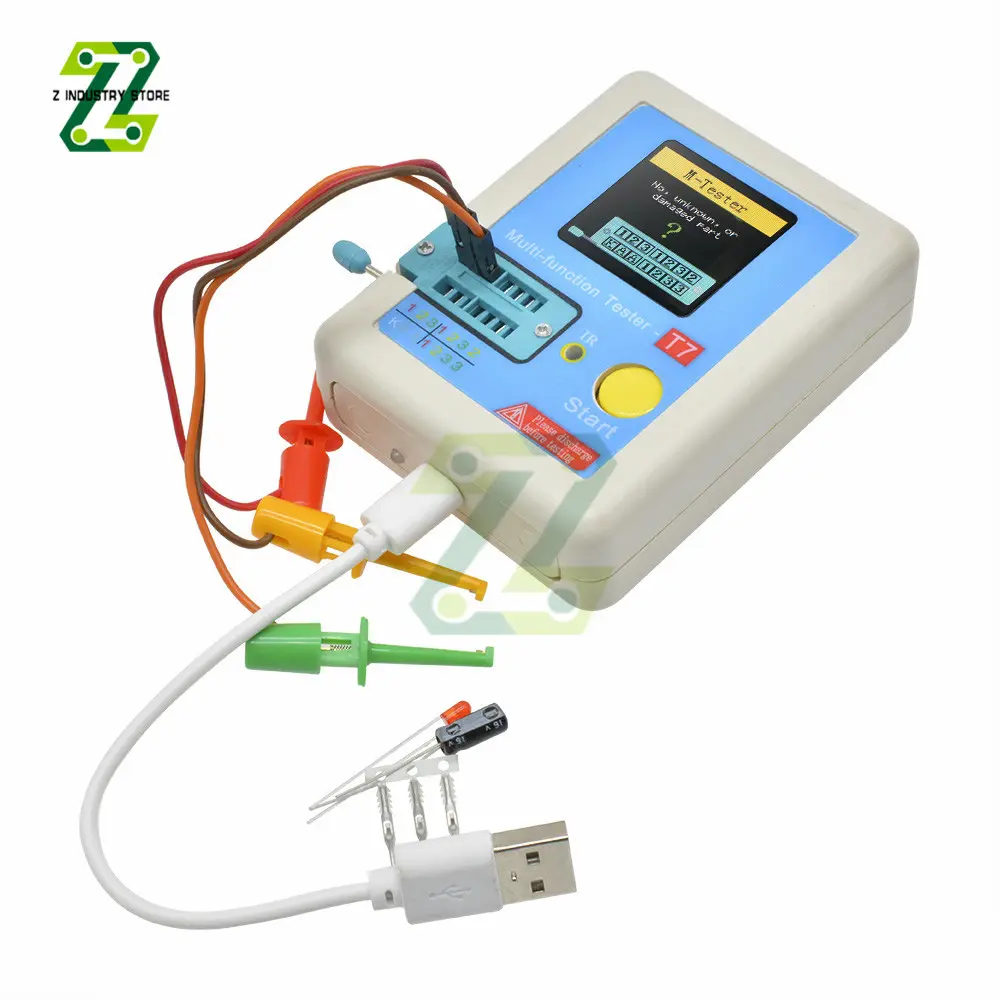

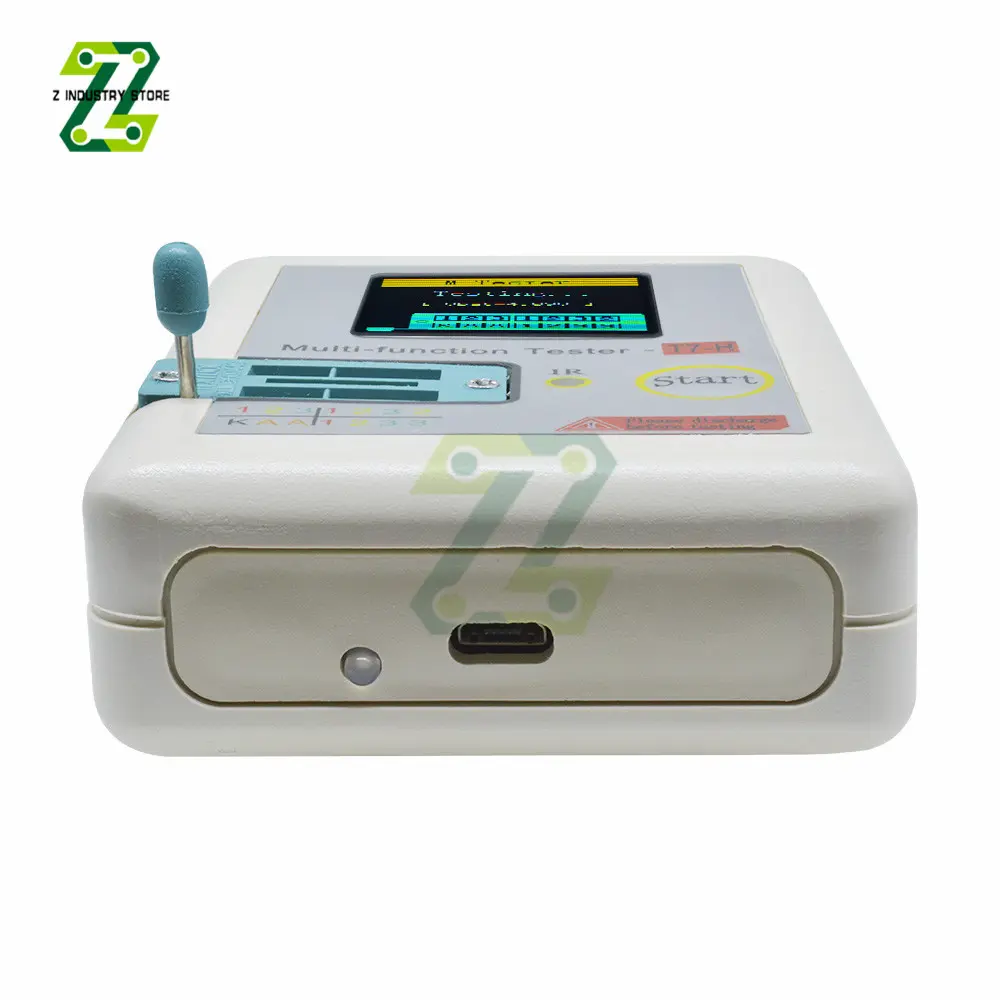

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>High Precision Transistor Tester TCR-T7 LCR-TC1 LCD Digital Meter Diode Triode Capacitance MOS/PNP/NPN LCR MOSFET TFT</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>4 versions difference</strong></span></p><p><br/></p><p><span style="font-size:18px">LCR-T7/LCR-TC1: Color screen/M324 chip, the two functions are the same! T7 is a little faster! The TC1 has a slightly larger screen and is powered by lithium batteries. In addition to measuring resistance, capacitance, inductance, diodes, MOS tubes, and thyristors, it can also measure additional voltage regulators and infrared decoding (Hitachi format only)</span></p><p><br/></p><p><span style="font-size:18px">TC-T7-H: is the upgraded version of LCR-T7, the latest/fastest version</span></p><p><br/></p><p><span style="font-size:18px">LCR-TC2: It is an upgraded version of TC-T7-H. Compared with TC-T7-H, it has upgraded circuit structure, long-term battery life, optimized code, and resistance value of 1/1000 (this is related to the consistency of repeated testing, that is, the same resistance will change without repeated testing, and some An error will occur if the test is repeated)</span></p><p><br/></p><p><span style="font-size:18px">LCR-TC1</span></p><p><br/></p><p><span style="font-size:18px"><strong>Feature:</strong></span></p><p><span style="font-size:18px">Self-test with automatic calibration</span></p><p><span style="font-size:18px">Size: 70*90*26m/ 2.71x3.58x1.10 inches</span></p><p><span style="font-size:18px">Display: TFT screen, color screen</span></p><p><span style="font-size:18px">Diode range: less than 4.5V</span></p><p><span style="font-size:18px">Zener diode: Transistor detection area: 0.01-4.5V</span></p><p><span style="font-size:18px">Zener diode detection area: 0.01-30V</span></p><p><span style="font-size:18px">SCR range: IGT is less than 6mA</span></p><p><span style="font-size:18px">Capacitance: 25pF-100mF</span></p><p><span style="font-size:18px">Resistance: 0.01-50MΩ</span></p><p><span style="font-size:18px">Inductance: 0.01mH-20H</span></p><p><span style="font-size:18px">Power supply voltage: 3.7V</span></p><p><span style="font-size:18px">Power supply: built-in rechargeable lithium battery</span></p><p><span style="font-size:18px">Measurement results using TFT graphic display (160x128)</span></p><p><span style="font-size:18px">One key operation</span></p><p><span style="font-size:18px">Automatic shutdown (timeout setting)</span></p><p><span style="font-size:18px">Built-in high-capacity rechargeable lithium-ion battery</span></p><p><span style="font-size:18px">Lithium-ion battery voltage detection</span></p><p><span style="font-size:18px">Support Chinese and English</span></p><p><br/></p><p><span style="font-size:18px"><strong>Warning:</strong></span><span style="font-size:18px"> Built-in lithium ion battery, it is strictly forbidden to immerse the tester in water or close to a heat source!</span></p><p><span style="font-size:18px">Warning: For your personal safety, please strictly abide by the regulations and precautions for using lithium-ion batteries!</span></p><p><br/></p><p><span style="font-size:18px"><strong>Transistor detection:</strong></span></p><p><span style="font-size:18px">After the power is off or the test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function button, the tester will automatically measure, and the measurement result will be displayed at the end of the test.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Warning:</strong></span><span style="font-size:18px"> Before connecting the capacitor to the tester, be sure to discharge it! The tester may be damaged if it is not turned on!</span></p><p><br/></p><p><span style="font-size:18px"><strong>Warning:</strong></span><span style="font-size:18px"> We do not recommend using a tester to measure batteries! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!</span></p><p><br/></p><p><span style="font-size:18px"><strong>Component placement:</strong></span></p><p><span style="font-size:18px">The test socket is divided into transistor and Zener diode test areas, as described in 1.1.</span></p><p><span style="font-size:18px">Note: Do not perform other operations during the calibration process, so as not to affect the calibration accuracy!</span></p><p><br/></p><p><span style="font-size:18px"><strong>Packing list:</strong></span></p><p><span style="font-size:18px">1 x Multifunction TFT transistor tester</span></p><p><span style="font-size:18px">1 x electronic component group (sent randomly)</span></p><p><span style="font-size:18px">3 x test hook</span></p><p><span style="font-size:18px">Short-circuit the three test sockets, short press the multi-function button, and the tester will automatically calibrate.</span></p><p><span style="font-size:18px">After the short-circuit wire is disconnected according to the prompts during calibration, no other operations are required.</span></p><p></p></div></div><p><br/></p>
