High Quality Dc Brushless Motor High Power Brushless Optical Drive Hard Drive Fan Motor Governor DIY Accessories
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. Optional 75W or 200W high power output, suitable for a variety of specifications brushless motor applications.<br />2. Wide range of input voltage (6-24V), strong compatibility, to meet diversified needs.<br />3. Built-in intelligent speed control function, precise control of speed, smooth and quiet operation.<br />4. High-efficiency drive circuit design, low energy consumption, superior heat dissipation performance, long service life.<br />5. Optimized for optical drives, hard disk fans and other scenarios, fast startup, strong load capacity</p>
<p>Parameter:<br />75W:<br />Operating voltage: DC 6-24V<br />Operating current: ≤ 3A<br />Rated power: 50W<br />Peak power: 75W</p>
<p>200W:<br />Operating voltage: DC 6-24V<br />Working current: ≤10A<br />Rated power: 120W<br />Peak power: 200W</p>

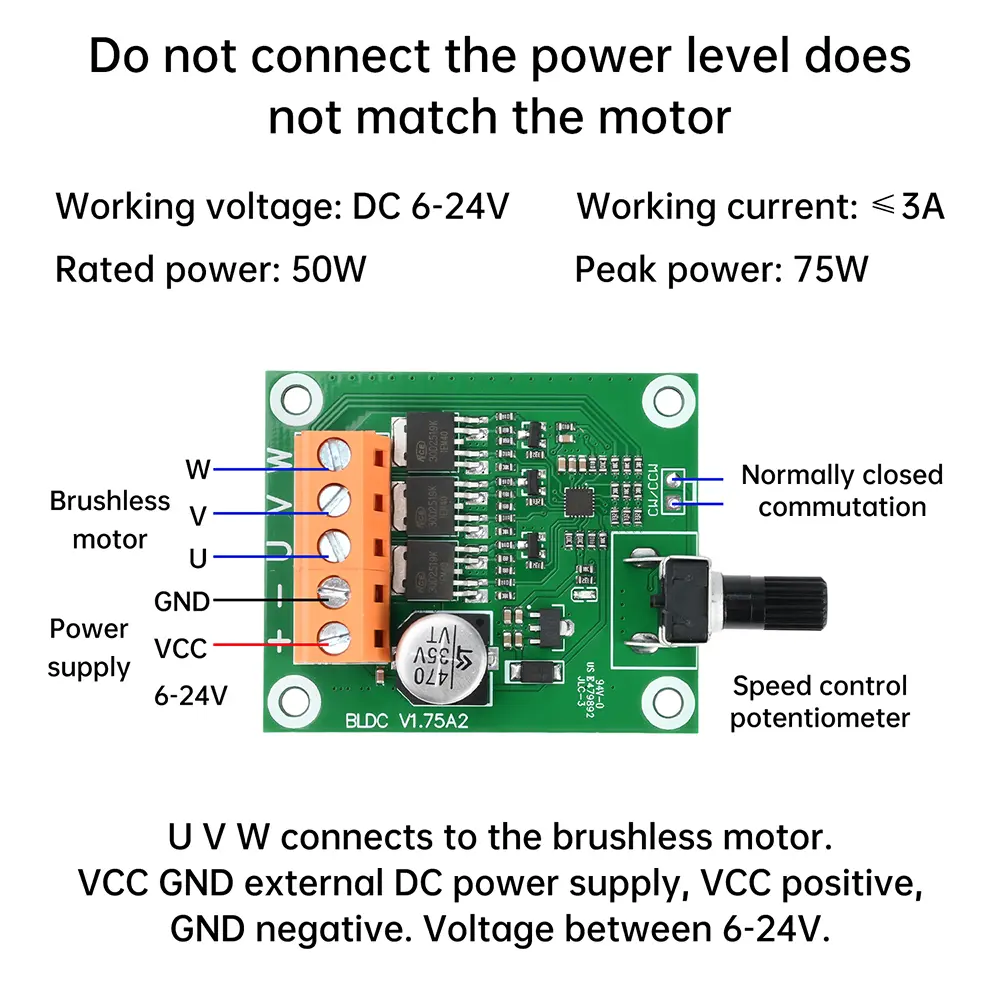

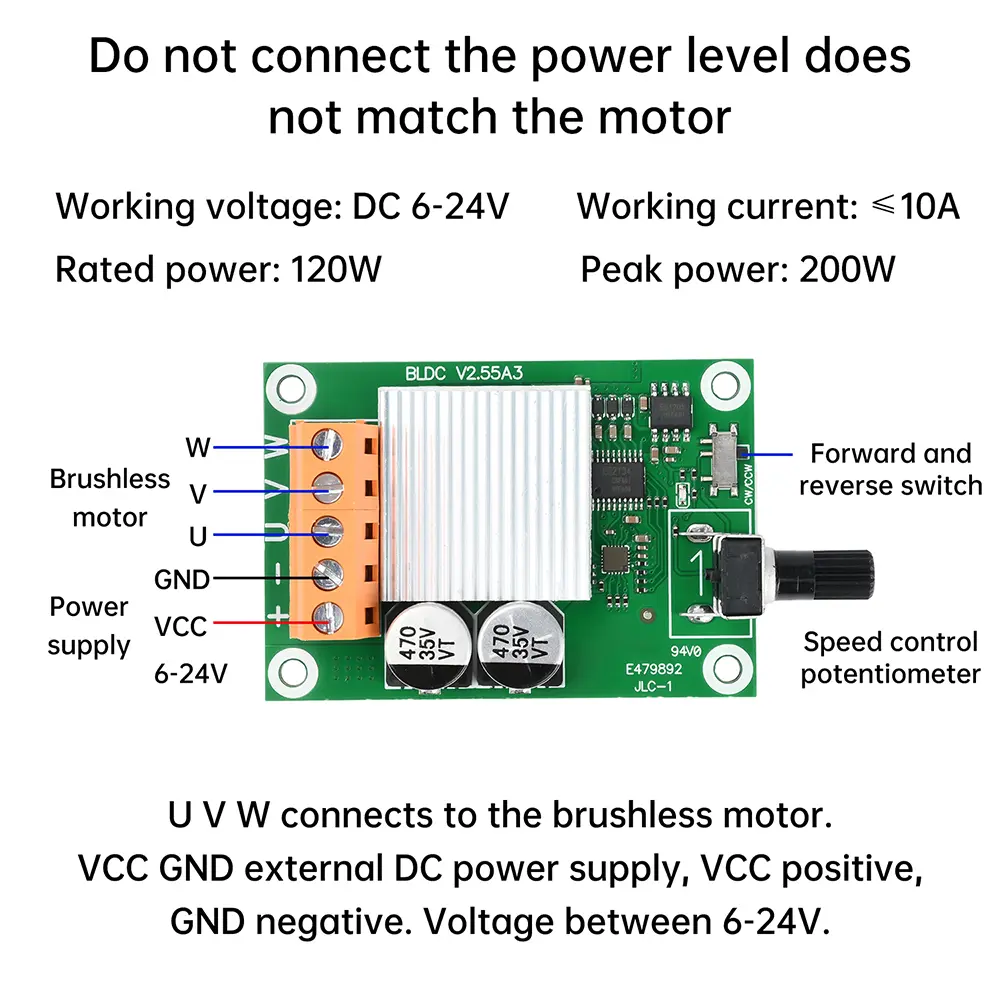

<p>Wiring: U V W connected to the brushless motor<br />VCC GND external DC power supply, VCC positive, GND negative. Voltage between 6-24V</p>
<p>Package include:<br />Speed Controller*1<br /><br /></p></div></div>
$9.47
$6.335
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. Optional 75W or 200W high power output, suitable for a variety of specifications brushless motor applications.<br />2. Wide range of input voltage (6-24V), strong compatibility, to meet diversified needs.<br />3. Built-in intelligent speed control function, precise control of speed, smooth and quiet operation.<br />4. High-efficiency drive circuit design, low energy consumption, superior heat dissipation performance, long service life.<br />5. Optimized for optical drives, hard disk fans and other scenarios, fast startup, strong load capacity</p>
<p>Parameter:<br />75W:<br />Operating voltage: DC 6-24V<br />Operating current: ≤ 3A<br />Rated power: 50W<br />Peak power: 75W</p>
<p>200W:<br />Operating voltage: DC 6-24V<br />Working current: ≤10A<br />Rated power: 120W<br />Peak power: 200W</p>
<p>Wiring: U V W connected to the brushless motor<br />VCC GND external DC power supply, VCC positive, GND negative. Voltage between 6-24V</p>
<p>Package include:<br />Speed Controller*1<br /><br /></p></div></div>
