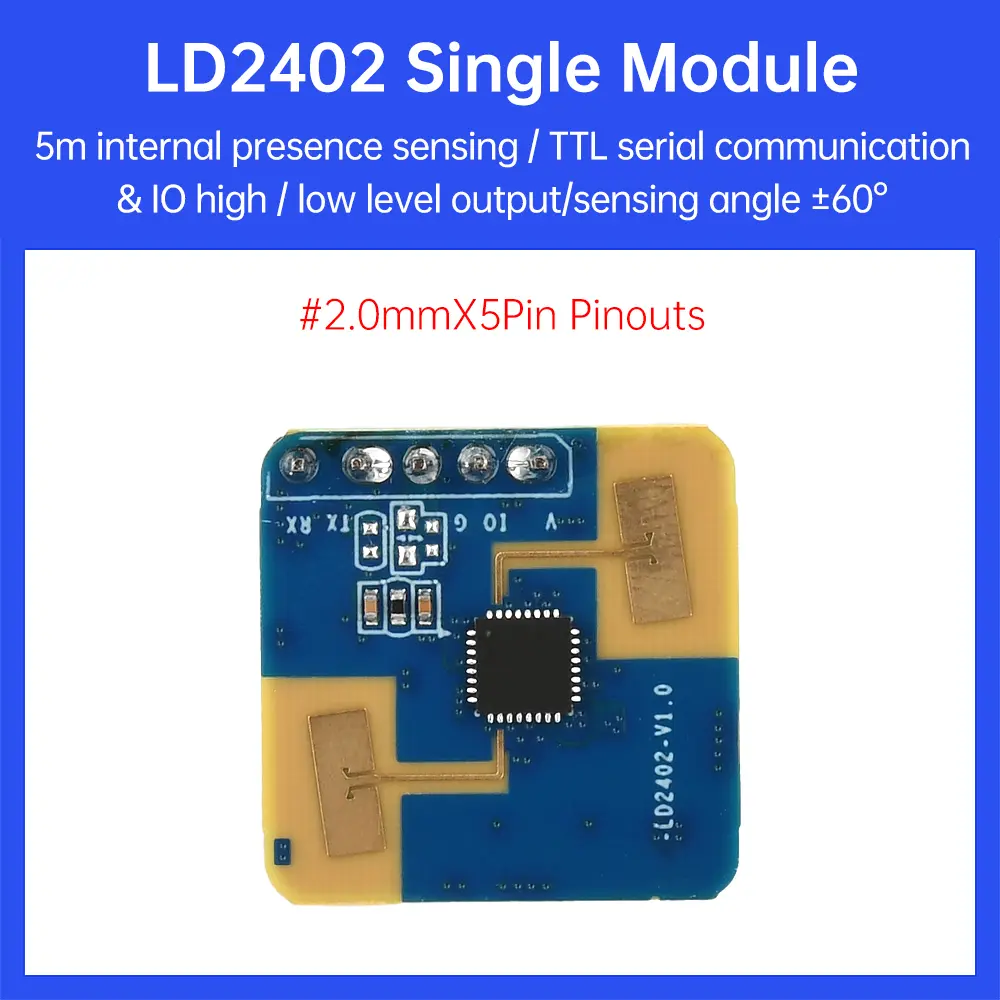

HLK-LD2402 24G Millimeter Wave Sensor Radar Module Human Body Presence Detection Home Automation Motion Sensor Smart Life
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000008487209" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.24G millimeter wave radar technology: accurately perceive static and moving human body, high sensitivity<br/>2.Static human presence detection: recognizing static lying and micro-motion, applicable to smart home appliances and security<br/>3. Long detection distance: up to 7 meters, meet the needs of a variety of scenes<br/>4. Low power consumption design: average current is only 50mA, energy saving and high efficiency<br/>5.Multi-mounting mode: ceiling-mounted, wall-mounted flexible options to adapt to different spaces</div><div><br/></div><p>Parameter:<br/>Product name: HLK-LD2402 human presence sensor<br/>Sensing scene: stationary human life presence sensing module static lying, micro-motion, motion human life presence recognition<br/>Supply voltage: 3.3V<br/>Average operating current: 50mA<br/>Detection distance: 0.8~8m, presence & micro-motion 5m/motion 7m(Typ.)<br/>Detection Angle: ±60°<br/>Frequency: 24G-24.25GHZ<br/>Sweep bandwidth: 250MH<br/>Modulation mode: FMCW<br/>Distance Resolution: 0.15m(Typ.)<br/>Overall Dimension: 20x20mm<br/>Ambient Temperature：-40℃~+85℃<br/>Data format: Serial ASCII output<br/>Interface: default 2.54mmx5Pin<br/>With or without Bluetooth: Without Bluetooth<br/>Bright function: support<br/>OTA upgrade: Yes<br/>Installation: support ceiling, wall, etc.</p><p>Description:<br/>LD2402 24G millimeter wave radar set for human body state sensing, its working principle is to use FMCW FM continuous wave, the detection of human body targets in the set space, combined with radar signal processing, accurate human body sensing algorithms, to achieve high sensitivity human presence state sensing, which can be recognized in the movement and stationary state of the human body.</p><p>Package include:<br/>Package 1: Sensor module x1<br/>Package 2: Sensor module x1+connection cable x1+serial board x1<br/></p></div></div><p><br/></p>
$8.435
$4.76
- Category : Security & Protection
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000008487209" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.24G millimeter wave radar technology: accurately perceive static and moving human body, high sensitivity<br/>2.Static human presence detection: recognizing static lying and micro-motion, applicable to smart home appliances and security<br/>3. Long detection distance: up to 7 meters, meet the needs of a variety of scenes<br/>4. Low power consumption design: average current is only 50mA, energy saving and high efficiency<br/>5.Multi-mounting mode: ceiling-mounted, wall-mounted flexible options to adapt to different spaces</div><div><br/></div><p>Parameter:<br/>Product name: HLK-LD2402 human presence sensor<br/>Sensing scene: stationary human life presence sensing module static lying, micro-motion, motion human life presence recognition<br/>Supply voltage: 3.3V<br/>Average operating current: 50mA<br/>Detection distance: 0.8~8m, presence & micro-motion 5m/motion 7m(Typ.)<br/>Detection Angle: ±60°<br/>Frequency: 24G-24.25GHZ<br/>Sweep bandwidth: 250MH<br/>Modulation mode: FMCW<br/>Distance Resolution: 0.15m(Typ.)<br/>Overall Dimension: 20x20mm<br/>Ambient Temperature：-40℃~+85℃<br/>Data format: Serial ASCII output<br/>Interface: default 2.54mmx5Pin<br/>With or without Bluetooth: Without Bluetooth<br/>Bright function: support<br/>OTA upgrade: Yes<br/>Installation: support ceiling, wall, etc.</p><p>Description:<br/>LD2402 24G millimeter wave radar set for human body state sensing, its working principle is to use FMCW FM continuous wave, the detection of human body targets in the set space, combined with radar signal processing, accurate human body sensing algorithms, to achieve high sensitivity human presence state sensing, which can be recognized in the movement and stationary state of the human body.</p><p>Package include:<br/>Package 1: Sensor module x1<br/>Package 2: Sensor module x1+connection cable x1+serial board x1<br/></p></div></div><p><br/></p>
