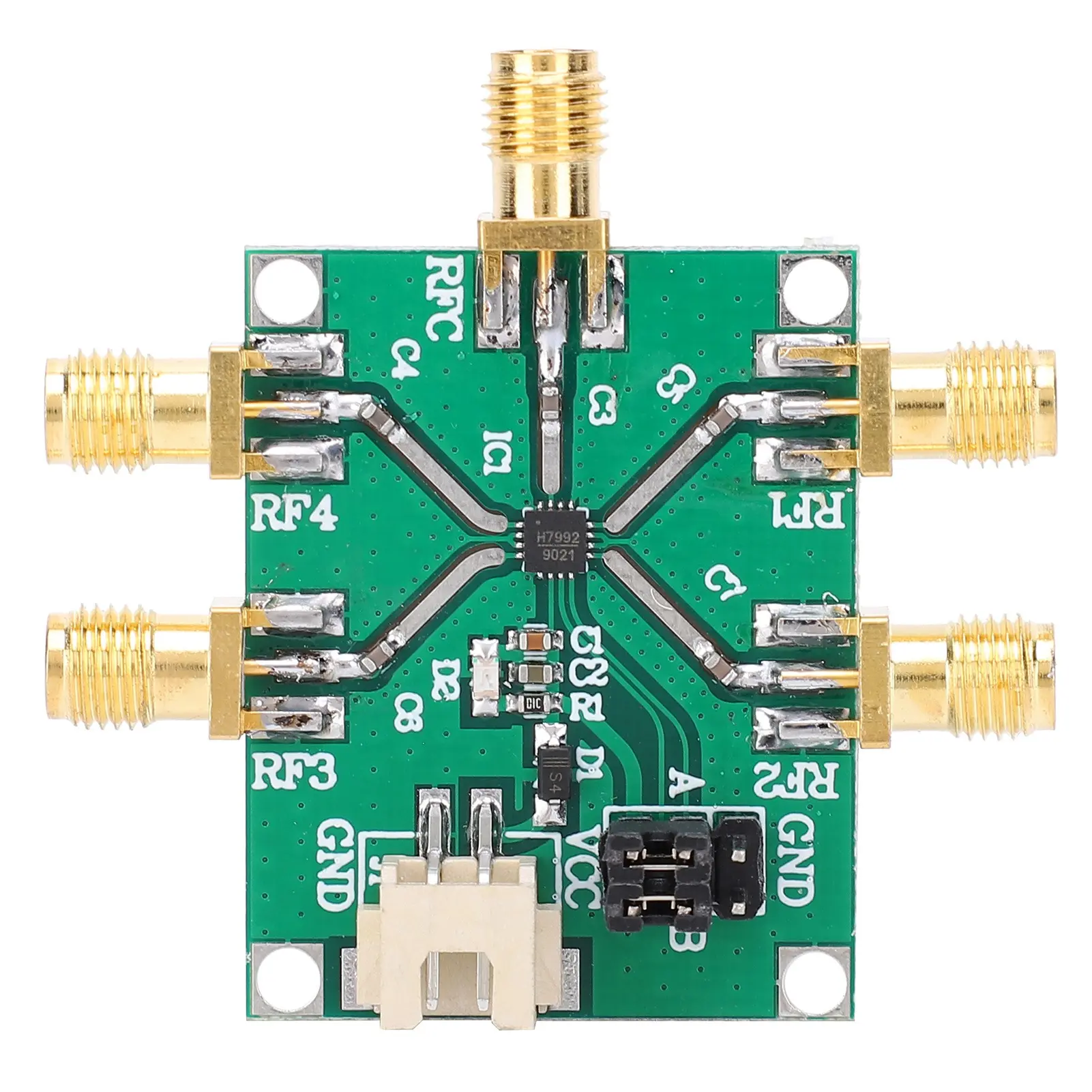

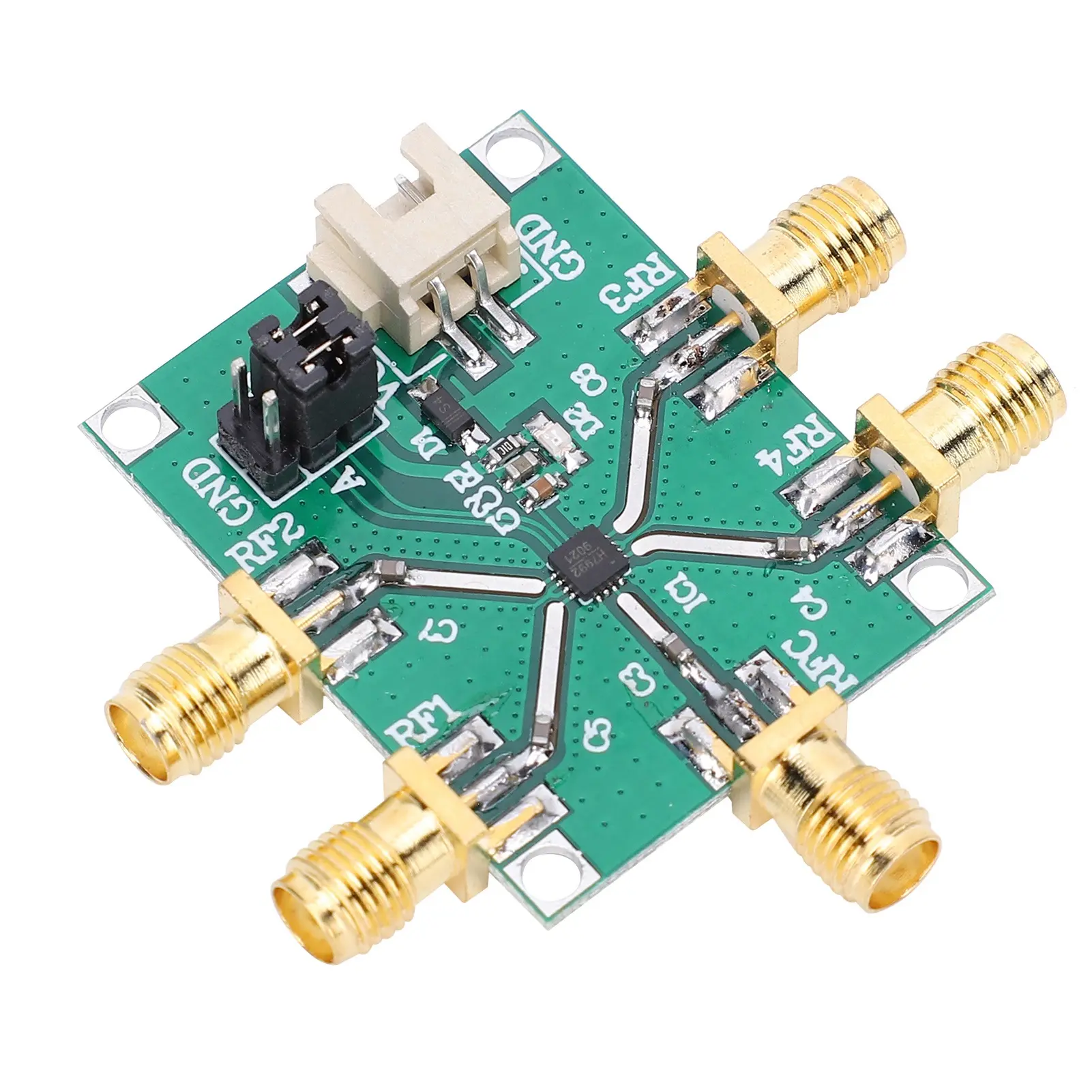

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>RF Switch Module SinglePole 4 Throw NonReflective Electronic Component HMC7992 0.1-6GHz</b><br/></p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. Made of PCB material, corrosion-resistant, anti-oxidation, and increase the product life.<br/>2. This product has a high operating frequency range and a wide range of applications.<br/>3. The module with large heat dissipation area can increase the continuous working time.<br/>4. The power supply voltage of the product is 3V-5V, the frequency is 0.1-6GHZ, the isolation is 45 dB, and the insertion loss is 0.6 dB.<br/>5. With small size, easy to carry and store, convenient to use and with good performance.<p><br/></p><p><b>Specification:</b></p>Item Type: RF Switch Module<br/>Model: HMC7992<br/>Material: PCB<br/>Power Supply Voltage: 3V-5V<br/>Frequency: 0.1-6GHZ<br/>Isolation: 45 dB<br/>Insertion Loss: 0.6 dB<br/>Input 3-Order Cut Point (IIP3): 58 dBm<br/><p><br/></p><p><b>Package List:</b></p>1 x RF Switch Module</div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
