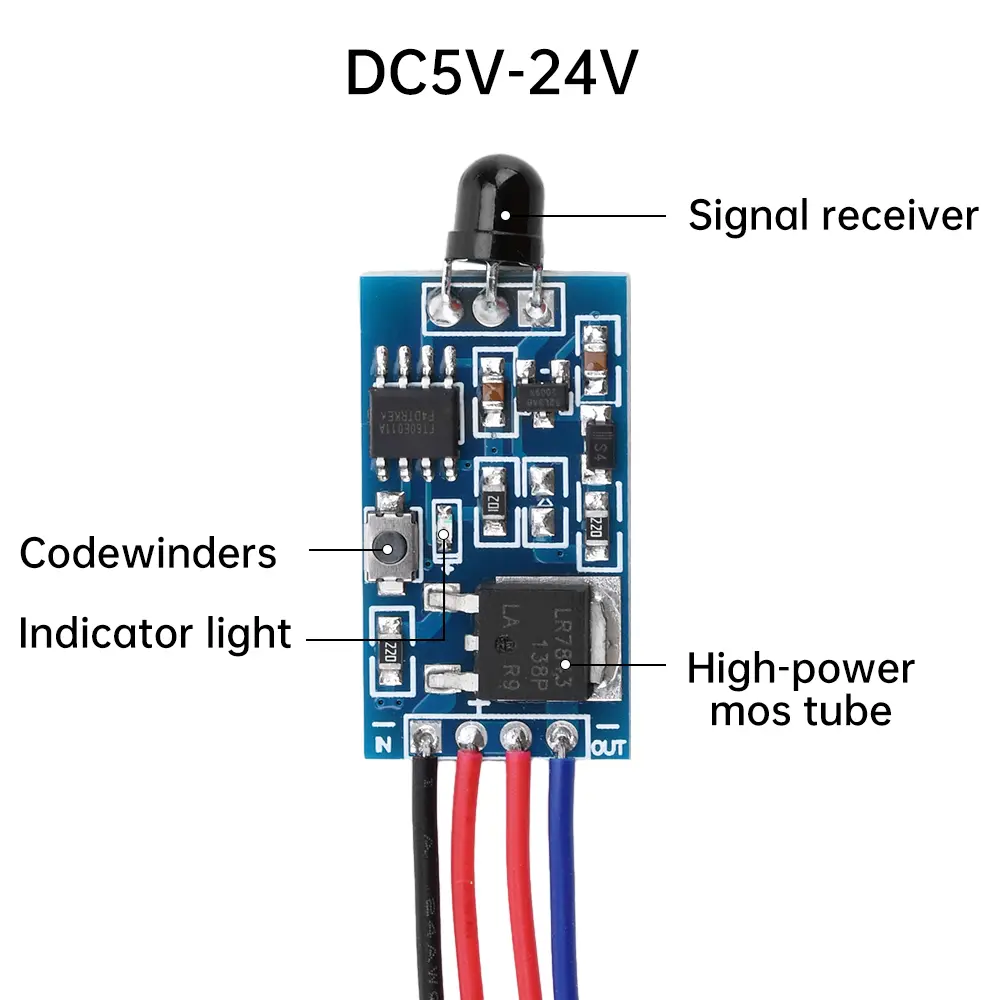

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. This module can learn about NEC encoded remote controls available on the market, such as home televisions and set-top box remote controls. <br/>2. Multiple modes, supporting jog, self-locking, interlock function, and incoming status function. <br/>3. There are two input voltages to choose from, with input voltages ranging from 2.5V-5V and 5V-24V available. <br/>4. High power, maximum power 30W, control negative electrode. <br/>5. Equipped with display lights for easy operation and setting.</p><p>Parameter:<br/>1. Can learn NEC coding remote controls available on the market (such as home TV and set-top box remote controls, not supporting air conditioning and Xiaomi) <br/>2. Supports functions such as jog, self-locking, interlock, and incoming status <br/>3. Model A: Input voltage 2.5-5V, Model B: Input voltage 5-24V <br/>4. The standby current is about 0.2 milliamperes (suitable for long-term use with batteries) <br/>5. The maximum working current is 3A, and the maximum support is 30W <br/>6. Receiving distance 5-12 meters (straight-line distance, remote control aligned with receiving head, without any obstacles in the middle) <br/>7. Jogging: Press the remote control, there is an output, release and turn off the output (one button) <br/>8. Self locking: Press the remote control once to output, then press again to turn off the output (one button) <br/>9. Interlocking: One button opens the output, and one button closes the output (two buttons) <br/>10. Incoming call status, whether there is output or no output when powered on <br/>Setting instructions: <br/>1. Jogging setting: Press the pairing switch twice in a row, and after 1 second, the red pairing light will remain on. Press the remote control button that requires pairing, and the pairing light will flash twice to indicate successful pairing. <br/>2. Self locking setting: Press the pairing switch three times in a row, and after one second, the red pairing light will remain on. Press the remote control button that requires pairing, and the pairing light will flash twice to indicate successful pairing. <br/>3. Interlock setting: Press the code switch 4 times in a row, and after 1 second, the red code light will stay on. Press the remote control switch once to turn it on, and the red code light will flash twice. Then press the remote control switch again to turn it off. The red code light will flash twice again to indicate successful code matching. <br/>4. Call status setting: Press the pairing switch 6 times continuously, and after 2 seconds, the red pairing light flashes twice to indicate successful setting. <br/>5. Clear code setting: Press the code switch 8 times continuously, and after 2 seconds, the red code light flashes 4 times to indicate successful code clearing.</p><p>Package include:<br/>1X module <br/>1X remote control<br/><br/></p></div></div><p><br/></p>
