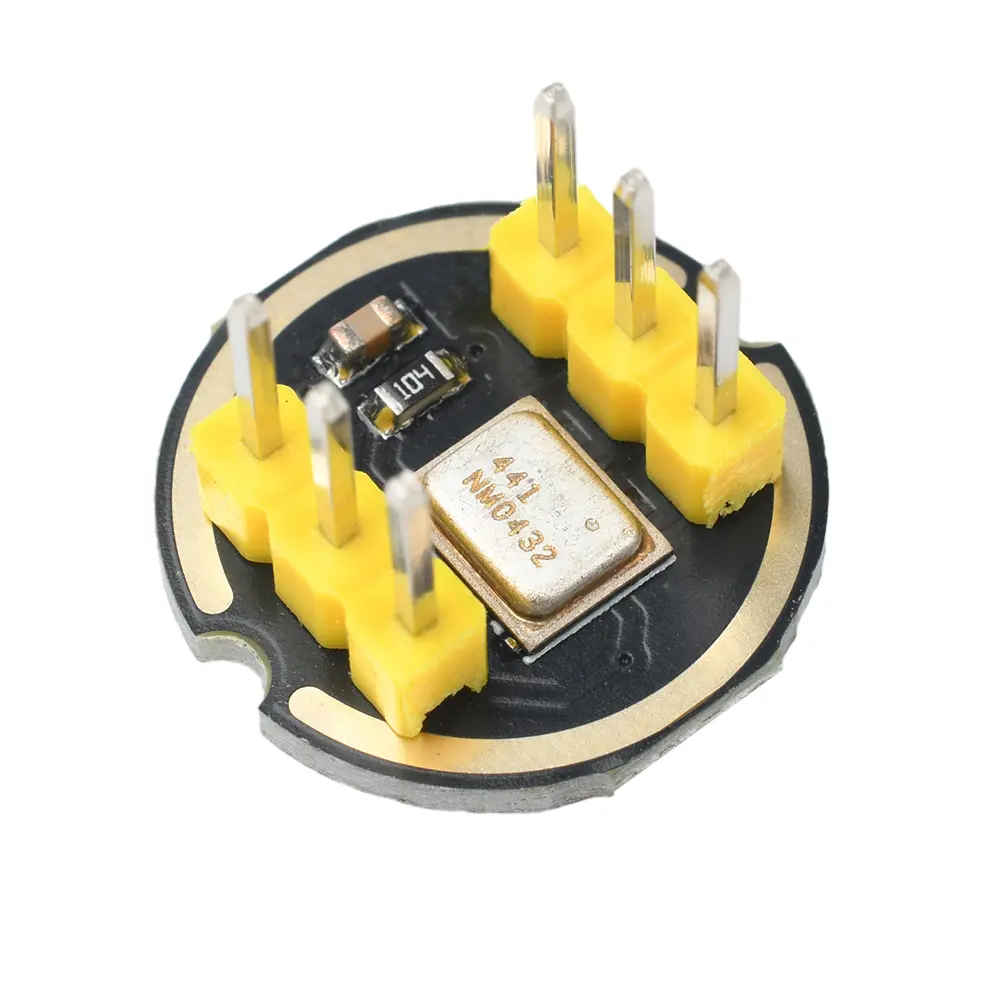

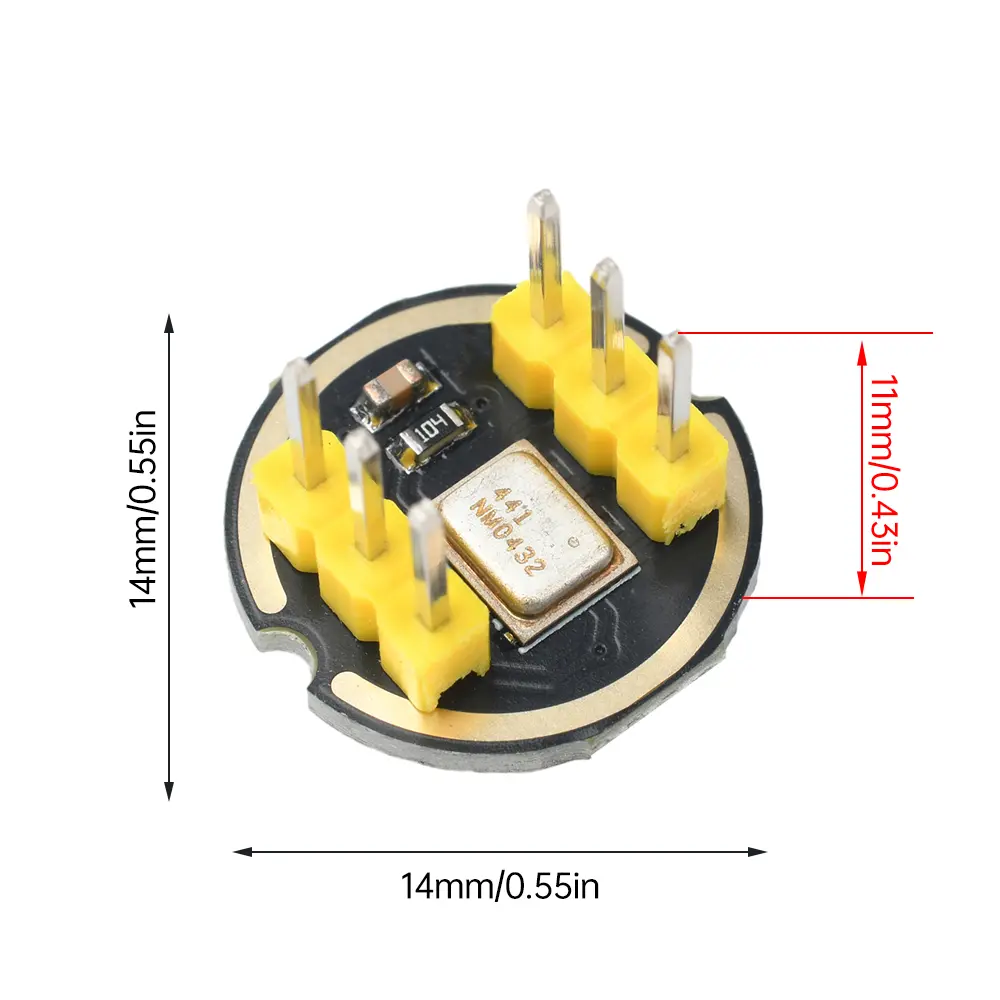

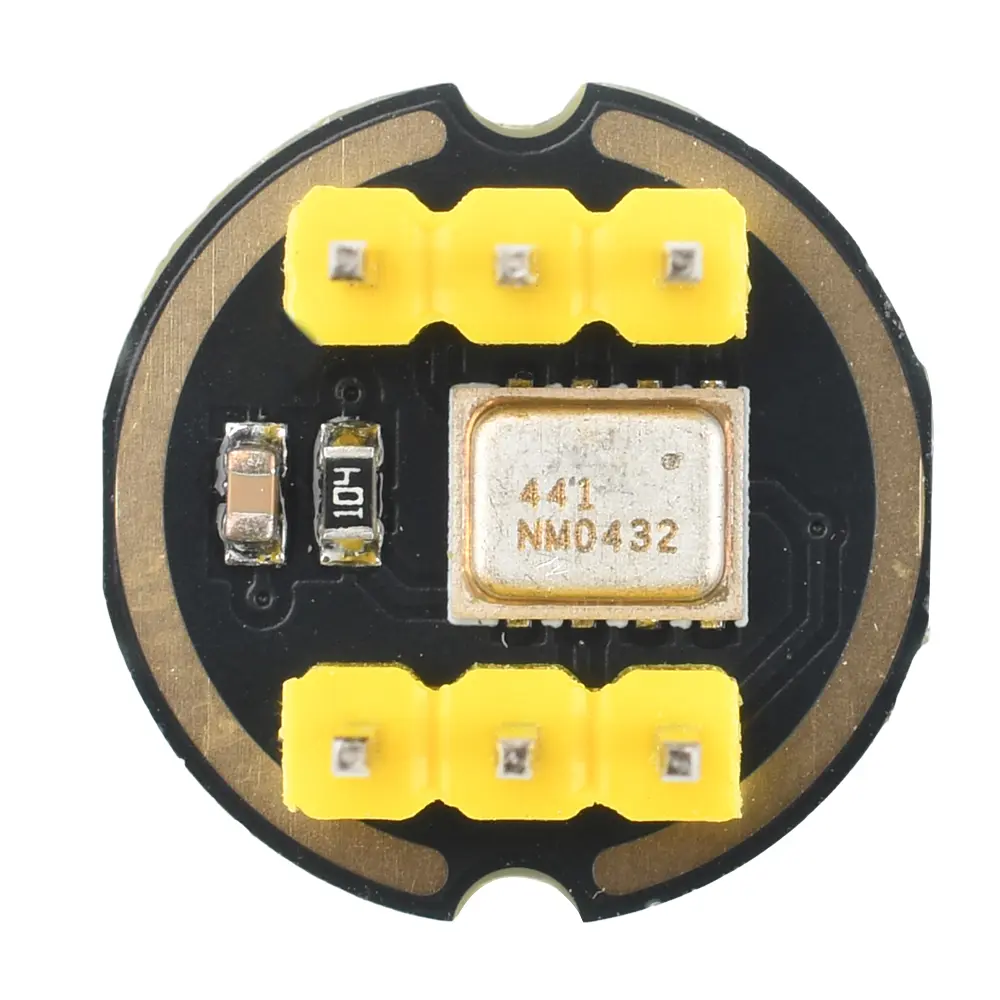

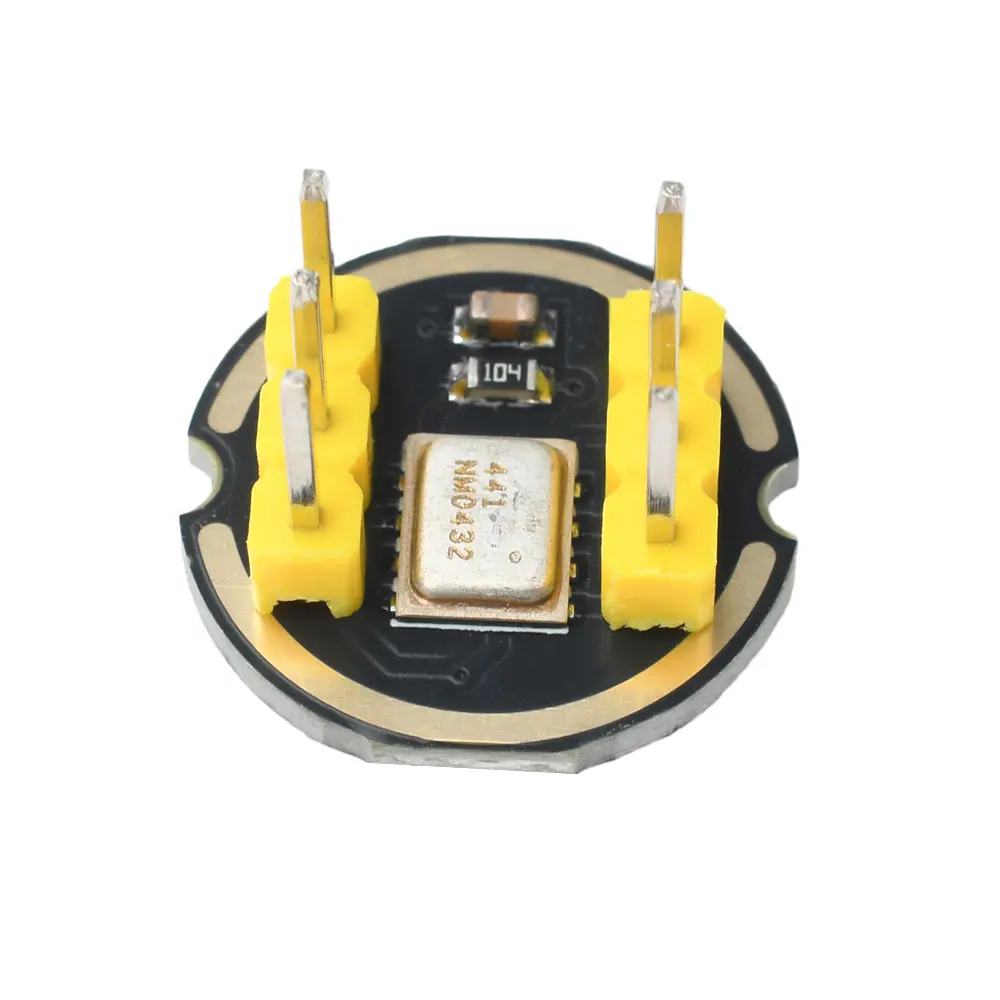

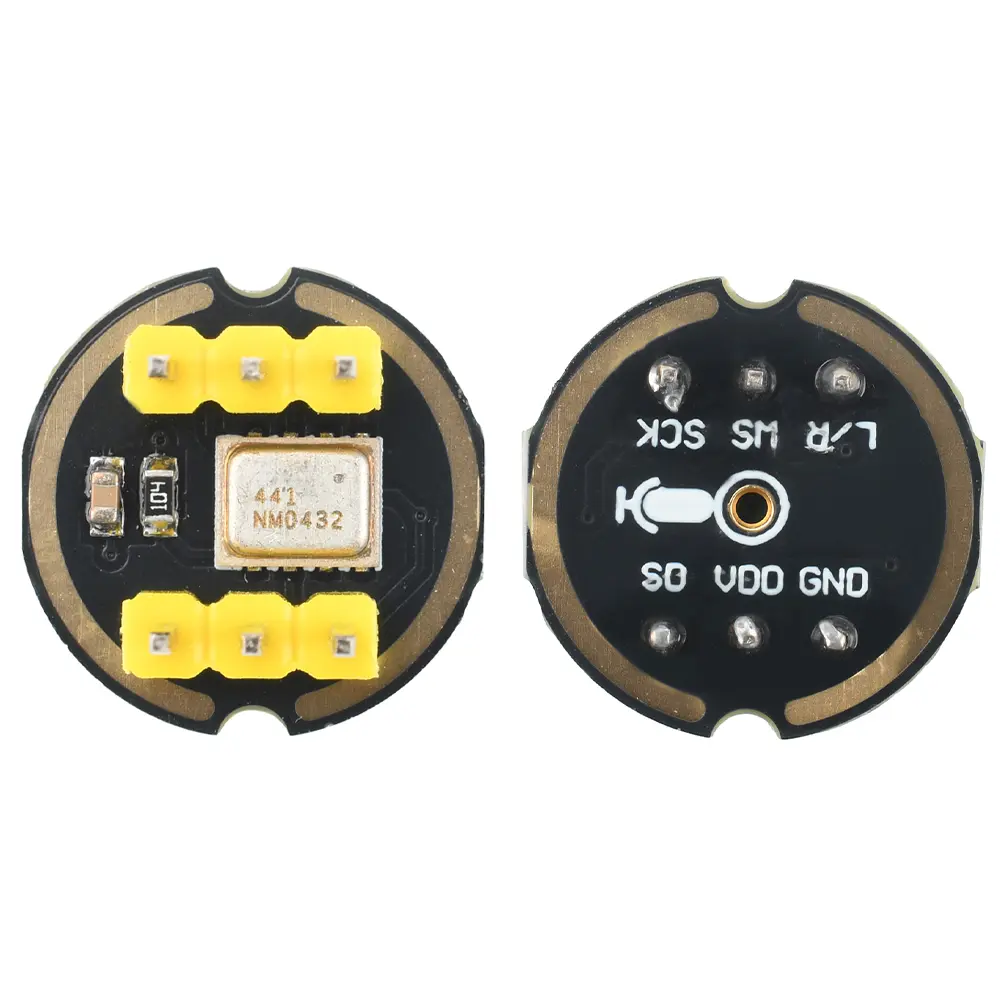

INMP441 Omnidirectional MEMS Microphone Module MEMS High Precision Low Power I2S Interface Supports ESP32 Mic Module For PC
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000010265603" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>summary:<br/>INMP441 is a high-performance, low-power, digital output, omnidirectional MEMS microphone with a bottom port.<br/>The complete INMP441 solution includes MEMS sensors, signal conditioning, analog-to-digital converters, anti aliasing filters, power management, and an industry standard 24 bit I ² S interface.<br/>The I ² S interface allows the INMP441 to be directly connected to digital processors such as DSP and microcontrollers without the need for audio codecs in the system.<br/>INMP441 has a high SNR, making it a choice for near-field applications.<br/>INMP441 has a flat broadband frequency response and can produce natural sound with high clarity.<br/>INMP441 adopts a thin surface mount package with dimensions of 4.72 x 3.76 x 1 mm. It is compatible with reflow soldering and will not reduce sensitivity.<br/>INMP441 is halogen-free.<br/><br/>Parameter features:<br/>Digital I ² S interface with high-precision 24 bit data<br/>High SNR of 61 dBA<br/>High sensitivity of -26 dBFS<br/>Flat frequency response from 60 Hz to 15 kHz<br/>Low current consumption of 1.4 mA<br/>• High PSR of -75 dBFS<br/>Small 4.72 x 3.76 x 1mm surface mount package<br/>• Compatible with tin/lead and lead-free soldering processes<br/>Compliant with RoHS/WEEE standards<br/><br/>Application scope:<br/>• Telephone conference system<br/>• Remote control<br/>• Game console<br/>• Mobile devices<br/>• Laptop computer<br/>• Tablet computer<br/>• Security system<br/><br/>Product List:<br/>1X microphone module<br/>1X needle arrangement<br/></div><br/></div></div><br/>
$11.375
$6.035
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000010265603" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>summary:<br/>INMP441 is a high-performance, low-power, digital output, omnidirectional MEMS microphone with a bottom port.<br/>The complete INMP441 solution includes MEMS sensors, signal conditioning, analog-to-digital converters, anti aliasing filters, power management, and an industry standard 24 bit I ² S interface.<br/>The I ² S interface allows the INMP441 to be directly connected to digital processors such as DSP and microcontrollers without the need for audio codecs in the system.<br/>INMP441 has a high SNR, making it a choice for near-field applications.<br/>INMP441 has a flat broadband frequency response and can produce natural sound with high clarity.<br/>INMP441 adopts a thin surface mount package with dimensions of 4.72 x 3.76 x 1 mm. It is compatible with reflow soldering and will not reduce sensitivity.<br/>INMP441 is halogen-free.<br/><br/>Parameter features:<br/>Digital I ² S interface with high-precision 24 bit data<br/>High SNR of 61 dBA<br/>High sensitivity of -26 dBFS<br/>Flat frequency response from 60 Hz to 15 kHz<br/>Low current consumption of 1.4 mA<br/>• High PSR of -75 dBFS<br/>Small 4.72 x 3.76 x 1mm surface mount package<br/>• Compatible with tin/lead and lead-free soldering processes<br/>Compliant with RoHS/WEEE standards<br/><br/>Application scope:<br/>• Telephone conference system<br/>• Remote control<br/>• Game console<br/>• Mobile devices<br/>• Laptop computer<br/>• Tablet computer<br/>• Security system<br/><br/>Product List:<br/>1X microphone module<br/>1X needle arrangement<br/></div><br/></div></div><br/>
