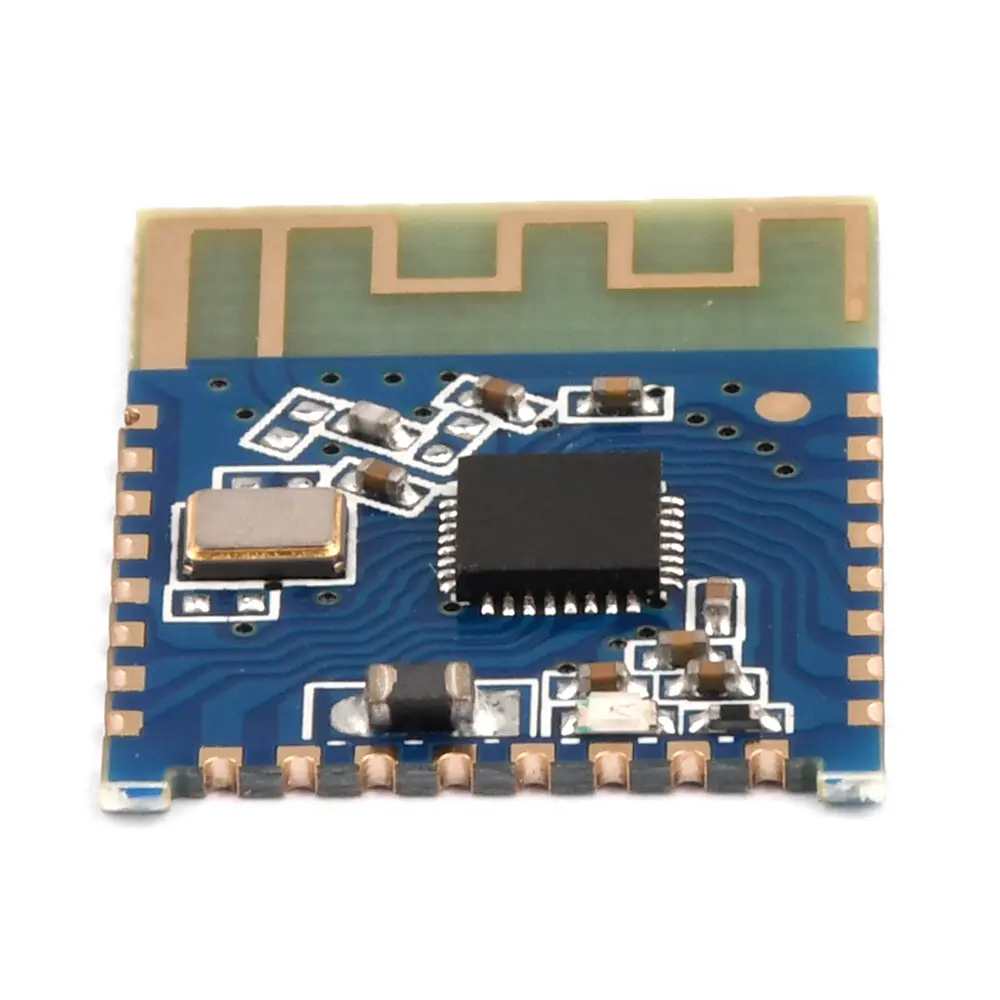

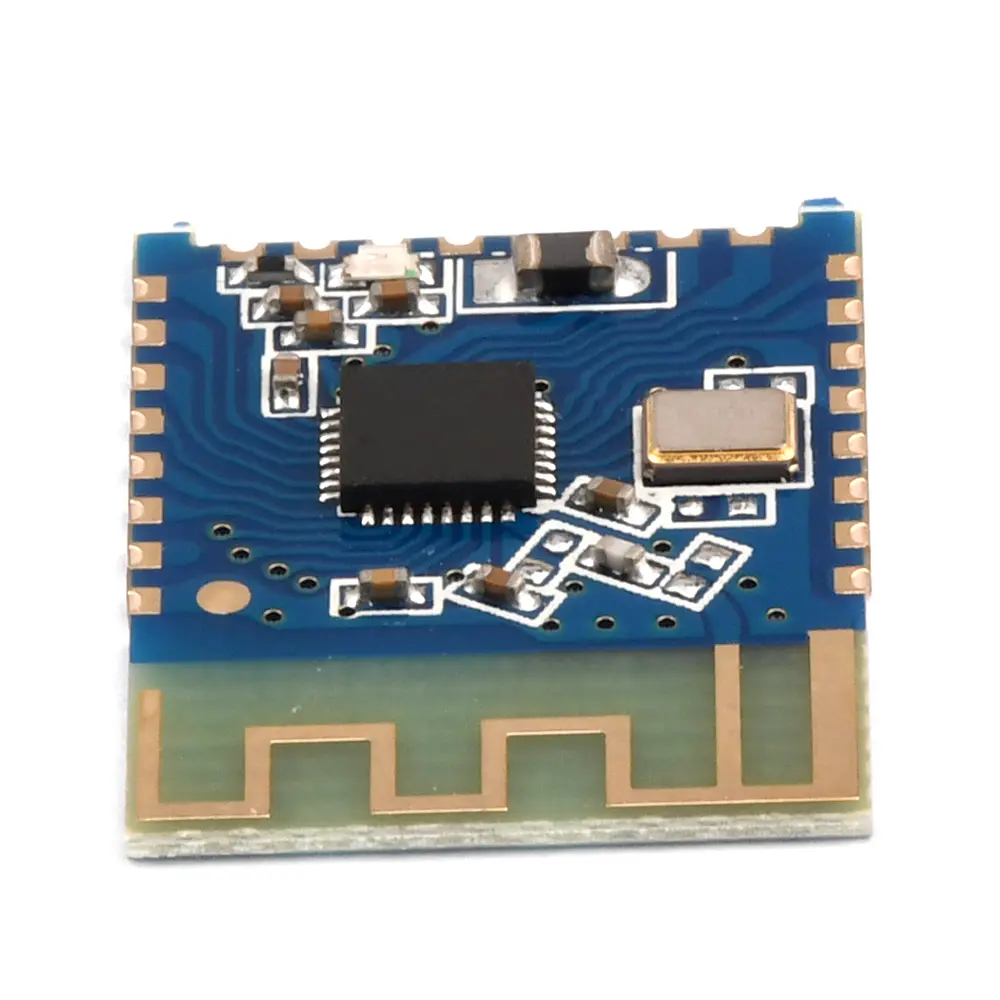

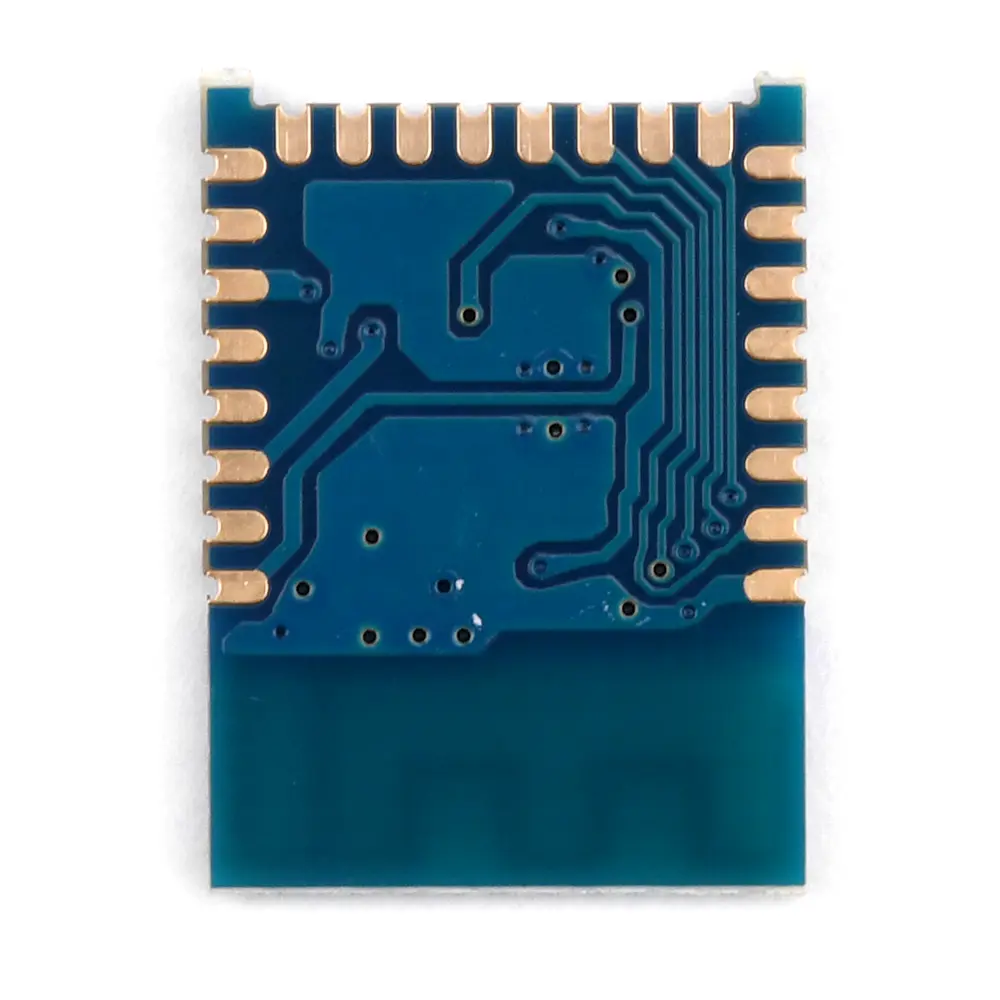

JDY-28M Bluetooth 5.2 Module BLE5.2 Bluetooth Transparent Transmission Bluetooth Digital Transmission 2.0-3.6V
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size:20px"><strong>Features:</strong></span><br/>1.Use high-quality materials with guaranteed quality<br/>2.The DY-28M Bluetooth module protocol is version 5.2, which integrates master and slave, and supports configuration of multiple modes (BLE master-slave transparent mode, MESH transparent mode, MESH command mode, car key, switch panel, MESH low-power remote control)<br/>3.BLE transparent transmission measurement supports 20K Bytes per second rate, MESH mode supports networking status LED light, module comes with networking indicator LED light, MESH devices and devices support 1K Byte transparent transmission rate in networking status<br/>4.MESH transparent communication does not require data header and footer, completely transparent transmission, and can replace 485 communication. MESH relay time is within 5ms, and MESH sends 20Byte data with a minimum sending interval of 20ms<br/>5.The product greatly improves stability and anti-interference ability</p><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Working voltage: 2.0-3.6V<br/>Working temperature: -40-85 ℃<br/>Maximum transmission power:+9dbm<br/>Communication distance: 150m<br/>Bluetooth version: BLE5.2<br/>Antenna: PCB board mounted antenna<br/>Antenna gain: -3dbi<br/>Receiving sensitivity: -96dbm<br/>SMT welding temperature:<260 ℃<br/>Communication interface: UART<br/>Communication speed between slave and APP: 20K (Byte/s)<br/>MESH communication speed: 1K (Byte/s)<br/>Non MESH mode slave with broadcast light sleep: within 200uA (related to broadcast interval)<br/>MESH mode wake-up communication current: about 8mA<br/>MESH mode sleep current: 1uA<br/>Deep Sleep mode: 1uA</p><p><span style="font-size:20px"><strong>Attention:</strong></span><br/>Generally, transparent applications only need to connect VCC, GND, RXD, and TXD pins</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>Bluetooth module * 1<br/><br/></p></div></div><p><br/></p>
$6.995
$4.145
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size:20px"><strong>Features:</strong></span><br/>1.Use high-quality materials with guaranteed quality<br/>2.The DY-28M Bluetooth module protocol is version 5.2, which integrates master and slave, and supports configuration of multiple modes (BLE master-slave transparent mode, MESH transparent mode, MESH command mode, car key, switch panel, MESH low-power remote control)<br/>3.BLE transparent transmission measurement supports 20K Bytes per second rate, MESH mode supports networking status LED light, module comes with networking indicator LED light, MESH devices and devices support 1K Byte transparent transmission rate in networking status<br/>4.MESH transparent communication does not require data header and footer, completely transparent transmission, and can replace 485 communication. MESH relay time is within 5ms, and MESH sends 20Byte data with a minimum sending interval of 20ms<br/>5.The product greatly improves stability and anti-interference ability</p><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Working voltage: 2.0-3.6V<br/>Working temperature: -40-85 ℃<br/>Maximum transmission power:+9dbm<br/>Communication distance: 150m<br/>Bluetooth version: BLE5.2<br/>Antenna: PCB board mounted antenna<br/>Antenna gain: -3dbi<br/>Receiving sensitivity: -96dbm<br/>SMT welding temperature:<260 ℃<br/>Communication interface: UART<br/>Communication speed between slave and APP: 20K (Byte/s)<br/>MESH communication speed: 1K (Byte/s)<br/>Non MESH mode slave with broadcast light sleep: within 200uA (related to broadcast interval)<br/>MESH mode wake-up communication current: about 8mA<br/>MESH mode sleep current: 1uA<br/>Deep Sleep mode: 1uA</p><p><span style="font-size:20px"><strong>Attention:</strong></span><br/>Generally, transparent applications only need to connect VCC, GND, RXD, and TXD pins</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>Bluetooth module * 1<br/><br/></p></div></div><p><br/></p>
