Lithium Battery Protection Board Bluetooth Board Smart Bluetooth BMS APP Adjustable Parameter Balance Protection Board

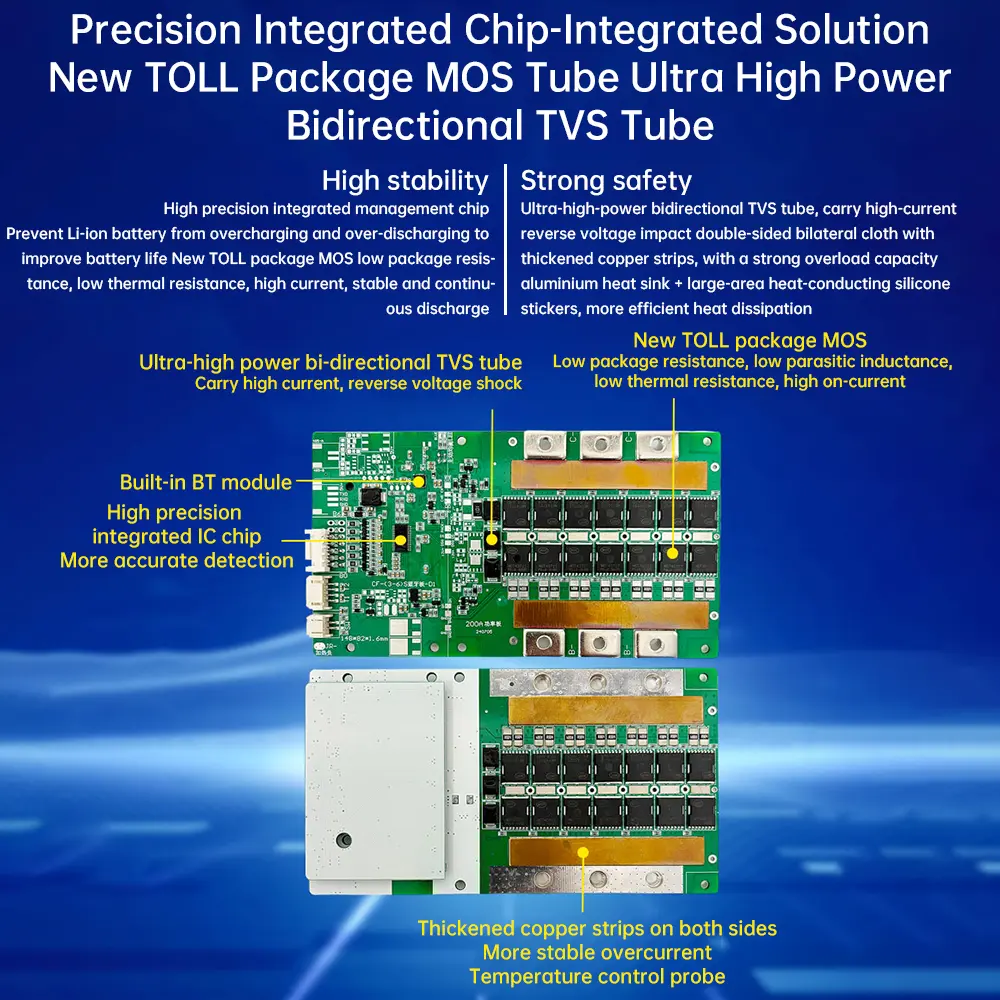

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Product selling points:<br />1. New TOLL package MOS with low packaging resistance, low thermal resistance, high current, stable and continuous discharge<br />2. High precision integrated management chip prevents overcharging and overdischarging of lithium batteries, improving battery life<br />3. Ultra high power bidirectional TVS tube, capable of withstanding high current reverse voltage impact, and thick copper strip with strong overload capacity<br />4. The lithium battery pack comes with a balancing function, which can balance the pressure difference and extend the service life of the battery cells<br />5. APP intelligent monitoring, visualization of battery pack information, parameters can be adjusted as needed in the APP<br />Product parameters:<br />Product specifications: 4S 100A/4S 200A/8S 100A/8S 200A (optional)<br />Overcharge protection:<br />Detection voltage: 3.75 ± 0.025V<br />Detection delay: 1000 ± 500ms<br />Release voltage: 3.65 ± 0.05V<br />Overdischarge protection:<br />Detection voltage: 2.3 ± 0.1V<br />Detection delay: 1000 ± 500ms<br />Release voltage: 2.5 ± 0.1V<br />Voltage balance:<br />Detection voltage: 3.0V-3.8V (parameters can be set)<br />Balanced current: 2A<br />Overcurrent protection:<br />100A: 75A/130 ± 30/200 ± 50 Three speed adjustable<br />200A: 220A/350 ± 50/550 ± 80 Three speed adjustable<br />Release condition: Disconnect load/charge activation<br />Short circuit protection:<br />Trigger condition: Short circuit of external load<br />Detection delay: 300US<br />Release condition: Disconnect load/charge activation<br />Temperature protection:<br />Charging working temperature: 55 ° C<br />Discharge working temperature: 75 ° C<br />Release condition: Automatic recovery<br />Package List:<br />Protective board * 1 (optional style)<br />SW weak current switch wire * 1<br />NTC temperature control cable * 1<br />Cable harness * 1<br /></p></div></div>
$101.345
$52.67
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Product selling points:<br />1. New TOLL package MOS with low packaging resistance, low thermal resistance, high current, stable and continuous discharge<br />2. High precision integrated management chip prevents overcharging and overdischarging of lithium batteries, improving battery life<br />3. Ultra high power bidirectional TVS tube, capable of withstanding high current reverse voltage impact, and thick copper strip with strong overload capacity<br />4. The lithium battery pack comes with a balancing function, which can balance the pressure difference and extend the service life of the battery cells<br />5. APP intelligent monitoring, visualization of battery pack information, parameters can be adjusted as needed in the APP<br />Product parameters:<br />Product specifications: 4S 100A/4S 200A/8S 100A/8S 200A (optional)<br />Overcharge protection:<br />Detection voltage: 3.75 ± 0.025V<br />Detection delay: 1000 ± 500ms<br />Release voltage: 3.65 ± 0.05V<br />Overdischarge protection:<br />Detection voltage: 2.3 ± 0.1V<br />Detection delay: 1000 ± 500ms<br />Release voltage: 2.5 ± 0.1V<br />Voltage balance:<br />Detection voltage: 3.0V-3.8V (parameters can be set)<br />Balanced current: 2A<br />Overcurrent protection:<br />100A: 75A/130 ± 30/200 ± 50 Three speed adjustable<br />200A: 220A/350 ± 50/550 ± 80 Three speed adjustable<br />Release condition: Disconnect load/charge activation<br />Short circuit protection:<br />Trigger condition: Short circuit of external load<br />Detection delay: 300US<br />Release condition: Disconnect load/charge activation<br />Temperature protection:<br />Charging working temperature: 55 ° C<br />Discharge working temperature: 75 ° C<br />Release condition: Automatic recovery<br />Package List:<br />Protective board * 1 (optional style)<br />SW weak current switch wire * 1<br />NTC temperature control cable * 1<br />Cable harness * 1<br /></p></div></div>
