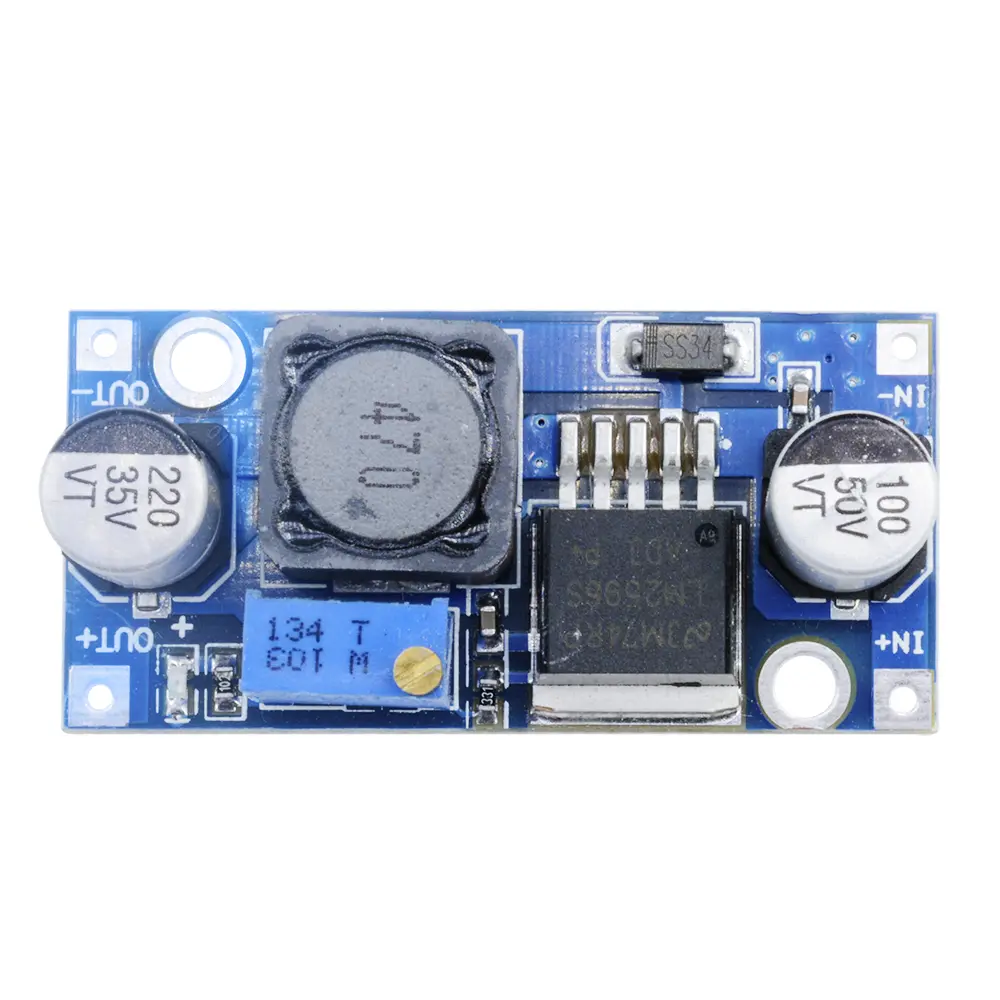

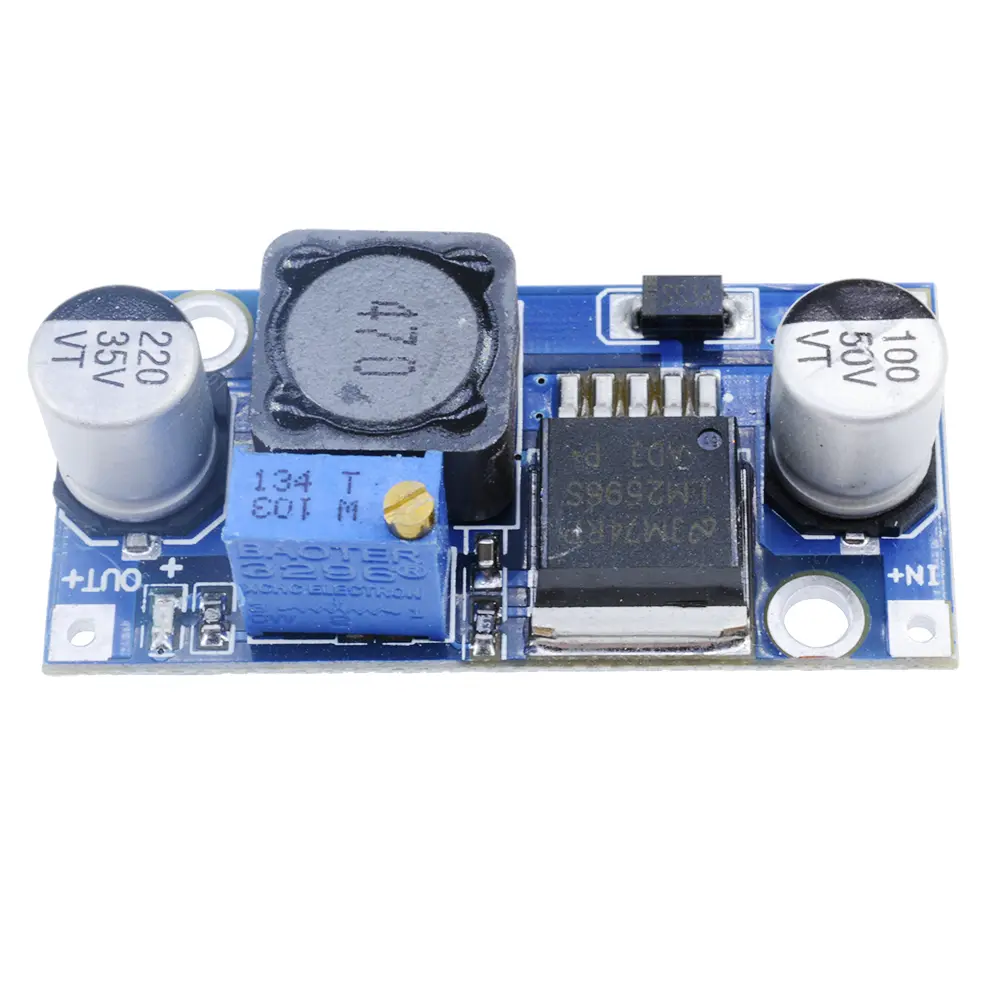

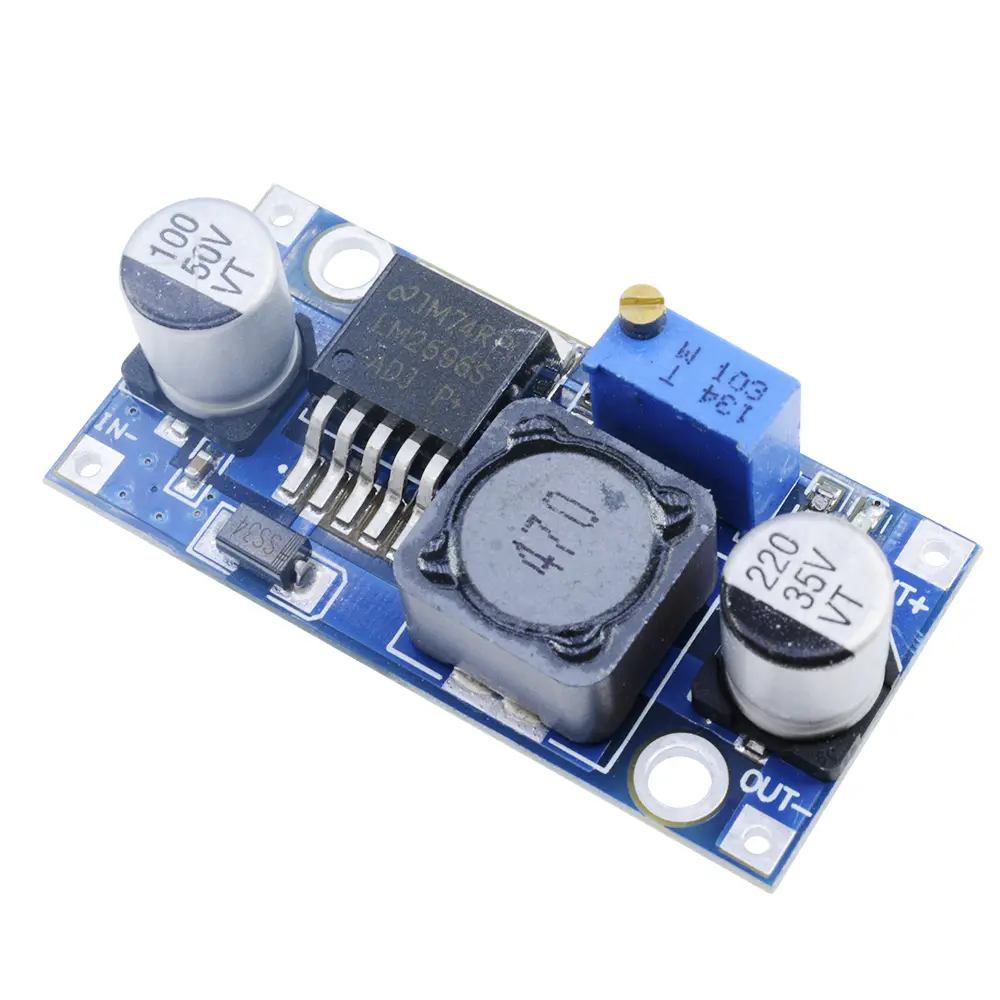

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000013403607" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.Precision adjustable Potentiometer, easy to use<br/>2.Made of high-quality materials with 0.1UF high-frequency filtering<br/>3.Ultra high current chip with stable performance<br/>4.01uF high-frequency bypass capacitor, effectively filtering out high-frequency noise<br/>5.Small size, only 43mm * 21mm * 14mm, suitable for various automotive products, electronic equipment power supply, etc.</div><br/><p>Parameters:<br/>Input voltage: 3.2V~35V<br/>Output voltage: 1.25V~35V<br/>Output current: 3A (maximum)<br/>Conversion efficiency: 92% (highest)<br/>Output ripple:&lt;30mV<br/>Switching frequency: 65KHz<br/>Working temperature: -45 ℃~+85 ℃<br/>Size: 43mm * 21mm * 14mm (length * width * height)<br/>Input: DC 3V to 35V (The input voltage must be more than 1.5V higher than the output voltage. Boosting is not allowed)<br/>Output: DC voltage is continuously adjustable from 1.5V to 35V, with a maximum output current of 3A for high efficiency.<br/>Features: All use high-quality solid-state capacitors, 36u thick circuit board, high Q value, high-power inductance with output LED indicator light<br/>It is recommended to use a current of less than 2.5A for long-term work, and add a heat sink (output above 10W) if it exceeds 2A;<br/>As it is a step-down module, to ensure stable output, please maintain a minimum voltage difference of 1.5V.</p><p>Precautions:<br/>IN+input positive pole IN - input negative pole!<br/>OUT+output positive pole OUT - output negative pole!<br/>Note that the input and output cannot be reversed. Reverse connection may burn out!<br/>In is connected to the input, out is connected to the output, and the positive and negative poles should not be reversed according to the label on the board! After connecting, adjust the pressure drop counterclockwise by rotating it for more than ten turns first!<br/>1.3V -35V 3A precision adjustable power module</p><p>Wiring method<br/>1. Welding, directly solder the power cord to the input (output) port;<br/>2. Solder pins can be inserted through leads or used on hole boards; Alternatively, after adding pins, they can be directly soldered onto the PCB.<br/>Application examples<br/>1. Onboard regulated power supply, just connect the input end of this module to the cigarette lighter for power supply, you can adjust the Potentiometer, and the output voltage can be adjusted at 1.25-30V, which is very simple and convenient for powering your mobile phone, MP3, MP4, PSP charging and many other devices.<br/>2. Power electronic devices. When the device needs a 3-35V power supply and the corresponding voltage power supply is in hand, this module can easily adjust the voltage to the required voltage, solving the problem.<br/>3. System working voltage testing. When doing projects, this module can be used to debug various voltage testing system working voltage ranges, which is very easy and convenient.</p><p>Package include:<br/>1X module<br/></p></div></div><br/>
