LoRa Wireless Tracker ESP32-S3FN8+SX1262+UC6580 Support WiFi/Bluetooth/LoRa/Gnss/Tracking and Positioning GPS On-board Display

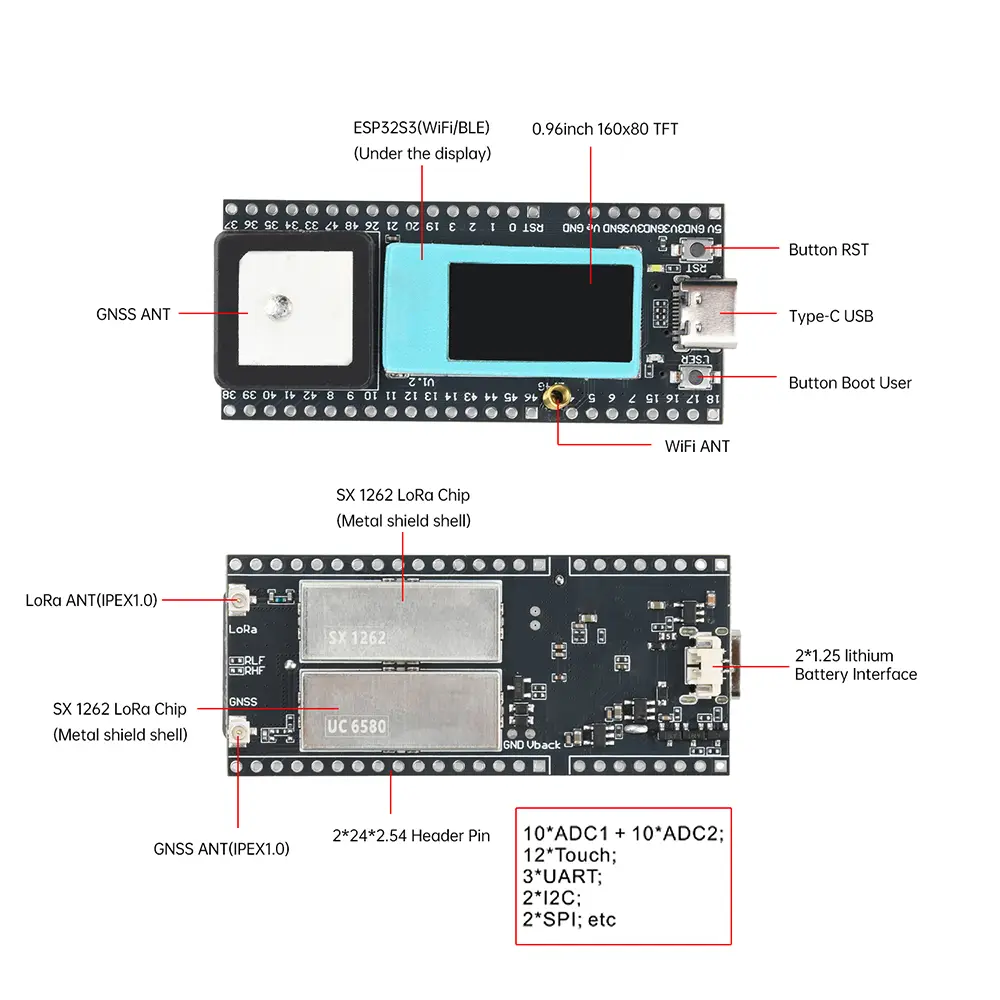

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. ESP32-S3FN8+SX1262+UC6580 chipset, support Wi-Fi, LoRa, Bluetooth, GNSS<br />2. Dual-frequency multi-system low-power design based on 22nm technology to achieve both high performance and energy-saving positioning function<br />3. Support L1+ L5/L2, support GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning<br />4. Type C USB interface with complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protective measures<br />5. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, USB/battery power automatic switching)<br />6. On-board Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use<br />7. 0.96-inch 160*80 dot matrix TFT-LCD display on board, can be used to display debugging information, battery level and other information</p>

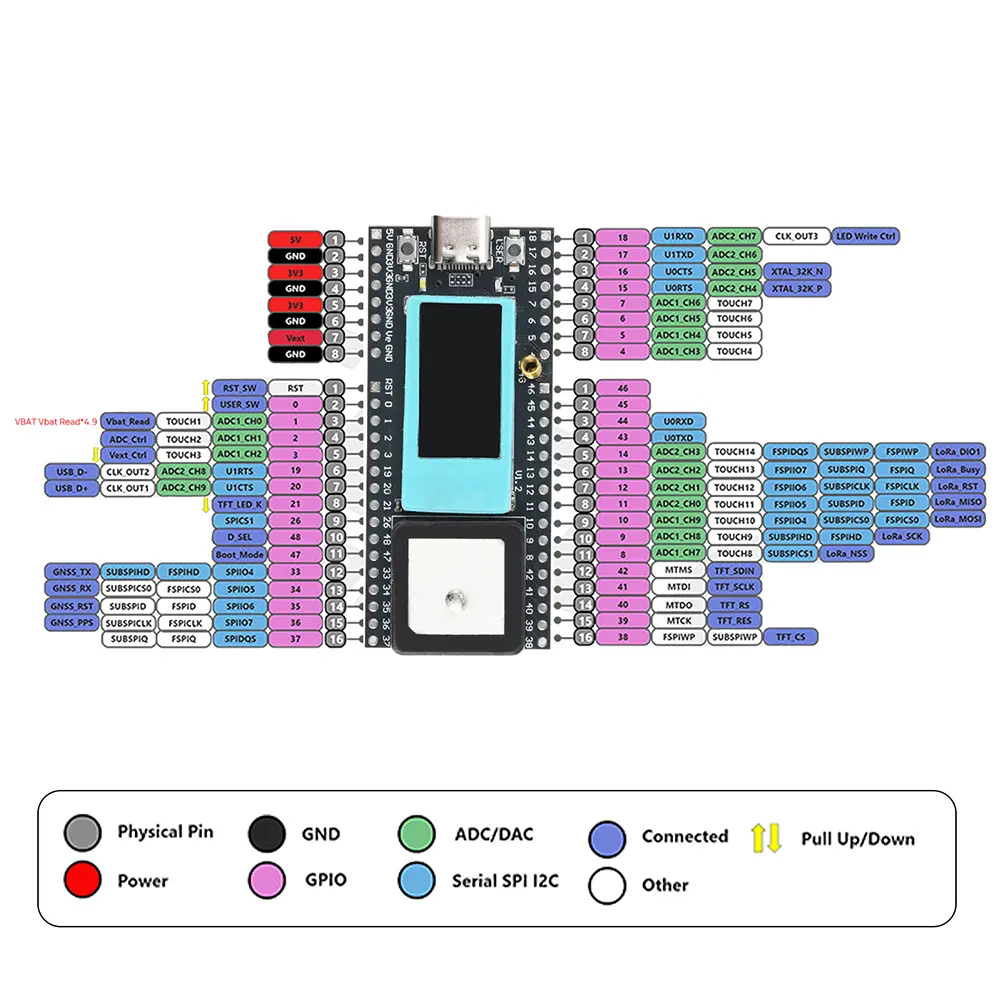

<p>Parameter:<br />Product Name: LoRa Wireless Tracker Kit <br />Main Chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 Dual-Core Processor) <br />LoRa Chipset: Model SX1262 <br />GNSS Chipset: Model UC6580 <br />Frequency: 470-510 MHz, 863-928 MHz <br />Maximum TX Power: 21±1 dBm <br />Max. Receive Sensitivity: -134 dBm <br />Wi-Fi WLAN: 802.11 b/g/n up to 150Mbps <br />Bluetooth LE: Bluetooth 5, Bluetooth mesh <br />Battery: 3.7V Li-Ion powered and rechargeable <br />Operating Temperature: -20 ~ 70 °C <br />Hardware Resource: 7*ADC1 + 2*ADC2, 7*Touch, 3*Serial 2*I2C, 2 SPI <br />Interfaces: Type-C USB, 2*1.25 Li-Ion Battery Interface, LoRa Series ANT (IPEX1.0), 2*18*2.54 Header Pins</p>

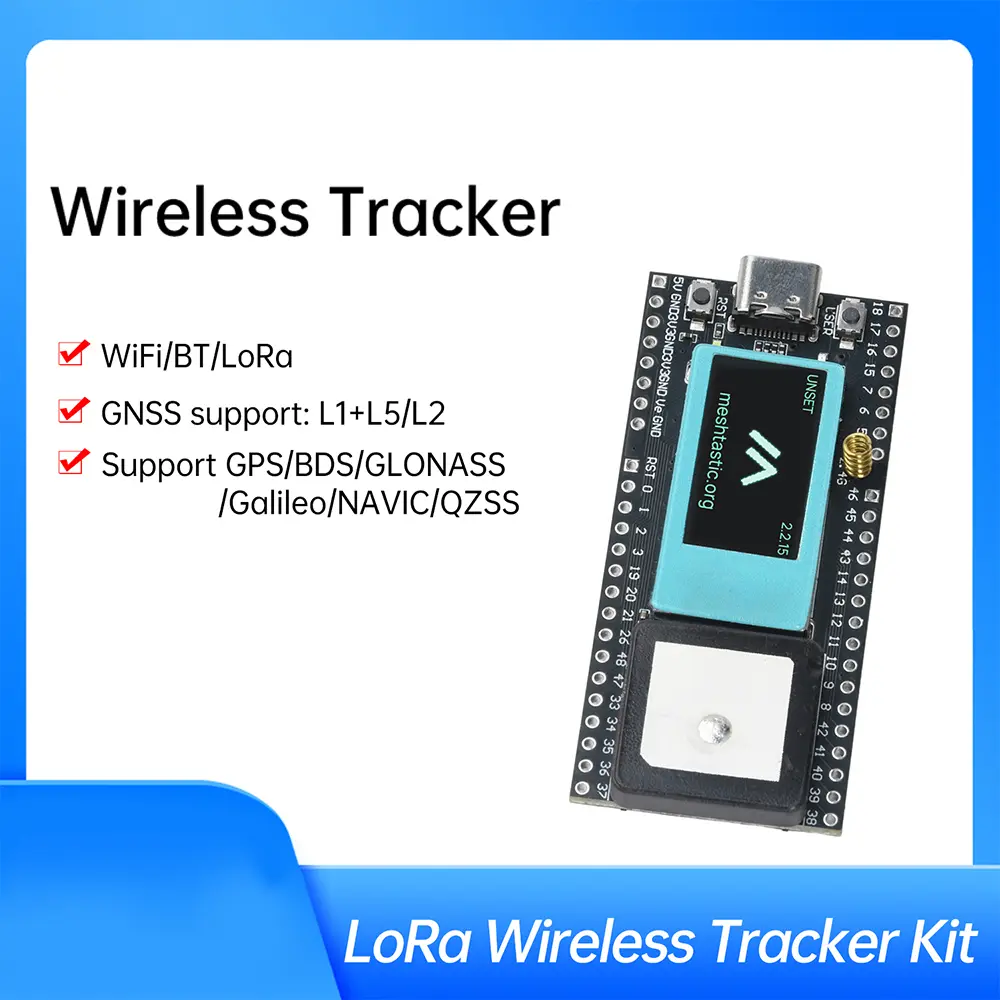

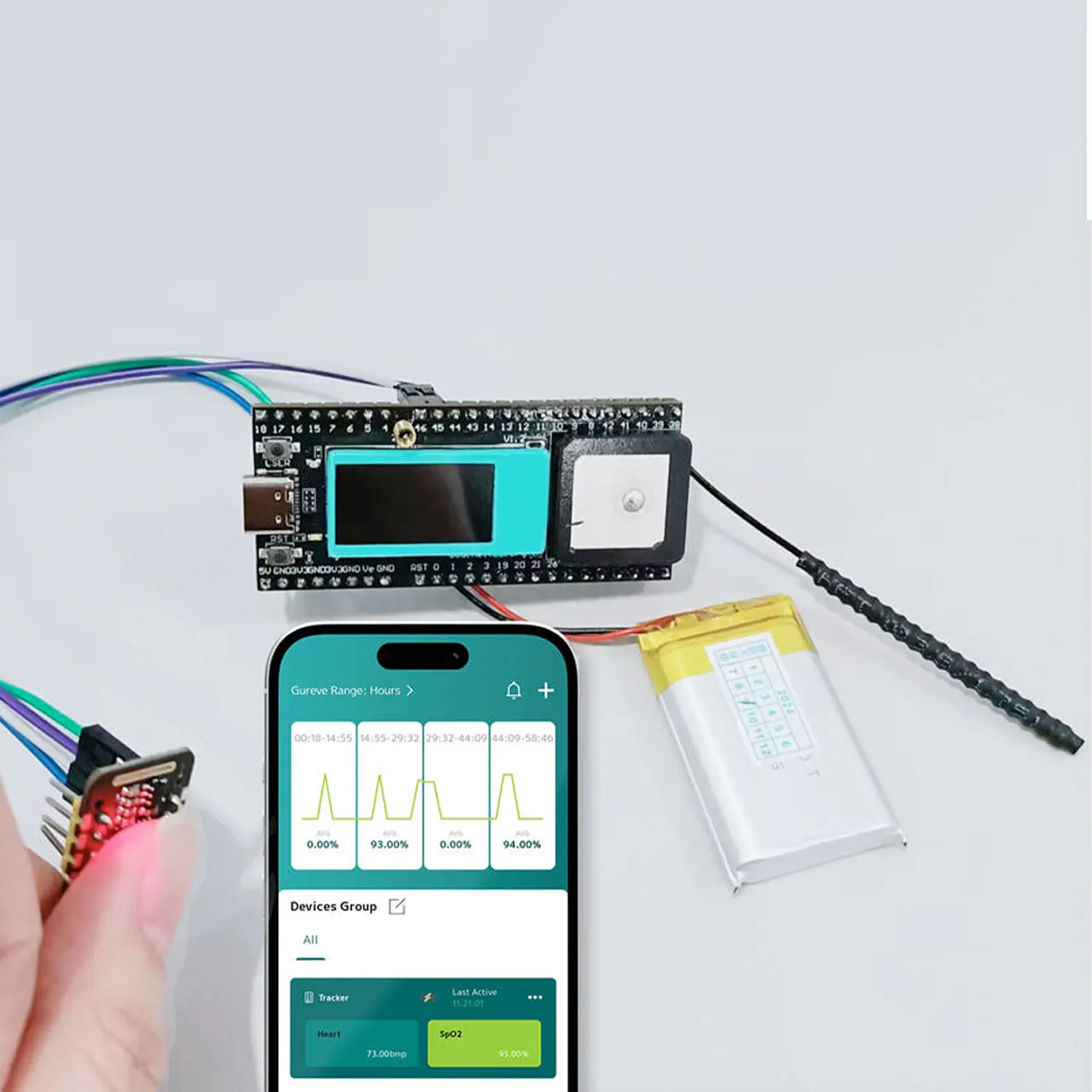

<p>Description: <br />Wireless Tracker is an ESP32-S3FN8 based development kit. It integrates a 0.96-inch 160*80 LCD display, SX1262 and UC6580 to provide a fast GNSS solution for IoT. It can track any object and then upload that data wirelessly via Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick. <br />Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS multi-system joint positioning. It can be widely used for bike sharing service, tracking pets or livestock, locating vehicles, tracking children and other development.</p>
<p>Package include:<br />Development Board x1 <br />Antenna x1 <br />Adapter Cable x2 <br />Pin x4<br /><br /></p></div></div>
$80.93
$47.78
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. ESP32-S3FN8+SX1262+UC6580 chipset, support Wi-Fi, LoRa, Bluetooth, GNSS<br />2. Dual-frequency multi-system low-power design based on 22nm technology to achieve both high performance and energy-saving positioning function<br />3. Support L1+ L5/L2, support GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning<br />4. Type C USB interface with complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protective measures<br />5. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, USB/battery power automatic switching)<br />6. On-board Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use<br />7. 0.96-inch 160*80 dot matrix TFT-LCD display on board, can be used to display debugging information, battery level and other information</p>
<p>Parameter:<br />Product Name: LoRa Wireless Tracker Kit <br />Main Chip: ESP32-S3FN8 (Xtensa® 32-bit lx7 Dual-Core Processor) <br />LoRa Chipset: Model SX1262 <br />GNSS Chipset: Model UC6580 <br />Frequency: 470-510 MHz, 863-928 MHz <br />Maximum TX Power: 21±1 dBm <br />Max. Receive Sensitivity: -134 dBm <br />Wi-Fi WLAN: 802.11 b/g/n up to 150Mbps <br />Bluetooth LE: Bluetooth 5, Bluetooth mesh <br />Battery: 3.7V Li-Ion powered and rechargeable <br />Operating Temperature: -20 ~ 70 °C <br />Hardware Resource: 7*ADC1 + 2*ADC2, 7*Touch, 3*Serial 2*I2C, 2 SPI <br />Interfaces: Type-C USB, 2*1.25 Li-Ion Battery Interface, LoRa Series ANT (IPEX1.0), 2*18*2.54 Header Pins</p>
<p>Description: <br />Wireless Tracker is an ESP32-S3FN8 based development kit. It integrates a 0.96-inch 160*80 LCD display, SX1262 and UC6580 to provide a fast GNSS solution for IoT. It can track any object and then upload that data wirelessly via Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick. <br />Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS multi-system joint positioning. It can be widely used for bike sharing service, tracking pets or livestock, locating vehicles, tracking children and other development.</p>
<p>Package include:<br />Development Board x1 <br />Antenna x1 <br />Adapter Cable x2 <br />Pin x4<br /><br /></p></div></div>
