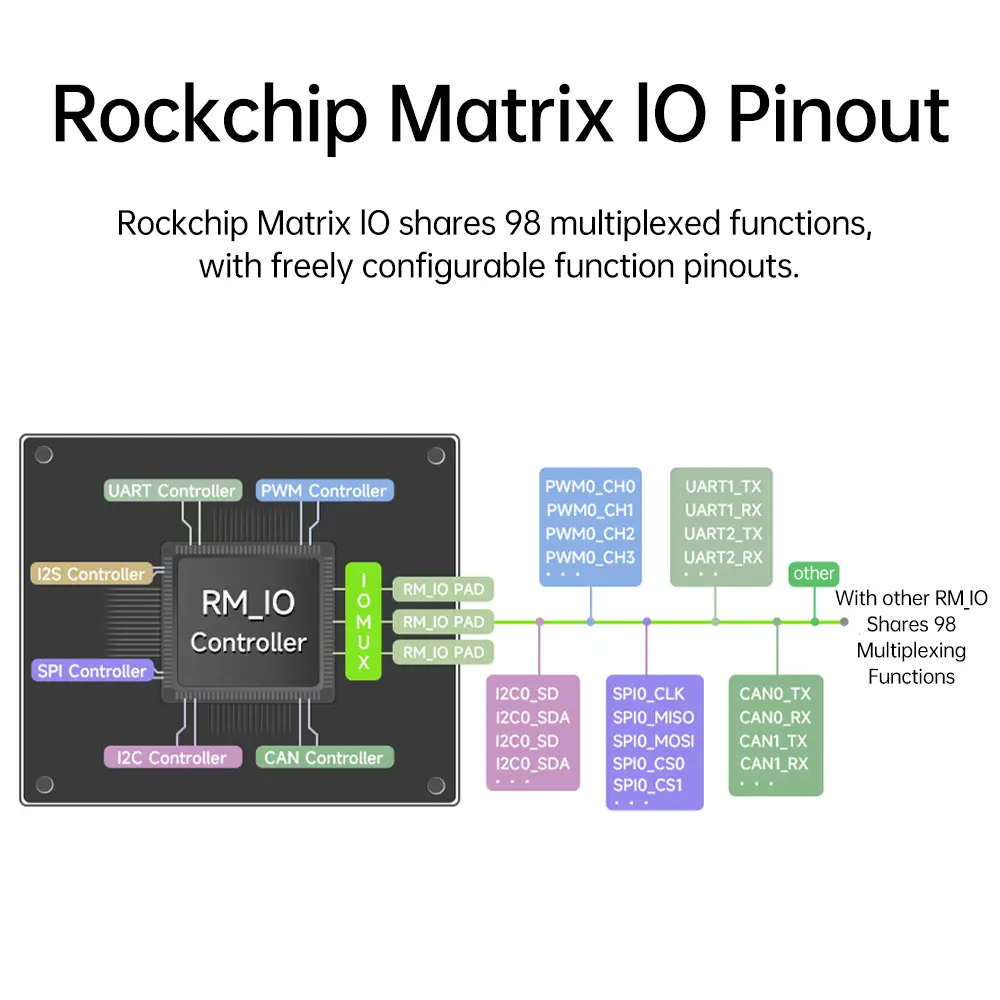

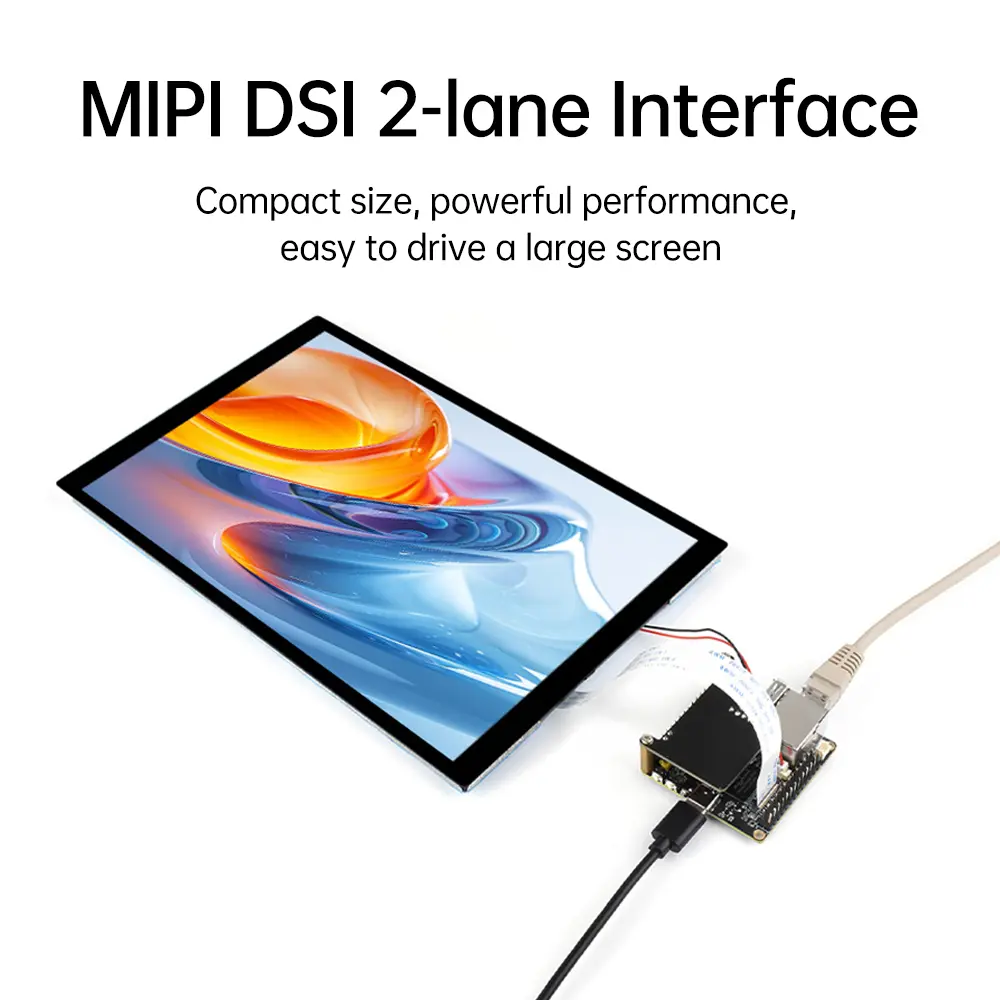

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Three core ARM Cortex-A7 32-bit core, integrated with VFP, supporting single precision and double precision floating-point operations <br/>2. Built in ARM Cortex-M0 MCU design, supporting SMP and AMP configurations <br/>3. Supports DDR2/DDR3/DDR3L memory interface expansion to meet various expansion needs <br/>4. The low-speed interface adopts Rockchip Matrix IO design from Rockchip Micro, which allows rich multiplexing functions to share limited chip pins and makes peripheral circuit adaptation more flexible <br/>5. Built in audio and video codec, supporting multiple audio inputs and outputs, providing high-quality audio playback and recording functions <br/>6. Development is simpler, integrating DSI interface, USB-A interface, Ethernet port, speaker interface, etc</p><p>Product Introduction: <br/>The LuckfoxLyraUitra series is a miniature Linux development board based on the Rockchip RK3506B chip, designed to provide developers with a simple and efficient development platform. This product supports multiple high-speed interfaces, including MIPIDSI, RMII, DDR, and USB, which can meet various application scenarios. The low-speed interface adopts RockchipMatrix1O design, which enables the pins supporting this design to share 98 multiplexing functions, and can freely combine PWM, UART, I2C, SPI, I2S, etc., making it easy to develop and debug quickly.</p><p>Parameter: <br/>Specifications: Luckfox Lyra Ultra 、Luckfox Lyra Ultra W <br/>Processor: Three core Arm Cortex-A7 (1.2GHz)+Arm Cortex-M0 <br/>Memory: onboard 512MB DDR3L <br/>USB： <br/>Luckfox Lyra Ultra：USB OTG2.0 × 2 <br/>Luckfox Lyra Ultra W： Native USB OTG2.0 × 1, HUB extended USB HOST2.0 × 2 <br/>Screen interface: MIPI DSI 2-lane <br/>GPIO： 29 Rockchip Matrix IO pins+4 GPIO pins <br/>Network port: 10/100M Ethernet port <br/>Storage medium: 8GB eMMC <br/>Wireless communication: <br/>Luckfox Lyra Ultra： not have <br/>Luckfox Lyra Ultra W： Onboard 2.4GHz Wi Fi 6/Bluetooth 5.2/BLE <br/>Package Include: <br/>Set 1: <br/>Luckfox Lyra Ultra Development Board x 1 <br/>USB cable Type-A male port to Type-C male port approximately 1 meter x 1</p><p>Set 2: <br/>Luckfox Lyra Ultra W Development Board x 1 <br/>USB cable Type-A male port to Type-C male port approximately 1 meter x 1 <br/>IPX 2.4G 2DB antenna x 1</p><p>Set 3: <br/>Luckfox Lyra Ultra × 1 <br/>Luckfox PoE module x 1 <br/>USB cable Type-A male port to Type-C male port approximately 1 meter x 1 <br/>Screw package x 1</p><p>Set 4: <br/>Luckfox Lyra Ultra W × 1 <br/>Luckfox PoE module x 1 <br/>Screw package x 1 <br/>USB cable Type-A male port to Type-C male port approximately 1 meter x 1 <br/>IPX 2.4G 2DB antenna x 1<br/><br/></p></div></div><p><br/></p>
