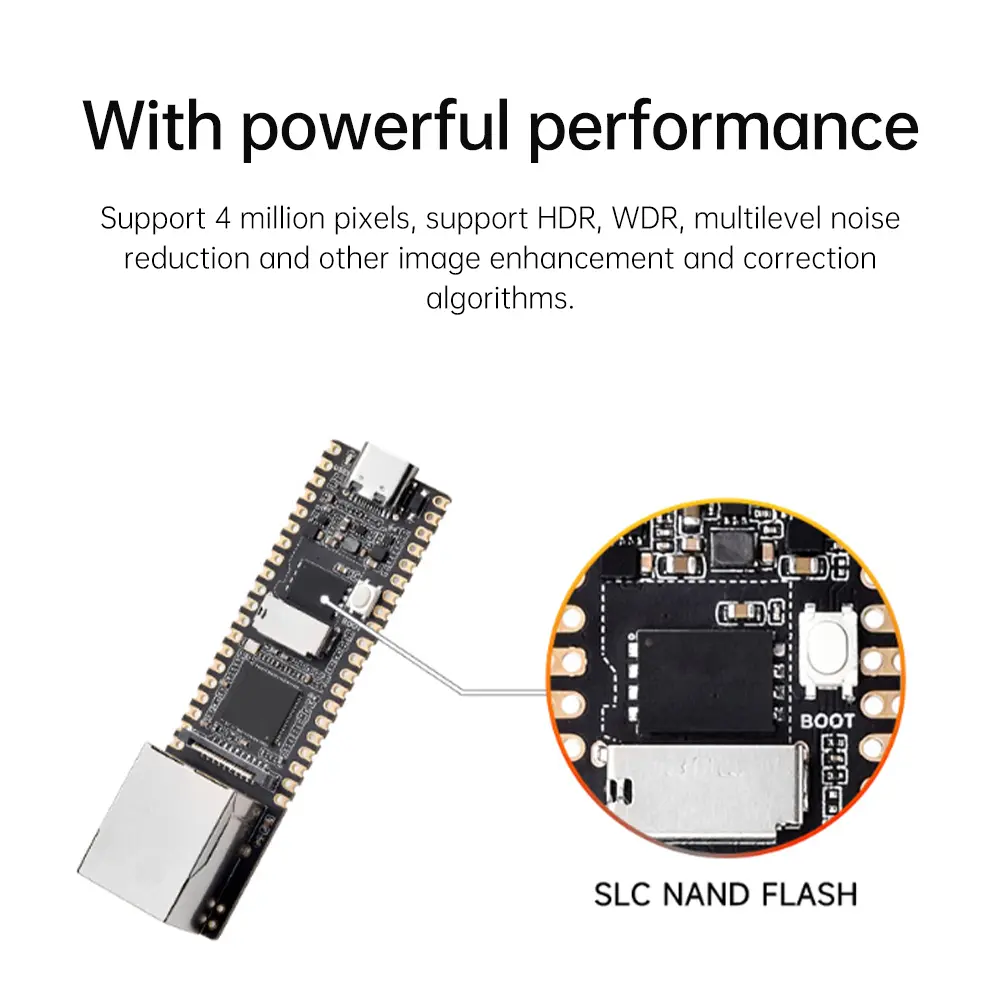

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Single core ARM Cortex-A732 bit core, integrated with NEON and FPU. <br/>2. Equipped with Ruixin Micro&#x27;s self-developed 4th generation NPU, it has high computational accuracy and supports mixed quantization of int4, in8, and int16. Among them, int8 has a computing power of 0.5 TOPS and int4 has a computing power of up to 1.0 TOPS. <br/>3. Built in self-developed 3rd generation ISP3.2, supports 4 million pixels, and supports various image enhancement and correction algorithms such as HDR, WDR, and multi-level denoising. <br/>4. It has strong encoding performance, supports intelligent encoding, adapts to save bit rates according to the scene, and saves more than 50% of the bit rate compared to conventional CBR mode, making the captured images high-definition, smaller in size, and doubling the storage space. <br/>5. The design with built-in RISC-V MCU supports low-power fast startup, 250ms fast capture, and simultaneous loading of AI model library, enabling facial recognition to be completed within 1 second. <br/>6. The built-in 16 bit DRAM DDR2 can maintain demanding memory bandwidth requirements. <br/>7. Integrated with built-in POR, audio codec, and MAC PHY.</p><p>Product Introduction: <br/>LuckFox Pico is a cost-effective mini Linux development board based on the Rockchip RV1103 chip, designed to provide developers with a simple and efficient development platform; Supports multiple interfaces, including MIPI CSI, GPIO, UART, SPI, I2C, USB, etc., for quick development and debugging. RV1103 is a highly integrated IPC visual processor SoC specifically designed for artificial intelligence related applications. <br/>It is based on a single core ARM Cortex-A7 32-bit core, integrating NEON and FPU, and has built-in NPU support for INT4/INT8/INT16 hybrid computing, with a computing power of up to 0.5 TOPs. In addition, it adopts a brand new hardware based ISP that supports multiple algorithm accelerators such as HDR, 3A LSC、3DNR、2DNR、 Sharpening, defogging, gamma correction, etc. At the same time, it also has built-in 16 bit DRAM DDR2, which can maintain demanding memory bandwidth, as well as built-in POR, audio codec, and MAC PHY, suitable for various artificial intelligence application scenarios. The development board supports multiple interfaces, including GPIO, UART, SPI, I2C, USB, etc., making it convenient for developers to quickly develop and debug. It is worth noting that the entire Luckfox Pico development board series supports both buildroot and Ubuntu 22.04 systems, allowing developers to choose the appropriate system based on project requirements and more flexibly meet specific application requirements.</p><p>Parameter:<br/>Chip: RV1103 <br/>Processor: Cortex A7 1.2GHz <br/>NPU： 0.5TOPS, Supports int4, in8, and int16 <br/>ISP: Maximum input 4M @ 30fps <br/>Memory: 64MB DDR2 <br/>Wi Fi+Bluetooth: None <br/>Camera interface: MIPI CSI 2-lane <br/>USB：USB 2.0 Host/Device <br/>GPIO: 25 GPIO pins <br/>Network port: 10/100M Ethernet controller and embedded PHY <br/>Default storage medium: SPI NAND FLASH (128MB) <br/>Size: 72mm * 21mm</p><p>Package include: <br/>1X development board<br/><br/></p></div></div><p><br/></p>
