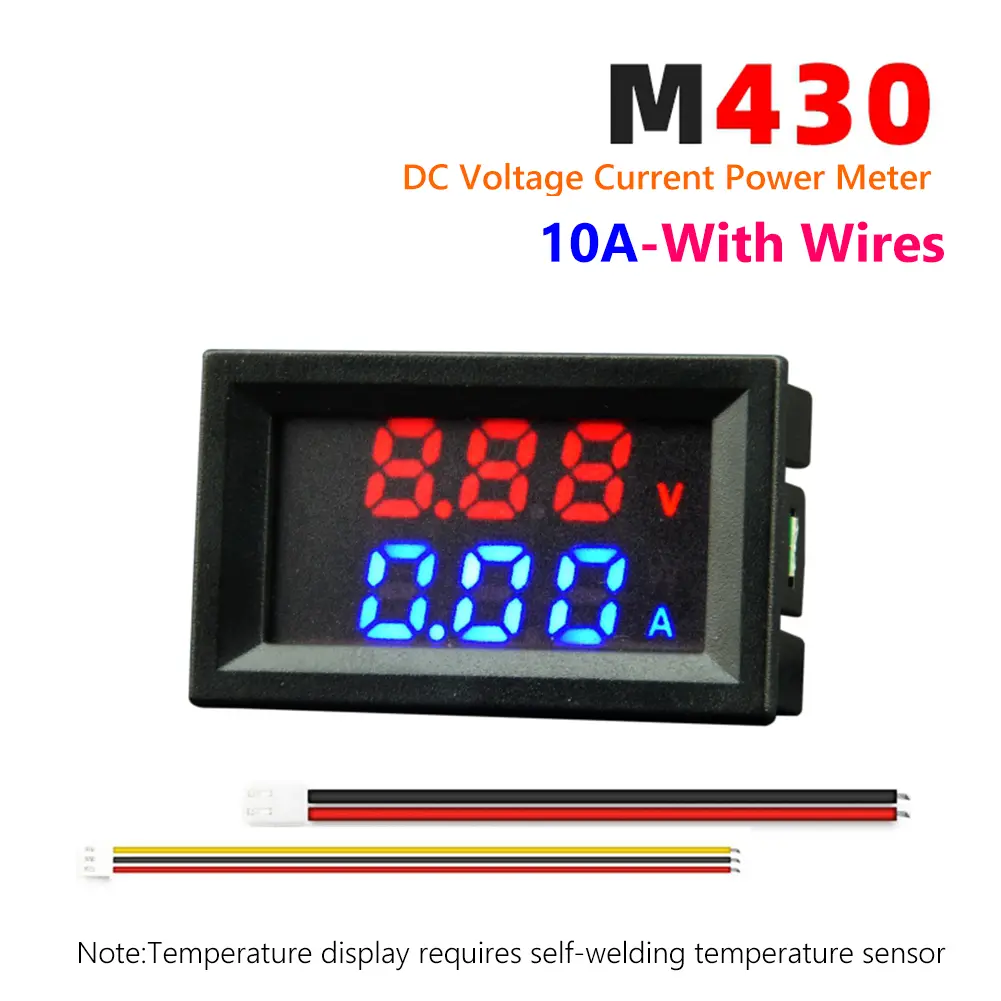

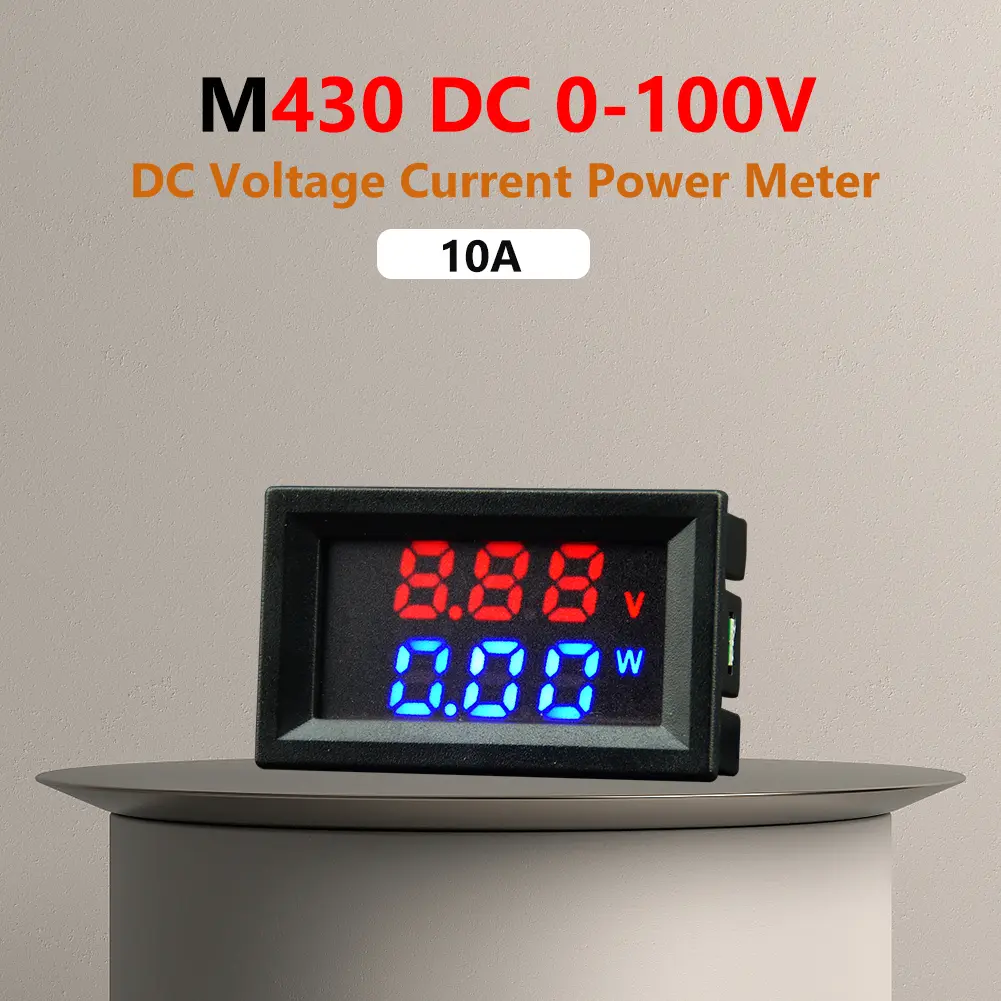

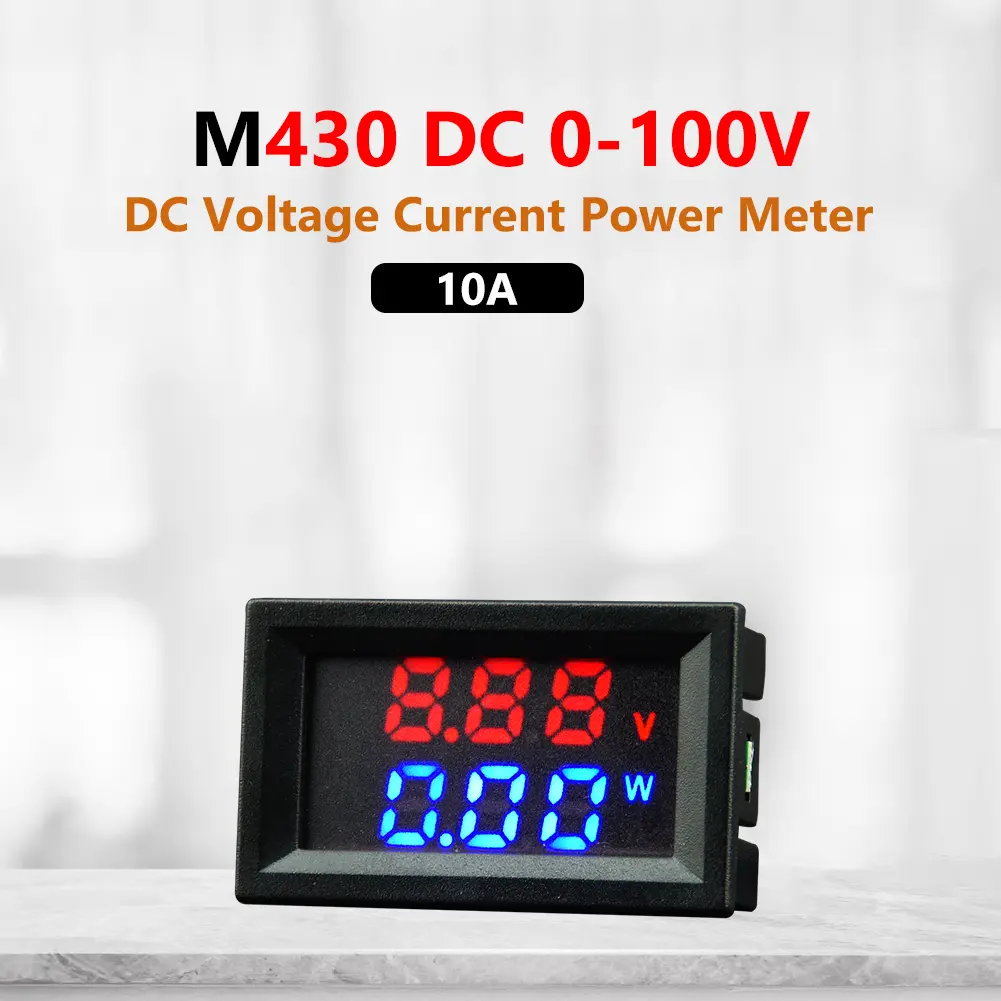

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><span id="__kindeditor_bookmark_start_65__"></span> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"><br /> </span> </p> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"><br /> </span> </p> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"></span> </p> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"><br /> </span> </p> <br /> <div style="padding:15px;border:1px solid #AEAEAE;"> 10A/50A/100A Amp Volt Gauge Dual LED Display Digital Volt Meter High Precision Amp Volt Tester Multifunctional Measurement Tools<br /> <strong>Feature:</strong><br /> <strong>1: Three color display:</strong> Red blue, red green, blue green<br /> <strong>2: Multiple voltage specifications are optional: </strong>10A, 50A, 100A<br /> <strong>3: Function:</strong> Cost-effective, cost-saving<br /> <strong>4: Easy to use:</strong> Simple to use, easy to operate. Small appearance, easy to carry<br /> <strong>5: Shell material: </strong>Made of high quality and ABS, the size is about 47.63*28.66*23.74mm<br /><br/><br/><strong>Specification:</strong><br /> Certification: CE<br /> Origin: Mainland China<br /> DIY Supplies: ELECTRICAL<br /> Display Type: Digital Only<br /> Model Number: Digital Voltmeter<br /> Measuring range:<br /> 10A: The voltage measurement range is 0-100V, the display mode below 10V is 0.00V, the voltage starts at 0.2V, the error range is ±1V, the current measurement range is 0-10A, the current starts at 0.03A, and the error is ±0.1A<br /> DC0.20V-9.99-10.0-100V (±1M)<br /> DC0.03A~9.99A (±0.1)<br /> 50A: The voltage measurement range is 0-100V, the display mode below 10V is 0.00V, the voltage starts at 0.2V, the error range is ±1V, the current measurement range is 0-50A, the current starts at 0-03A, and the error is ±0.5A<br /> DC0.20V-9.99-10.0-10OV (±1V)<br /> DC0.03A-9.99-50.0A (±0.5A)<br /> 100A: The voltage measurement range is 0-100V, the display mode below 10V is 0.00V, the voltage starts from 0.20V, the error range is ±1V, the current measurement range is 0-100A, the current starts from 0.03A, and the error is ±1A<br /> DC0.20V-9.99-10.0-100V (±1V)<br /> DC0.03A-9.99-100A (±1A)<br /> Shell material: ABS<br /> Size: About 47.63x28.66x23.74mm/1.88x1.13x0.93in<br /> Display color: Red Blue, Red Green, Blue Green<br /> Current: 10A, 50A, 100A<br /> <br /> Describe:<br /> The M430 is a voltage, current and power measuring instrument. It can only measure and display the voltage, current and power of the circuit under test. The displayed value can be fine-tuned with an adjustable resistor. The actual voltage and current of the loop has no effect.<br /> Do not use high voltage above 30V when using, otherwise it will cause overvoltage damage to the product.<br /> 10A series products have shunt resistors, and the test terminal for DC measurement will be short-circuited. As long as the instrument is connected in series with the load according to the wiring diagram, it can be used normally.<br /> The 50A/100A series products require an external shunt to function properly. When the shunt is connected, the test terminals are shorted and the current is measured directly. As long as the instrument is connected in series with the load according to the wiring diagram, it can be used normally.<br /> According to different current ranges, it is divided into 10A, 50A, 100A.<br /> Operating Voltage:<br /> The working voltage of the instrument is DC 4-30V, and 5-12V is recommended.<br /> The thin red wire is the positive pole of the working power supply, and the thin black wire is the negative pole of the working power supply, which belongs to the common ground with the thick black wire;<br /> When in use, the limit voltage connected to the red and black thin wires cannot exceed 30V, it is recommended to use a 12V power supply<br /> <br /> <strong>Note:</strong><br /> Temperature display requires self-soldering temperature sensor.<br /> The 50A/100A must be connected to an external shunt for use.<br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement.<br />&nbsp;<br /> </div> <br /> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> 1 X Voltmeter<br /> 2 X Power Load Cords&nbsp;<br /> </div> <br /> <div style="text-align:center;"> <br /> </div> <p> <br /> </p> <p> </p> <p> </p> <p> </p> </td> </tr> </tbody> </table></div></div>
