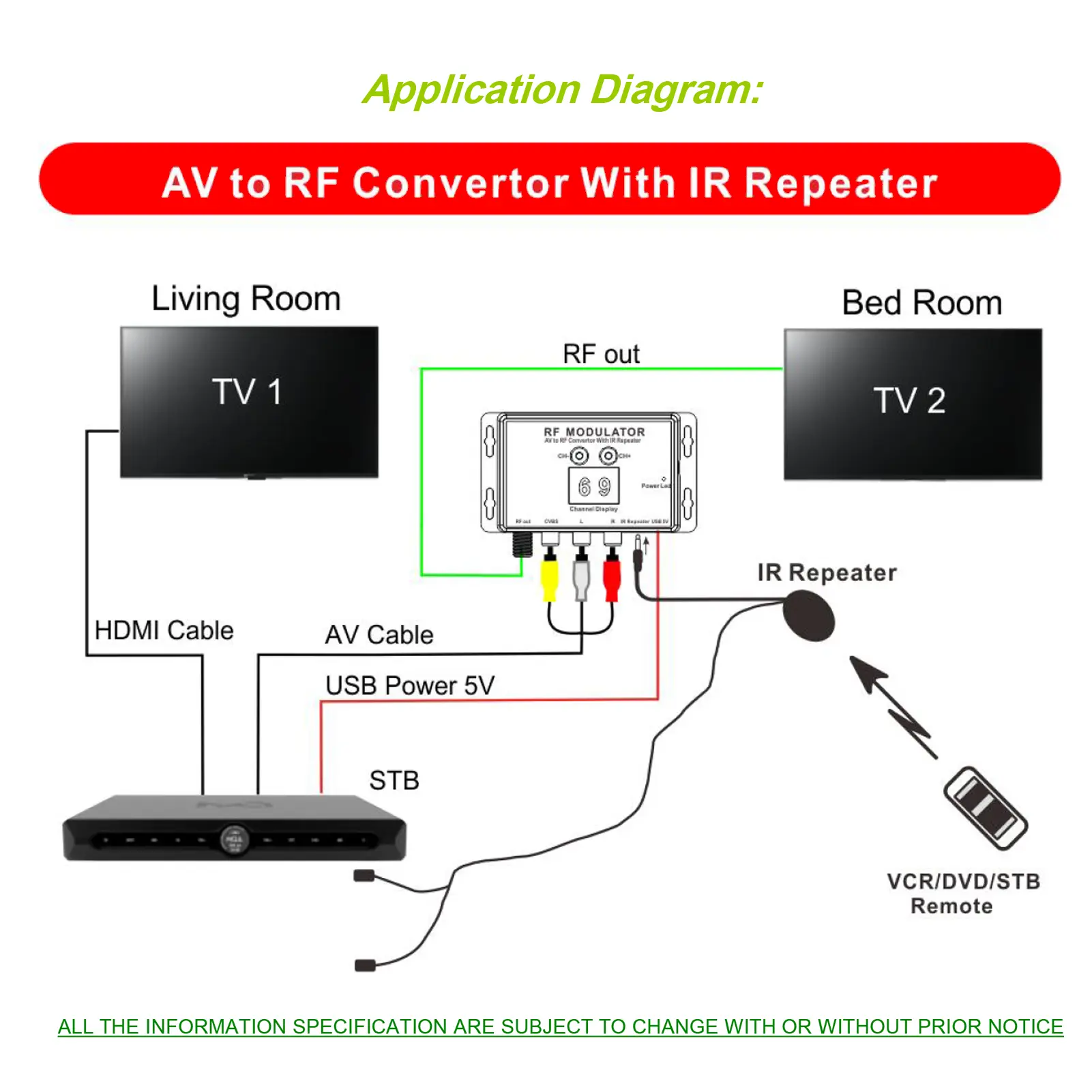

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><kse:widget data-widget-type="customText" id="34952974" type="custom"></kse:widget></p><div style="font-family:Arial, Helvetica, sans-serif;font-size:12px;line-height:150%"><p style="margin-bottom:6px;margin-top:6px"></p><p>To modulate Audio/Video/signal to RF signal over coaxial. With this product, user in the room can share and remote control their Digital Set Top Box, DVR, DVD. AV Receiver which are placed in the living room. This is made possible by converting the A/V Signal from the A/V equipment to RF signal and send to various rooms over RF circuits.<br/> <br/> <strong>Features:</strong><br/> Using existing RF circuit in general homes.<br/> Sharing of STB, DVD with a few rooms.<br/> Flexibility in setting TV format such as PAL/NTSC and Sound IF to accommodate users from all part of the world.<br/> With the wide frequency range of 471.25MHz-885.25MHz, selectable transmitting frequency and correspondence frequency display and in built memory will minimize and avoid interference.<br/> The use of broadcast standard PCB circuit designed enhanced stability and better picture quality further.<br/> External setting for NTSC/PAL B/G,I,D/K,L.M/N TV formats for global use.<br/> Compatible with set top boxes and other A/V sources.<br/> UHF modulator - PAL/NTSC selectable.<br/> Output channel selectable.<br/> IR Repeater operates in the 34kHz-60kHz range.<br/> <br/> <strong>Specifications:</strong><br/> RF Frequency Range: 471.25MHz-885.25MHz<br/> Channel Range: PAL: 21-69; NTSC: 14-83<br/> Default Factory Setting: Channel 21 (471.25MHz).PAL<br/> RF Output Impedance: 75Ω unbalanced<br/> Video Input Impedance: 75Ω<br/> TV Format: PAL/NTSC<br/> Sound Carrier Frequency: 4.5 / 5.5 / 6.0 / 6.5MHz<br/> IR Remote Control Frequency: 34-60KHz<br/> Remote Distance: ≥7m<br/> Power: USB 5VDC<br/> Power Consumption: ≤1W<br/> Material: ABS<br/> Item Size: 104 * 68 * 24mm / 4.09 * 2.68 * 0.94in<br/> Item Weight: 98g / 3.46oz<br/> Package Weight: 142g / 5.01oz<br/> Package Size: 13.2 * 10.5 * 3.2cm / 5.20 * 4.13 * 1.26in<br/> <br/> <strong>Package List:</strong><br/> 1 * RF Modulator<br/> 1 * USB Cable<br/> 1 * IR Repeater<br/> 1 * Manual (English)</p><p style="margin-bottom:6px;margin-top:6px"></p><p><br/> <br/> <br/> <br/> <br/> <br/></p><div style="margin-top:6px"></div><p style="font-family:arial, helvetica;font-size:12px;text-align:left" align="left"></p><p style="margin-bottom:6px;margin-top:6px"></p><p style="font-family:arial, helvetica;font-size:12px;text-align:left;margin-bottom:6px" align="left"></p><div><br/></div><p style="font-family:arial, helvetica;font-size:12px;text-align:left;margin-bottom:6px" align="left"></p><p style="font-family:arial, helvetica;font-size:12px;text-align:left;margin-bottom:6px" align="left"></p><p style="font-family:arial, helvetica;font-size:12px;text-align:left;margin-bottom:6px" align="left"></p><p style="margin-top:6px"></p><div><br/></div><p style="font-family:arial, helvetica;font-size:12px;line-height:16px;border:0px;margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px;padding:0px;padding-bottom:0px;padding-top:0px;padding-left:0px;padding-right:0px"></p><div><br/></div><p style="margin-top:6px"></p></div><p><kse:widget data-widget-type="customText" id="1005000000938503" type="relation"></kse:widget></p></div></div><br/>
