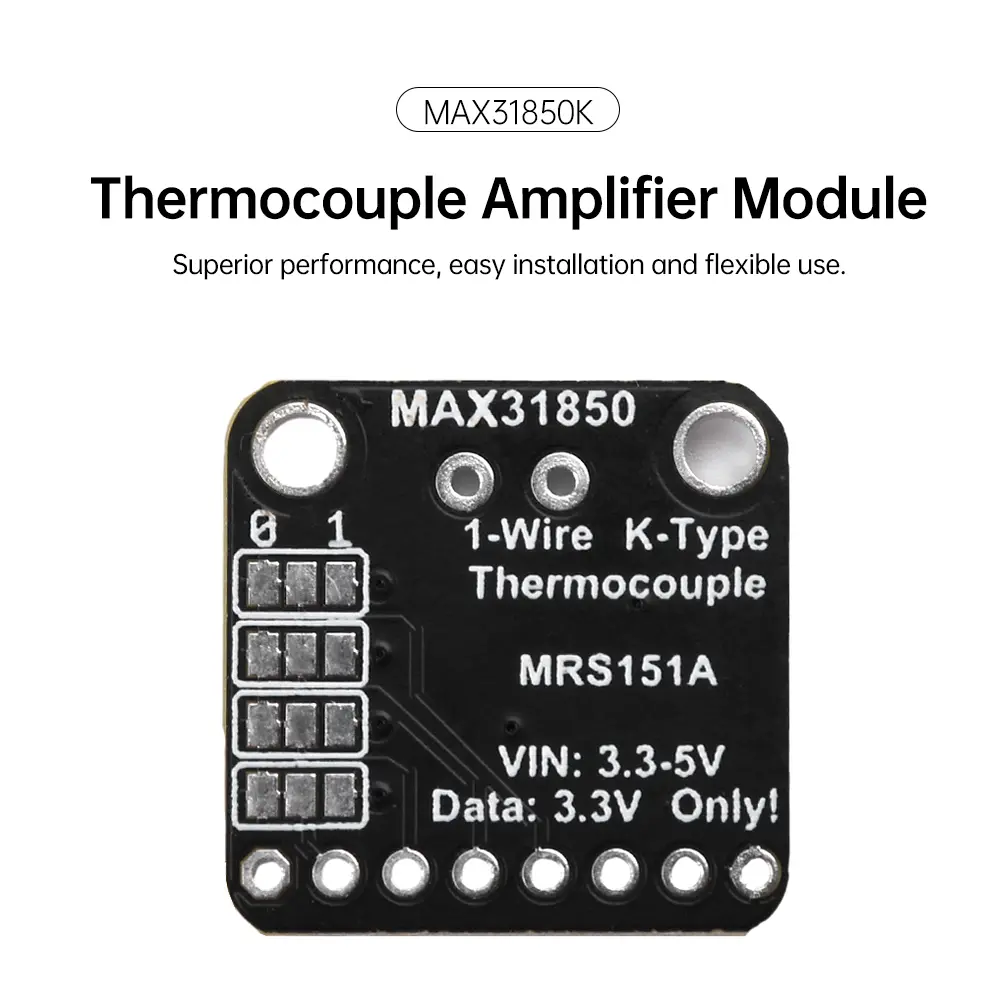

MAX31850 K Type Thermocouple Breakout Board Temperature Sensor Measurement Module MAX31850K 1-Wire Thermocouple Amplifier
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004082431" title="" type="relation"></kse:widget></div>

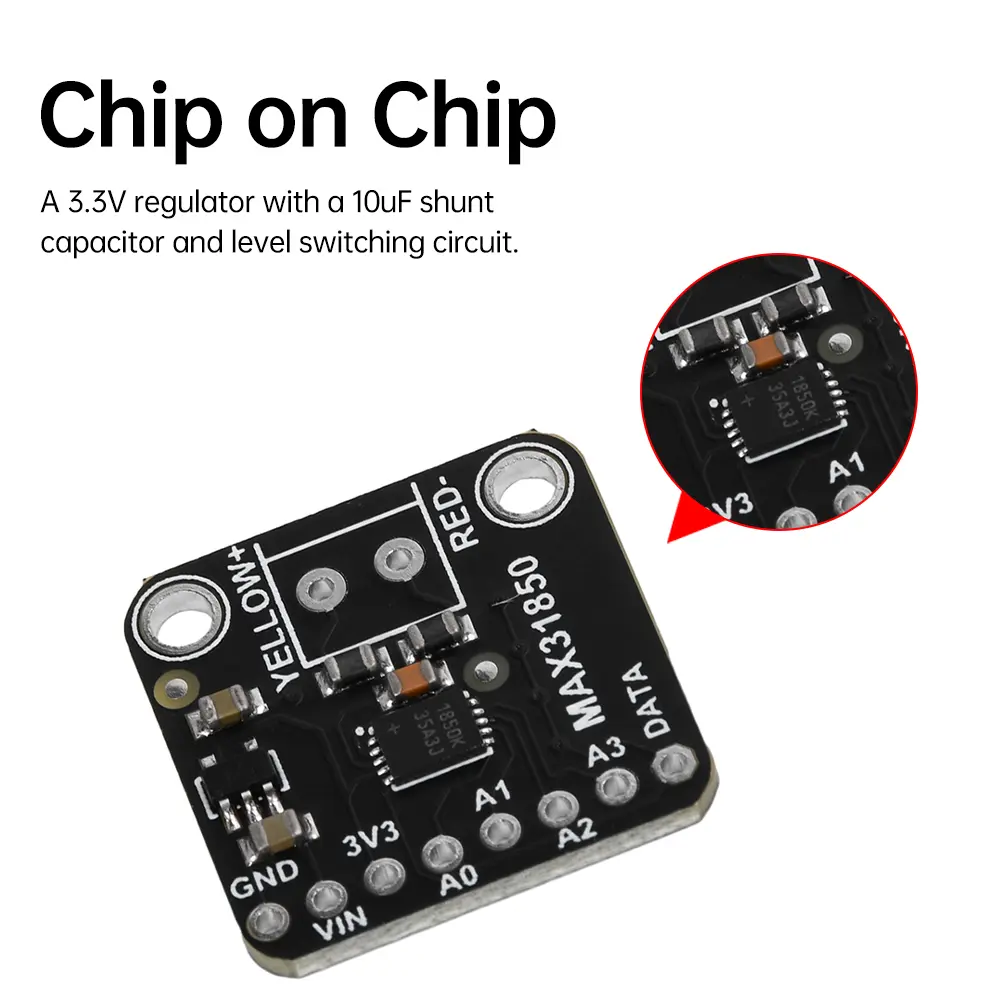

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />This is a thermocouple amplifier with a temperature accuracy of up to 0.25 ℃ and superior performance. <br />2. Comes with a built-in chip, a 3.3V regulator, a 10uF parallel capacitor, and a level switch circuit, all of which have been assembled and tested. <br />3. This clause applies to any K-type thermocouple, but does not apply to any other type of thermocouple other than K-type. <br />The 4.1-Wire interface allows for the connection of any number of thermocouple amplifiers on a single data line. <br />5. MAX31850K is easy to install and flexible to use, and can meet the data collection requirements of most industrial sites.</p>

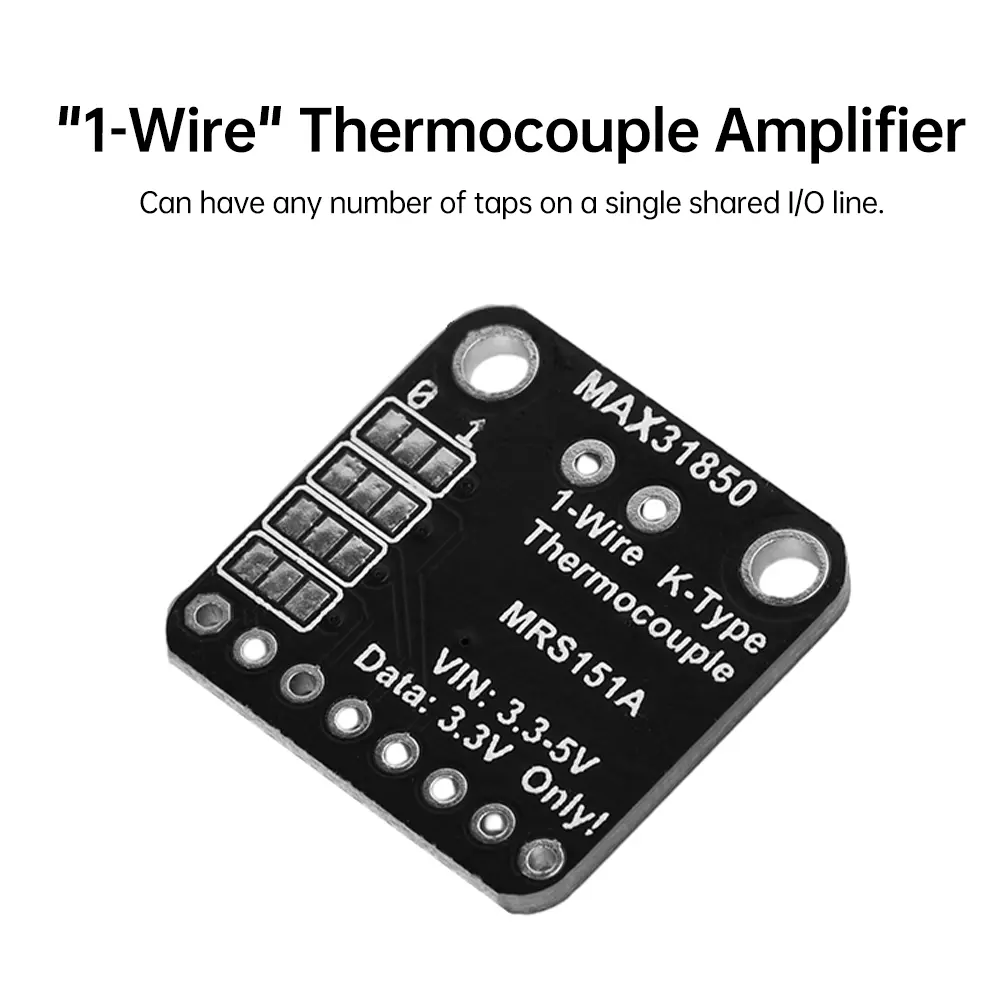

<p>Describe：<br />Thermocouples are highly sensitive and require a good amplifier with a cold compensation reference. So far, we have launched a very good MAX31855, which is an SPI interface thermocouple amplifier. <br />It is a "1-Wire" thermocouple amplifier that can have any number of branch lines on a single shared I/O line. <br />The MAX31850K can handle all your tasks and easily connect to any microcontroller that supports 1-Wire. This distribution board has a built-in chip, a 3.3V regulator, a 10uF parallel capacitor, and a level switch circuit, all of which have been assembled and tested.</p>
<p>Parameter: <br />Voltage: DC3.3 to 5V power supply. The data cable is only about 3.3V (please check the data sheet for the exact voltage capability of the data cable, but it cannot support 5V) <br />Measurement temperature range: -270 ° C to+1370 ° C output, with increments of 0.25 degrees <br />Size (excluding joints): 20mm x 20mm <br />Please note that: <br />The board has no level conversion on the 3V data line - we intentionally did this so that it can be used in parasitic mode. The data cable must be level converted to 3V - our 4-channel converter is perfect for 1-Wire level conversion, and you only need to use one on the "1-Wire host" to share all thermocouples on the data cable. <br />The MAX31850K data format is very similar to the well-known 1-Wire DS18B20 temperature sensor data format, but without changing the code to check for the new "1 Wire series" type, compatibility will not be compromised. We have made adjustments to the classic library to make it compatible with MAX31850.</p>

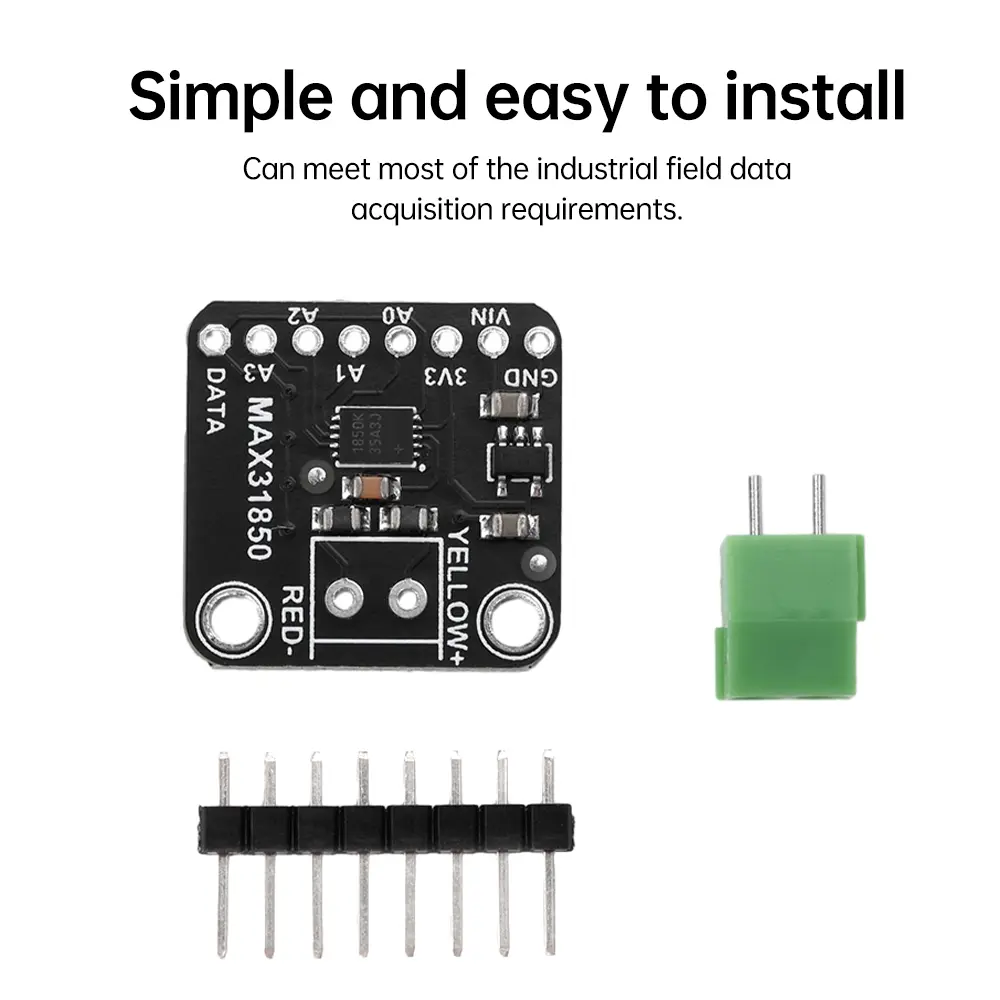

<p>Package include: <br />1X module <br />1X terminal <br />1X Pin Headers<br /></p></div></div>
$39.53
$18.89
