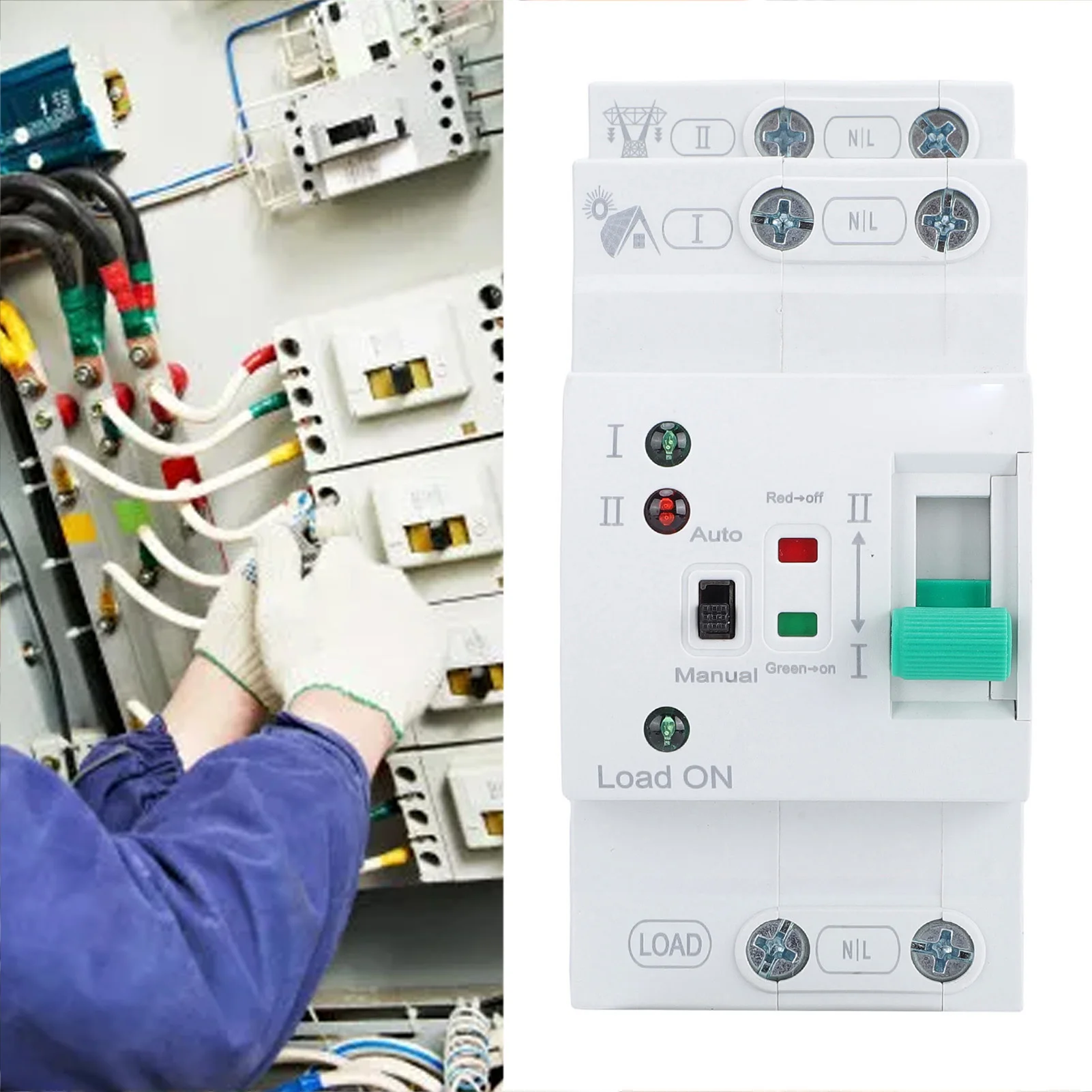

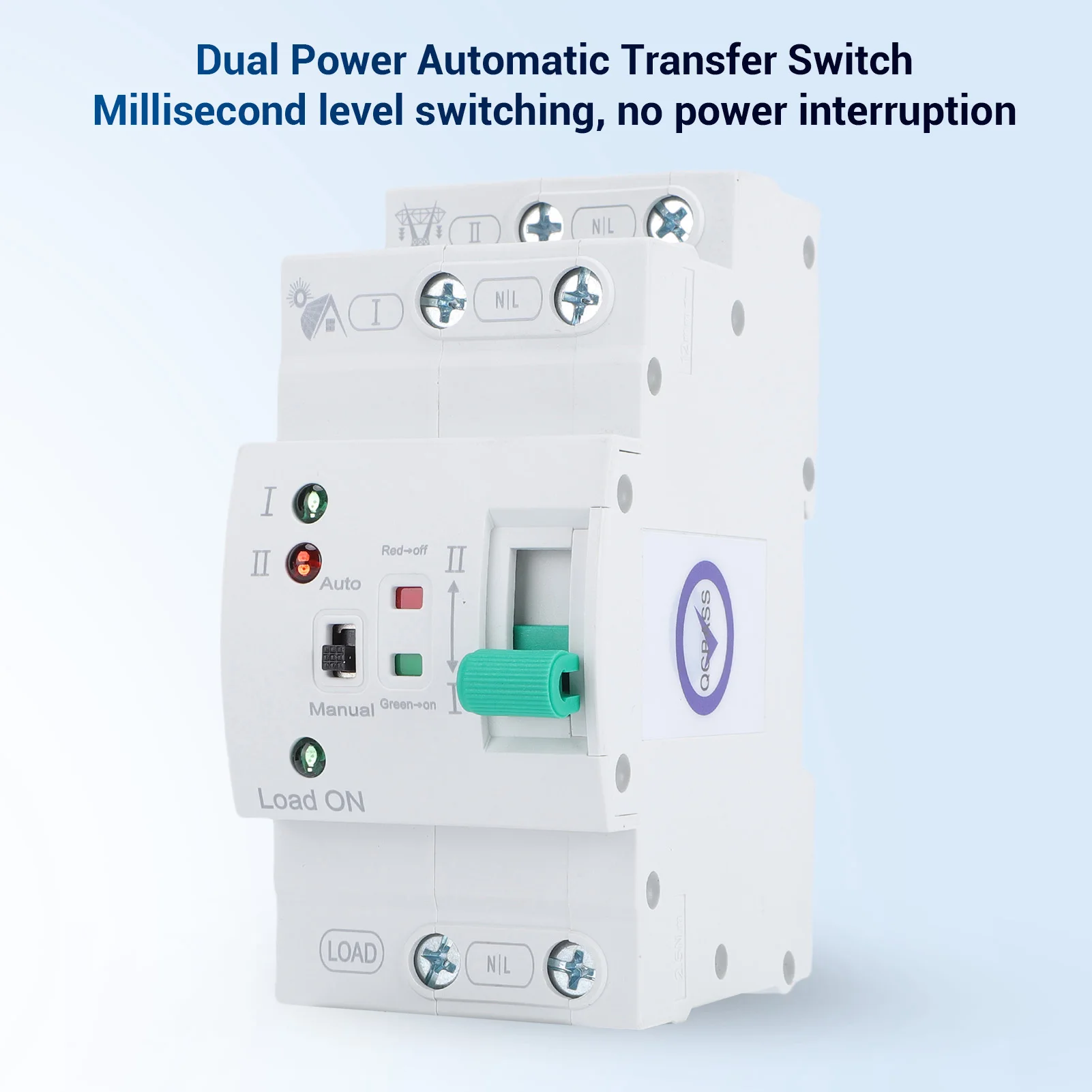

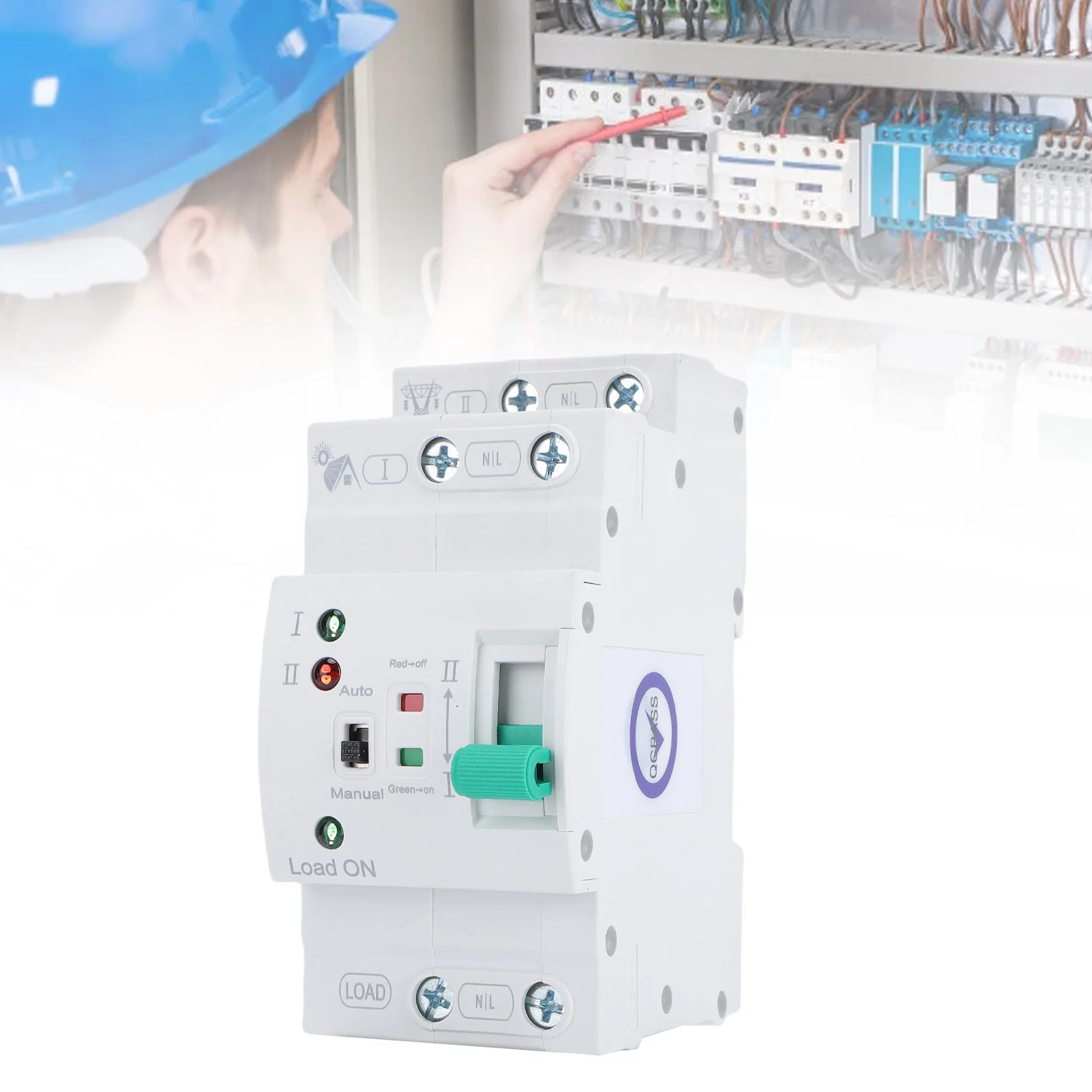

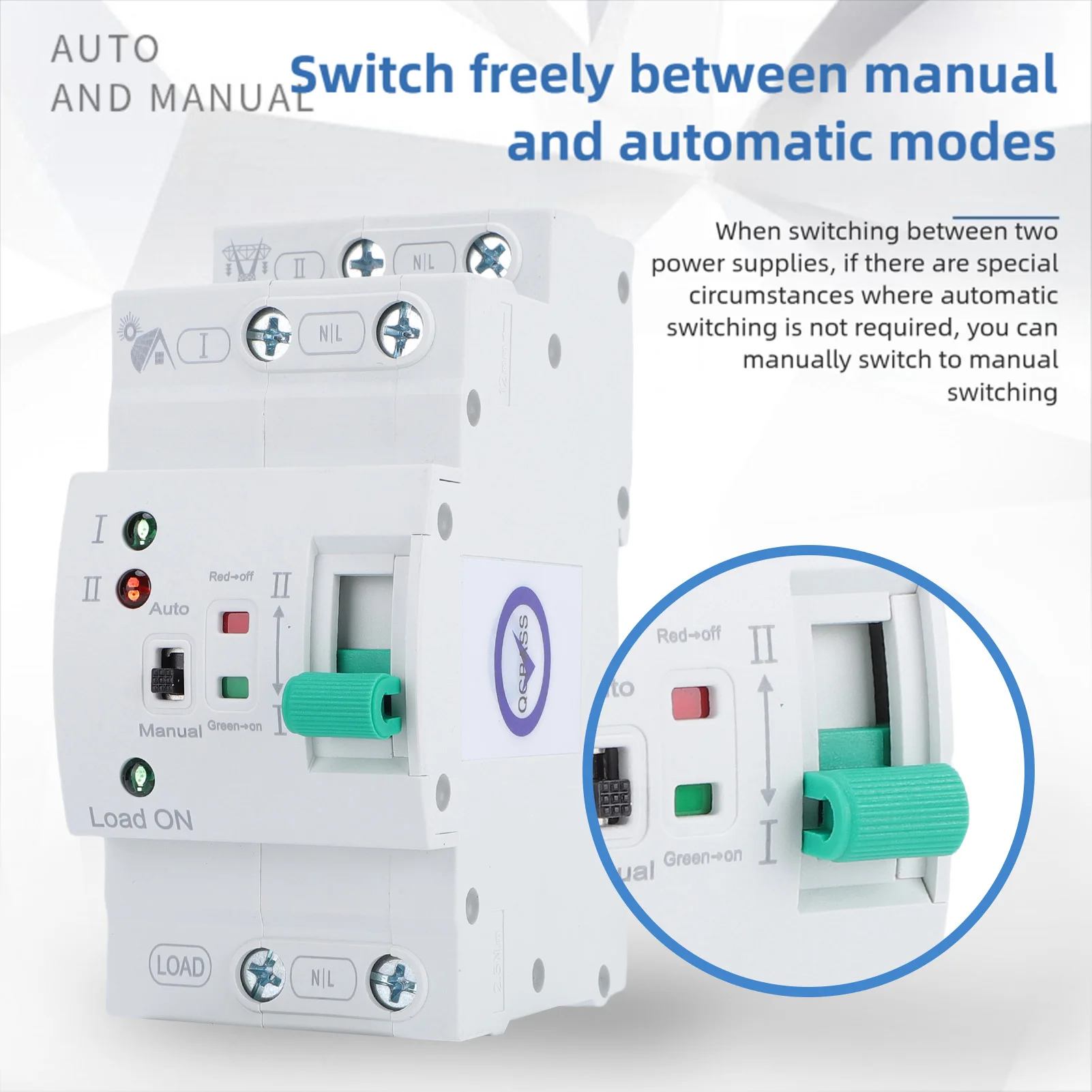

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"> <div style="width: px; line-height:150%; font-family:Arial, Helvetica, sans-serif; font-size:12px;"> <p style="margin-bottom:6px; margin-top:6px;"></p> <p> Mini ATS Automatic Manual Transfer Switch 2P 80A Home Generator Dual Auto Electrical Selector Switch DIN Rail Mount Super Thin PV Type </p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. MAIN FUNCTION: The ATS transfer switch is a PC level infrequent switching switch, mainly used for automatic or manual switching between two power supplies, and can detect whether the common power supply or backup power supply is normal. Can switch power sources(either mains power or inverter power) within 20ms to build an uninterruptible power supply, ensuring the continuity, reliability and safety of power supply<br/>2. AUTOMATIC MODE: When using the automatic mode, the left switch of the mini ATS is set to the Auto position, and the right handle is set to the I position. When the common power supply I is normal, the IU(green light) remains constantly on. When the common power supply I is abnormal, the IU(green light) goes out and switches to the automatic power supply II within 20ms, and the IIU(red light) turns on. When the common power supply I returns to normal, it will automatically switch back to the common power supply from the backup power supply II<br/>3. MANUAL MODE: When using the manual mode, the left switch of the mini ATS is placed in the Manual position. If power I is selected, manually operate the handle on the right to set the switch to the I position, and the IU(green light) will light up. If power II is selected, please manually operate the right handle to set the switch to the II position. The IU(red light) will light up<br/>4. APPLICABLE SCENARIO: 2P micro ATS transfer switch, the input end can be connected to 1 neutral wire(N) and 1 live wire(L), specially designed for household rail installation, specifically for PZ30 distribution boxes, suitable for 50/60Hz dual power grids<br/>5. WIDE APPLICATION: This 2P dual power automatic transfer switch ensures a stable power supply and is suitable for situations where power outages cannot be tolerated, especially for high- demand equipment. For example, hospitals, low temperature cold storage facilities, data centers and emergency systems. During the period when the main power supply is cut off, can automatically and quickly switch to the backup power supply to ensure safe and trusted power supply. Suitable for indoor and outdoor generators<p><br/></p><p><b>Specification:</b></p>Item Type: Mini ATS<br/>Model: NLQ7-125<br/>Material: PC inflaming retarding and silver<br/>Rated Current Le: 80A<br/>Frequency: 50/60HZ<br/>Switching Action Time: 20ms<br/>Grade: PC level<br/>2P<br/>Rated Short Circuit Current: 50kA<br/>Fusing: RT16-00-63A<br/>Auxiliary Circuit: 50HZ le=5A<br/>Lifespan: Electrical: ≥1500 Times; Mechanical: ≥6000 Times<br/>Usage Category: AC-31B<br/><p><br/></p><p><b>How to Use:</b></p>Use according to the user manual<p><br/></p><p><b>Package List:</b></p><p>1 x Mini ATS<br/>1 x User Manual</p></div><br/> <p style="margin-bottom:6px; margin-top:6px;"> </p> <p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><!--#list--><!--#if--></p><div style=" margin-bottom:6px; margin-top:6px;"> </div> <p class="STYLE1"><u>Shipping:</u></p> <p>1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.<br/> 2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .<br/> 3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.<br/> 4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.</p> <p class="STYLE1"><u>Warranty:</u></p> <p>1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .<br/> 2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.<br/> 3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation. </p> <p style="margin-top:6px;"></p> </div></div></div></div>
