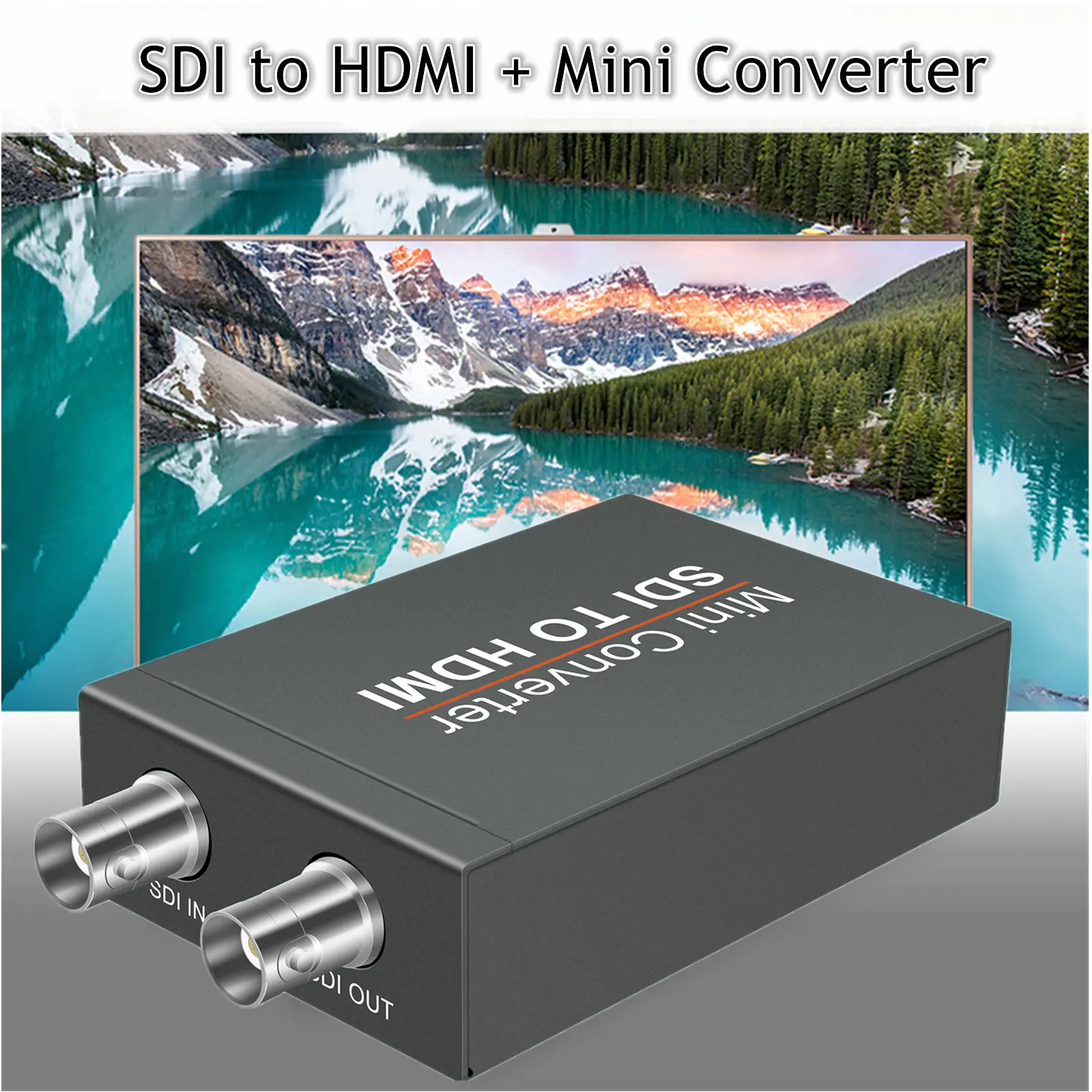

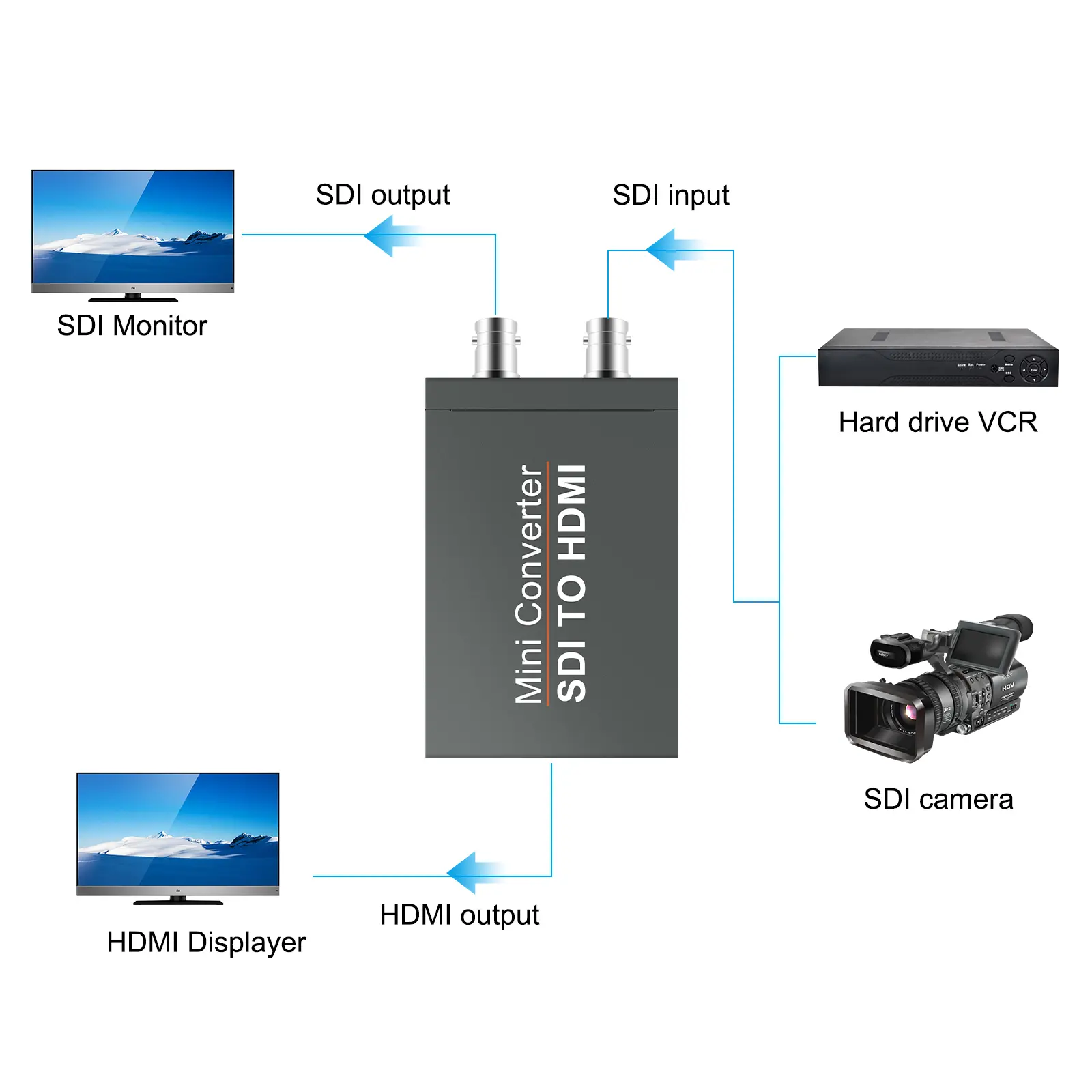

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="background-color:rgb(251, 158, 0);font-size:20px;font-family:georgia, serif"><strong>INTRODUCTION:</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/></span><span style="font-size:18px;font-family:arial, helvetica, sans-serif">This is a device which support to converter SDI digital signals to HDMI digital signals. The device composite 3G/HD/SD-SDI receiver and HDMI encoder, It can convert 3G/HD/SD-SDI digital signals to HDMI digital signals conveniently . At the same time,the converter can also decide the audio from the 3G/HD/SD/SD-SDI signals,and then output to HDMI digital signals.Support signal transmission distance of up to 100M 1080P@60Hz.<br/></span><span style="font-size:18px;font-family:georgia, serif"><br/></span><span style="background-color:rgb(251, 158, 0);font-size:20px;font-family:georgia, serif"><strong>SPECIFICATIONS:</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/></span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:arial, helvetica, sans-serif">1.Input : SDI*1<br/>2.Output : SDI*1 HDMI*1<br/>3.SDI format : SD-SDI, HD-SD, 3G-SDI<br/>4.SDI standard : compliant SMPTE-259/274/296/372/424/425/292 standard<br/>5.SDI output impedance : 75Ω<br/>6.SDI audio : support SDI digtal signals implant 8 channel audio<br/>7.HDMI interface ：standard HDMI <br/>8.HDMI version ：HDMI 1.3 support <br/>9.HDCP version ：HDCP 1.2<br/>10.HDMI bandwidth ： 24bit-30bit<br/>11.HDMI digital signals format ：EIA/CEA-861D standard<br/>12.Operating temperature range ： 0℃-55℃<br/>13.Power : DC5V-12V<br/>14.Product Dimension（mm）:82.6*55*23</span></p><p><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:arial, helvetica, sans-serif"><strong>Package Included:</strong></span></p><div><br/></div><p><span style="font-size:18px;font-family:arial, helvetica, sans-serif">1x SDI TO HDMI-compatible SDI converter</span></p><div><br/></div><p><span style="font-size:18px;font-family:arial, helvetica, sans-serif">1x DC CABLE</span></p><div><br/></div><p><span style="font-size:18px;font-family:arial, helvetica, sans-serif">1x User Manual</span></p><div></div></div></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:georgia, serif"><strong>Package contents:</strong></span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>1.Main unit : 1pcs</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>2.DC5V/1A power adapter ：1pcs</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>3.User manual ：1pcs<br/><br/></span><strong><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:georgia, serif">Operating and connection:</span></strong></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>1.Make settings for SDI source (SDI camera and do on ). Take a SDI cable source with our converter.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>2.Take a HDMI cable to connect HDMI monitor with our converter.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>3.You can also connect a SDI monitor.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>4.Power supply for the converter , If there is no signal or the signal is unstable , the blue light is always on.<br/><br/><br/><br/><br/><br/></span><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:georgia, serif"><strong>Supported format list：</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/><br/>Serial NO Resolution Signal Remarks<br/>1 1080P@60Hz 3G HDMI<br/>2 1080P@50Hz 3G HDMI<br/>3 1080I@60Hz 3G HDMI<br/>4 1080I@50Hz HD HDMI<br/>5 1080P@24Hz/25Hz/30Hz HD HDMI<br/>6 1080P@60Hz HD HDMI<br/>7 1080P@50Hz HD HDMI<br/>8 720P@60/50Hz HD HDMI<br/>9 576I@50Hz SD HDMI<br/>10 480I@50Hz SD HDMI<br/>11 480P@60Hz SD HDMI<br/><br/></span><span style="color:rgb(159, 5, 0);font-size:18px;font-family:georgia, serif"><strong>Tips : You can adjust the connective devices between front and behind or change other device when it not compatible.<br/></strong></span><span style="font-size:18px;font-family:georgia, serif"><br/></span><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:georgia, serif"><strong>Notes :</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/>Please use the machine as the instruction listed to keep the long use lifetime of the machine.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>1.The machine should be placed at the spot far from the damp , High-Temperature , Dusty , Erosive , and oxidative environment.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>2.All parts will be free from the strong shake , hit , fall.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>3.Touching the power adaptor with the wet hands is prohibited.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>4.Please hold the power adaptor head and do not pull the power cord when cut off from the socket.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>5.Please turn the power off when the machine is not used for long time.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>6.Please do not open the cover and do not touch the inside parts.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>7.Please use the original factory power adaptor.<br/><br/></span><span style="background-color:rgb(251, 158, 0);font-size:22px;font-family:georgia, serif"><strong>FAQ：</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/>Before power on，please check the connection line carefully. And make sure that all interfaces are normally connected . The common trouble shooting way shows below :<br/><br/></span><strong><span style="font-size:20px;font-family:georgia, serif">Non-power-connected</span></strong><span style="font-size:18px;font-family:georgia, serif"><br/><br/>1.Check if the power adaptor head is truly and correctly inserted the power socket.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>2.Check the converter if it is in power standby status.<br/><br/></span><span style="font-size:20px;font-family:georgia, serif"><strong>No sound</strong></span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>1.Check if the signal source is on and well connected.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>2.Check signal source channel selection is correct.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>3.Confirm the format .</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>4.Please make sure that the TV/amplifier is on and has been connected with the machine.</span></p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif"><br/>5.Confirm the power amplifier/TV set volume and mute.</span></p><div></div></div></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content"><span style="font-size:18px;font-family:georgia, serif">---------------------------------------------------------------------------<br/>If you need to buy multiple items at once, select the products you need, add a shopping cart, and pay together. I am glad to serve you.<br/>---------------------------------------------------------------------------<br/></span><span style="color:rgb(211, 49, 21);font-size:18px;font-family:georgia, serif"><strong>Thanks for your attention.<br/><br/>Remember that with us you have:<br/><br/>Safety<br/><br/>Professional</strong></span><span style="font-size:18px;font-family:georgia, serif"><br/>----------------------------------------------------------------------------<br/>Thank you for choosing us, we will give the best of our team to give you a unique experience in electronic commerce!<br/><br/>If there is a problem, please do not file a claim, please try to contact us first, we are here to support your purchase.<br/>-----------------------------------------------------------------------------<br/>What do I do if my product has a problem?<br/><br/>Before filing a claim, any questions you may have regarding the product will gladly be resolved by private message.<br/>------------------------------------------------------------------------------<br/></span><strong><span style="color:rgb(211, 49, 21);font-size:18px;font-family:georgia, serif">Thanks for your attention.<br/><br/>I hope you have a wonderful day.</span></strong></p><div></div></div></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><br/></p></div></div><p><br/></p>
