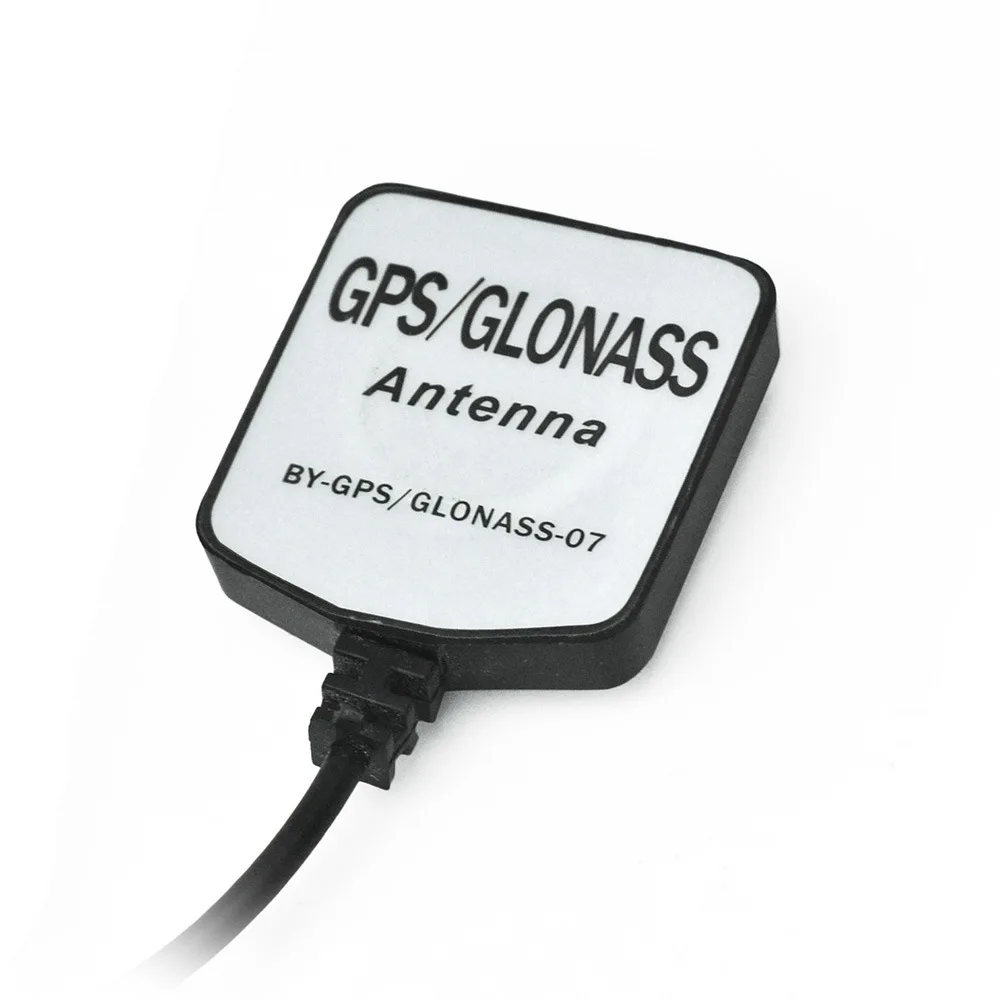

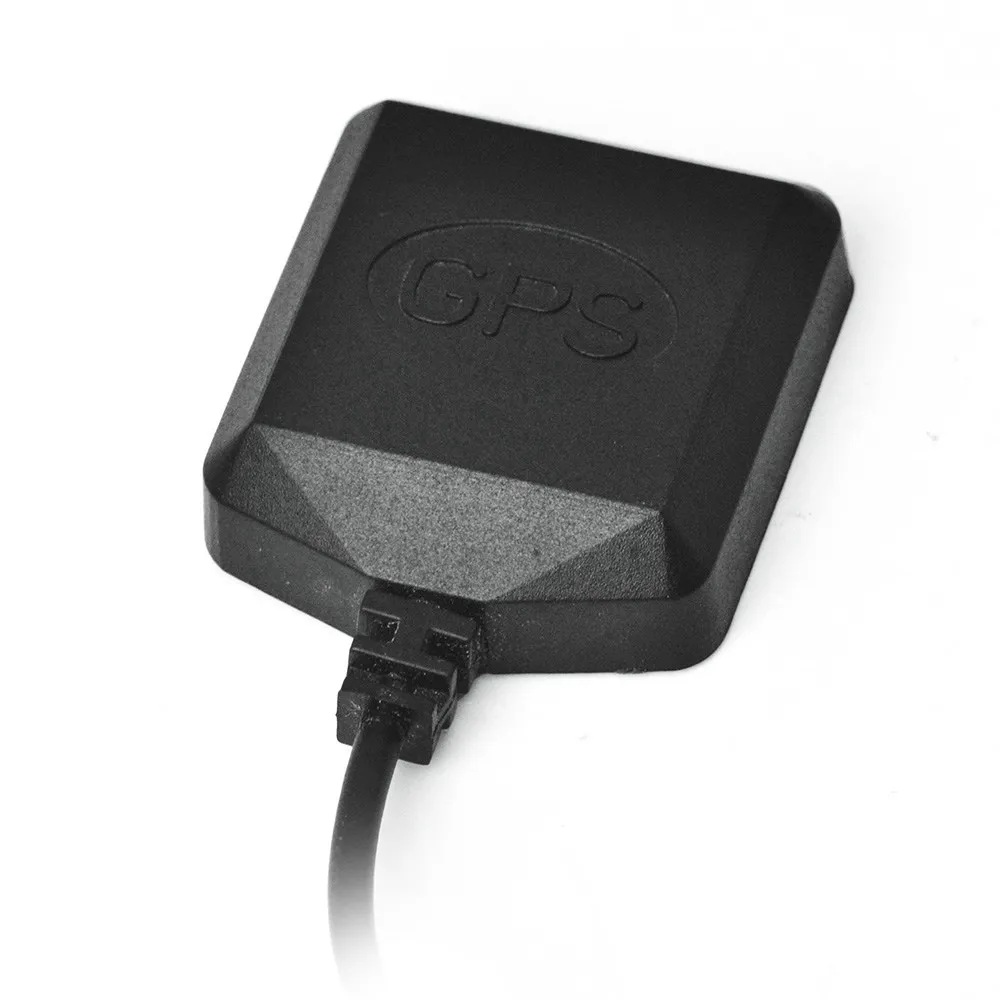

Mini GPS GLONASS Antenna SMA Male Connector for Signal Booster

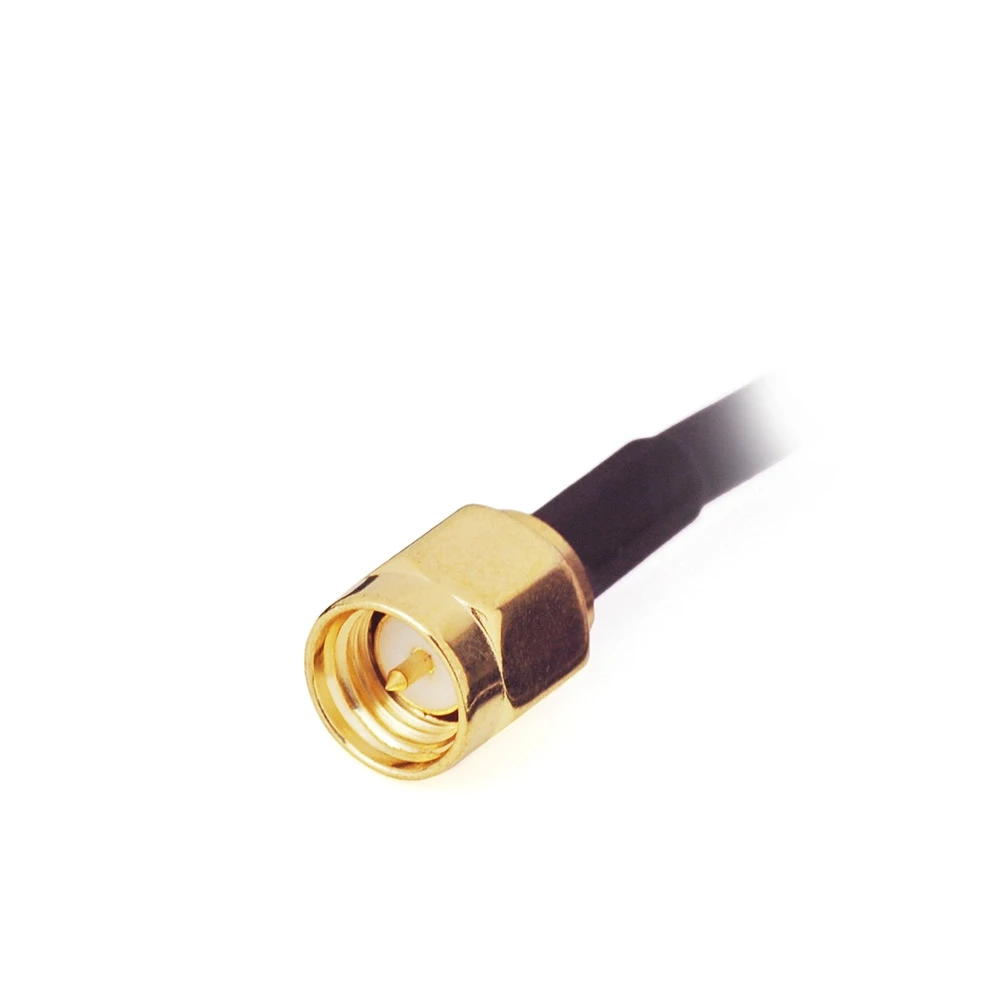

Mini GPS GLONASS Antenna with SMA Male Connector for signal booster. Frequency: 1575MHZ/1602MHz. Center Frequency: 1590MHz. V.S.W.R: 1.5:1. Band Width 50 MHz Min. at -10dB. Impendence: 50 ohm. Peak Gain: 5dBic Min/1575MHz. 4dBic Min/1602~1616MHz. Gain Coverage: ≥- 4dBic at -90°~90°(over75% volume). Power Handling: 1 watt. Polarization: RHCP. LNA Gain(Without Cable): 32dB Typical. Noise Figure: 1.5dB. V.S.W.R: <2.0. DC Voltage: 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other. DC Current: 11mA Max. Weight: <110gram. Size: 37×33.5×10mm. Cable: RG174 3meters or other. Connector: SMA Male/Plug default / SMB/SMC/BNC/FME/TNC/MCX/MMCX or other. Mounting Magnetic base. Housing Black. Working Temp -40~+85°C. Storage Temp. -45~+100°C. Vibration Sine sweep 1g(0-p)10~50~10Hz each axis. Humidity Humidity95%~100%RH. Weatherproof 100%Waterproof.
$43.15
$43.15
- Category : Phones & Telecommunications
- Brand : shop108021_store Shop108021 Store
Colors
-
+
Mini GPS GLONASS Antenna with SMA Male Connector for signal booster. Frequency: 1575MHZ/1602MHz. Center Frequency: 1590MHz. V.S.W.R: 1.5:1. Band Width 50 MHz Min. at -10dB. Impendence: 50 ohm. Peak Gain: 5dBic Min/1575MHz. 4dBic Min/1602~1616MHz. Gain Coverage: ≥- 4dBic at -90°~90°(over75% volume). Power Handling: 1 watt. Polarization: RHCP. LNA Gain(Without Cable): 32dB Typical. Noise Figure: 1.5dB. V.S.W.R: <2.0. DC Voltage: 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other. DC Current: 11mA Max. Weight: <110gram. Size: 37×33.5×10mm. Cable: RG174 3meters or other. Connector: SMA Male/Plug default / SMB/SMC/BNC/FME/TNC/MCX/MMCX or other. Mounting Magnetic base. Housing Black. Working Temp -40~+85°C. Storage Temp. -45~+100°C. Vibration Sine sweep 1g(0-p)10~50~10Hz each axis. Humidity Humidity95%~100%RH. Weatherproof 100%Waterproof.
