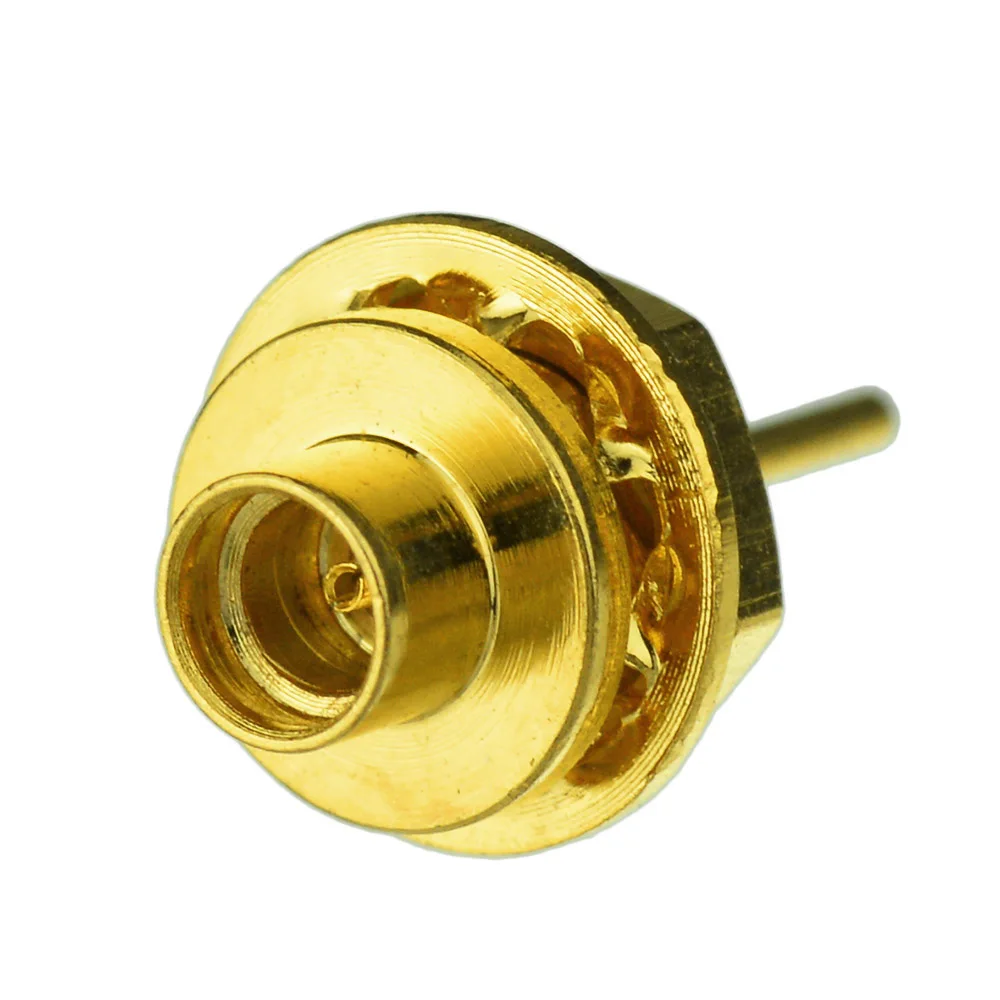

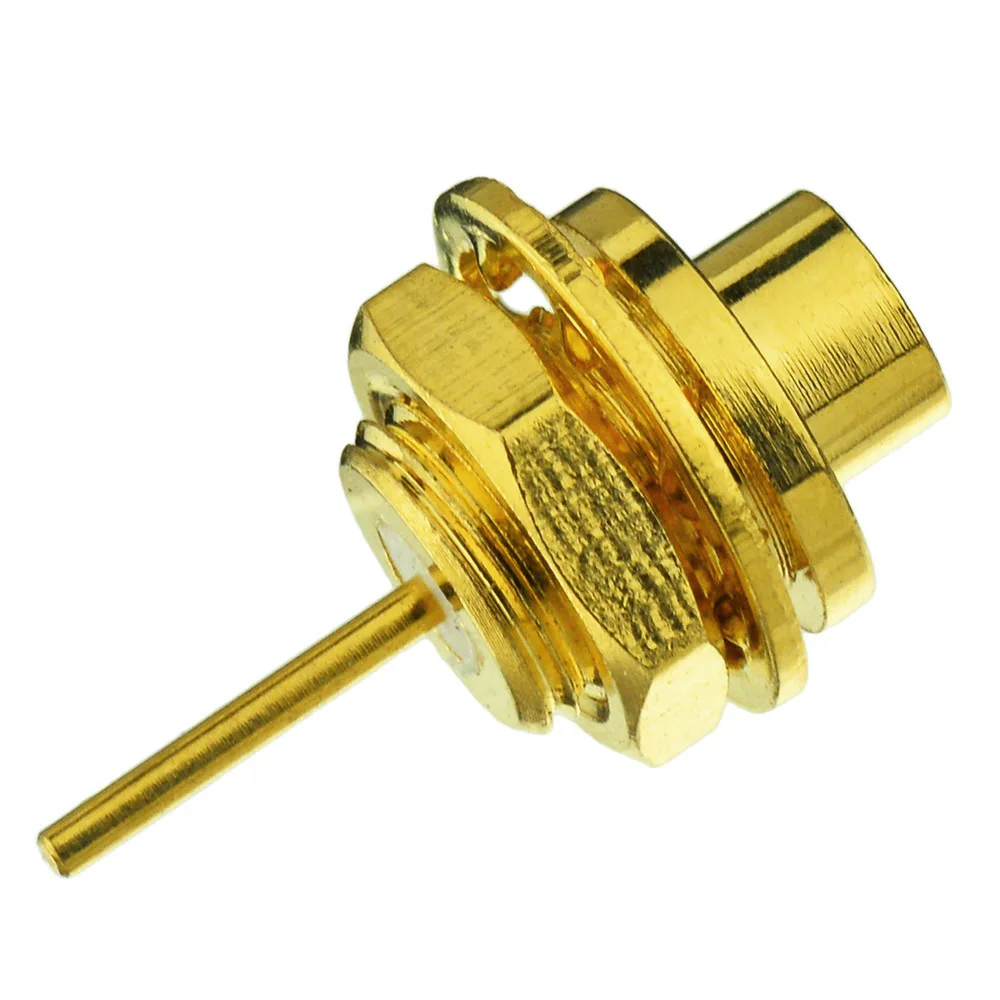

MMCX Panel Mount Female RF Coaxial Connectors for Electronic Components
Superbat 10pcs MMCX Panel Mount Female with Nut and Solder Cup RF Coaxial Connectors for Electronic Components. Applicable standard: GJB681A(MIL-C-39012), IEC1169-36, CECC22340. Insulators: PTFE. Temp range: -55~ +155(RF). Body Style: Straight. Connector: Jack/Female Socket. Mounting Type: Panel Mount, Bulkhead - Rear Side Nut. Durability: ≥500 Cycles. Insulation Resistance: ≥1000MOhm. Withstand voltage: 500V. Frequency Range: 0-6GHz. Voltage rating: 170V.
$63.32
$63.32
- Category : Phones & Telecommunications
- Brand : shop108021_store Shop108021 Store
Colors
-
+
Superbat 10pcs MMCX Panel Mount Female with Nut and Solder Cup RF Coaxial Connectors for Electronic Components. Applicable standard: GJB681A(MIL-C-39012), IEC1169-36, CECC22340. Insulators: PTFE. Temp range: -55~ +155(RF). Body Style: Straight. Connector: Jack/Female Socket. Mounting Type: Panel Mount, Bulkhead - Rear Side Nut. Durability: ≥500 Cycles. Insulation Resistance: ≥1000MOhm. Withstand voltage: 500V. Frequency Range: 0-6GHz. Voltage rating: 170V.
