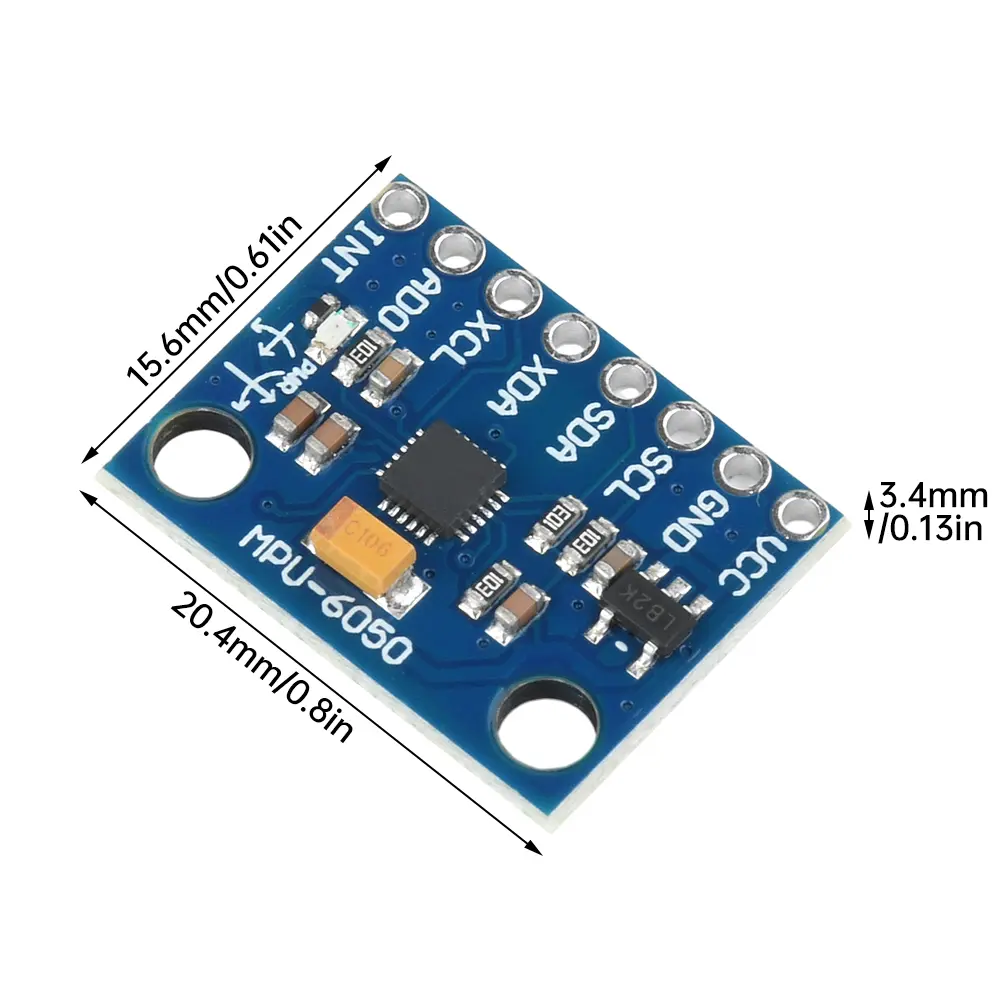

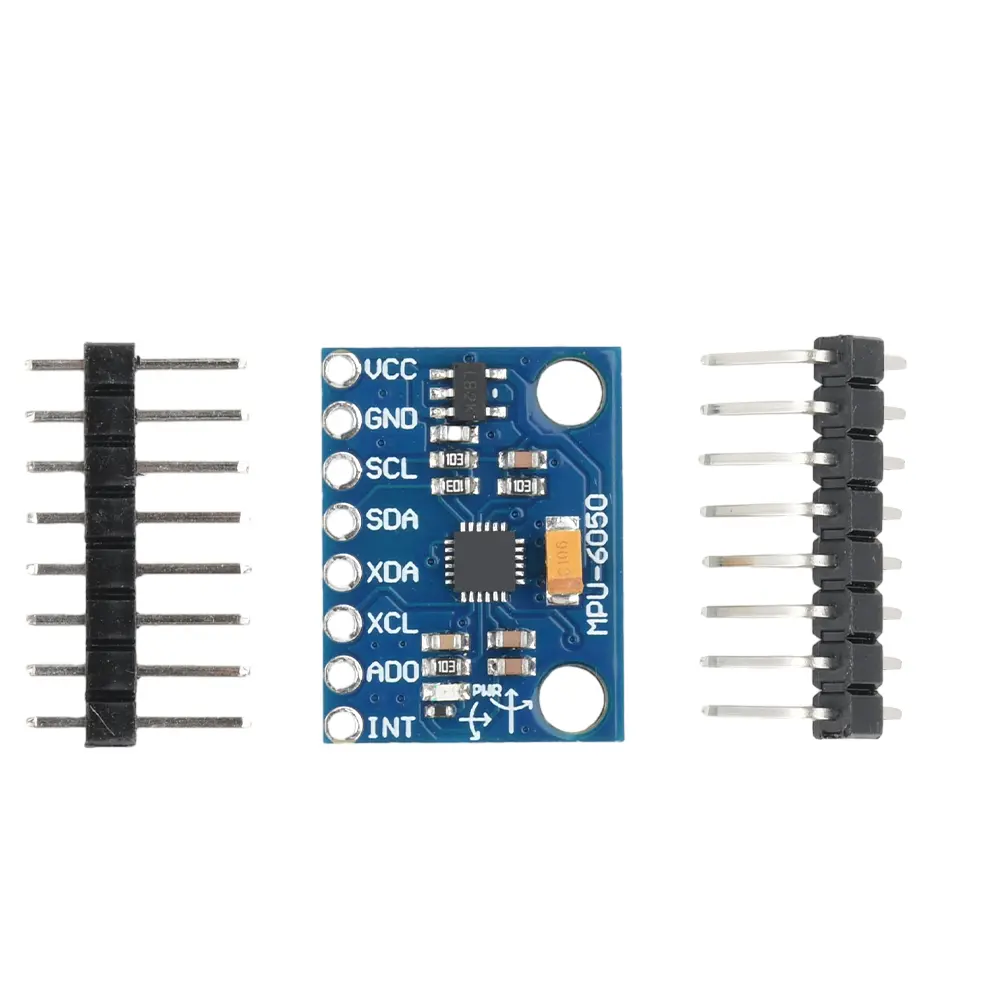

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.Digitally output the fusion calculation data of rotation matrix, quaternion, and Euler Angle format for 6 or 9 axes.<br/>2.A 3-axis angular velocity sensor (gyroscope) with a sensitivity of 131 LSBs/°/sec and a full grid sensing range of ± 250, ± 500, ± 1000, and ± 2000 °/sec.<br/>3.A 3-axis accelerator with programmable control range of ± 2g, ± 4g, ± 8g, and ± 16g.<br/>4.Remove the sensitivity between the accelerator and gyroscope axes, reduce the impact of the setting and the drift of the sensor.<br/>5.The Digital Motion Processing (DMP) engine can reduce the load of complex fusion calculation data, sensor synchronization, posture sensing, and more.</p><p>Parameters:<br/>Using chip: MPU-6050<br/>Power supply: 3-5 V (internal low voltage differential voltage stabilization)<br/>Communication method: Standard IIC communication protocol<br/>The chip is equipped with a built-in 16bit AD converter and 16 bit data output<br/>Gyroscope range: ± 250 500 1000 2000 °/s<br/>Acceleration range: ± 2 ± 4 ± 8 ± 16g<br/>Pin spacing 2.54mm</p><p>Application:<br/>Motion sensing games<br/>Augmented reality<br/>Electronic Image Stabilization (EIS)<br/>Optical Image Stabilization (OIS)<br/>Pedestrian Navigator<br/>Zero touch gesture user interface<br/>Posture shortcut</p><p>Package include:<br/>Gyro module * 1<br/>Pin arrangement * 2<br/><br/></p></div></div><p><br/></p>
