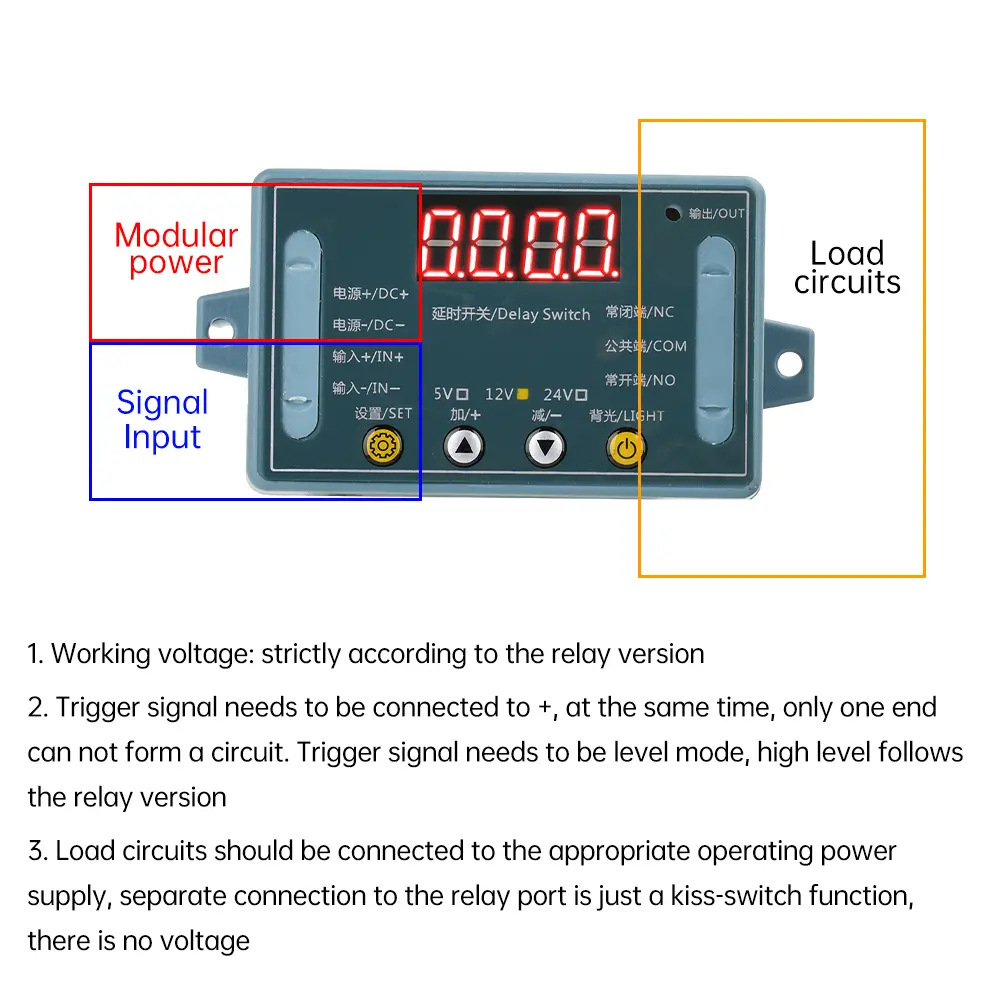

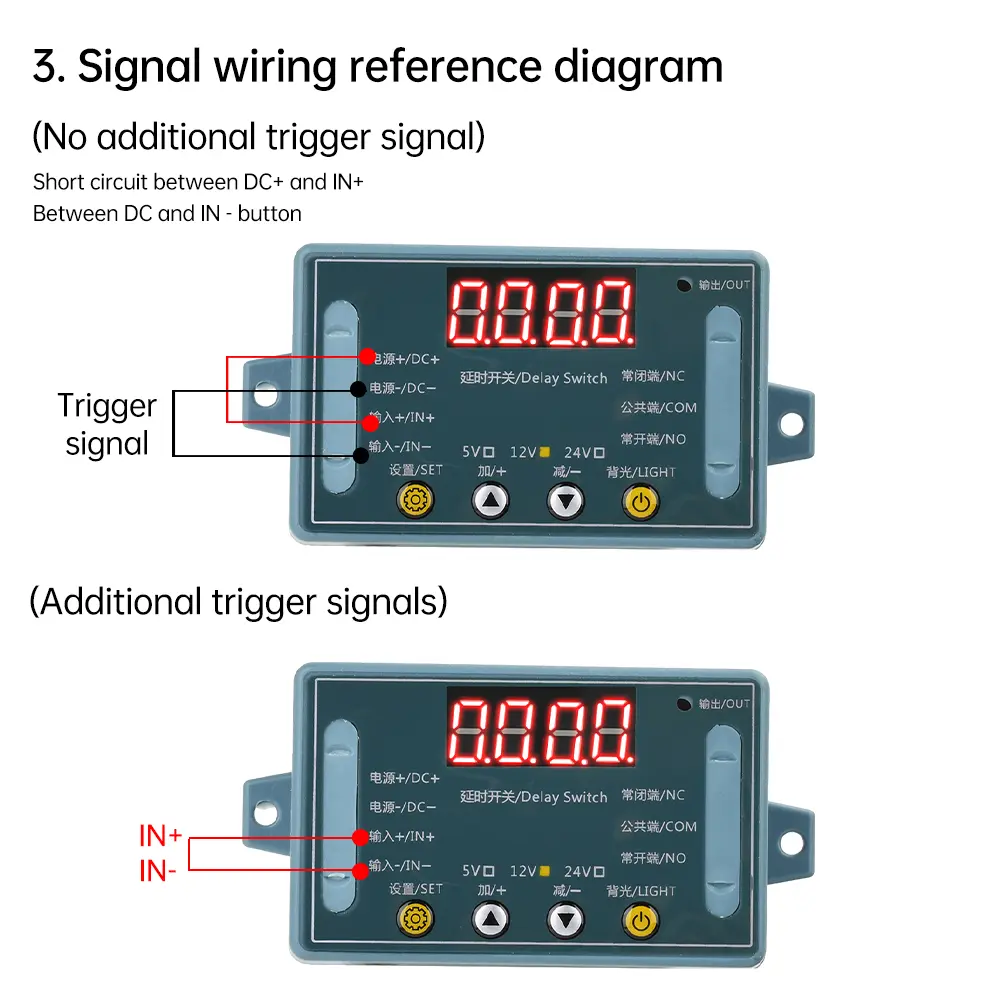

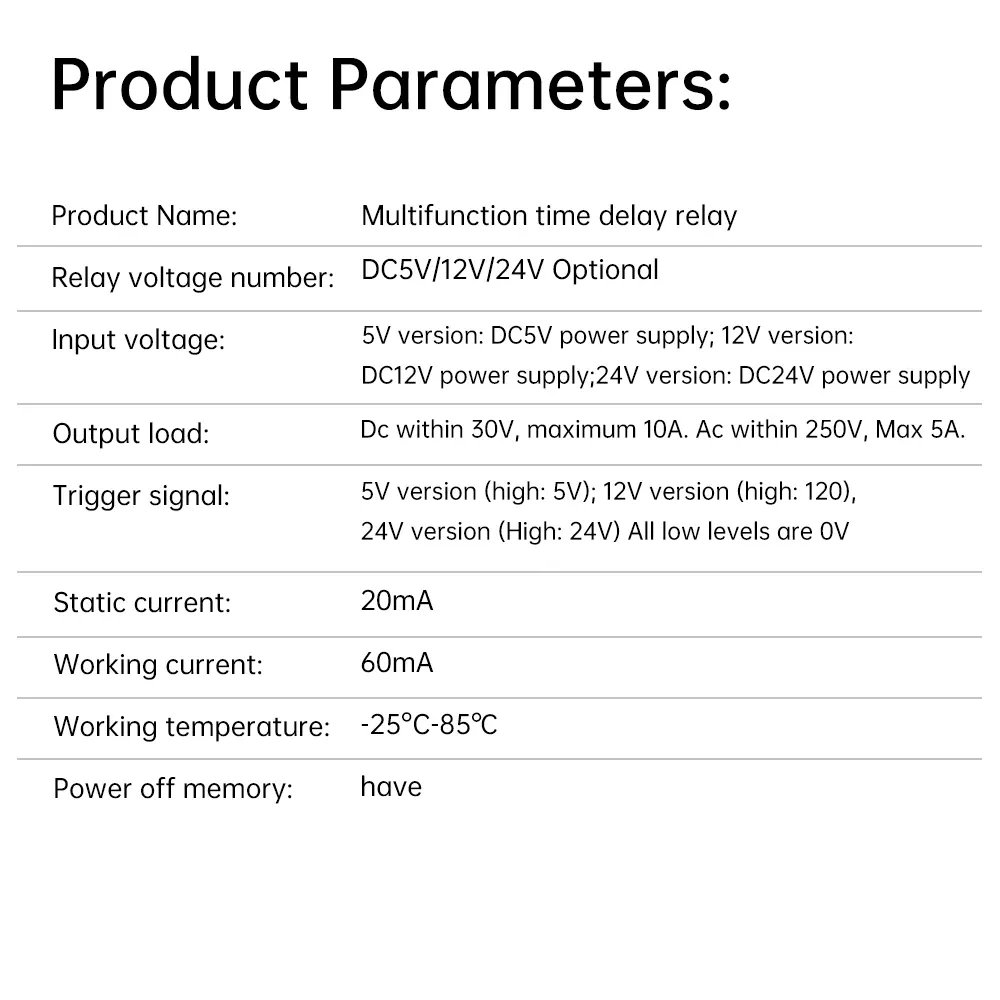

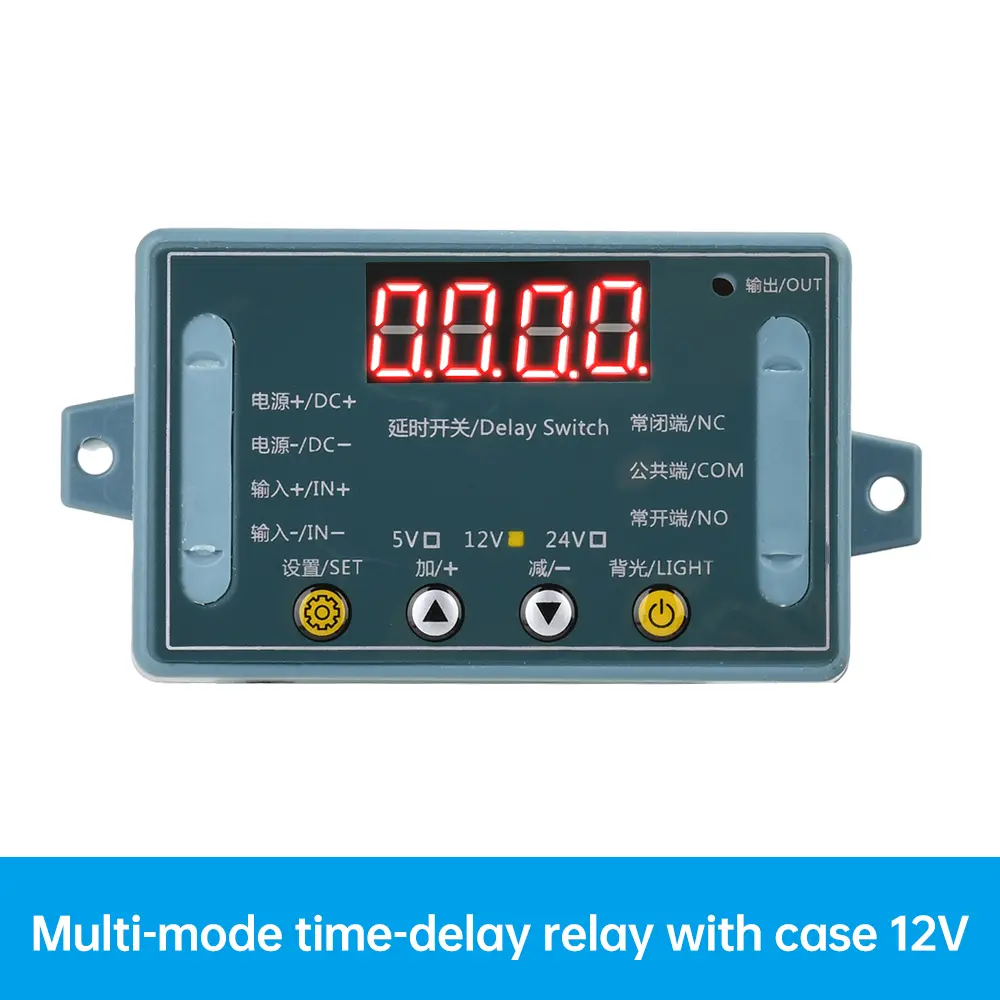

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><br />Features:<br />1.The module functions have been upgraded to 32 types to meet more application requirements<br />2.The anti-reverse connection function of the power supply will not damage the module due to wrong connection of the power supply<br />3.The timing accuracy is 0.01 seconds. 0.1 seconds (minimum)~999 minutes (maximum) optional<br />4.Low-power and power-saving settings, display area can be closed<br />5.It can be applied to water pump control, motor control, light belt control, solenoid valve control, etc<br />The multi-function relay control module is specially designed for users with different needs. It uses a microcontroller as the main control unit and has 32 preset functions. Users can use corresponding specific functions according to actual needs.</p> <p>Parameters:<br />Trade name: Multi-function time delay relay<br />Relay voltage: DC5V/12V/24V optional<br />Input voltage: 5V version: DC5V power supply; 12V version: DC12V power supply; 24V version: DC24V power supply<br />Output load: within 30V DC, maximum 10A. Within 250V AC, 5A maximum. Trigger signal: 5V version (high level: 5V); 12V version (high level: 120), 24V version (high level: 24V), low level is 0V<br />Quiescent current: 20mA<br />Working current: 60mA<br />Working temperature: - 25 &deg; C-85 ℃<br />Power failure memory: yes</p> <p>Reminder<br />1. Please select the required V number version (according to the above relay identification difference, the relay is 5V instant 5V version) to avoid wrong purchase.<br />2. Relay output is passive contact without current output, which controls the on-off function of a line<br />3. Please input the trigger voltage in strict accordance with the selected version</p> <p>Instructions:<br />Operating parameter setting instructions:<br />Press and hold the K1 key, the display will display P-xx after 2 seconds, and press K2 and K3 to change the working mode. After selecting the working mode, briefly press the K1 key to enter the A time setting, and the screen displays Axxx. At this time, press the K2 and K3 keys to modify the A time parameter, and press the K2 and K3 keys to add and subtract 1, and press the K4 key to quickly add and subtract 10, and press the K4 key to set the position of the decimal point. After setting the A time, press K1 to set the B time. The screen displays bxxx. At this time, press K2 and K3 to modify the B time parameter. Press K2 and K3 to add and subtract 1 for a short time, and press and hold to quickly add and subtract 10 for a long time. Press K4 to set the position of the decimal point. After setting the B time, (if the mode has the c cycle number parameter) press the K1 key to set the c cycle number, and the screen displays Cxxx. At this time, press the K2 and K3 keys to modify the c cycle number parameter, and press the K2 and K3 keys for a short time to add or subtract 1, and press the key for a long time to quickly add or subtract 10. After setting, press K1 for the last time to exit the setting state and save all parameters.<br />Description of decimal point position and time unit:<br />The decimal point of X.XX is in the hundredth place, and the time range is 0.01~9.99 seconds<br />20. X decimal point in ten places, time range 0.1~99.9 seconds<br />XXX has no decimal point, and the time range is 1~999 seconds<br />XXX. The decimal point is in one place, and the time range is 1~999 minutes<br />Turn off display: In the non-set state, press the K4 key to turn off the display, and then press again to turn it on</p> <p>Working modes (32):<br />P-11: inching mode, with signal on and without signal off.<br />P-12: self-locking mode, the relay status will be reversed once after each trigger.<br />P-13: After triggering, the relay will be closed and disconnected after a delay of A time; The trigger is invalid during the delay period.<br />P-14: After triggering, the relay will be closed and disconnected after a delay of A time; A re-timing is triggered during the delay.<br />P-15: After triggering, the relay will be closed and disconnected after a delay of A time; The accumulation timing is triggered during the delay.<br />P-16: After triggering, the relay will be closed and disconnected after a delay of A time; The reset is triggered during the delay (the relay is disconnected).<br />P-17: After triggering, the relay will be closed during the signal duration, the input signal will disappear, and it will be disconnected after a delay of A time; During the time delay, the relay will be triggered again to keep closed, and the timing will stop until the last signal disappears, and the relay will be disconnected after a time delay of A.<br />P-18: After power-on, the relay will be closed immediately and disconnected after a delay of A seconds; Until the next power on.<br />P-21: Give the signal, and the relay will be closed after delaying A time.<br />P-22: give a continuous signal, and the relay will be closed after exceeding A time; The signal disappears and the relay is disconnected.<br />P-23: When the signal disappears for more than A time, the relay is closed; The relay is disconnected when there is a signal.<br />P-24: give a continuous signal, and the relay will be closed after exceeding A time; When the signal disappears for more than A time, the relay is disconnected.<br />P-25: give a continuous signal, and the relay will be closed after exceeding A time; Give the continuous signal again, and the relay will be disconnected after exceeding A time<br />P-26: give the signal, and the relay will be disconnected after closing A time; After the signal disappears, the relay closes again for A seconds and stops<br />P-27: The relay with pulse signal (rising edge or falling edge) is disconnected, and there is no pulse signal. The relay is closed after a delay of A time (continuous high level or continuous low level is considered as no pulse).<br />P-28: After power-on, the relay will be closed after a time delay of A until power-off.<br />P-31: After power-on, the relay closes A time and opens B time, infinite cycle; Power off and stop.<br />P-32: There is a continuous signal, the relay closes A time, opens B time, infinite cycle; The signal disappears and the cycle is terminated.<br />P-33: Give a signal, and the relay will pull in A time, turn off B time, infinite cycle; Give another signal to terminate the cycle.<br />P-34: After power-on, after a delay of A time, the relay is closed, and after B time, it is disconnected.<br />P-35: Give a signal. After delaying A time, the relay will be closed and B time will be closed.<br />P-36: give a continuous signal. After the time exceeds A, the relay will be closed, and the relay will be disconnected after the time B is closed; The signal disappears, the timing is cleared, and the relay is disconnected.<br />P-37: If there is a signal, the relay will automatically disconnect after the time A is closed, and then time B after the time B is closed, and the signal trigger will be invalid within the time A+B.<br />P-38: When there is a signal, the relay will be automatically disconnected after the time A is closed, and then the time B is counted after the time B is closed, and then the relay will be automatically disconnected after the time A is closed again.<br />P-41: no action when there is signal; Signal disappearance trigger; The relay is closed and disconnected after delaying A time.<br />P-42: The signal disappears, and the relay closes after a delay of A time; The relay is disconnected after delaying B time.<br />P-43: The signal disappears, and the relay closes after it disappears for more than A time; The relay is disconnected after delaying B time.<br />P-44: After power-on, the relay will open A time and open B time; After cycling for c times, the relay is disconnected and stopped.<br />P-45: No action after power on; After the signal is given, the relay closes A time and opens B time; The relay is disconnected and stopped after cycling for c times; Give the signal, then execute again.<br />P-46: After the signal is given for more than A times, the relay is closed; Keep closing; Power off and stop.</p> <p>Package include:<br />Time delay relay * 1<br /><br /></p></div></div>
