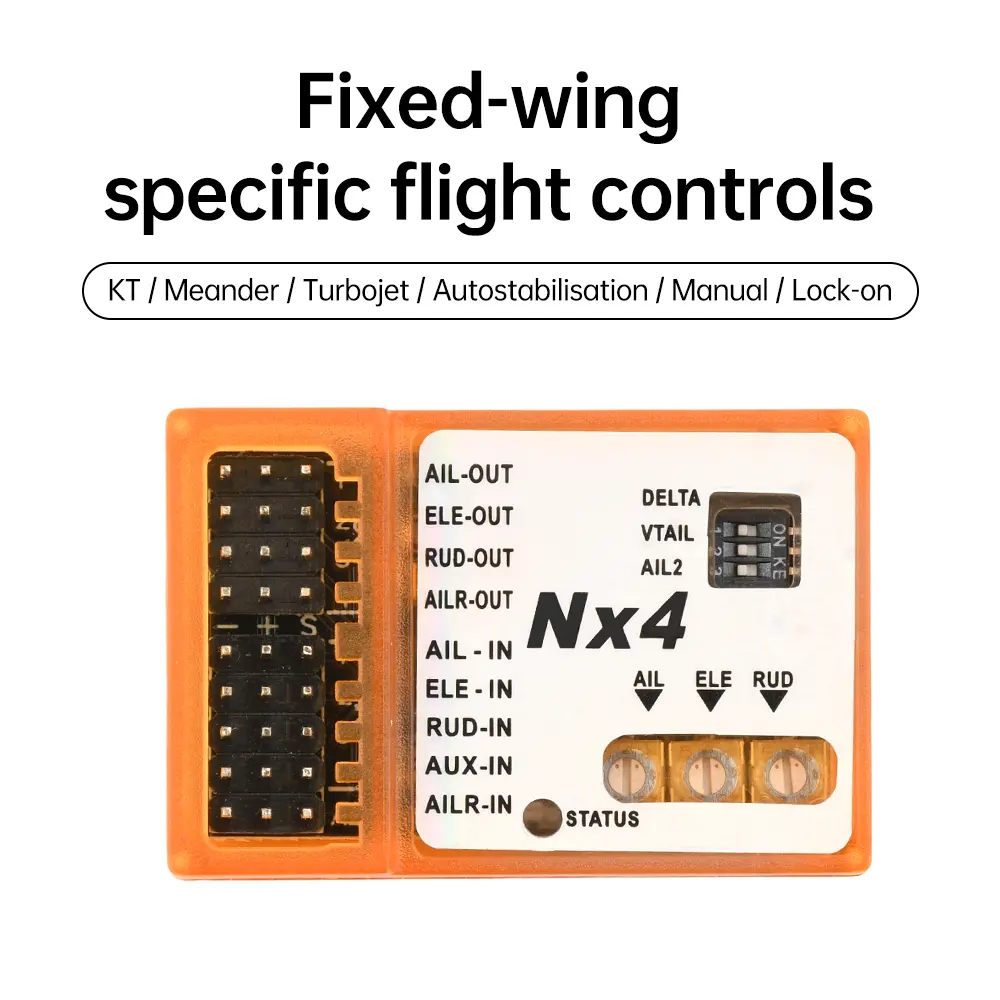

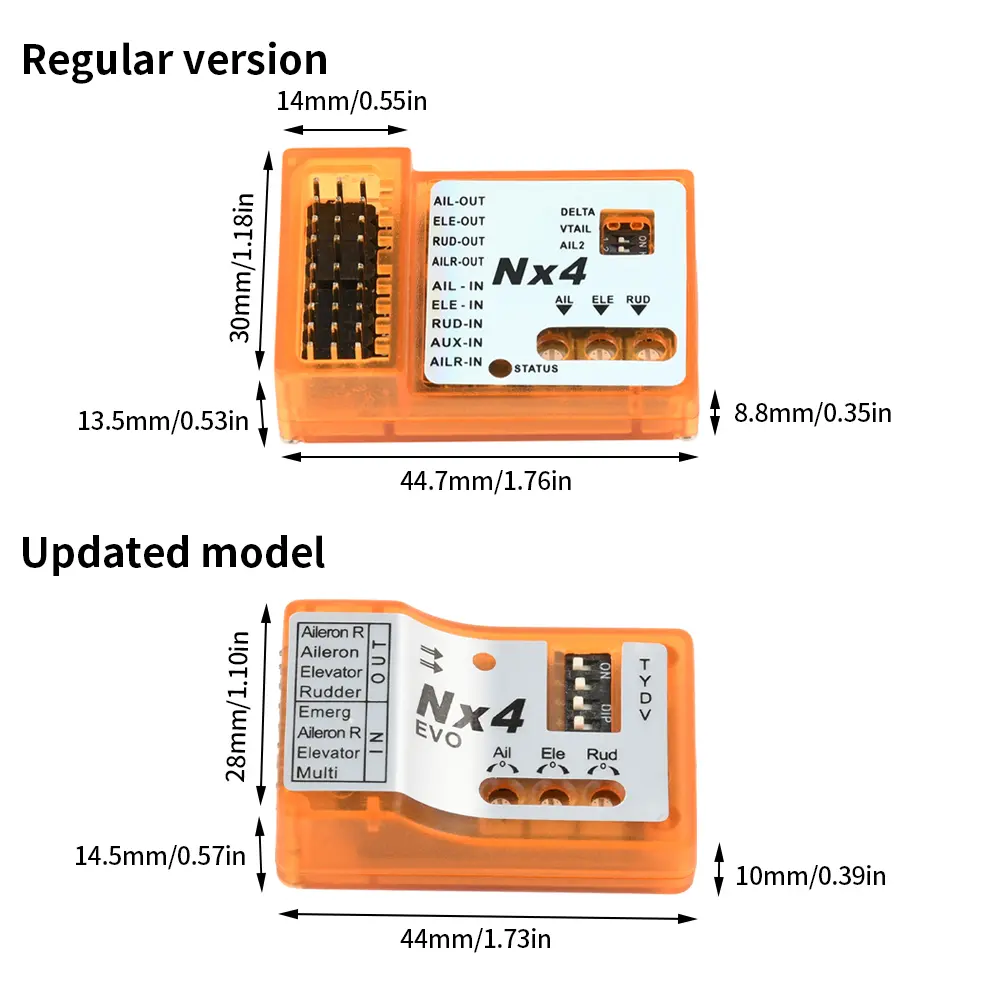

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features： <br/>1. Multi level flight mode: From learning to fly to advanced level, it is convenient for players to progress step by step and gradually improve their flying skills. <br/>2. Flexible mode switching: The remote control switches between stabilizing, locking, and closing modes to adapt to different scenarios. <br/>3. Excellent stability enhancement algorithm: Provides excellent flight stability while maintaining sensitivity. <br/>4. No need for hybrid settings: Simplify installation steps and get started quickly. <br/>5. Supports multiple wing types: compatible with fixed wings, V-tails, and delta wings, with a wide range of applications.</p><p>Parameter: <br/>Nx4-EVO： <br/>Input voltage: DC 4.5-6V <br/>Response frequency: 100Hz <br/>Working temperature: 0-50 ° C <br/>Size (length, width, height): 43x28x15mm <br/>Functional features: <br/>1. Provides up to 4 flight levels for players to progress step by step. Level 1: Learn to Fly Mode, Level 2: Practice Mode, Level 3: Advanced Mode, Level 4: Advanced Mode. <br/>2. Supports regular fixed wing (single aileron signal and double aileron signal), V-tail (supports double aileron signal, can be used for V-tail gliders), and delta wing. <br/>3. The independent potentiometer on the flight control board adjusts the sensitivity of each axis. <br/>4. Automatically distinguish between regular single aileron and double aileron modes. <br/>5. The total sensitivity of the flight control can be remotely adjusted, and the flight control can be remotely turned off. <br/>6. Equipped with automatic balancing flight function. <br/>7. It has a one click rescue function. <br/>8. It has posture locking function. <br/>9. Provide aileron servo Y-line function.</p><p>Nx4-PRO: <br/>Product parameters: <br/>Power supply: DC 5-6V， Directly electrically adjust the BEC power supply <br/>Appearance: 44mmX29mmx13mm <br/>Functional features: <br/>1. Supports regular fixed wing (single aileron servo and double aileron servo), V-tail, and delta wing. <br/>2. Normal stabilization, locking mode, and shutdown mode can be switched through the remote control. <br/>3. The independent potentiometer on the board adjusts the sensitivity of each axis. <br/>4. Adopt excellent algorithms to increase stability without reducing operational sensitivity. <br/>Quick installation techniques: <br/>1. Connect the wires correctly according to the instruction manual and check if the remote control is working properly. (This flight controller does not require mixed control settings.) <br/>2. Adjust the dip switch to select the correct model. And check if the remote control surface is functioning properly. <br/>3. Adjust the working direction and sensitivity of the gyroscope through the potentiometer switch, and check whether the working direction of each control surface of the gyroscope is correct. (Please use sensitivity for the first flight) <br/>4. Set up one key rescue (refer to the manual, when turning on the one key rescue, the elevator must be lifted upwards and then returned to the horizontal position, otherwise it needs to be set separately) <br/>5. Use the remote control mode switch to toggle back and forth and calibrate the neutral point of the remote control. After replacing the remote control or receiver, the neutral point must be calibrated</p><p>Package Include:<br/>Combination 1: <br/>Nx4-EVO flight control board * 1 <br/>Connection line * 4 <br/>Screwdriver * 1 <br/>Sponge sticker * 1</p><p>Combination 2: <br/>Nx4-PRO flight control board * 1 <br/>Connection line * 5 <br/>Screwdriver * 1 <br/>Sponge sticker * 1<br/><br/></p></div></div><p><br/></p>
