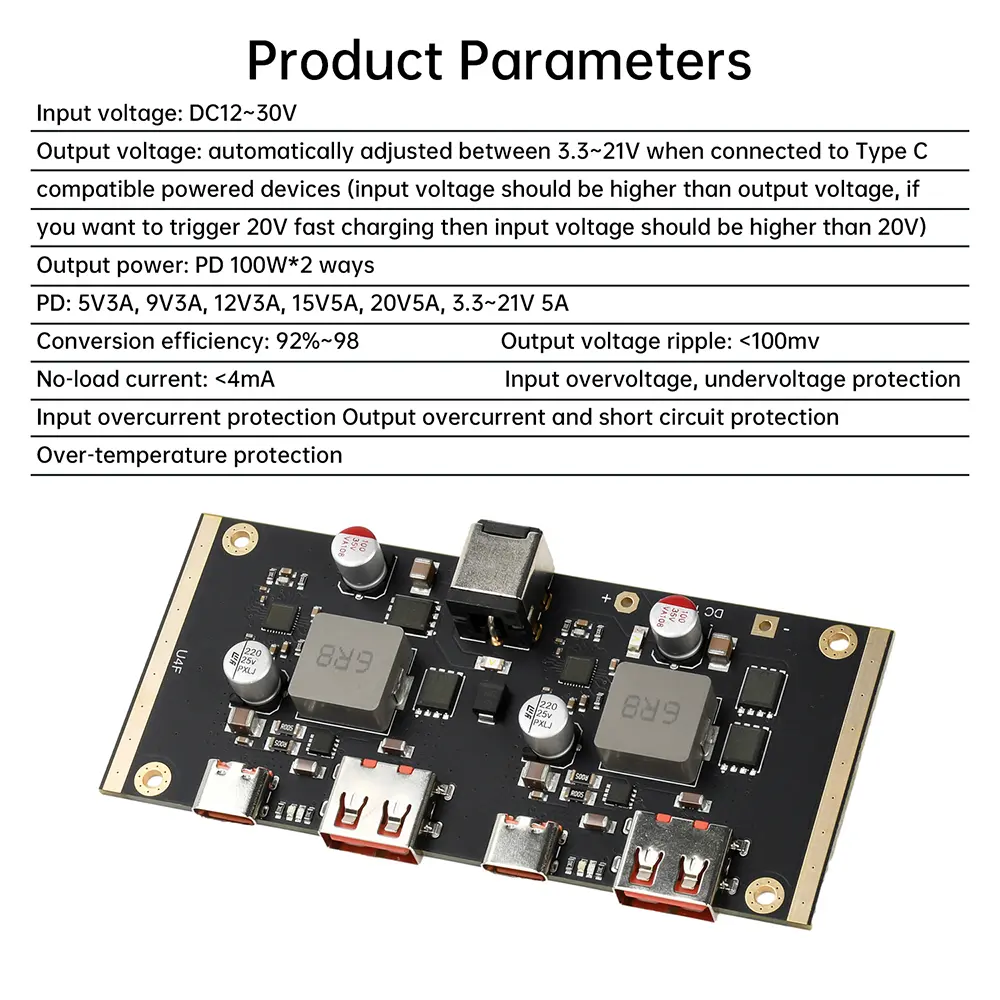

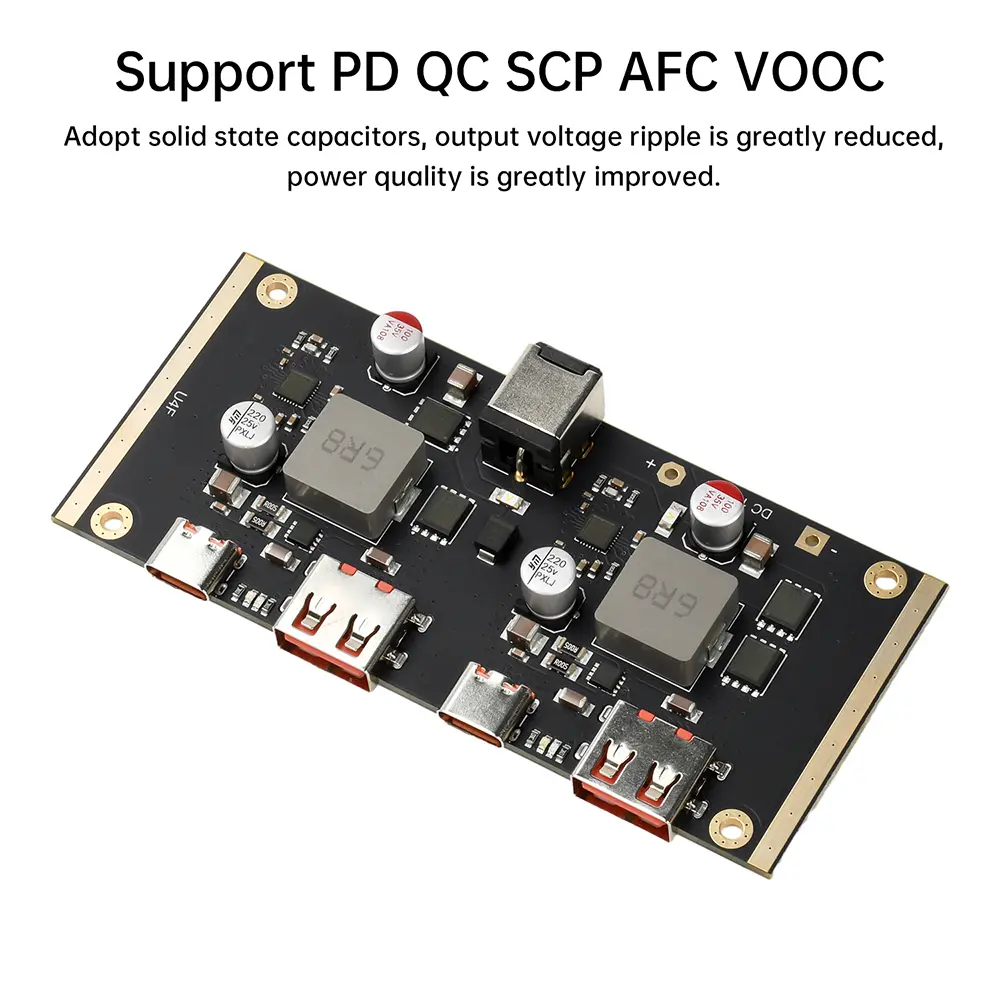

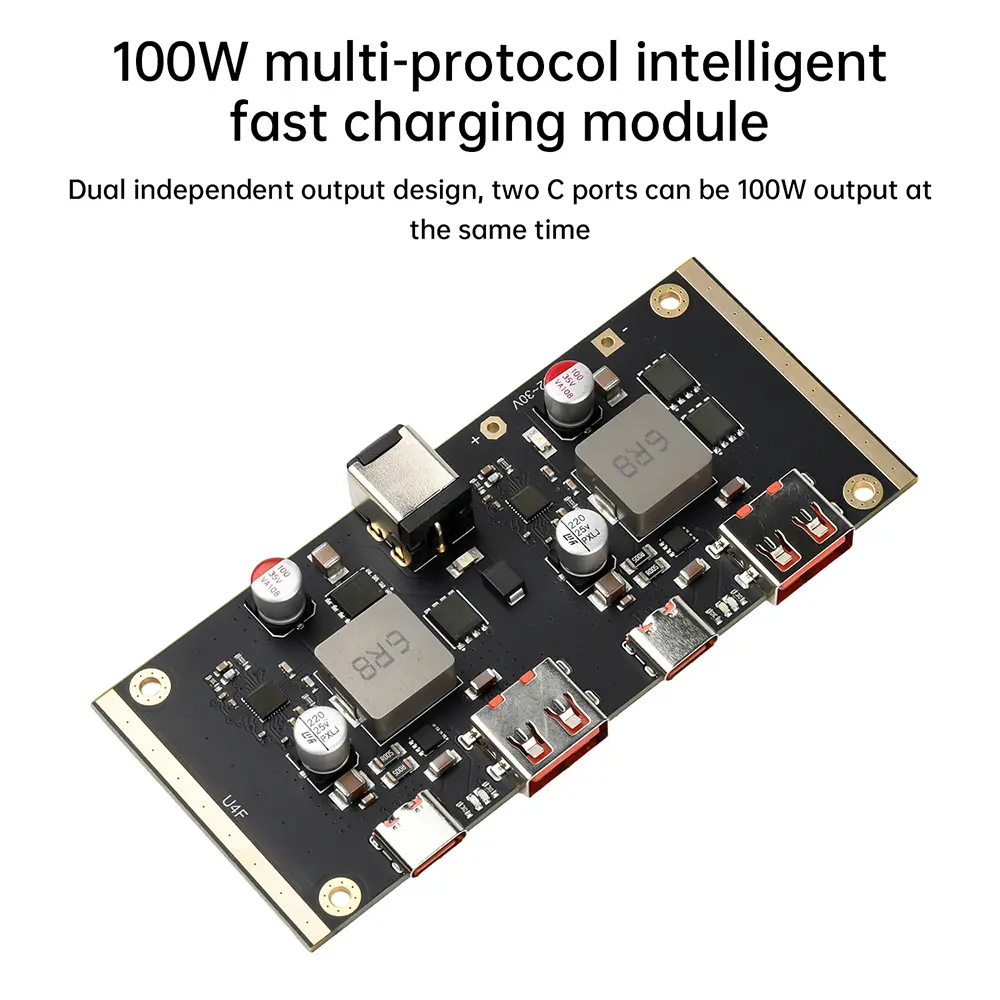

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004384065" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1.Support PD, QC and other fast charging protocols, to adapt to the mainstream brand equipment charging requirements<br />2. Dual independent output design, two C-port can be 100W output at the same time<br />3. The use of solid-state capacitors, the output voltage ripple is greatly reduced, the power quality is greatly enhanced<br />4. Wide range of input voltage, suitable for a variety of power supply scenarios, flexible and practical<br />5. Intelligent identification of the current required by the device, protect the battery and enhance the charging efficiency and safety.</p> <p>Parameter:<br />Input voltage: DC12~30V<br />Output voltage: automatically adjusted between 3.3~21V when connected to Type C compatible powered devices (input voltage should be higher than the output voltage, and input voltage should be higher than 20V if it is to trigger 20V fast charging)<br />Output power: PD 100W*2 ways<br />PD: 5V3A, 9V3A, 12V3A, 15V5A, 20V5A, 3.3~21V 5A<br />Conversion efficiency: 92%~98<br />Output voltage ripple: &lt;100mv<br />No-load current: &lt;4mA<br />Input overvoltage, undervoltage protection<br />Input overcurrent protection<br />Output overcurrent and short circuit protection<br />Over-temperature protection</p> <p>Supported charging protocols:<br />Support PD2.0, PD3.0 (PPS)<br />Support QC2.0, QC3.0<br />Support VOOC<br />Support SCP<br />Support AFC<br />Support MTK PE support BC1.2, Apple protocols</p> <p>Note: OPPO fast charging only Type A using OPPO original charging cable support, maximum power about 9V4.5A</p> <p>Package include:<br />Charging module *1<br /></p></div></div>
