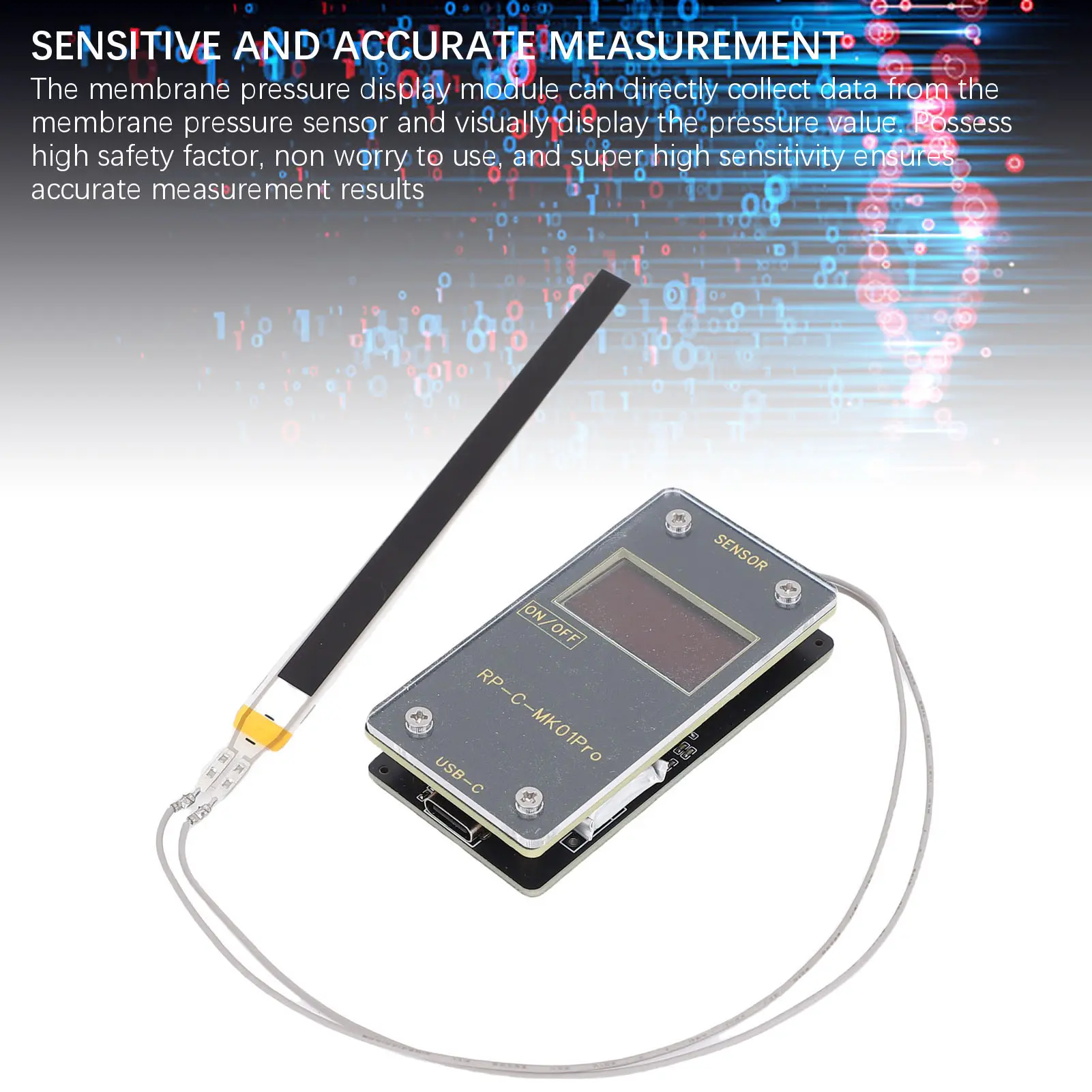

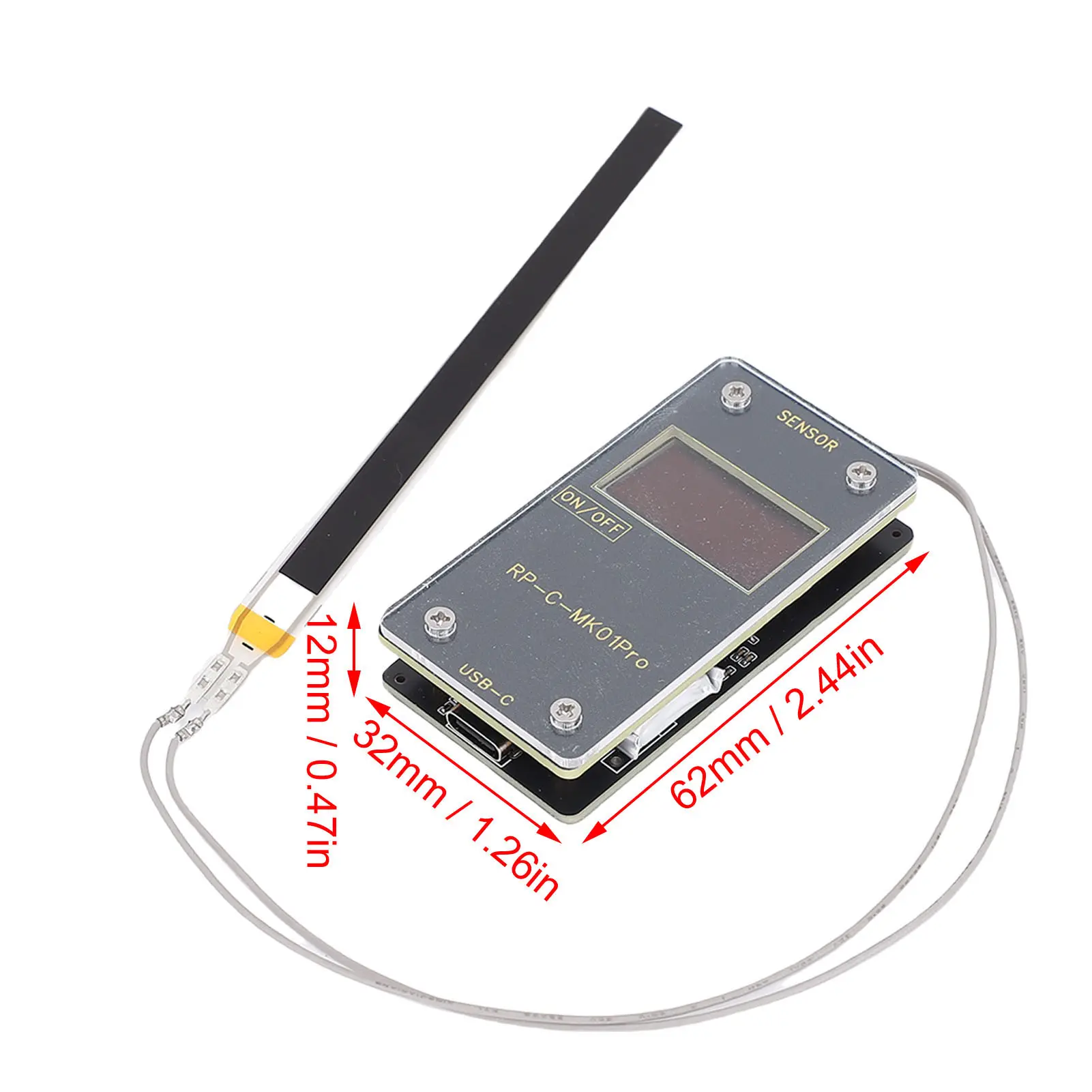

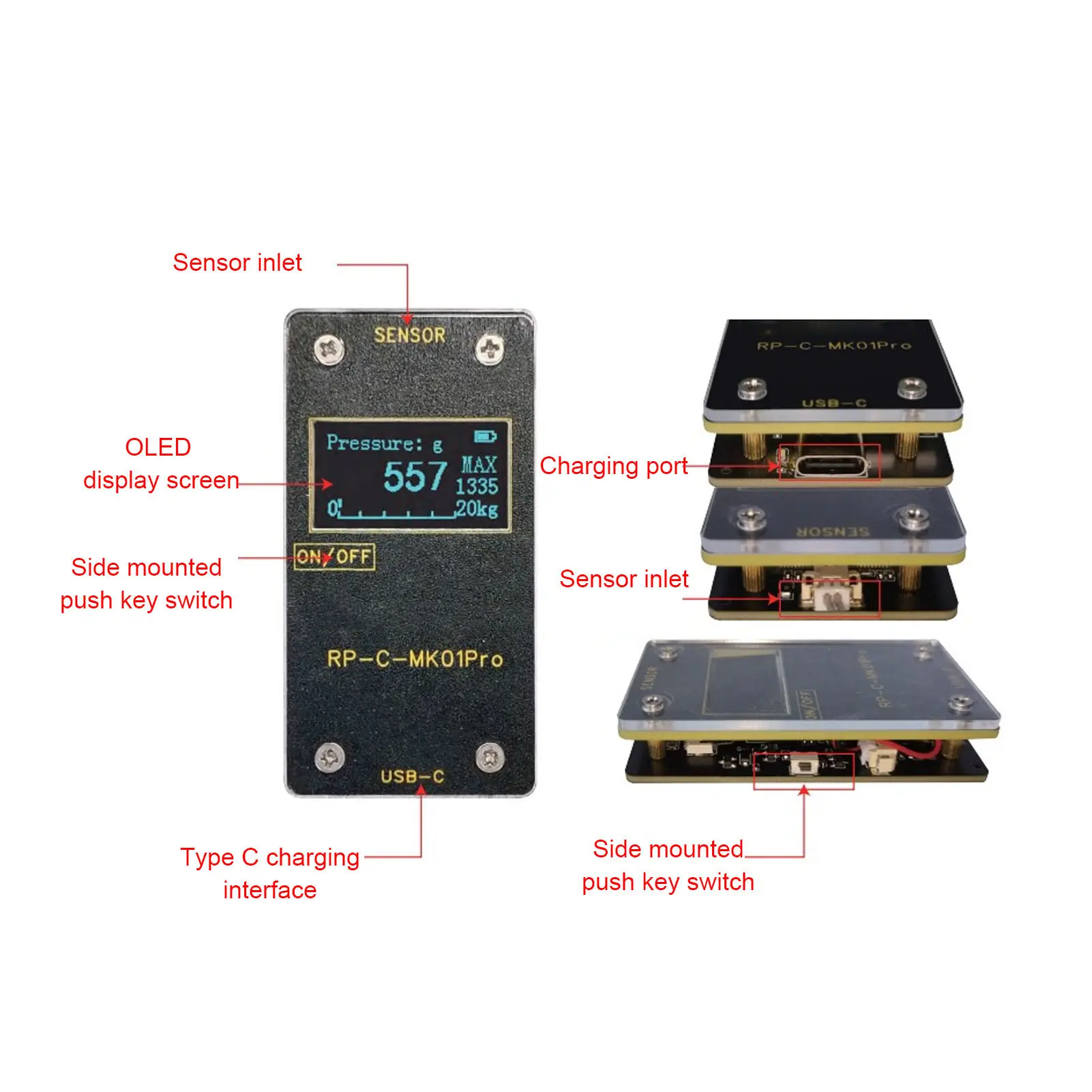

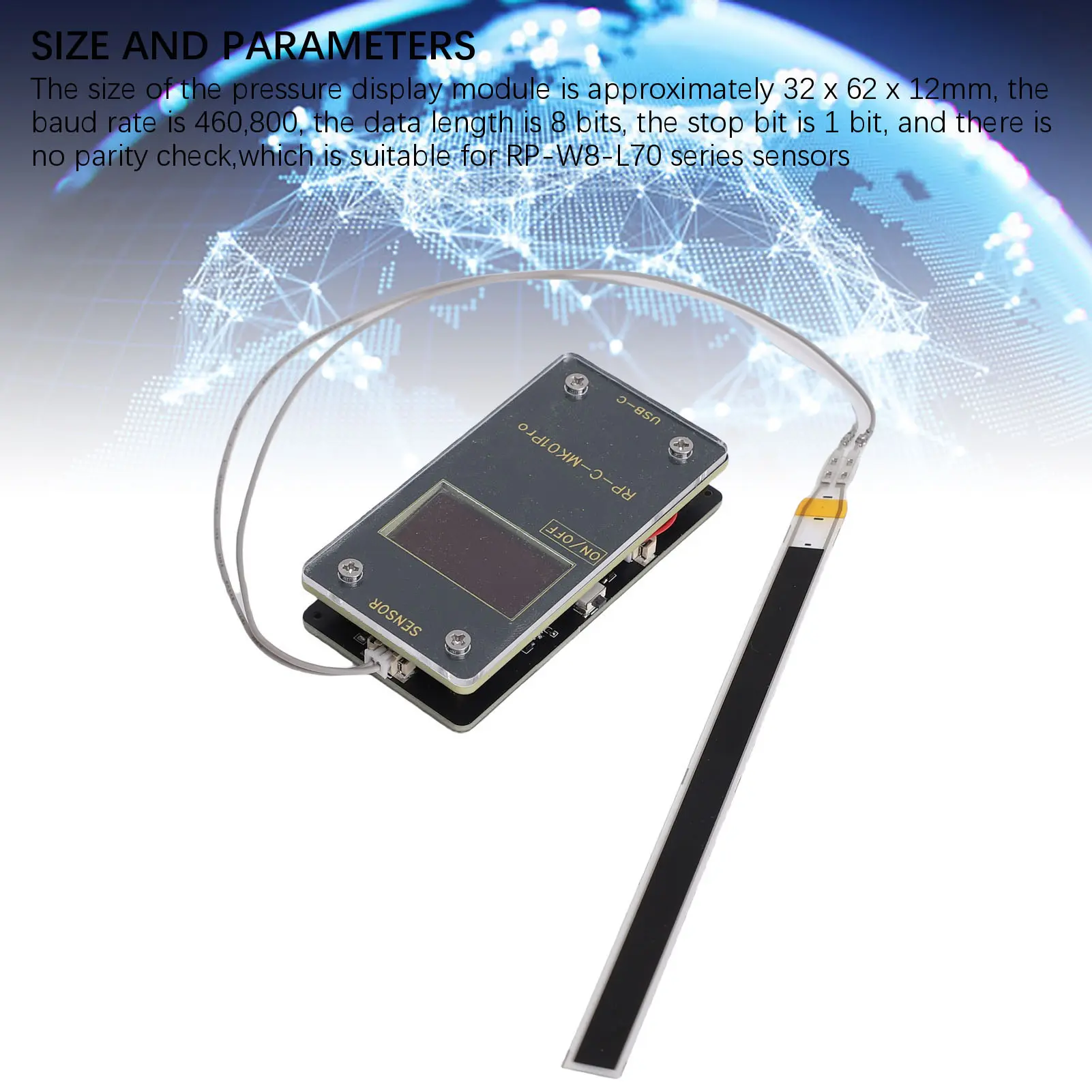

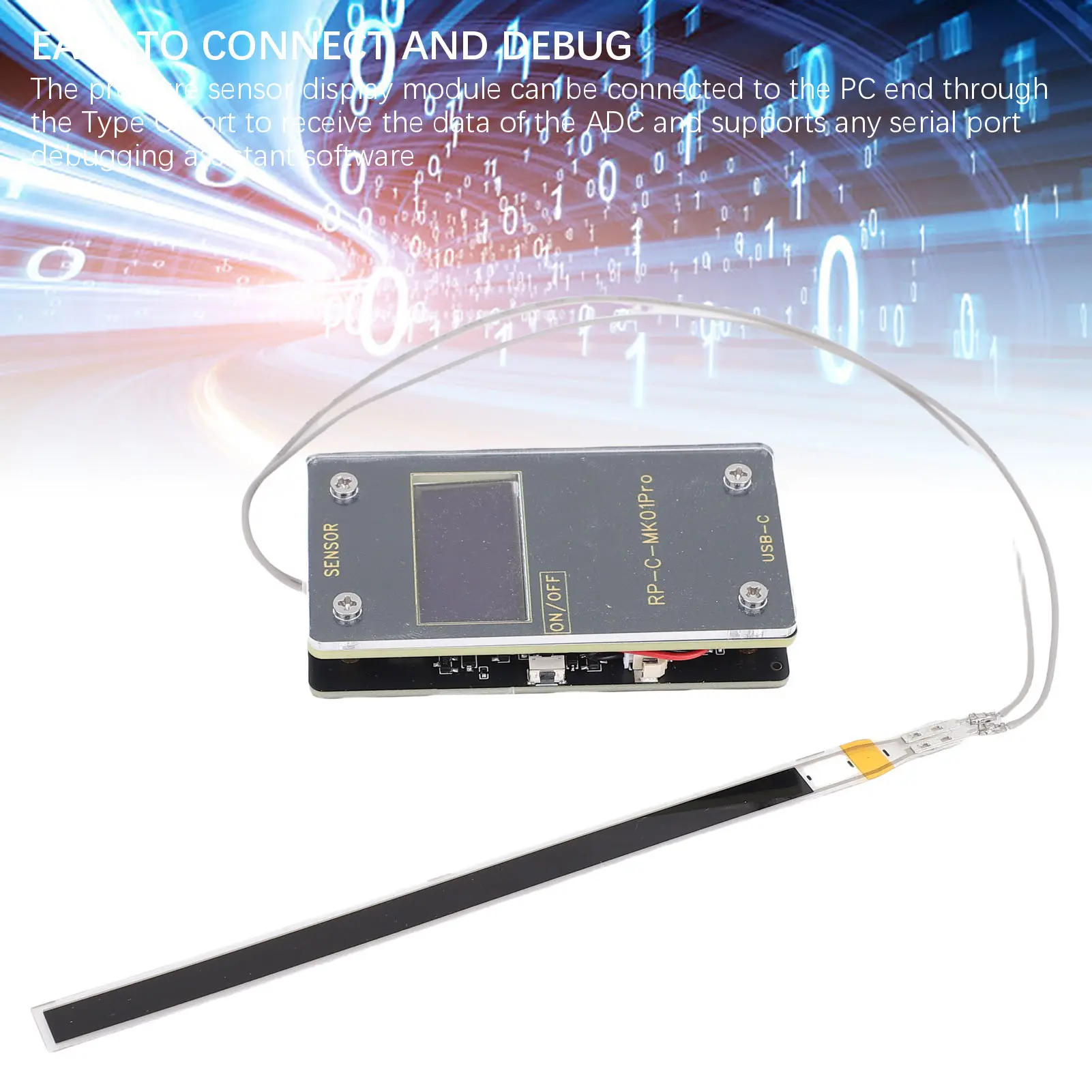

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p>Pressure Sensor Display Module Copper Clad Laminate Flexible Thin Film 32x62.6x12mm 3KG:<br/></p><p><span style="color: var(--w-e-textarea-color);"></span></p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. SENSITIVE AND ACCURATE MEASUREMENT: The membrane pressure display module can directly collect data from the membrane pressure sensor and visually display the pressure value. Possess high safety factor, non worry to use, and super high sensitivity ensures accurate measurement results<br/>2. MATERIAL AND STRUCTURE: The pressure sensor display module is made of copper clad laminate, and the display screen is made of organic glass. The readings are clear, accurate, efficient, beautiful and long lasting<br/>3. EASY TO CONNECT AND DEBUG: The pressure sensor display module can be connected to the PC end through the Type C port to receive the data of the ADC and supports any serial port debugging assistant software<br/>4. SIZE AND PARAMETERS: The size of the pressure display module is approximately 32 x 62 x 12mm, the baud rate is 460,800, the data length is 8 bits, the stop bit is 1 bit, and there is no parity check,which is suitable for RP-W8-L70 series sensors<br/>5. USB CHARGING: Low power pressure sensor is powered by li ion battery, with long battery life. Can be charged via a mobile phone charger and can last for 12 hours when fully charged<br/>6. PORTABLE AND VERSATILE: The pressure sensor display module is compact in size, easy to carry and store, and is often used for the measurement and display of flexible sensors(flexible, thin film pressure and force sensors)<p><br/></p><p><b>Specification:</b></p>Item Type: Pressure Sensor Display Module<br/>Size(LxWxH): Approx. 62 x 32 x 12mm / 2.44 x 1.26 x 0.47in<br/>Battery: 1 x Rechargeable li ion battery 200mAh<br/>Working Time: Approximately 12 hours at full charge<br/>Programming or Debugging Interface: SWD burning<br/>Communication or Charging Port: Type C<br/>Connector (with sensor): HX12501-2AWB<br/>Maximum Pressure Value: 3KG<br/>Pressure Unit Display: Grams(g), kilograms(kg), Newtons(N)<br/>Baud Rate: 460800<br/>Data Bits: 8 Bits<br/>Stop Bits: 1 Bit<br/>Parity Bit: No Parity<br/>Material: ABS, PCB, copper clad laminate, organic glass<br/><p><br/></p><p><b>How to Use:</b></p><div>Power On: Press the side key for 0.5 seconds to turn on, OLED screen lights up, white indicator light stays on.</div><div>Charging: Connect Type C, red indicator light stays on.</div><div>Switch Units: Press the side key twice to switch units.</div><div>Power Off: Press the side key for 3 seconds, OLED screen turns off, release the key.</div><p><br/></p><p><b>Package List:</b></p><p>1 x Pressure Display Module</p></div>:<p><br/><br/><br/><br/><br/><br/><br/><br/><br/>:<span style="color: var(--w-e-textarea-color);"><br/></span></p></div></div></div>
