ProMicro RP2040 Mini Development Board PI PICO Development Board Module Dual-Core Supports Mciro Python Type-C

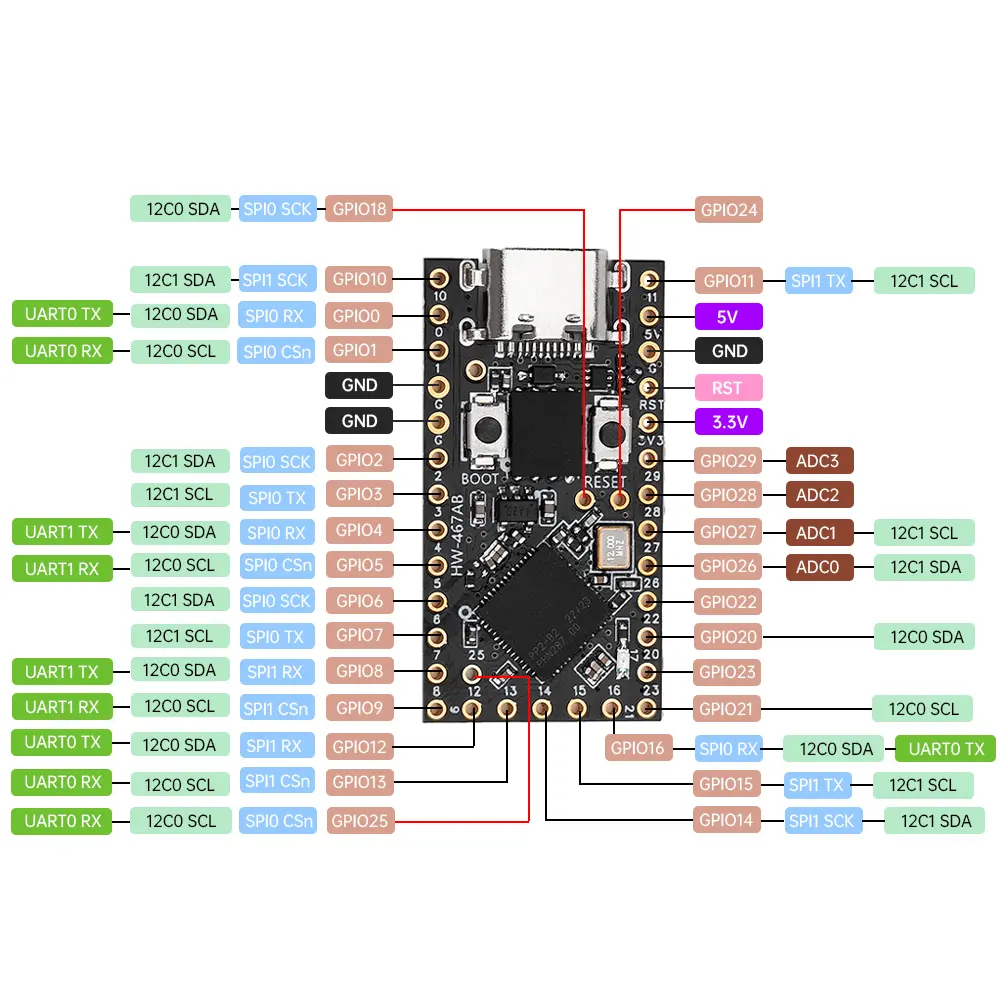

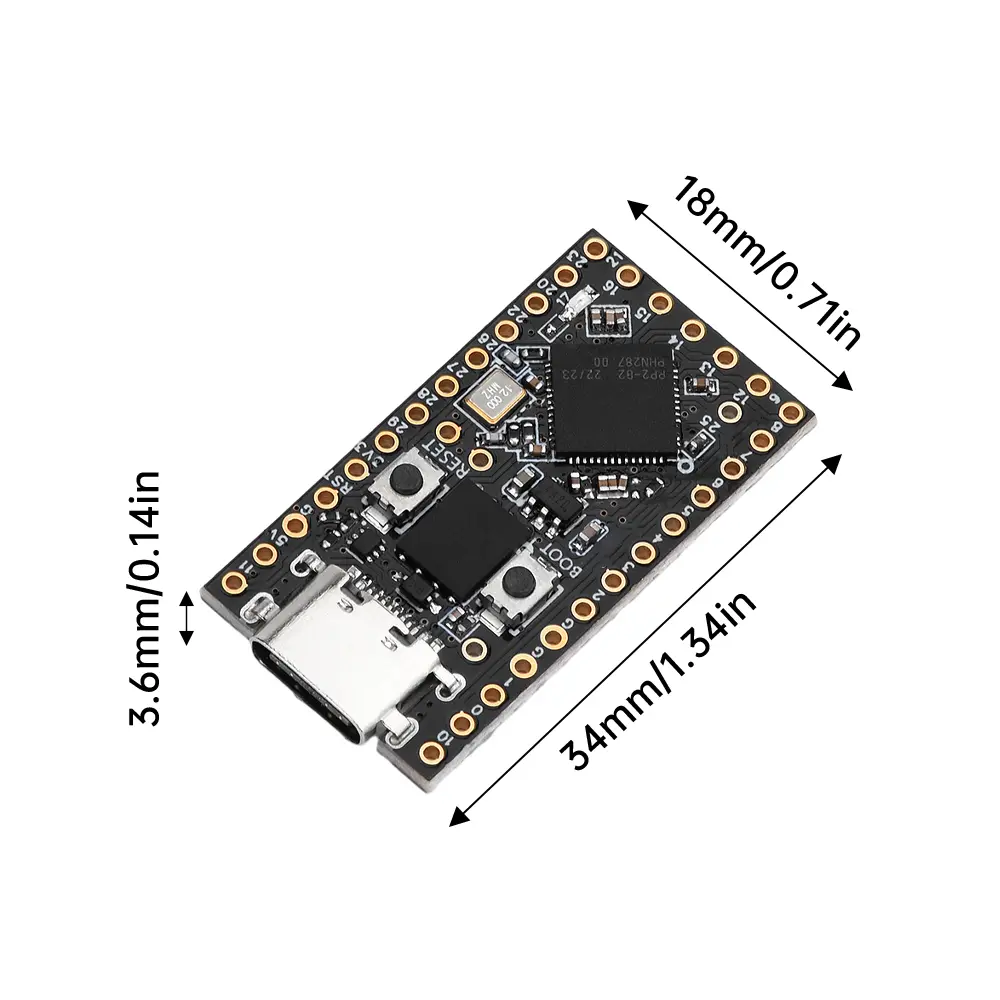

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. This module is an RP2040 mini development board, based on the Raspberry PiRP2040 as the core microcontroller. <br/>2. The onboard buttons with reset and BOOT functions are convenient to use. <br/>3. On board LED (GPIO17), available in two specifications: 4M and 16M. <br/>4. The development board supports application programming using MicroPython, and others. <br/>5. Supports peripherals, such as I2C, UART, SPI, etc., for easy development and application.</p><p>Parameter: <br/>USB type: Type-C interface <br/>Power supply voltage: USB 5V <br/>GPIO level: 3.3V <br/>SRAM: 264k bytes <br/>Flash: 2MByte+external 4M (32Mbit) <br/>This module leads out 28 GPIO pins, of which 4 can be used as analog inputs <br/>Size: 33mm * 18mm</p><p>Product List: <br/>1X development board <br/>3X Pin Headers<br/><br/></p></div></div><p><br/></p>

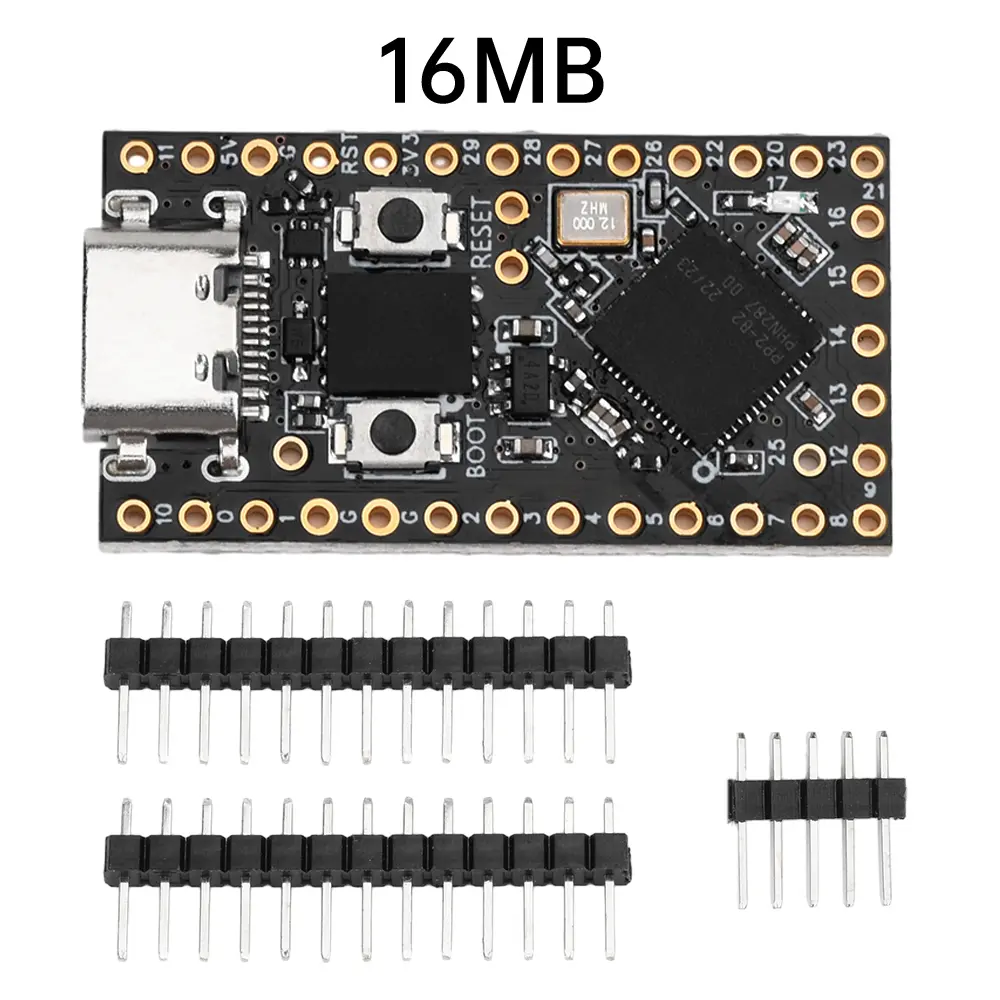

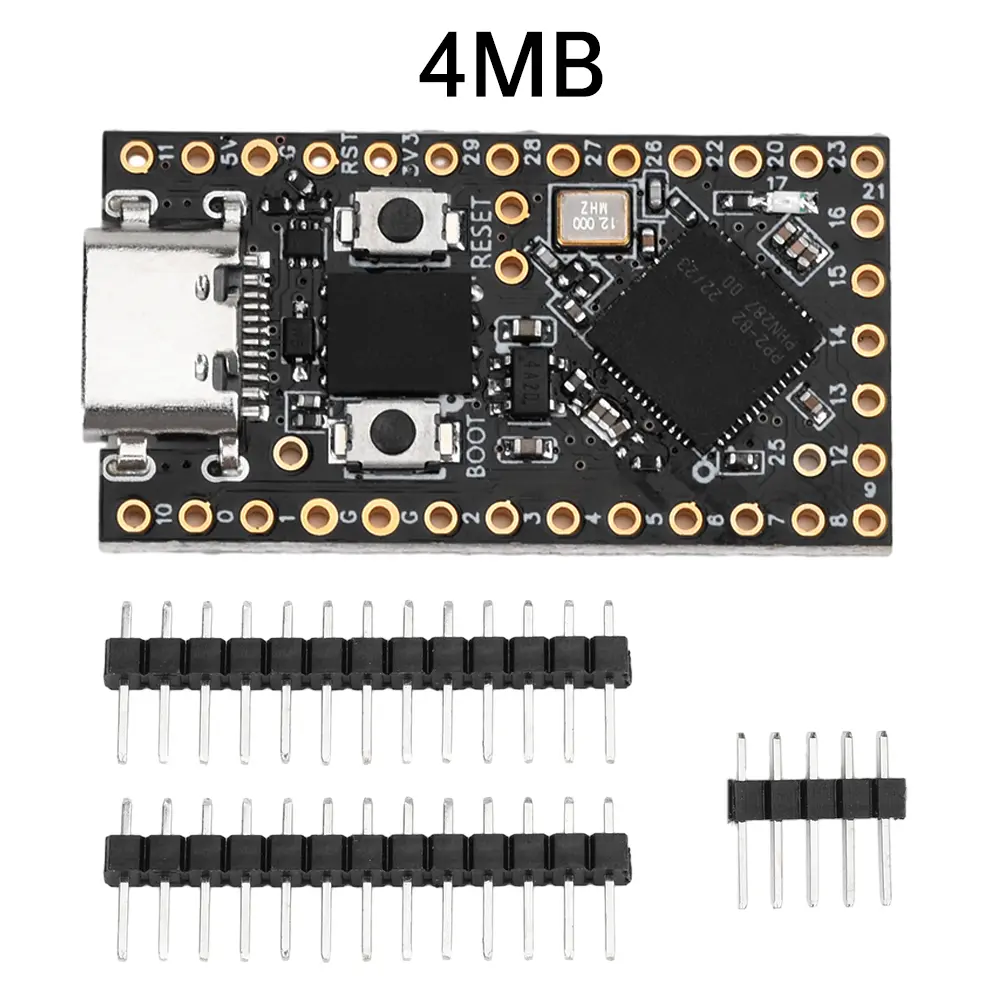

$12.83
$8.18
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. This module is an RP2040 mini development board, based on the Raspberry PiRP2040 as the core microcontroller. <br/>2. The onboard buttons with reset and BOOT functions are convenient to use. <br/>3. On board LED (GPIO17), available in two specifications: 4M and 16M. <br/>4. The development board supports application programming using MicroPython, and others. <br/>5. Supports peripherals, such as I2C, UART, SPI, etc., for easy development and application.</p><p>Parameter: <br/>USB type: Type-C interface <br/>Power supply voltage: USB 5V <br/>GPIO level: 3.3V <br/>SRAM: 264k bytes <br/>Flash: 2MByte+external 4M (32Mbit) <br/>This module leads out 28 GPIO pins, of which 4 can be used as analog inputs <br/>Size: 33mm * 18mm</p><p>Product List: <br/>1X development board <br/>3X Pin Headers<br/><br/></p></div></div><p><br/></p>
